UNIMO Technology UDR-4004 Quick Manual

4 channel, mpeg-4
Hide thumbs

Advertisement

Table of Contents

QUICK MANUAL
Real time Digital Recorder
(FULL D1 4 Channel, MPEG-4)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UDR-4004 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for UNIMO Technology UDR-4004

Summary of Contents for UNIMO Technology UDR-4004

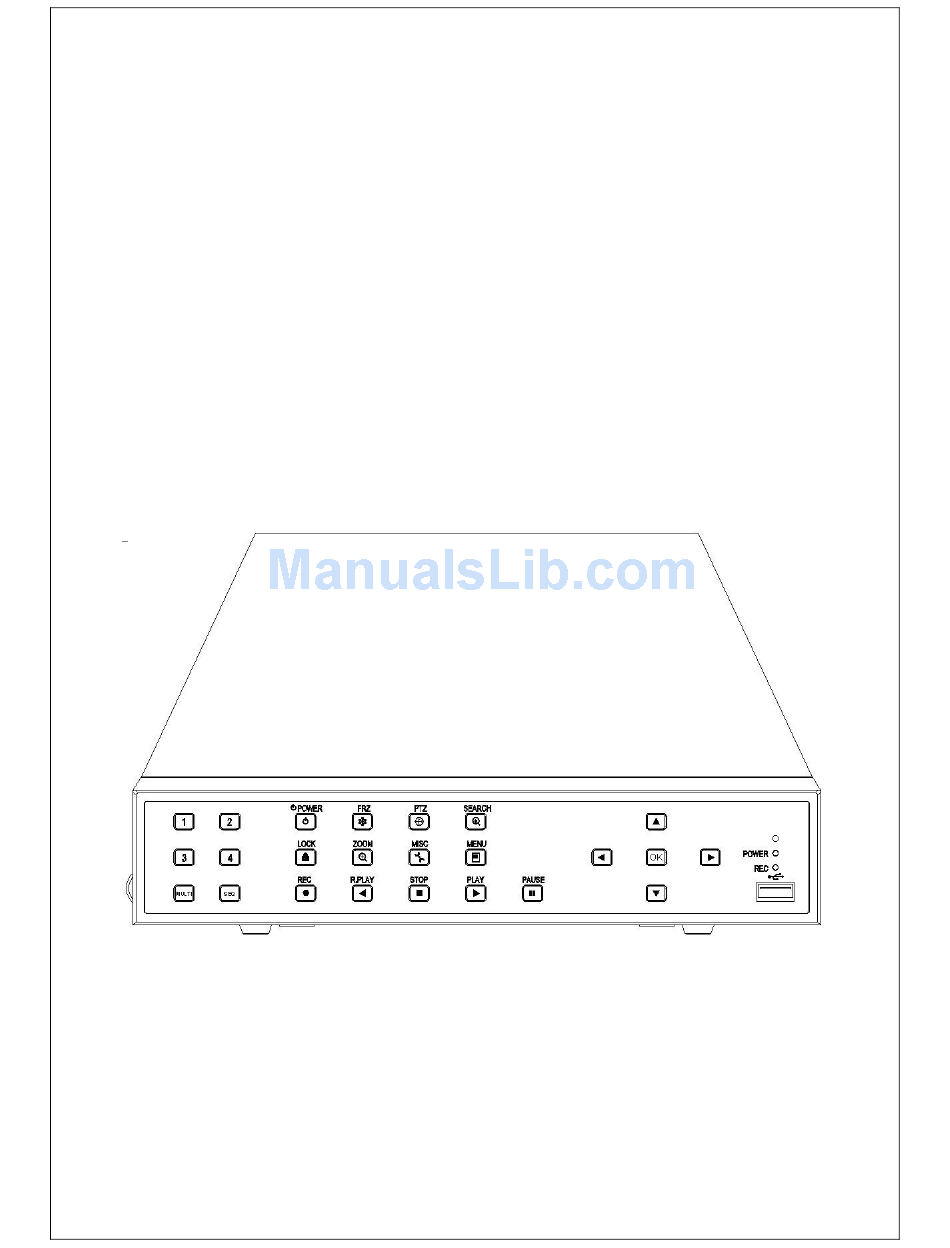

  • Page 1 QUICK MANUAL Real time Digital Recorder (FULL D1 4 Channel, MPEG-4)
  • Page 2 Safety Please follow this Please follow instruction to prevent any kind of damage or loss WARNING If you do not follow this instruction, it might bring severe damage or loss. The symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the unit.

  • Page 3: Safety Instructions

    Safety Instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
  • Page 4 Model 4ch DVR Image System NTSC, PAL selectable Multi-tasking Quadplex Video Channel 4CH Composite BNC Video Output 1CH Composite BNC, 1CH VGA Video Compression MPEG-4 Recording Resolution 720x480, 720x240, 360x240 (NTSC) / 720x576, 720x288, 360x288 (PAL) Recording Quality 4 Levels (Normal, Enhanced, Fine, Super Fine) 120 fps (NTSC) Max Display Speed 100 fps (PAL)

  • Page 5: Name, Function & Connections

    1 Components Power cable DSUB-25 connector for EXTENSION Port Quick Manual Software CD (RAMS, UniPlayer, Quick Installer and Operation Manual) 2 Name, function & connections 2.1 NUMERIC BUTTON 2.1.1 1,2,3,4 : It can be used for channel & password change. 2.1.2 MULTI : Selection Button for Screen Division for Live Viewing mode.

  • Page 6: Function Button

    2.1.2.3 Playback Mode : Selection button for Screen Division for playback of recording file. If you select specific one channel and in order to get back to each divided channel, you can just click ”MULTI” button. 2.1.3 SEQ : Sequential view under live mode. Viewing of all active video input channels sequentially.
  • Page 7 2.2.6 ZOOM : Zoom In/Out on the images during Live Viewing. 2.2.7 MISC : Miscellaneous functions 2.2.7.1 To substitute for the buttons that are placed on the remote control but that are not placed on the keypad (NET, OSD, Audio Mute, HDD, LOG). 2.2.7.2 If the button is pressed, windows appear, and user can select lower menu one by one.

  • Page 8: Led Display

    2.4.3 LEFT : Used to change possible values in the setup menu. Under PTZ control menu, used to move the camera left or used to do Zoom Out; At playback mode, used to decrease playback speed. 2.4.4 RIGHT : Used to change possible values in the setup menu. Under PTZ control menu, used to move the camera left or used to do Zoom In;...

  • Page 9: Rear Panel View

    3 Rear panel view MOUSE : This is USB memory stick terminal to back up HDD video screen. USB Mouse is available. ETHERNET : This is to connect 10/100 Base-T network connection port (RJ-45 port). EXTIONSION PORT : We provide you with SENSOR IN, AUX OUT, RELAY OUT, SERIAL OUT, RS-485 OUT, DC12V OUT and external AV IN/OUT.

  • Page 10: Basic Operation Procedures

    4 Basic operation procedures 4.1 POWER ON/OFF 4.1.1 Power ON : Using either the keypad or the remote control, press the “Power” button. (Note: In case of power outage or rare instance of system failure, the DVR will reboot automatically). The Power LED light will turn from red to green when it has turned on properly.
  • Page 11 recording mode. 4 channels can be selected at the same time. 4.5.2 Recording modes - Recording mode are made up of MANUAL, CONTINUOUS, MOTION, SENSOR, MOTION+SENSOR, SCHEDULE,. And CONTINOUS+EVENT mode. A red record light ( ) on the top LEFT corner of each channel will indicate DVR recording.

  • Page 12: Software Upgrade

    listed. Select Date and Time and Channel and you can find recording file list. Please click “OK” button to playback. 4.8 BACKUP : The DVR has various types of backup methods: 4.8.1 USB memory Stick - User can backup manually from internal HDD to USB memory stick by connecting one to USB port equipped at rear side of DVR.

  • Page 13: Basic Password

    5 Basic Password 5.1 DVR 5.1.1 : 111111 5.2 RAMS 5.2.1 ID : admin 5.2.2 PASSWORD : 111111 6 Terminal Information – EXTENSION PORT NAME DESCRIPTION NAME DESCRIPTION SENSOR IN 1 Serial(TTL) Rx TTL Level Serial SNESOR IN 2 Sensor Input Serial (TTL) Tx Output Port NO/NO Selectable...
