Summary of Contents for Eagle Eagle-E7

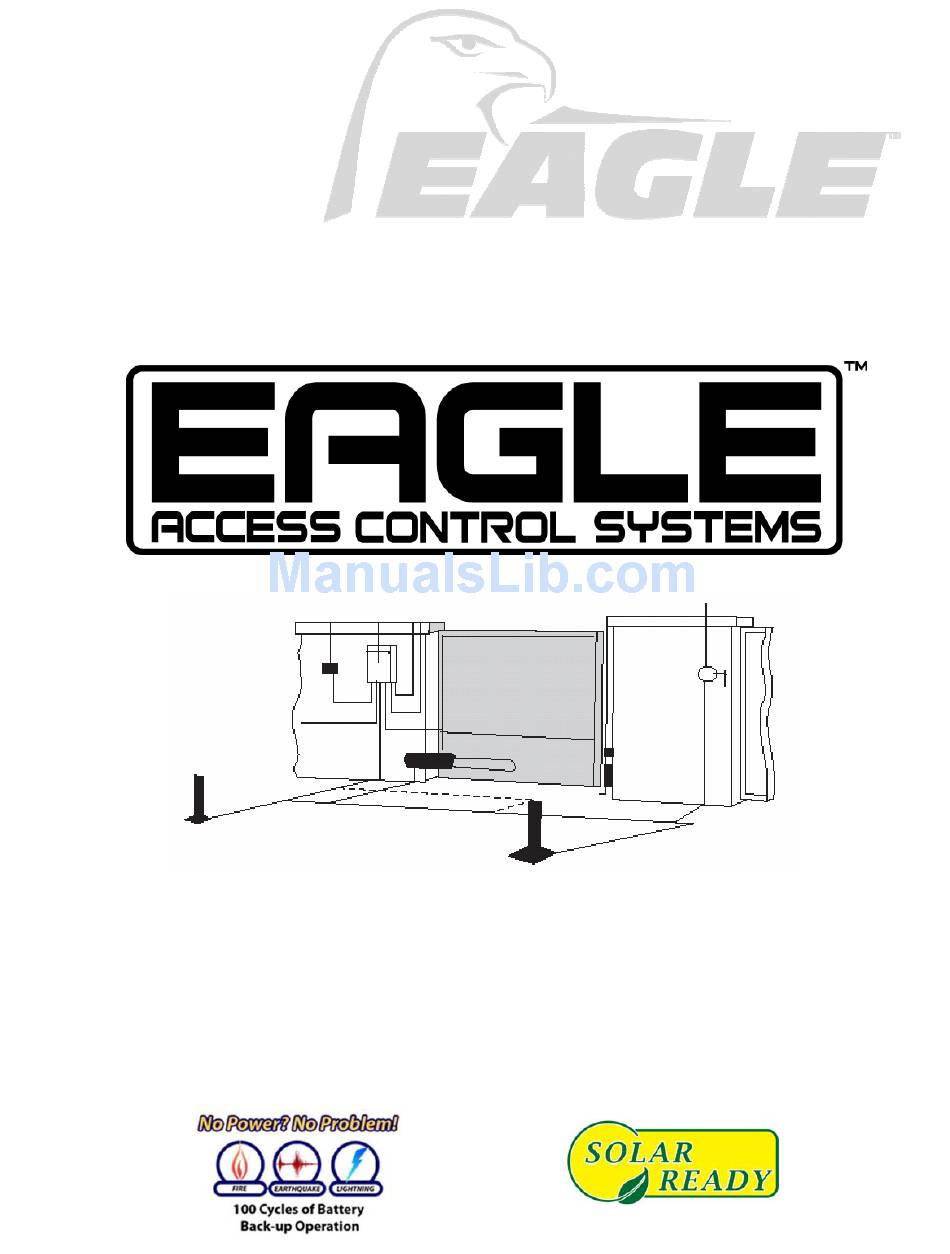

- Page 1 AGLE WING PERATOR Eagle-E7 Swing Gate Operator For Single & Dual Swing Gates to 16’ 700 lbs Eagle-E7 Short Swing Gate Operator For Single & Dual Swing Gates to 10’ 600 lbs...
-
Page 2: Table Of Contents
Wiring the Gate Operator Arm..........12 Auto Power Save Mode—Auxiliary Power ........ 13 Loop Detectors..............14 Power Fail Operation ............15 Battery Back-up Operation Complete Battery Discharge Hold-Open / Hold-Closed During Power Failure Feature Selector..............18 Eagle Access Control Systems, Inc. www.EagleOperators.com... -
Page 3: Important Safety Information
Eagle Access Control Systems, Inc. www.EagleOperators.com... - Page 4 Eagle Access Control Systems, Inc. www.EagleOperators.com...
-
Page 5: Ul 325 Classifications
Eagle Access Control Systems, Inc. www.EagleOperators.com... -
Page 6: Installation
Measurement C (below) is not greater than the value shown. Modification to the • pillar is required to comply with corresponding measurements. ODEL IMENSION AGLE 90° O 2-3/8” 130° O 2” -E-7 AGLE SHORT 90° O 4-3/4” 130° O 2-3/4” Eagle Access Control Systems, Inc. www.EagleOperators.com... -
Page 7: Measurements For Mounting
Increasing the B measurement decreases the opening angle resulting in slower peripheral • speed and greater motor thrust on the gate leaf. Increasing measurement A increases the opening angle resulting in greater peripheral • speed and reduced motor thrust on the gate leaf. Eagle Access Control Systems, Inc. www.EagleOperators.com... - Page 8 Connect to the front bracket. -E7 — G 16’ AGLE EAF TO Opening 90° 7-3/4” 7-3/4” 36-7/32” — G 10’ AGLE SHORT EAF TO Opening 90° 5” 5” 28-11/32” Outside Attach Rear Inside Bracket to the Supplemental Bracket, Eagle Access Control Systems, Inc. www.EagleOperators.com...
-
Page 9: Mounting Brackets
Note: With the gate in the closed position, attach the Anchoring Plate & Front Bracket to the gate leaf, making sure that the Front Bracket is level with the Back Bracket. Ensure proper dimension E (See Measurements Previous Page). Eagle Access Control Systems, Inc. www.EagleOperators.com... -
Page 10: Attaching Gate Operator Arm
Step 3. Mount to Front & Back Brackets Self–locking Nut (M8) Endless Screw Drive Pin (M8x10) Bushing Pin (M8x50) Pin (M8x38) Back Swivel Joint Note: Lubricating the Endless Screw Self-locking Nut (M8) Drive and Bushing is suggested. Use neutral grease. Eagle Access Control Systems, Inc. www.EagleOperators.com... -
Page 11: Adjusting Open & Close Limit
Loosen the Closed Limit Micro-switch Assembly. Slide the Micro-switch Assembly along the Micro-switch Bar until it is in serted by contact on the Micro-switch Activating Sled. Tighten the Micro-switch Assembly using the respective screws. Eagle Access Control Systems, Inc. www.EagleOperators.com... -
Page 12: Wiring The Gate Operator Arm
Dual Gate Operation Motor 2 Motor 1 The Eagle-E7 electro-mechanical swing arm includes color coded wire for convenient connection to the Diamond-DC Controller. On dual gate application, the electro-mechanical farthest from the control is generally considered Motor 2 and has 14’ of control wire. The arm clos- est to the controller is designated Motor 1 and has 8’... -
Page 13: Auto Power Save Mode-Auxiliary Power
Note: Some devices, like keypads, card readers and telephone entry require their own, isolated power trans- former. Eagle recommends putting such devices on separate e power transformer as direct by the manufac- turer. Eagle Access Control Systems, Inc. www.EagleOperators.com... -
Page 14: Loop Detectors
• Fast Blink = Shorted Loop Wire just for proper • Slow Blink = Open Loop sensitivity. Red LED (Lower LED) • On = Vehicle Detection Note: Eagle Brand Plug-in Loop De- tectors are designed as “fail-Safe.” Eagle Access Control Systems, Inc. www.EagleOperators.com... -
Page 15: Power Fail Operation
2. Turn Switch 1 to the OFF position RESET Note: . When AC power fails, the gate will remain opera- ESULT Press RESET after each programming tional until AC power is restored or battery voltage drains change minimum (see page 17). Eagle Access Control Systems, Inc. www.EagleOperators.com... -
Page 16: Complete Battery Discharge
PWR FAIL OPERATION Complete Battery Discharge: HOLD OPEN Switch 2 POWER FAIL OPEN PWR FAIL OPERATION Complete Battery Discharge: HOLD CLOSED Switch 2 POWER FAIL CLOSE Eagle Access Control Systems, Inc. www.EagleOperators.com... -
Page 17: Hold-Open / Hold-Closed During Power Failure
Switch 2 POWER FAIL . When AC power fails, the gate will move to the full closed posi- ESULT tion and remain open until AC power is restored. RESET Note: Press RESET after each programming change Eagle Access Control Systems, Inc. www.EagleOperators.com... -
Page 18: Feature Selector
#13 & #14 Connection for 2-wire Master Slave Communication Safety & Convenience • Plug-in Loop Detectors & Loop Wire Connectors • Open, Stop, Close controls on board • ERD Adjustable in the Opening and Close Direction of travel Eagle Access Control Systems, Inc. www.EagleOperators.com... - Page 19 Eagle Access Control Systems, Inc. 13745 Saticoy Street Van Nuys, CA 91402 Tel: 818-779-0920 Fax: 818-779-0093 Toll Free: 800-708-8848 www.EagleOperators.com...
