- Page 1 BT1000, BT1002, BT1004 & BT1005 NSTRUCTIONS RETRO RADIO RRRRADIO INSTRUCTIONS BIKETRONICS INC.
- Page 2 Splash cover installed Page 2 of 10...
-
Page 3: Tools Required
Even the speed sensor signal is used to automatically control the volume! Should you have questions regarding RetroRadio, feel free to call Biketronics Inc. An advantage of using the Sony is the ease to incorporate the newest audio devices such as USB, satellite radio, GPS, Bluetooth or iPOD/MP3 units with the radio system at reasonable costs. -
Page 4: General Information And Notes
For 1988 and later models, check out the new Splash Covers from Biketronics. The RetroRadio kit is plug–n-play. Do not drill, file or cut. Call Biketronics if you are not sure about installation. - Page 5 Remove radio face from radio Radio Cage - Remove and discard radio cage Remove & discard Black bezel plate is shown after it is slid onto radio from rear and before it is butted against radio trim ring. Textured side of bezel plate is installed facing front of radio.

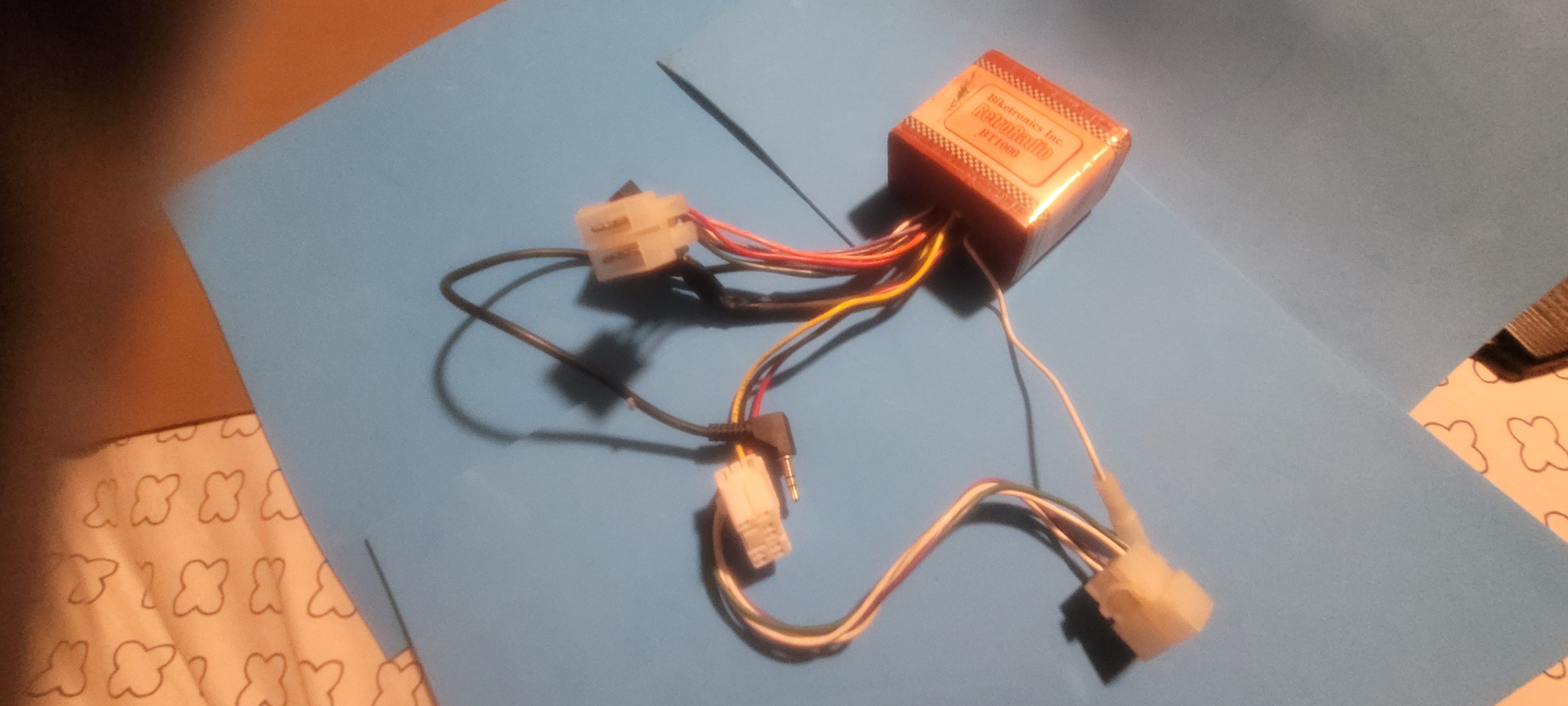

- Page 6 Hard wire connection for radio harness to Biketronics (Orange) module If radio wire harness or Biketronics (Orange) module does not have attached White connector, these wires can be connected by soldering or crimping. Use shrink tubing or high quality electrical tape to insulate the joints. It is important to have good electrical connections to avoid problems.
- Page 7 Light Green/white stripe Speaker negative Item #1 - Plug Black cable from Biketronics (Orange) module into jack in rear of radio. Cable must point straight up toward windscreen. Item #2 - Plug antenna lead in rear of radio.
-
Page 8: Troubleshooting
If handle-bar radio controls start to operate erratically, disconnect negative battery cable from Harley battery for 5 minutes and reconnect. If the problem still persist call Biketronics for assistance. Addition of separate ground wire between radio and bike frame can cure erratic handle-bar controls of radio. - Page 9 Automatic Volume Control (AVC) Programming Function 1988-1995 Harley 1996-2011 Harley Set AVC Left button - Push in/hold for 2 seconds, release Step #1 Exception – BT1005 module only – Push in/hold for 5 seconds, release Left button - Push right and release Left button - Push up and release 2-7 times (typical) 2-7 times (typical)
- Page 10 Biketronics Inc. reserves the right to change the design of its products without any obligation to modify any previous product.
