- Page 1 ZX1Se ZX2Se ZX5Se Document No.996-182-000-1, Revision 01 user ZX10Se manual...
-
Page 2: Table Of Contents
ZX Fire Alarm Control Panel MORLEY-IAS Table of Contents INTRODUCTION ..........................1 ...........................1 OTICE .......................1 ARNINGS AND AUTIONS ......................1 ATIONAL PPROVALS USER CONTROL LEVELS......................2 ........................2 EVEL EFINITION ........................2 ASSWORDS CONTROLS AND DISPLAYS .....................3 ........................3 ONTROL KEYS LED I .....................4 RONT ANEL NDICATIONS ..................6... - Page 3 MORLEY-IAS ZX Fire Alarm Control Panel LEVEL 3 PROGRAMMER FUNCTIONS .................. 21 LOG BOOK ..........................22 Table of Figures 1 - ZX1S & ZX2S ................3 IGURE ONTROLS AND ISPLAYS 2 - ZX5S & ZX10S ................ 3 IGURE ONTROLS AND...
-
Page 4: Introduction
996-175-000-X) for information on programming and Level 3 functions. • The ZX1Se, ZX2Se, ZX5Se and ZX10Se Fire Alarm Control Panels are 1, 1-2, 1-5 and 1-10 loop panels for use with analogue addressable devices from the following detector manufacturer ranges:... -
Page 5: User Control Levels
2 User Control Levels 2.1 Level Definition • The ZX1Se, ZX2Se, ZX5Se and ZX10Se Fire Alarm Control Panels have three user control levels. • At all three levels, the LED Displays indicate the condition of the installation, the Zone LED Displays indicate the location of any fire alarm or fault and the alphanumeric display gives more detailed fire alarm or fault information. -
Page 6: Controls And Displays

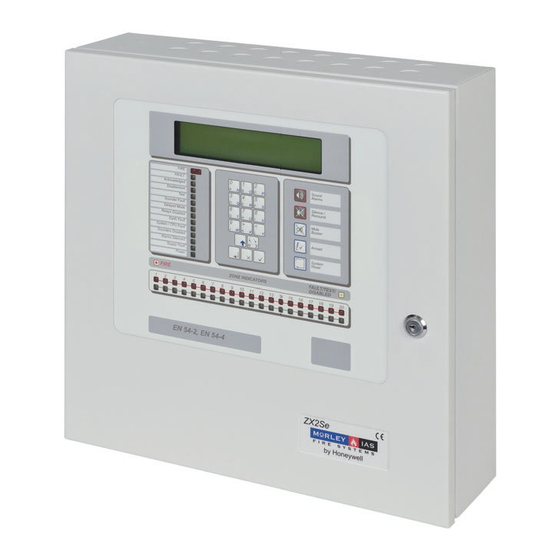

Program / Interactive Keys Zone LED Display Optional Zone LED Display Figure 1 - ZX1Se & ZX2Se Controls and Displays Figure 2 - ZX5Se & ZX10Se Controls and Displays Key Legend Symbol Function Sound Alarms Press to Turn on ALL Sounder Outputs (i.e. evacuate building manually). -
Page 7: Front Panel Led Indications
MORLEY-IAS ZX Fire Alarm Control Panel Key Legend Symbol Function 0 to 9 Press to enter numbers 0-9 or letters A-J (N-W with Shift) > Press to scroll through fire alarms or faults manually on the display or letter K (X with Shift) <... -
Page 8: Able 3 - Led Functions
ZX Fire Alarm Control Panel MORLEY-IAS Indicator Colour Function What to do The panel has detected a fire alarm Once a false alarm has been FIRE condition, or the ‘Sound Alarms’ key confirmed correct the condition has been pressed. causing the alarm and then perform a panel reset. -
Page 9: Alphanumeric Display Indications
MORLEY-IAS ZX Fire Alarm Control Panel 3.3 Alphanumeric Display Indications • The alphanumeric liquid crystal display gives 160 characters of information on a 4-line display. The display is illuminated to assist viewing under dim ambient light conditions. • When the numeric keypad is not in use, the display will revert to automatically scrolling through any fire alarm or fault conditions present on the panel. -
Page 10: Level 1 Display / Control Functions
If more than one fire alarm condition is present, the alphanumeric display will either automatically scroll through or, can be manually scrolled through, the fire alarms registered. 4.3.1 Override Delays • If the ZX1Se, ZX2Se, ZX5Se and ZX10SE control EN54-2 7.11d panels are configured to operate with delays to EN54... -
Page 11: Level 2 Control Functions
MORLEY-IAS ZX Fire Alarm Control Panel 5 Level 2 Control Functions • All of the functions and operational features described for Level 1 user are available and are the same for a Level 2 user. • To enable Level 2 operation, press the SHIFT key. The display will then show: 03-Mar-2007 11.38... -
Page 12: Battery Low / Charger Failure
ZX Fire Alarm Control Panel MORLEY-IAS 5.1.2 Battery Low / Charger Failure • If the battery becomes disconnected the panel shows a ‘Battery Missing’ message. If the battery voltage is less than 21V DC or if there is a failure in the circuitry that charges the battery, then the panel shows a ‘Battery Low / Charger Fail’... -
Page 13: User Option Functions
MORLEY-IAS ZX Fire Alarm Control Panel 5.4 User Option Functions 03-Mar-2007 11.38 All devices are within working limits [ACTIVE] 1)Commission 2)Test 3)Time 4)Enable 5)Disable 6)Print 7)View • The optional functions available to the user at Level 2 are as follows:... -
Page 14: Led Test
ZX Fire Alarm Control Panel MORLEY-IAS 5.4.1.1 LED Test • To select the option, press ‘1’. • To terminate the test, press No. • The panel will flash all of the indicators on the LED Display and will step through all of the Zone FIRE and FAULT indicators and then return to the menu after a period of approximately 45 secs. -
Page 15: Terminating The Test
MORLEY-IAS ZX Fire Alarm Control Panel • The Walk Test is then entered and the display will show a scrolling ‘W’ alternating with a ‘Press No to Exit’ on the bottom line: Walk Test Test from zone 12 zone 15... -
Page 16: Output Test
ZX Fire Alarm Control Panel MORLEY-IAS Walk Test [ACTIVE] 1)Commission 2)Test 3)Time 4)Enable 5)Disable 6)Print 7)View • To cancel the walk test, re-select the Test / Zones option. The display will then return to the normal walk test view, showing the current walk test in operation. For example:... -
Page 17: Audible Indicator Test
MORLEY-IAS ZX Fire Alarm Control Panel 03-Mar-2007 11.38 All devices are within working limits RELAY OPERATED The onboard sounder circuits are constantly monitored for correct end-of-line termination. A sounder error will be reported if one of the sounders is left in the operated test state for more than 5 seconds. -
Page 18: Enable Or Disable Zones
------------------------------------------ Loop _ • Enter the required loop number (1 for ZX1Se, 1-2 for ZX2Se, 1-5 for ZX5Se or 1-10 for ZX10Se) and the display will prompt for the numeric address of the device: User Manual Document No. 996-182-000-1, Revision 01... -
Page 19: Enable Or Disable Keys
MORLEY-IAS ZX Fire Alarm Control Panel 03-Mar-2007 11.38 All devices are within working limits Loop 2 Address _ _ _ • Enter the address of the device required. If the address is less than 3-digits long (for example address 34), this can be entered as either 034 or 34 followed by ENTER. -
Page 20: Configure Day Mode Delay Period / Disable Operation
ZX Fire Alarm Control Panel MORLEY-IAS • The user may enable or disable the operation of the Delayed Day Mode through the Enable or Disable Menu. • To select Delayed Day Mode, press ‘4’ from the Enable or Disable Menus. The display now presents two... -
Page 21: Enable Or Disable Delays
MORLEY-IAS ZX Fire Alarm Control Panel 03-Mar-2007 11.38 All devices are within working limits 1)Sounders 2)Relays ENABLED ENABLED • The DISABLEMENT and either the SOUNDERS DISABLED or RELAYS DISABLED LED indicators will be illuminated when the outputs are disabled. A warning message will also be shown on the alphanumeric display. -
Page 22: View
ZX Fire Alarm Control Panel MORLEY-IAS • This menu controls the operation of the optional front panel printer on the ZX5Se and ZX10Se panels only. The user options are as follows: Devices: Prints out the present status and text assigned to all devices on a loop. -
Page 23: Delayed Day Mode Operation
MORLEY-IAS ZX Fire Alarm Control Panel 6 Delayed Day Mode Operation • The panel can be configured to operate in a delayed day mode during the daytime for any specified zone. • During this time, high sensor signals received from a detector will generate a fire alarm message on the panel but delay the ringing of the sounders. -
Page 24: Level 3 Programmer Functions
ZX Fire Alarm Control Panel MORLEY-IAS 7 Level 3 Programmer Functions • Level 3 functions are for service engineer or installation company use only and, therefore, are not covered by this manual. User Manual Document No. 996-182-000-1, Revision 01 Page 21... -
Page 25: Log Book
MORLEY-IAS ZX Fire Alarm Control Panel 8 Log Book • In accordance with best practice, the user should maintain a logbook to record all events resulting from or affecting the system. The logbook should be kept in a place accessible to authorized persons (preferably near the main panel. -
Page 26: Table 7 - Logbook Event Data
ZX Fire Alarm Control Panel MORLEY-IAS EVENT DATA Date Time Counter Event Action Required Date Initials Reading Completed Table 7 - Logbook Event Data User Manual Document No. 996-182-000-1, Revision 01 Page 23... - Page 27 MORLEY-IAS ZX Fire Alarm Control Panel NOTES Page 24 Document No.996-182-000-1, Revision: 01 User Manual...
- Page 28 © MORLEY-IAS. All rights reserved. ® The MORLEY-IAS Logo is a registered trademark. MORLEY-IAS Fire Systems, Charles Avenue, Burgess Hill. West Sussex. RH15 9UF. England Web site: www.morleyias.co.uk...
