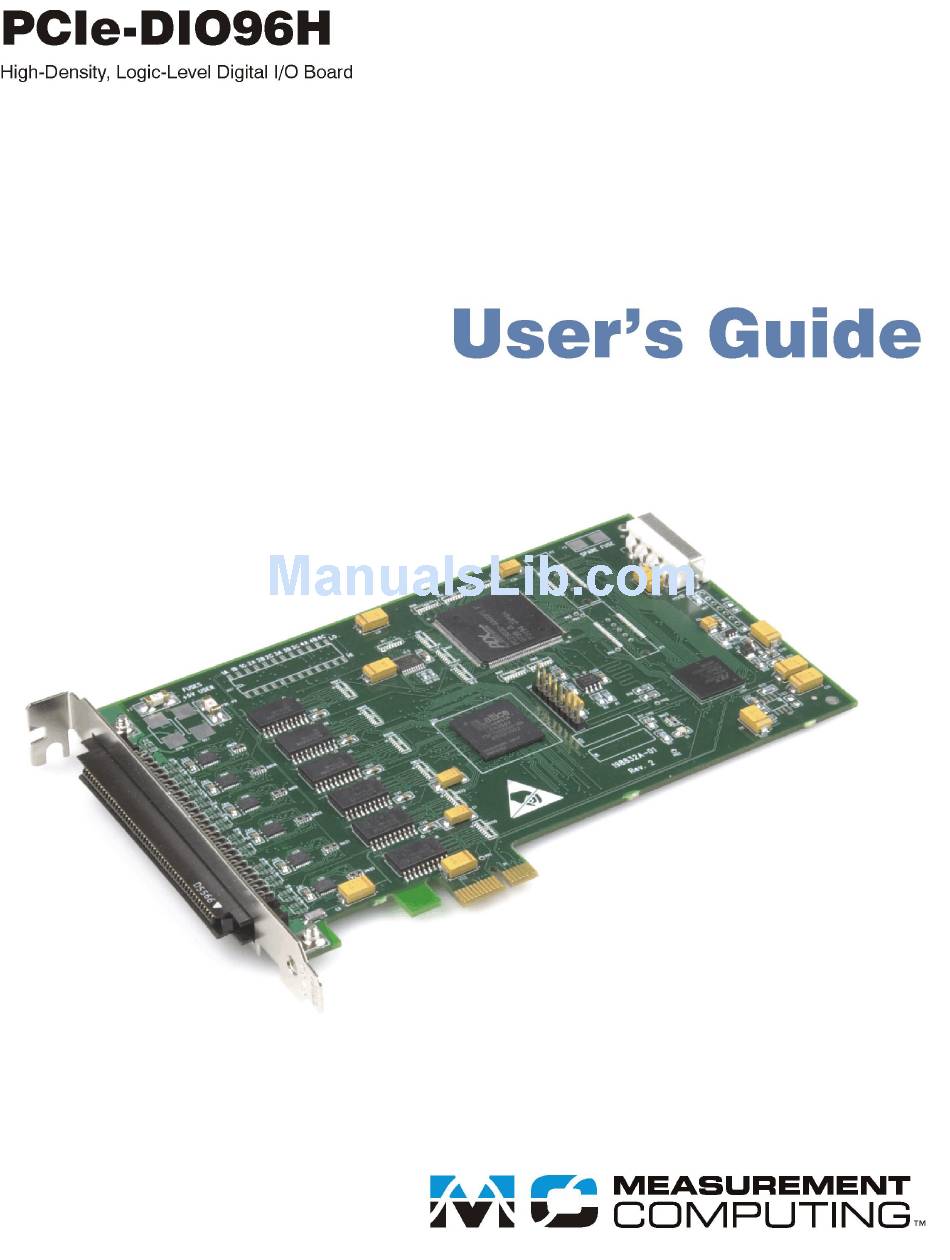

- Page 2 PCIe-DIO96H High-Density, Logic-level, Digital I/O User's Guide ™ Document Revision 1, September, 2008 © Copyright 2008, Measurement Computing Corporation...
- Page 3 Measurement Computing Corporation, nor its employees shall be liable for any direct or indirect, special, incidental or consequential damage arising from the use of its products, even if Measurement Computing Corporation has been notified in advance of the possibility of such damages. HM PCIe-DIO96H.doc...
- Page 4 Trademark and Copyright Information TracerDAQ, Universal Library, Harsh Environment Warranty, Measurement Computing Corporation, and the Measurement Computing logo are either trademarks or registered trademarks of Measurement Computing Corporation. Windows, Microsoft, and Visual Studio are either trademarks or registered trademarks of Microsoft Corporation LabVIEW is a trademark of National Instruments.
-
Page 5: Table Of Contents
Overview: PCIe-DIO96H features........................8 Software features ..............................8 PCIe-DIO96H block diagram ..........................9 Chapter 2 Installing the PCIe-DIO96H ......................... 10 What comes with your PCIe-DIO96H shipment? .................... 10 Hardware ..................................10 Additional documentation ..............................10 Optional components ...............................10 Unpacking the PCIe-DIO96H ........................... 11 Installing the software ............................ -
Page 6: Preface
About this User's Guide What you will learn from this user's guide This user's guide explains how to install, configure, and use the PCIe-DIO96H so that you get the most out of its digital I/O features. This user's guide also refers you to related documents available on our web site, and to technical support resources. -
Page 7: Register-Level Programming
About this User's Guide Register-level programming If you need to program at the register level in your application, you can find more information in the Register Map for the PCIe-DIO96H. This document is available at www.mccdaq.com/registermaps/RegMapPCIe- DIO96H.pdf. Only experienced programmers should try register-level programming. -
Page 8: Introducing The Pcie-Dio96H
The PCIe-DIO96H provides 96 digital I/O lines in four independent port groups. Each digital port group is divided into two 8-bit ports and two 4-bit ports. The PCIe-DIO96H emulates an 82C55 chip in Mode zero. You can configure each port independently for either input or output. -
Page 9: Pcie-Dio96H Block Diagram
PCIe-DIO96H User's Guide Introducing the PCIe-DIO96H PCIe-DIO96H block diagram PCIe-DIO96H functions are illustrated in the block diagram shown here. 5V Power Spare +5V (VDD) To +5V components Molex Fuse Connector (Note: Outputs to CPLD are 3.3V with 5V inputs) Fuse... -
Page 10: Installing The Pcie-Dio96H
In addition to this hardware user's guide, you should also receive the Quick Start Guide (available in PDF at www.mccdaq.com/PDFmanuals/DAQ-Software-Quick-Start.pdf). This booklet supplies a brief description of the software you received with your PCIe-DIO96H and information regarding installation of that software. Please read this booklet completely before installing any software or hardware. -
Page 11: Unpacking The Pcie-Dio96H
3. Insert the PCIe-DIO96H into an unused x1 PCIe expansion slot. The PCIe-DIO96H is designed to install into an x1 slot. However, you can also install the board into an unused x4, x8, or x16 PCIe slot. -
Page 12: Connecting The Board For I/O Operations
SSR-RACK24 SSR-RACK48 The PCIe-DIO96H has a 100-pin, high-density Robinson-Nugent male connector. You can use the C100FF-x cable to split the 100 I/O lines into two 50-pin cables (see Figure 2 on page 14). Board connector pins 1 to 50 are mapped directly to pins 1 to 50 on the C100FF-x cable's first 50-pin connector. -
Page 13: Connector Pin Out
PCIe-DIO96H User's Guide Installing the PCIe-DIO96H Connector pin out Main I/O connector pin out Signal name Signal name +5V User Output* +5V User Output* THIRDPORTC Bit 0 FIRSTPORTC Bit 0 THIRDPORTC Bit 1 FIRSTPORTC Bit 1 THIRDPORTC Bit 2 FIRSTPORTC Bit 2... -
Page 14: Cabling
PCIe-DIO96H User's Guide Installing the PCIe-DIO96H Cabling Cable is labeled “Pins 1-50”. The red stripe identifies pin # 1 Cable is labeled “Pins 51-100”. The red stripe identifies pin # 51 Figure 2. C100FF-x cable Caution! When connecting the cable to the board's I/O connector, make sure that the arrow indicating pin 1 on the board connector lines up with the arrow indicating pin 1 on the cable connector. -
Page 15: Field Wiring And Signal Termination
PCIe-DIO96H User's Guide Installing the PCIe-DIO96H Field wiring and signal termination You can use the following screw terminal boards to terminate field signals and route them into the PCIe- DIO96H using the C100FF-x cable. CIO-MINI50 – 50-pin screw terminal board. Details on this product are available on our web site at www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=258. -
Page 16: Chapter 3 Functional Details
The PCIe-DIO96H board provides digital I/O in a group of 96 bits. Each of the C100FF-x cable's 50-pin connectors provides 48 bits. To use all of the board's 96 digital I/O bits to control relays and/or SSRs, configure the daisy chain as shown in Figure 4. -
Page 17: Replacing A Fuse
Functional Details Replacing a fuse The PCIe-DIO96H has two individual 1 amp slow blow fuses. One fuse is connected to the +5V User Output at pin 49, and is labeled on the board. The second fuse is connected to the +5V User Output at pin 99, and is labeled on the board. -
Page 18: Chapter 4 Specifications
Chapter 4 Specifications Typical for 25 °C unless otherwise specified. Specifications in italic text are guaranteed by design. Digital input / output Table 1. Digital I/O specifications Digital type 8255 emulation, Mode 0 Output 74ABT244 Input 74LV373A Configuration 8 banks of 8, 8 banks of 4, programmable by bank as input or output Number of I/O Output high 2.0 volts min @ -15 mA... -
Page 19: Main Connector And Pin Out
PCIe-DIO96H User's Guide Specifications Main connector and pin out Table 6. Main connector specifications Connector type 100-pin, high-density Compatible cables C100FF- x Compatible accessory products CIO-MINI50 (two devices are required) CIO-ERB48 CIO-TERM100 CIO-SERB48 SCB-50 SSR-RACK24 CIO-ERB24 SSR-RACK48 CIO-SERB24 Table 7. Main connector pin out... -
Page 20: Declaration Of Conformity
Suite 1008 Norton, MA 02766 Measurement Computing Corporation declares under sole responsibility that the product PCIe-DIO96H to which this declaration relates is in conformity with the relevant provisions of the following standards or other documents: Category: Electrical equipment for measurement, control and laboratory use. - Page 21 Measurement Computing Corporation 10 Commerce Way Suite 1008 Norton, Massachusetts 02766 (508) 946-5100 Fax: (508) 946-9500 E-mail: info@mccdaq.com www.mccdaq.com...
