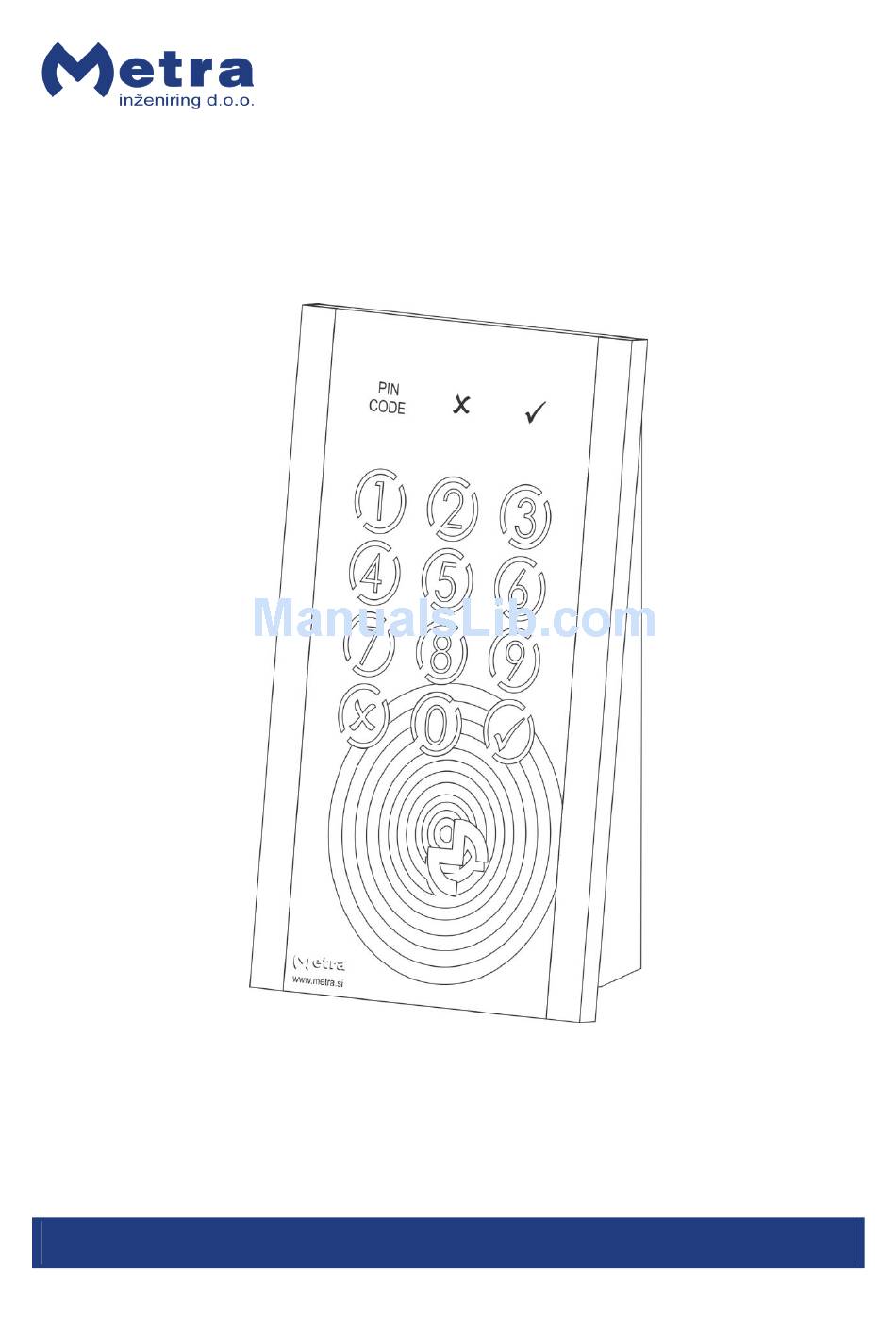

  • Page 1 Door Access Terminal Combo User Manual...

  • Page 2: Table Of Contents

    Door Access Terminal Combo User Manual Table of contents Door Access Terminal Combo User Manual .................... 3 Product description ..........................3 Basic Parts ............................4 User Interface............................4 Operating indicator ..........................5 User card presentation ........................6 Passage Allowed ..........................6 Passage denied ..........................

  • Page 3: Door Access Terminal Combo User Manual

    Metra inženiring d.o.o. can assume no responsibility for any errors in this manual.  Product description Door Access Terminal Combo (DAT Combo) is designed to form a one-way check point in Metra Access Control Systems and Electronic Locking Systems.

  • Page 4: Basic Parts

    Door Access Terminal Combo User Manual  Basic Parts description description PIN CODE signal 12 key illuminated keypad NO signal OPERATE (Power) signal OK signal Antenna field Standard models are supplied with front mask in glossy black colour. For additional colours contact Metra sales.

  • Page 5: Operating Indicator

    Door Access Terminal Combo User Manual OK signal (green) state Description passage is enabled (lock is unlocked); accompanied with short beep acoustic signal NO signal (red) state Description RFID media is recognized but passage is denied; accompanied with interrupted acoustic flashing signal PIN CODE signal (blue)

  • Page 6: User Card Presentation

    Door Access Terminal Combo User Manual  RFID media as a user door key Approach the card to the antenna field. Reading distance is 3 – 5 centimetres from the device surface. Hold the card in field for a few moments for Door Access Terminal to read and process the card.

  • Page 7: Passage Denied

    Door Access Terminal Combo User Manual If the PIN code is correct, “OK” optical signal lights up and short acoustic signal is activated. The door is unlocked. If the PIN code is rejected, “NO” optical signal starts flashing and interrupted acoustic signal is activated for 2 seconds. Door remains locked.
  • Page 8 Door Access Terminal Combo User Manual  PIN code as a LCC user door key  NOTE  This functionality is present only in old Metra LCC systems. STEP 1: Enter your PIN code and confirm it by pressing the ...
  • Page 9 Door Access Terminal Combo User Manual STEP 1: Enter your locker’s number and confirm it by  pressing the key. STEP 2 A: If there is no locker with the number you entered or there is no reservation for this locker in the database procedure is rejected, “NO”...

  • Page 10: Master Card Presentation

    Door Access Terminal Combo User Manual  Master card presentation STEP 1: Approach the MASTER card to the antenna field. Reading distance is 3 – 5 centimetres from the device surface. Hold the card in field for a few moments for Door Access Terminal to read and process the card.

  • Page 11: Alarm Signalization

    Door Access Terminal Combo User Manual STEP 2: When the MASTER card is recognized, “OK” optical signal lights up and short acoustic signal is activated. The door is unlocked. STEP 3: Do not remove the MASTER card from the antenna field until additional two short acoustic signals are activated (approximately 4 seconds after first single acoustic signal is activated).
