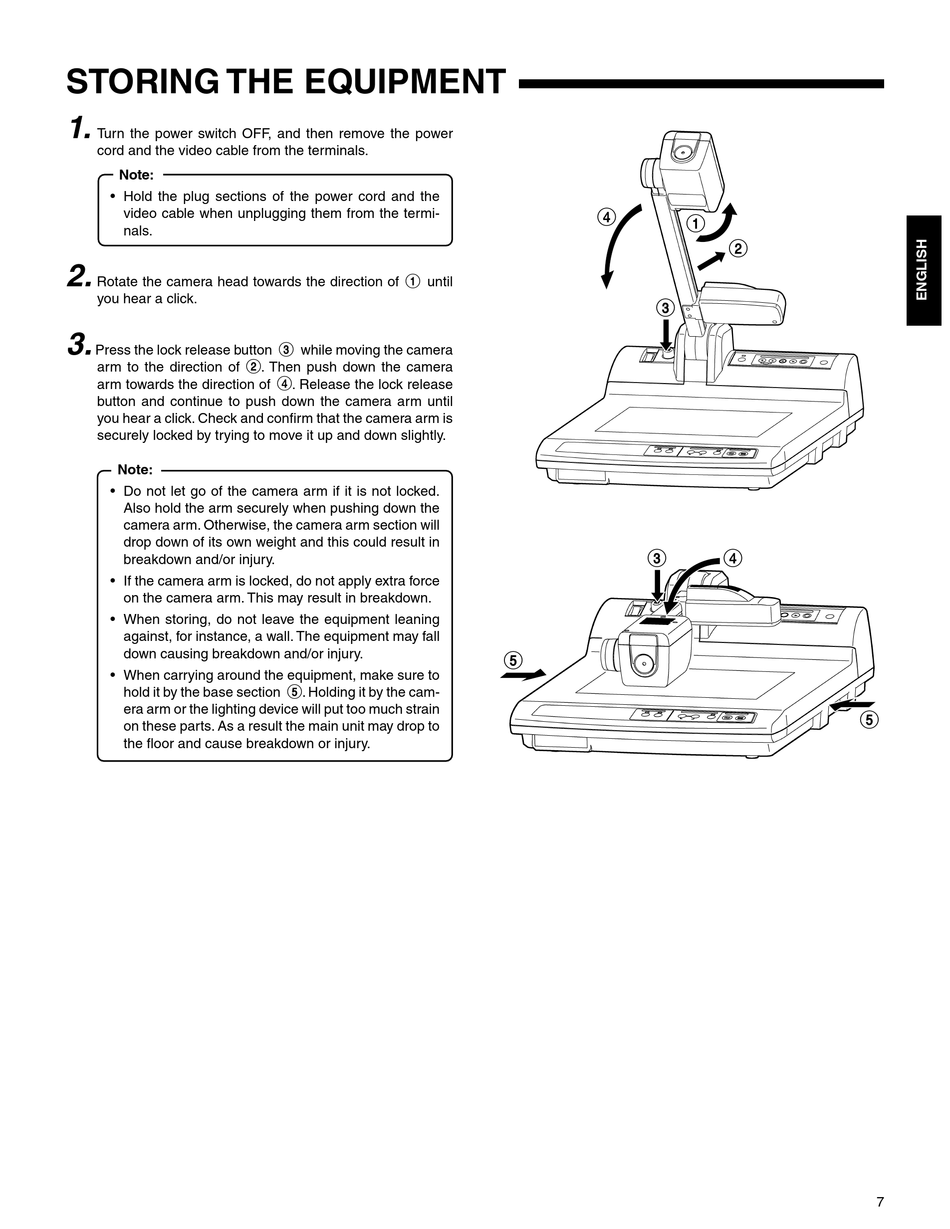

STORING THE EQUIPMENT

1.
Turn the power switch OFF, and then remove the power
cord and the video cable from the terminals.
Note:
• Hold the plug sections of the power cord and the
video cable when unplugging them from the termi-
nals.
2.
Rotate the camera head towards the direction of
you hear a click.
3.
Press the lock release button
arm to the direction of
arm towards the direction of
button and continue to push down the camera arm until
you hear a click. Check and confirm that the camera arm is
securely locked by trying to move it up and down slightly.
Note:
• Do not let go of the camera arm if it is not locked.
Also hold the arm securely when pushing down the
camera arm. Otherwise, the camera arm section will
drop down of its own weight and this could result in
breakdown and/or injury.
• If the camera arm is locked, do not apply extra force
on the camera arm. This may result in breakdown.
• When storing, do not leave the equipment leaning
against, for instance, a wall. The equipment may fall
down causing breakdown and/or injury.
• When carrying around the equipment, make sure to
hold it by the base section
era arm or the lighting device will put too much strain
on these parts. As a result the main unit may drop to
the floor and cause breakdown or injury.
1
3
while moving the camera
2
. Then push down the camera
4
. Release the lock release
5
. Holding it by the cam-
4
until
5
1
2
3
3
4
5
7
