Summary of Contents for FTE MAX S400 HD PLUS

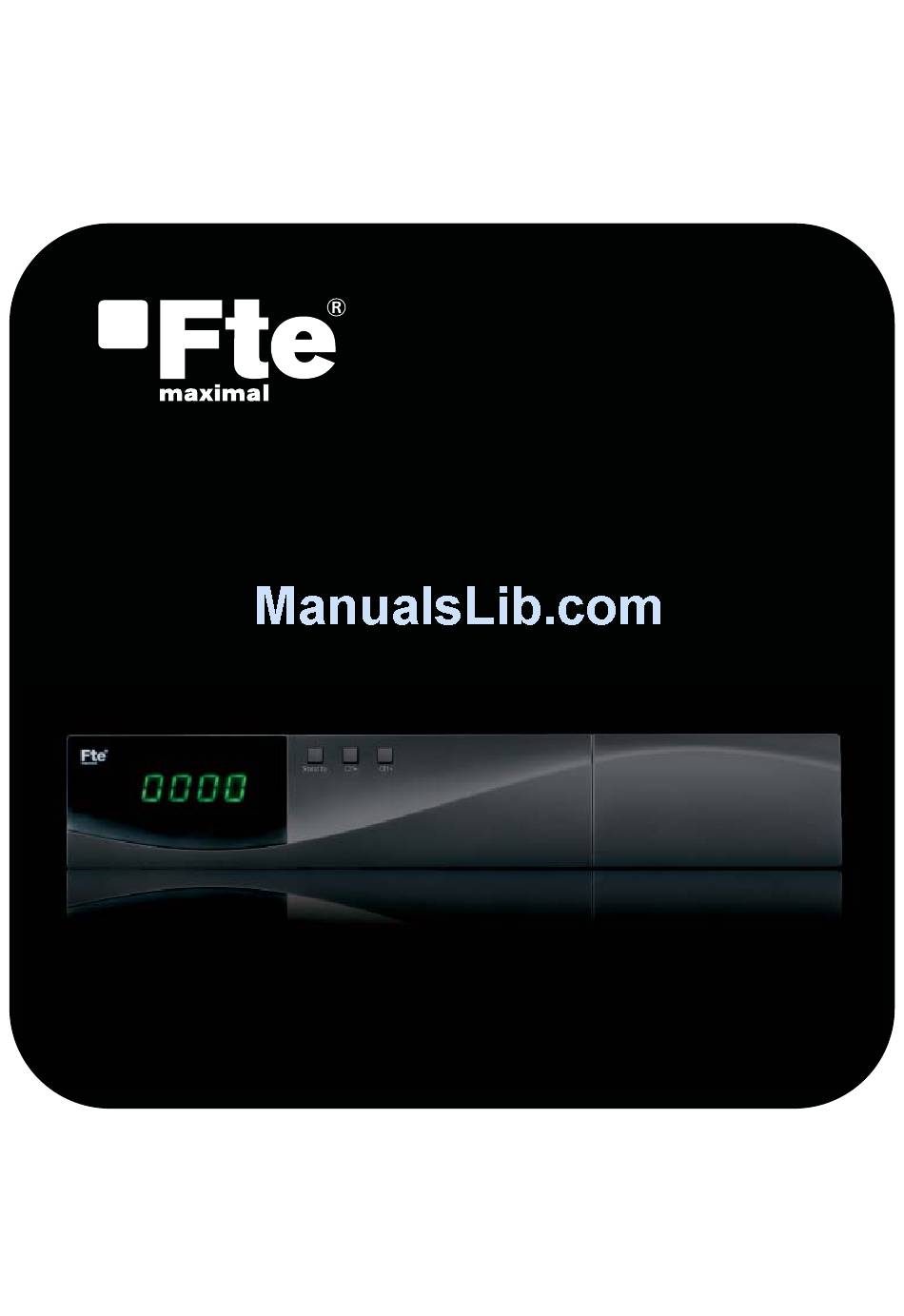

  • Page 1 MAX S400 HD PLUS...
  • Page 2 QUICK INSTALLATION GUIDE WARNING: To reduce the risk of The lightning fl ash with arrowhead The exclamation point within an electric shock, don’t open the cabinet. symbol, within an equilateral triangle, equilateral triangle is intended Refer servicing to qualifi ed personnel is intended to alert the user to to alert the user to important only.
  • Page 3 QUICK INSTALLATION GUIDE QUICK INSTALLATION GUIDE Follow next steps for the correct installation of this receiver. STEP 1: OUTPUT VIDEO CONFIGURATION In order to correctly visualise the reception signal on TV, you must confi gure the mode of the video output.
  • Page 4 QUICK INSTALLATION GUIDE Example 3 – Combined with terrestrial Example 4 – Motorized system STEP 3: BASIC CONFIGURATION OF THE RECEIVER The receiver includes an installation assistant (Quick Setup) that will help you to setup the different parameters. When the receiver is turned on at fi rst time (using the button at the rear panel of the receiver), the next menu is shown on the TV (Image 1): The receiver is programmed with all the channels of Astra...
  • Page 5 QUICK INSTALLATION GUIDE Second Audio : If the channel has no audio language that corresponds with “First Audio” but with “Second Audio” the system will play the second audio language as default. If no audio language corresponds with the “Second Audio” then the default language of the current channel will be played instead.
  • Page 6 QUICK INSTALLATION GUIDE channel scanning in the lower part of the window and the found channels are listed. You can stop the scan with [Exit] and save the so far found channels. Press [Exit] to exit this menu. A window to confi rm the changes will appear.
  • Page 7 QUICK INSTALLATION GUIDE STEP 4: TIME CONFIGURATION It is recommended to setup the clock before starting to enjoy the receiver, because correct time maybe is required by some applications. Please complete following options: Press the [Menu] key of the remote control for appearing the main menu.
  • Page 8 QUICK INSTALLATION GUIDE Edit Channel TV Channel List: This option shows the list of TV stored channels. Radio Channel List: This option shows the list of Radio stored channels. Delete All: This option deletes all TV and Radio stored channels. System Setup Language: This option allows choosing the language of the menus.
  • Page 9 QUICK INSTALLATION GUIDE Installation Antenna connection Satellite List: This option shows all the stored satellites. This list can be modifi ed. Antenna setup Single Search: Once the antenna is confi gured, this option allows search for the channels of one satellite. Multi Search: Once the antenna is confi...

  • Page 10: Table Of Contents

    INDEX 1. Panel & Remote Control Description 1 . 1 . F r o n t p a n e l d e s c r i p t i o n … … ........… … … … … … … … … … 1 2 1 .
  • Page 11 INDEX 4 . 6 . T P L i s t … … … … … ......… … … … … … … … … . . … … … … … … . . . 2 4 5.

  • Page 12: Panel & Remote Control Description

    PANEL & REMOTE CONTROL DESCRIPTION This user’s guide is adapted to the version v.1.13B4-NR dated 21/11/2011. For future software updates, you can download the user’s guide from the following website: http://www.ftemaximal.com 1. PANEL & REMOTE CONTROL DESCRIPTION 1.1. FRONT PANEL DESCRIPTION 1.

  • Page 13: Remote Control Description

    PANEL & REMOTE CONTROL DESCRIPTION 1.3. REMOTE CONTROL DESCRIPTION 1. Standby: Switches receiver ON or in stand-by-mode. 2. TV/AV: It activates/deactivates the visualization of the receiver in the Scart output. 28 29 (Mute): Switches audio on and off. 4. Info: Shows channel information with signal bar. 5.

  • Page 14: Basic Operations

    BASIC OPERATIONS 2. HOTKEY 2.1 STANDBY 1.Press [Power] button to switch from TV mode to Standby mode. 2.In Standby mode press [Power] button again to switch back to TV mode. The last active channel will be showed. 3.To switch off the STB complete press the main power button.

  • Page 15: Subtitles

    BASIC OPERATIONS 3.Press number key [OK] can display the current channel detail information. The window is like below. 4.We should press green button if we wish to program a timing of the selected event. The timing window will be ope- ned automatically and this way we will be able to confi...

  • Page 16: Favourites

    BASIC OPERATIONS 2.We should press [Yellow] button if we wish to program a timing of the selected event. The timing window will be ope- ned automatically and this way we will be able to confi rm the programming of the event. We should press Exit if we wish to come back to channel list.

  • Page 17: F I N

    BASIC OPERATIONS 4. In order to leave the Time Shift option, press the key [stop] to equal the difference between the reproduction time with the real one. 2.20. FIND 1. Press [FIND] key can open the “Find” window. 2. After input each character, the program list on the left will search the channel according your input, and list the matched channel.

  • Page 18: Edit Channel

    CHANNEL 3. EDIT CHANNEL Press [Menu] in the TV mode to enter the main menu (OSD 12). 1. Press [ ] to select the Edit Channel item. 2. Press [OK] to enter the selected item. 3. Press [ ] to select the wanted menu item. 4.

  • Page 19: E D I T C H A N N E

    CHANNEL 3.1.3. EDIT CHANNEL 1. Press [Blue] button to open the “Edit” window. 2. You can Delete, Sort, and Edit the channel (OSD 16). 3. Press [Exit] to leave the Channel Editing. The system will ask you to confi rm the saving of the changes you made. 3.1.3.1.

  • Page 20: R A D I O C H A N N E L L I S

    CHANNEL 3.2. RADIO CHANNEL LIST Basically the operation of “Radio Channel List” is same as “TV Channel List”, except that in the small channel window a static background will be displayed (OSD 22). 3.3. DELETE ALL A safety question will show up where you have to confi rm fi rst. Select “Yes”...

  • Page 21: Installation

    INSTALLATION 4. INSTALLATION Press [Menu] in the TV mode to enter the main menu (OSD 24). 1. Press [ ] to select the Installation item. 2. Press [OK] to enter the selected item. 3. Press [ ] to select the wanted menu item. 4.

  • Page 22: A N T E N N A S E T U

    INSTALLATION 4.3. ANTENNA SETUP Depending on how the “Antenna Connexion” section is confi gured, it will allow confi guring different parameters: (Fixed Antenna) • (OSD 28): - Satellite: Press [ ] to switch Satellites or press [OK] to enter satellite list to select directly. - LNB frequency: Use [ ] in order to change among “Universal”, a specifi...

  • Page 23: S I N G L E S E A R C

    INSTALLATION 4.4. SINGLE SEARCH When you enter the “Single Satellite Search” menu you can see a window like OSD 30: You can edit the following items: 1. Satellite: Press [ ] to switch Satellites or press [OK] to enter satellite list to select directly. 2.

  • Page 24: T P L I S

    INSTALLATION 4.6. TP LIST When you open the “TP List” menu you will see a window like the one beside (OSD 34). 1. Press [ ] to change the marked satellite. Press [ ] to change the marked TP. 2. Press [Red] button to open the “Edit TP” menu (OSD 36). Here you can edit the Transponder’s data like frequency, polarity and Symbol Rate.

  • Page 25: System Setup

    SYSTEM SETUP 5. SYSTEM SETUP Press [Menu] in the TV mode to enter the main menu . 1. Press [ ] to select the System Setup item. 2. Press [OK] to enter the selected item. In the System Setup menu (OSD 39): 3.

  • Page 26: D I S P L A Y S E T T I N

    SYSTEM SETUP select from By source / By Native TV / 480i / 480p / 576i / 576p / 720p_50 / 720p_60/ 1080i_50 / 1080i_60 / 1080p_50 / 1080p_60 in YUV mode and 480i / 576i RGB mode. Press to select the desired mode. 2.

  • Page 27: T I M E R S E T T I N

    SYSTEM SETUP 5. “Date” and “Time” items are valid only when the setting of “GMT Usage” is “Off”. You can press [ ] keys to moving highlight and use number keys to input directly. 6. Press [Exit] key to return back from ”TV System” menu. 5.5.

  • Page 28: O S D S E T T I N

    SYSTEM SETUP 1. Menu Lock determining that when user wish to enter “Installation” menu, whether have to input Password or not. If the setting of “Menu Lock” is “Yes” which means user have to key in password, set “No” means unlock. 2.

  • Page 29: O T H E

    SYSTEM SETUP 5.9. OTHER When you select “Other” you will see a screen like OSD 49: 5.9.1. LNB POWER Here you can set the power output to the LNB. If your receiver is connected to the LNB directly then you need to set the LNB Power to “On”.

  • Page 30: Tools

    TOOLS 6.TOOLS Press [Menu] in the TV mode to enter the main menu. 1. Press [ ] to select the Tools item. 2. Press [OK] to enter the selected item. In the Tools menu (OSD 50): 3. Press [ ] to select the wanted menu item. 4.
  • Page 31 TOOLS 4. Once the fi le has been loaded, it requires the conformi- ty to end the upgrading process, writing into the receiver the upgrading. Select “Yes” and press [OK] to upgrade the receiver. In case during the reading of the fi le, it is corrupt- ed or it would be a not appropriated for this model of receiv- er, an alert messagewould appear “Error reading the USB disk”.

  • Page 32: Game

    GAMES 7.GAMES When you enter “Game” menu (OSD 54), you will see two games including Othello and Sudoku. 7.1 OTHELLO 1. Moving highlight to “Setup” and press [Left/Right] keys to select the game level (degree of diffi culty) (OSD 55). OSD 54 2.

  • Page 33: Rec & Media

    8. REC & MEDIA Press the key [Menu] on the remote control to go to the main menu (OSD 57). 1. Press the arrows on the remote control [ ] to select the option REC 2. Press [Ok] to enter the submenu REC 3.

  • Page 34: Adding A New File To The List

    In order to open the Play list, you have to go the Music or Image menu. Press [Red button] in order to open the Play list. In order to open the play list, please press [OK] and select which fi le you wish to open (OSD 59). 1.

  • Page 35: Delete Files

    2. Select the route where you wish to copy the fi le and press the key [Green] in order to do so. 3. Press the key [Exit] to exit. 8.1.3.3. DELETE FILES 1. In order to delete one or more fi les, press the key [Yellow] over the fi...

  • Page 36: Vi D E O P L A Y E

    8.1.6. VIDEO PLAYER 1.Press the button [OK] over a video fi le (OSD 67). 2. The fi le will be played on the screen. 3. Press the key [Exit] to exit. 8.1.7. HOW TO REPRODUCE A RECORDING * If you want to reproduce a recording, you only have to select it and press the key [OK].

  • Page 37: Pvr Setting

    NOTE: There is no turning back for this process. After the selection of one of these options, the data will be deleted. 2. Press the key [Blue] to assign space in the disk according to the action you wish to do (OSD 73). Options: - REC &...

  • Page 38: Technical Specifications

    TECHNICAL SPECIFICATIONS Video Decoding MPEG-2 SD&HD, MPEG4 AVC SD&HD/H.264 Bit rate Máx. 20 Mbps Output Aspect ratio 4:3 PS, 4:3 LB, 16:9, Auto Active pixel (Scart) 480i / 576i Active pixel (HDMI) By source / By Native TV / 480i / 480p / 576i / 576p / 720p_ 50 / 720p_60/ 1080i_50 / 1080i_60 / 1080p_50 / 1080p_60 Output connectors HDMI / Scart...
  • Page 39 PART OF THE DECLARATION OF CONFORMITY CE “WE , FTE MAXIMAL, DECLARE THAT THE PRODUCT MAX S400 HD PLUS IS IN CONFORMITY WITH FOLLOWING DIRECTIVES LOW VOLTAGE DIRECTIVE 2006/95/EC EMC DIRECTIVE 2004/108/EC” PAG. 39...
  • Page 40 Tel. 00 39 05 22 90 97 01 (Barcelona) España sav@ftemaximal.fr Fax. 00 39 05 22 90 97 48 Tel. 00 34 93 729 27 00 www.ftemaximal.com fte@fte.it Fax. 00 34 93 729 30 73 www.ftemaximal.com ftemaximal@ftemaximal.com www.ftemaximal.com DEUTSCHLAND PORTUGAL UNITED ARAB EMIRATES BCN Distribuciones S.A.
