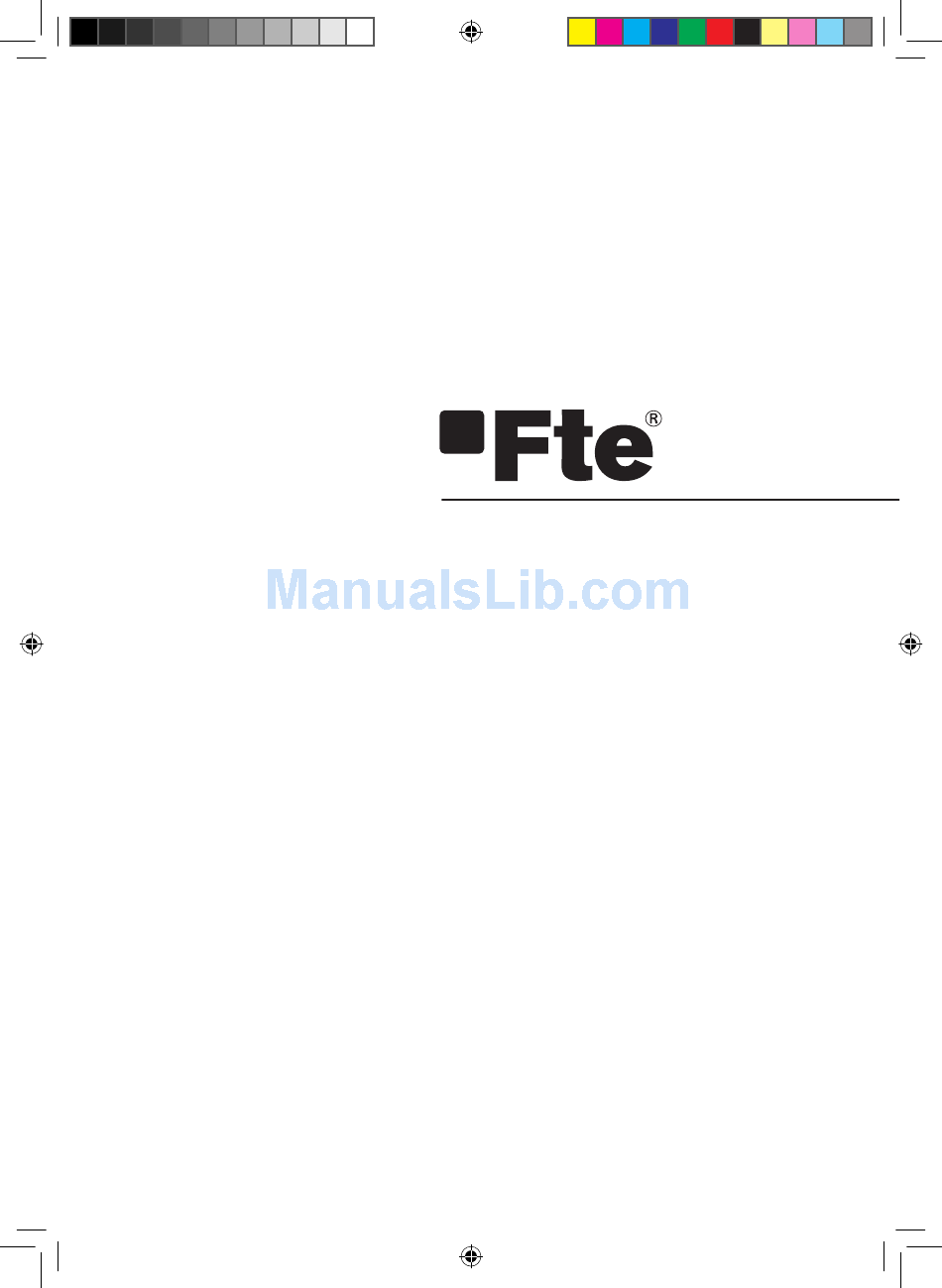

- Page 1 MAX COMBO NET ENGLISH USER'S MANUAL 2012-11-05 8:48:07 (2012 11 05) manual.indd 3...
-
Page 2: Table Of Contents
TABLE OF CONTENTS GENERAL SAFETY GENERAL INFORMATION I. UNPACKING II. FEATURES III. REMOTE CONTROL UNIT (RCU) IV. HOW TO SETTING RCU FOR TV V. FRONT PANEL VI. REAR PANEL INSTALLING EQUIPMENT CHANNEL LIST GUIDE MENU GUIDE MAIN PAGE I. CHANNEL MANAGER II. -
Page 3: General Safety
GENERAL SAFETY WARNING Please read the following recommended instructions carefully to avoid the risk of your physical Injury before the product is operated. Do not cover the receiver and keep clear space around the receiver for sufficient. Check the receiver’s operation voltage 90~250V, 50Hz~60Hz, 12V 2.5A Adaptor Keep liquid away from the receiver. -
Page 4: General Information
GENERAL INFORMATION I. UNPACKING Please ensure that the following items are included with the receiver in your pack- ing. 1) Remote Control Unit (RCU) 2) Batteries (2EA) 3) CD with user manual 4) 12V 2.5A Adaptor II. FEATURES · Supports MPEG-2, MPEG-4, H.264 and fully DVB compliant ·... -
Page 5: Remote Control Unit (Rcu)
GENERAL INFORMATION III. REMOTE CONTROL UNIT (RCU) (2012 11 05) manual.indd 8 2012-11-05 8:48:08... - Page 6 GENERAL INFORMATION III. REMOTE CONTROL UNIT (RCU) 1. POWER Switch the receiver between operation and standby mode. 2. MUTE Enable or disable the audio. 3. TV Switch to TV mode. 4. DVD Switch to DVD mode. 5. VCR Switch to VCR mode. 6.
-
Page 7: How To Setting Rcu For Tv
GENERAL INFORMATION IV. HOW TO SETTING RCU FOR TV 2012-11-05 8:48:09 (2012 11 05) manual.indd 10... - Page 8 GENERAL INFORMATION IV. HOW TO SETTING RCU FOR TV I. Manual Search At first, Turn on the TV 1) Press ➊Device LED Key ( STB or TV or VCR or DVD ) + ➋"OK" key at the same time during 2 or 3 seconds. Then the Device LED Lamp will be on →...
-
Page 9: Front Panel
GENERAL INFORMATION V. FRONT PANEL 1. POWER Switch the receiver power On and Standby. 2. USB To upgrade firmware / Recording. 3. SMART SLOT Insert Smart Card. NOTE: All USB 2.0 flash drive may not be compatible with the product. 2012-11-05 8:48:10 (2012 11 05) manual.indd 12... -
Page 10: Rear Panel
GENERAL INFORMATION VI. REAR PANEL 1. AERIAL Connect to Terrestrial antenna cable. 2. LOOP OUT Connect to another STB. 3. SAT IN Connect to Satellite antenna cable. 4. LOOP OUT Connect to another STB. 5. TV SCART Connect to TV SCART cable. 6. -
Page 11: Installing Equipment
INSTALLING EQUIPMENT This section explains several ways of connecting the receiver to your existing TV, VCR and Hi-Fi system. You can choose one of the following setups that we recommend. If you have any problem or need help, consult your dealer or service provider. Please ensure that the following items are included with the receiver in your packing. -
Page 12: Channel List Guide
CHANNEL LIST GUIDE 1. Normal Live Mode a) When you select one channel, information bar appears automatically on the screen for few seconds. This bar provides you the current channel information. b) Press INFO button to see the information during normal live mode. - Page 13 CHANNEL LIST GUIDE 4.EPG (Electronic Program Guide) a) Press EPG button on the live mode. b) EPG of the current channel appears on the screen. c) Select the channel that you want to watch program. d) It will be appear like rightside picture. 5.
-
Page 14: Menu Guide
MENU GUIDE MAIN PAGE Press the MENU button on the RCU to open Main Page on the screen. Main Page will be displayed. 1. You can move into the main page using ▲▼◀ ▶ on the RCU. 2. Press OK to confirm your selection. 3. - Page 15 MENU GUIDE I. CHANNEL MANAGER I-2. Rename 1. Using◀ ▶go to the Rename mode. 2. Select the channel that you want to rename using ▲▼ and then press OK. 3. Keypad Dialog displays on the screen. 4. Edit the name entering NUMBERS and / or WORDS in the Keypad Dialog.
-
Page 16: Installation
MENU GUIDE II. INSTALLATION This section may help you to set up antenna and scan satellite or transponder, etc. Select Installations in Main Page using and press OK. ▲▼ Press EXIT to return to the previous menu or press MENU to go to the current live channel. II-1. - Page 17 MENU GUIDE II. INSTALLATION II-2. DiSEqC Switch 1. Select Channel Search in Installation using ▲▼ and press OK. a) If you select DiSEqC Switch and press OK on the menu will be, DiSEqC Switch Page will be dis- played. b) Select the proper Satellite of each DiSEqC port (A~D) using ◀...
- Page 18 MENU GUIDE II. INSTALLATION f) Motor Control Select the position using ◀ ▶ and then press OK. Message box displays on the screen. - Store Sat position : Stores the current position of the motor for the selected satellite. - Goto Sat Position : Moves the motor to the stored position of the selected satellite.
- Page 19 MENU GUIDE II. INSTALLATION II-4. Terrestrial Search 1. Select Channel Search in Installation using ▲▼ and press OK. 2. 1) Select the region where you are using ◀ ▶. 2) You can select searching type which you want among Auto and Manual using◀ ▶. 3) Auto a) Select ‘Search’on the Screen and pres OK button to scan channels.
- Page 20 MENU GUIDE II. INSTALLATION 3. Playing the Movie File by Home Streaming a) Press “Fn” key of RCU in normal view of STB and then the movie file list in PC will be appeared in TV Screen. b) Select the file which you want to see by using navigation keys of RCU and press “OK”...
-
Page 21: Options
MENU GUIDE III. OPTIONS This section may help you to set up OSD language, time, etc. Select Options in Main Page using ▲▼ and press OK. Press EXIT to return to the previous menu or press MENU to go to the current live channel. III-1. - Page 22 MENU GUIDE III. OPTIONS III-2. Control Panel 1. Select TV Setup in Options using ▲▼ and press OK. a) HD Type - Select HD video Output. b) TV Type - Select your TV type. c) Aspect Ratio - Select screen ratio. d) Screen Control - Select screen display modes.
-
Page 23: Utility
MENU GUIDE IV. UTILITY This section may help you to use USB, etc. Select Utility in Main Page using ▲▼ and press OK. IV -1. System Information · IV -2. Timer · IV -3. Calendar · IV-1. System Information This option help you to know the current S/W and H/W version. -
Page 24: Accessory
ME NU GUIDE V. ACCE SSOR Y This section may help you to use USB , etc. Select Utility in Main Page using and press OK. V - 1. USB · V - 2. Smart Card · V - 3. Network / Videoclub ·... -
Page 25: Pvr Guide
PVR GUIDE PVR GUIDE This section may help you how to use PVR function on this STB. I. Recommended Devices If you want to use PVR function, you need to prepare equipment as below. - External USB Hard Disk Drive. - Flash memory stick - Format Type: FAT16/32 (System does not support NTFS and other file system) - Page 26 PVR GUIDE PVR GUIDE II. Record Function II-2 Instant Recording - Press “RECORD button” on RCU to start recoding program. - While Recoding program - Press “PAUSE” key to execute “Time Shift” - You can use “LEFT/RIGHT button” to view desired time while recoding program.
- Page 27 PVR GUIDE PVR GUIDE III. Playback Function - To play previously recorded program, press “Play button”on RCU. - Use the arrow buttons to select the file which you want to play and press “OK button” to play. - While Playing program. - If you press “LEFT/RIGHT button”...
- Page 28 PVR GUIDE PVR GUIDE V. Time Shift Function - If you want to execute “Time Shift” in Live mode You should set “On” of Time Shift In PVR Option (Accessory → PVR → TimeShift “ON”). - To star Time Shift in Live mode, press “PAUSE” to start. - Time shift will played during 30 minutes in Live Mode.
- Page 29 PVR GUIDE PVR GUIDE VII. MP3 Play - Select MP3 file which you want to play in USB menu. - After you select MP3 file, MP3 play window will be executed. VIII. JPG View - Select JPG file which you want to see in USB menu. - Press OK to see the JPG which you want to.
- Page 30 PVR GUIDE PVR GUIDE X. How to play the record by PVR of 'HD-XXX' in PC or Divx Player X-1 How to play in PC A) Play KM Player. B) Select Language. 1) Click right button of Mouse → Language → your lan- guage.
- Page 31 PVR GUIDE PVR GUIDE X-3 How to Convert the file by Divx Manager A) Play Divx Manager. 1) Setting → Model →Rapsody RSH-250/350 B) Select the folder where the file that you want to convert is. Then the file's information will appear. C) And select the file which you want to convert and select “Convert”.
-
Page 32: Troubleshooting
PVR GUIDE PVR GUIDE X. How to play the record by PVR of 'HD-XXX' in PC or Divx Player X-1 How to play in PC A) Play KM Player. B) Select Language. 1) Click right button of Mouse → Language → your lan- guage. -
Page 33: Specifications
SPECIFICATIONS I.Conditional Access Module Interface Specification Item SMART CARD 2 SLOTS, ISO 7816, GSM11.11 and EMV (payment systems) compatibility II. Tuner & Channel (DVB-S2) Specification Item Type 1 × F Type, IEC169-24, Female Frequency Rage 950MHz to 2150MHz RF Impedance 75 Ohm unbanlanced Signal Level -65 to -25 dBm... - Page 34 SPECIFICATIONS V. MPEG Transport Stream & A/V Decoding Item Specification Transport Stream 13818-1 MPEG-2, H.264/AVC Transport stream Specification Profile Level MPEG-2 MP@ML, MP@HL, MPEG-4 H.264/AVC Input Rate Max. 90Mbit/s Aspect Ratio 4:3, 16:9, Letter Box Frame Rate 25Hz for PAL, 30Hz for NTSC Video Resolution 576i, 576p, 720p, 1080i Teletext...
