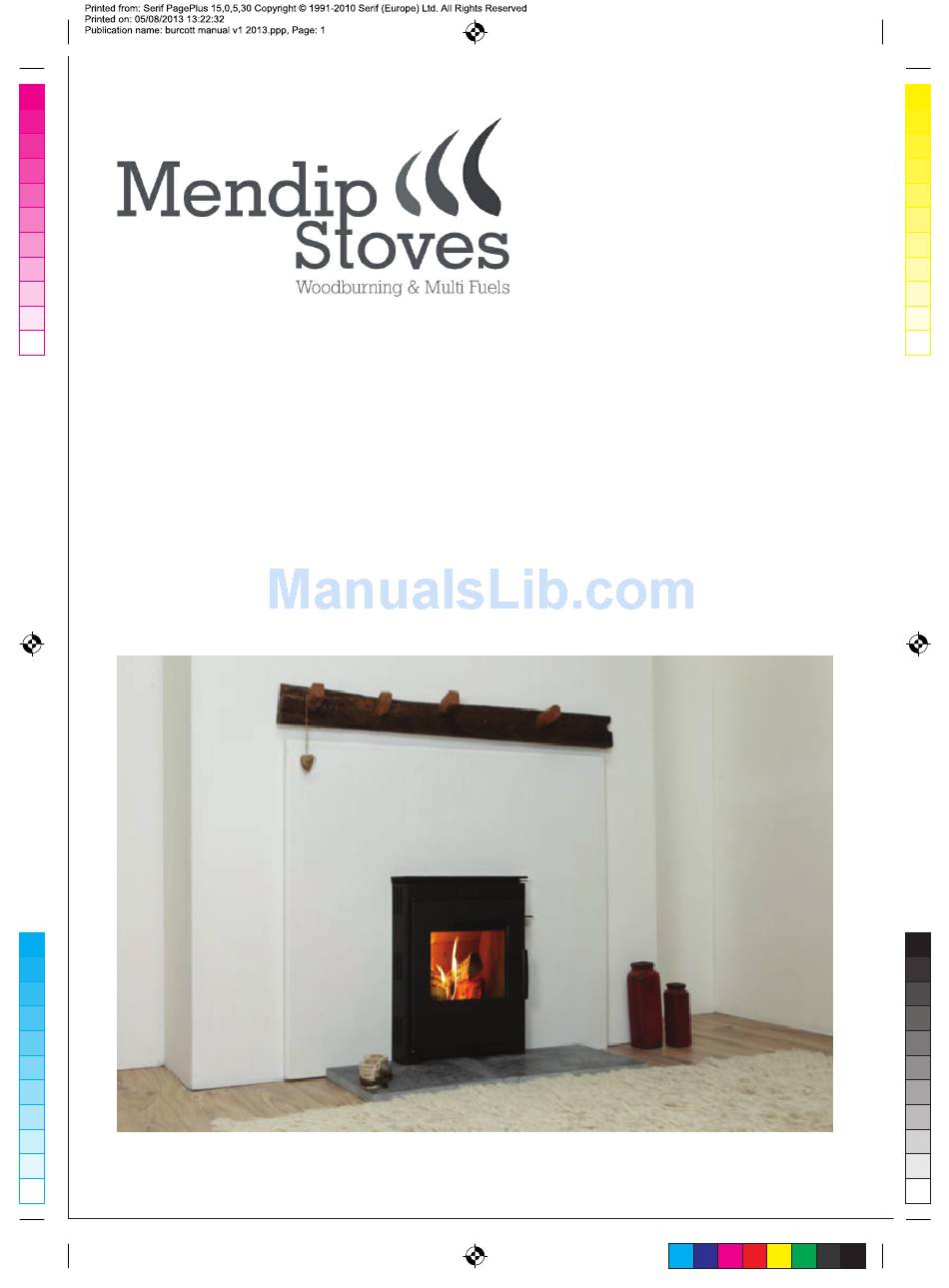

- Page 1 OPERATION AND INSTALLATION MANUAL Multi-fuel Burcott Fireplace inset stove...
- Page 2 For further information on installing and using fireplaces and wood burning stoves, please see the relevant building regulations that apply to the country in which Burcott fireplace inset stove has been approved, as well as the relevant information on the correct use of stoves available from your local stove supplier or your registered installation engineer.
-
Page 3: Health And Safety Precautions
Mendip Stoves Ltd :- Burcott fireplace inset stove , although detail may need slight modification to suit particular local site conditions. In all cases the installation must comply with current Building Regulations, Local Authority Byelaws and other specifications or regulations as they affect the installation of the stove. - Page 4 CO@13% Recommended CO@13% o2 Output Output coal for smoke control Efficiency wood fuel fuel Oct 2012 Burcott 4.1kw 0.38 3.9kw 0.36 Stove model Weight & Nominal heat output for Wood and Smokeless fuels Wood reload Weight wood load Log length...
- Page 5 Flue and Chimney connection to your stove The outlet from the chimney should be above the roof of the building in accordance with the provisions of Building Regulations Approved Document J. If installation is into an existing chimney then it must be sound and have no cracks or other faults which might allow fumes into the house.
- Page 6 Flue and Chimney connection to your stove (continued) If it is found that there is excessive draught in the chimney then either an adjustable flue damper or alternately a draught stabiliser should be fitted. The adjustable flue damper should not close off the flue entirely but should in its closed position leave a minimum continuous opening free area of at least 20 % of the total cross sectional area of the flue or flue pipe.
- Page 7 The Burcott fireplace inset stove have been tested and are suitable to be installed on a constructional hearth only . Installation of all hearths should comply in size and construction so that it is in accordance with the provisions of the current Building Regulations Approved Document J.
- Page 8 Connection to chimney Mendip Burcott fireplace inset stove has a flue collar 30 degrees , this is to allow easier fitting of a flexible liner to the stove. Mendip stoves recommends the use of a stainless steel flue liner on all installations into a traditional chimney.
- Page 9 Suitable fuels Burcott model is tested to burn wood or smokeless coal. Wood briquettes and peat can also be burnt. For a full list of suitable fuels, check with the official solid fuels approvals body, HETAS or Solid Fuel Association. Do not overload stove as this can cause excessive heat and damage the stove( see table on page 3 ).
- Page 10 R E-FUELLING ( wood) To re-fuel your stove in the cleanest way. Only refuel your stove when flames have died down and you have glowing embers. Before refuelling, open secondary air control fully . Open door gently, add two pieces of wood (see weight table page 3) and close the door. Once the flames from the logs are fully established the secondary air supply can be adjusted to the desired setting .
- Page 11 Incomplete combustion If the air controls on your Burcott fireplace inset stove are closed too much incomplete combustion. This may lead to a build-up of hard, shiny soot on the inside of your stove and glass. To prevent sooting of the chamber and glass introduce:- 1) more secondary air, 2) check that your fuel is suitable and dry.
- Page 12 PARTS Always use the operating tools provided when handling parts likely to be hot when the stove is in use. The Burcott Fireplace inset stove has the following tools and parts packed in the stove 1) Ash tray removal tool...
- Page 13 Maintenance Mendip stoves recommends that the Burcott fireplace inset stove model needs to have the ash removed from the stove at regular intervals (weekly if used daily). Allowing the ash pan to over flow can impede the function of the stove and can cause possible damage to the stove grate and ash pan.
- Page 14 Trouble shooting 1. Fire Will Not Burn - check a) the air inlet is not obstructed in any way, b) that chimney and flue ways are clear, c) that a suitable fuel is being used, d) that there is an adequate air supply into the room, e) that an extractor fan is not fitted in the same room as the fire.
- Page 16 Mendip Stoves Ltd Tel: 01934 750 500 Unit H2, Fax: 01173 156 207 Mendip Industrial Estate, www. Mendipstoves.co.uk Mendip Road, Rooksbridge, Somerset E-mail : info@mendipstoves.co.uk BS26 2UG Mendip Stoves Ltd, 2013, Burcott v3 2013...
