SALES NETWORK
SAMSUNG TECHWIN CO., LTD.
•
Optics & Digital Imaging Division 145-3, Sangdaewon 1-Dong,
Jungwon-Gu, Sungnam, Kyungki-Do, Korea 462-121
TEL : 82-31-740-8137~41 FAX: 82-31-740-8145
SAMSUNG OPTO-ELECTRONICS UK LTD (SOUK)
•
Samsung House, 1000 Hillswood Drive Hillswood Business
Park Chertsey Surrey KT16 OPS
TEL : 44-(0)1932-45-5308
FAX: 44-(0)1932-45-5325
www.samsungcctv.com
•
SAMSUNG OPTO-ELECTRONICS AMERICA, INC. (SOA)
•
Closed Circuit Division 40 Seaview Drive, Secaucus N.J 07094,
U.S.A
TEL : (201) 902-0347 FAX: (201) 902-0429
TIANJIN SAMSUNG OPTO-ELECTRONICS CO., LTD (TSOE)
•
7 Pingchang Rd, Nankai Dist, Tianjin, P.R China Post
Code : 300190
TEL : 86-22-2761-9698 FAX: 86-22-2761-6514
P/No. : 6806-0415-01A
Printed in Korea

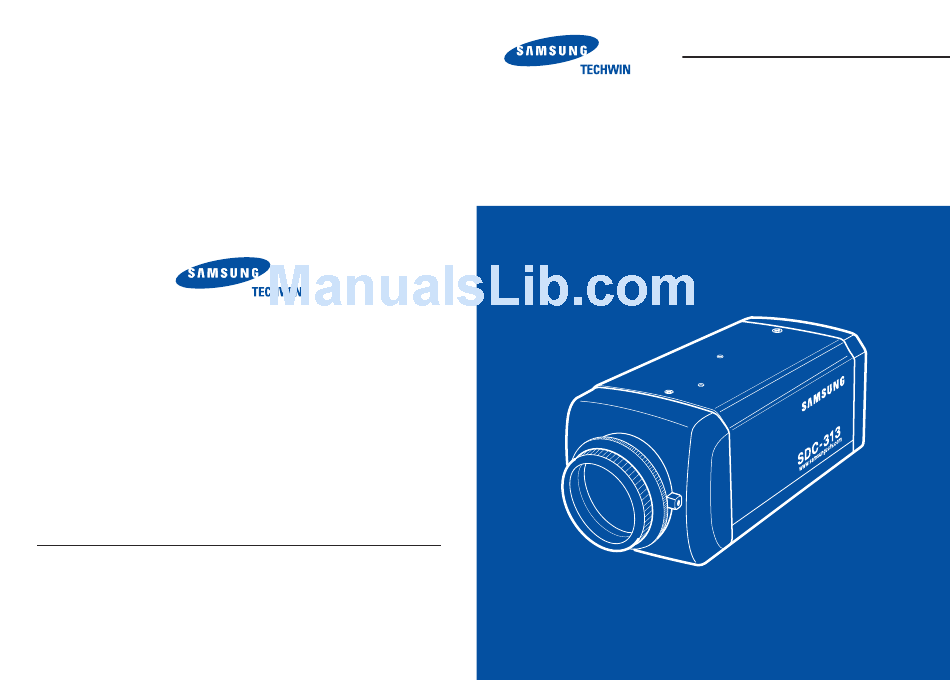

COLOR CCD CAMERA
INSTRUCTION MANUAL
SDC-313 SERIES
SDC-243 SERIES
About this manual
Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for later reference.
SAMSUNG CCD CAMERA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Samsung SDC-313 SERIES
Summary of Contents for Samsung SDC-313 SERIES
-
Page 1: Instruction Manual
SAMSUNG OPTO-ELECTRONICS UK LTD (SOUK) TIANJIN SAMSUNG OPTO-ELECTRONICS CO., LTD (TSOE) • • Samsung House, 1000 Hillswood Drive Hillswood Business 7 Pingchang Rd, Nankai Dist, Tianjin, P.R China Post Park Chertsey Surrey KT16 OPS Code : 300190 TEL : 44-(0)1932-45-5308... - Page 2 Thank you for purchasing a SAMSUNG CCD CAMERA. Before WARNING- TO PREVENT ELECTRIC SHOCK AND RISK OF FIRE HAZARDS, operating the camera, confirm the camera model and proper DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. input power voltage. In order that you can understand this manual thoroughly, we'll introduce our model description.
-
Page 3: Table Of Contents
Features Contents Precautions High Resolution Composition The horizontal resolution of 480 TV lines can be achieved by using a high density Name and Function of Each Part CCD having effective 410,000 pixels, which provides clean, noiseless and reliable pictures. (SDC-243 series have 270,000 pixel and can achieve 330 TV lines) Front Back Bottom... -
Page 4: User's Manual
Precautions Do not install the camera in Do not install or use the camera in an Do not drop the camera or Never keep the camera face to extreme temperature conditions. environment where the humidity is high. subject them to physical shocks. strong light directly. -
Page 5: Composition
Composition Name and Function of Each Part Front 1. Color CCD Camera SDC-313(243) 2. Auto Iris Lens Plug 3. L-Wrench Glass Protecting Cap Be sure to cap the lens mount when the lens is not mounted. Pull out the cap to remove. C- Mount Lens Adaptor Used to attach a C - mount lens. -
Page 6: Back
Name and Function of Each Part •Using Manual Lens Back Using manual lens, you can choose any switch selection. When the switch is set to ‘OFF’ in ESC mode, the electronic shutter is fixed in ‘1/60’sec (NTSC models), ‘1/50’sec(PAL models). When the switch is set to ‘ON’ in ESC mode, the electronic shutter automatically controls the shutter speed from ‘1/60’... - Page 7 The switch emphasize the sharpness. To soften the edge turn this switch off. Function Selection Switch (5) Flickerless: SDC-313 Series Flickerless function. In this function, electronic shutter is fixed in 1/100sec (1/120sec: PAL model). FL function can compensate the flicker caused by power frequency, but set OFF in the area not using a 60Hz (50Hz: PAL model) AC Power.
-
Page 8: Bottom
Name and Function of Each Part Connection LENS Bottom The lens is not supplied with this camera. Purchase a lens suitable for your environment. This camera accepts the auto iris lens and both C-and CS-mount lens. Notes • If the lens is marked with fingerprints or other marks, the image quality might be poor. •... -
Page 9: Installing C-Mount Lens
Connection 3. Remove the cover from the iris lens plug supplied, and solder the lens Installing C-Mount Lens cable to the plug as shown below. After removing the protecting cap, attach the lens into the • Video type : • DC type : camera by turning clockwise. -
Page 10: Connecting To Monitor
Connection Connecting to Monitor For DC Power Type Connect the VIDEO out jack to the monitor video in jack. • The wire is polarized. Be sure to connect the wire that white line is on covering to ‘-’ terminal and connect the CCD Camera Monitor other one to ‘+’... -
Page 11: Troubleshooting
Troubleshooting If you have trouble operating your camera, refer to the following table. If the Problem Solution guidelines do not enable you to solve the problem, contact an authorized technician. The image on the screen • Is the camera facing to direct sunlight or fluoresent flickers. - Page 12 Specifications Item Item SDC-243NA SDC-243ND SDC-313NA SDC-313ND SDC-243PA SDC-243PD SDC-313PA SDC-313PD Power Source AC 24V, 60Hz DC 12V AC 24V, 60Hz DC 12V Power Source AC 24V, 50Hz DC 12V AC 24V, 50Hz DC 12V Power Consumption 3.5W (Max) 2.5W (Max) 3.5W (Max) 2.5W (Max) Power Consumption...
-
Page 13: Declaration Of Conformity
DECLARATION OF CONFORMITY MEMO Application of Council Directive(s) 89 / 336 / EEC Manufacturer's Name SAMSUNG TECHWIN CO., LTD Manufacturer's Address SAMSUNG TECHWIN CO., LTD 42, SUNGJU-DONG CHANGWON-CITY, KYUNGNAM, KOREA, 641-120 European Representative Name European Representative Address Equipment Type/Environment CCTV Camera... - Page 14 MEMO MEMO...
