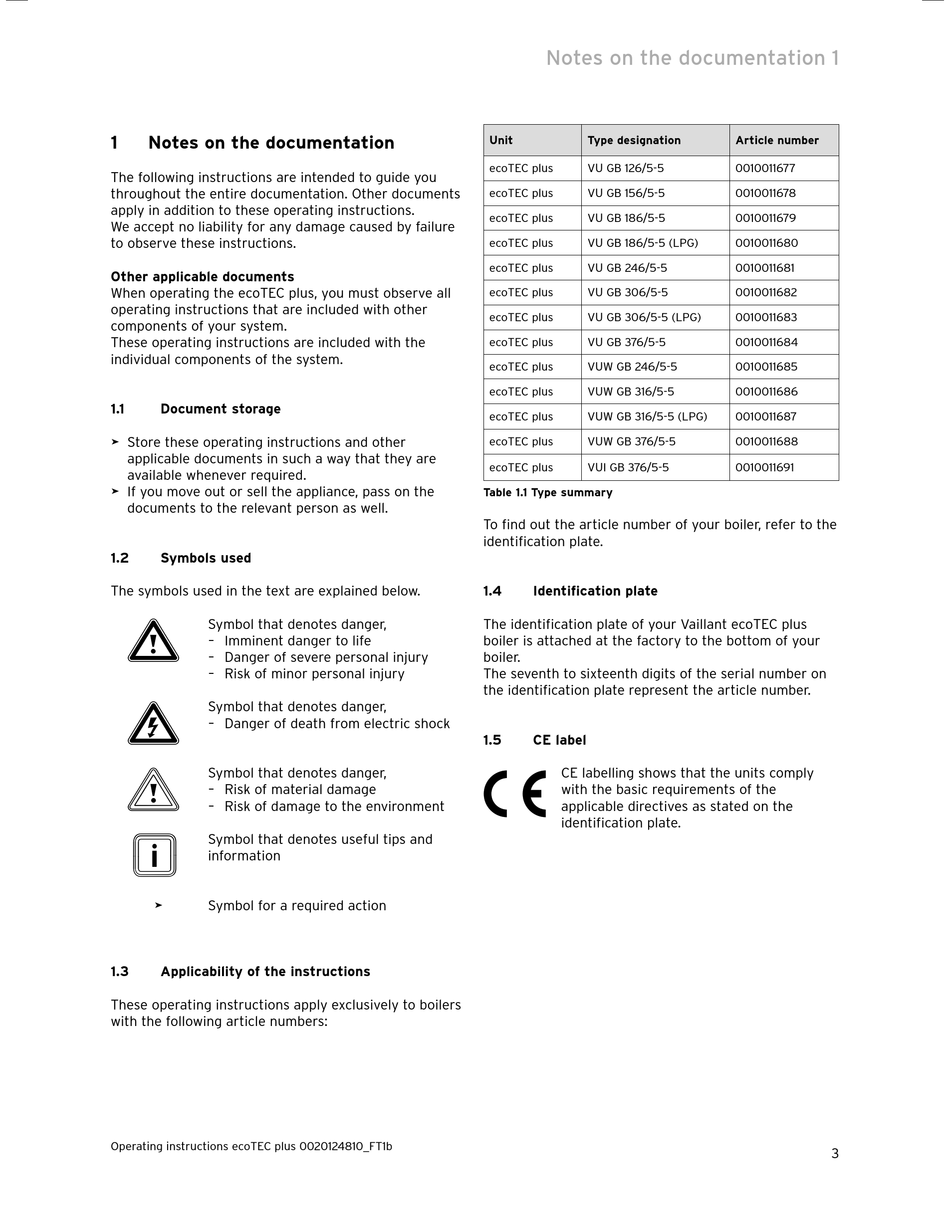

1 Notes on the documentation
The following instructions are intended to guide you
throughout the entire documentation. Other documents
apply in addition to these operating instructions.
We accept no liability for any damage caused by failure
to observe these instructions.
Other applicable documents
When operating the ecoTEC plus, you must observe all
operating instructions that are included with other
components of your system.
These operating instructions are included with the
individual components of the system.
1.1

Document storage

> Store these operating instructions and other
applicable documents in such a way that they are
available whenever required.
> If you move out or sell the appliance, pass on the
documents to the relevant person as well.
1.2

Symbols used

The symbols used in the text are explained below.
a
Symbol that denotes danger,
– Imminent danger to life
– Danger of severe personal injury
– Risk of minor personal injury
e
Symbol that denotes danger,
– Danger of death from electric shock
b
Symbol that denotes danger,
– Risk of material damage
– Risk of damage to the environment
i
Symbol that denotes useful tips and
information
>
Symbol for a required action
1.3

Applicability of the instructions

These operating instructions apply exclusively to boilers
with the following article numbers:
Operating instructions ecoTEC plus 0020124810_FT1b

Notes on the documentation 1

Unit Type designation
ecoTEC plus VU GB 126/5-5
ecoTEC plus VU GB 156/5-5
ecoTEC plus VU GB 186/5-5
ecoTEC plus VU GB 186/5-5 (LPG)
ecoTEC plus VU GB 246/5-5
ecoTEC plus VU GB 306/5-5
ecoTEC plus VU GB 306/5-5 (LPG)
ecoTEC plus VU GB 376/5-5
ecoTEC plus VUW GB 246/5-5
ecoTEC plus VUW GB 316/5-5
ecoTEC plus VUW GB 316/5-5 (LPG)
ecoTEC plus VUW GB 376/5-5
ecoTEC plus VUI GB 376/5-5
Table 1.1 Type summary
To find out the article number of your boiler, refer to the

identification plate.

1.4 Identification plate
The identification plate of your Vaillant ecoTEC plus
boiler is attached at the factory to the bottom of your
boiler.
The seventh to sixteenth digits of the serial number on
the identification plate represent the article number.
1.5

CE label

CE labelling shows that the units comply
with the basic requirements of the
applicable directives as stated on the
identification plate.
Article number
0010011677
0010011678
0010011679
0010011680
0010011681
0010011682
0010011683
0010011684
0010011685
0010011686
0010011687
0010011688
0010011691
3
