INSTRUCTIONS–PARTS LIST
307–706
Rev. R
Supersedes P
This manual contains IMPORTANT
WARNINGS AND INSTRUCTIONS
READ AND RETAIN FOR REFERENCE

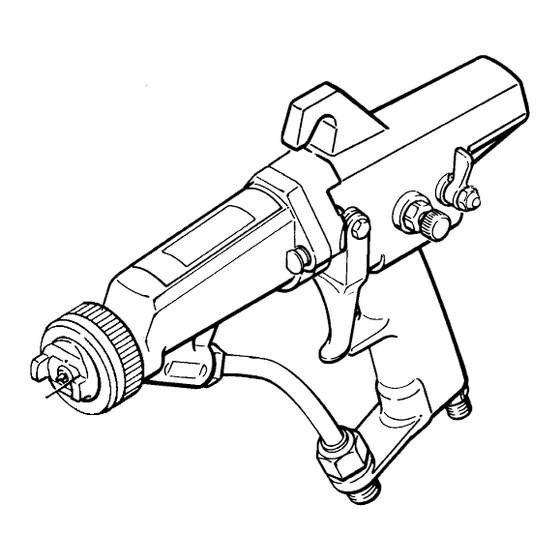

Model PRO AA4000
MANUAL MID-RANGE ELECTROSTATIC
AIR-ASSISTED AIRLESS SPRAY GUN
66 bar (950 psi) MAXIMUM WORKING FLUID PRESSURE
7 bar (100 psi) MAXIMUM WORKING AIR PRESSURE
Part Number 218–668, Series B
With 0.279 mm (0.011 in.) spray tip, part no. 219–411
U.S. Patent No. 4,290,091; 4,219,865;4,386,739; 3,843,052;
4,462,061; 4,497,447; 4,554,622
U.K. Patent No. 2,140,327B; 2,111,406B; 2,142,559B; 2,147,158
Patented 1986, 1987 Canada
Brevete 1986, 1987
French Patent No. 82 21202; 84 07942; 84 10234
Italian Patent No. 1,111,380
West German Patent No. DE 22 09 896
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
COPYRIGHT 1984, GRACO INC.
