Summary of Contents for Columbia ParCar Eagle

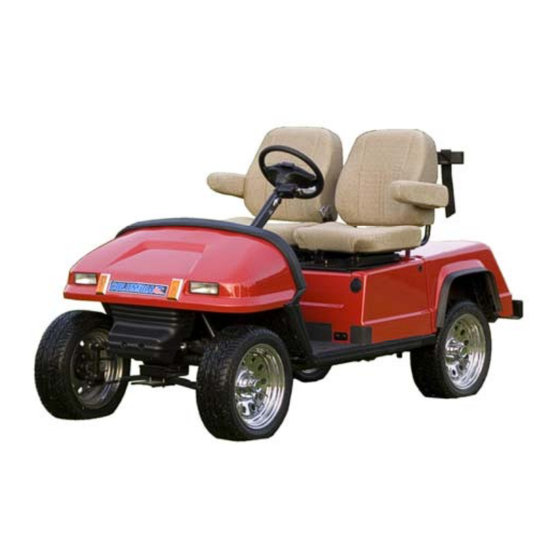

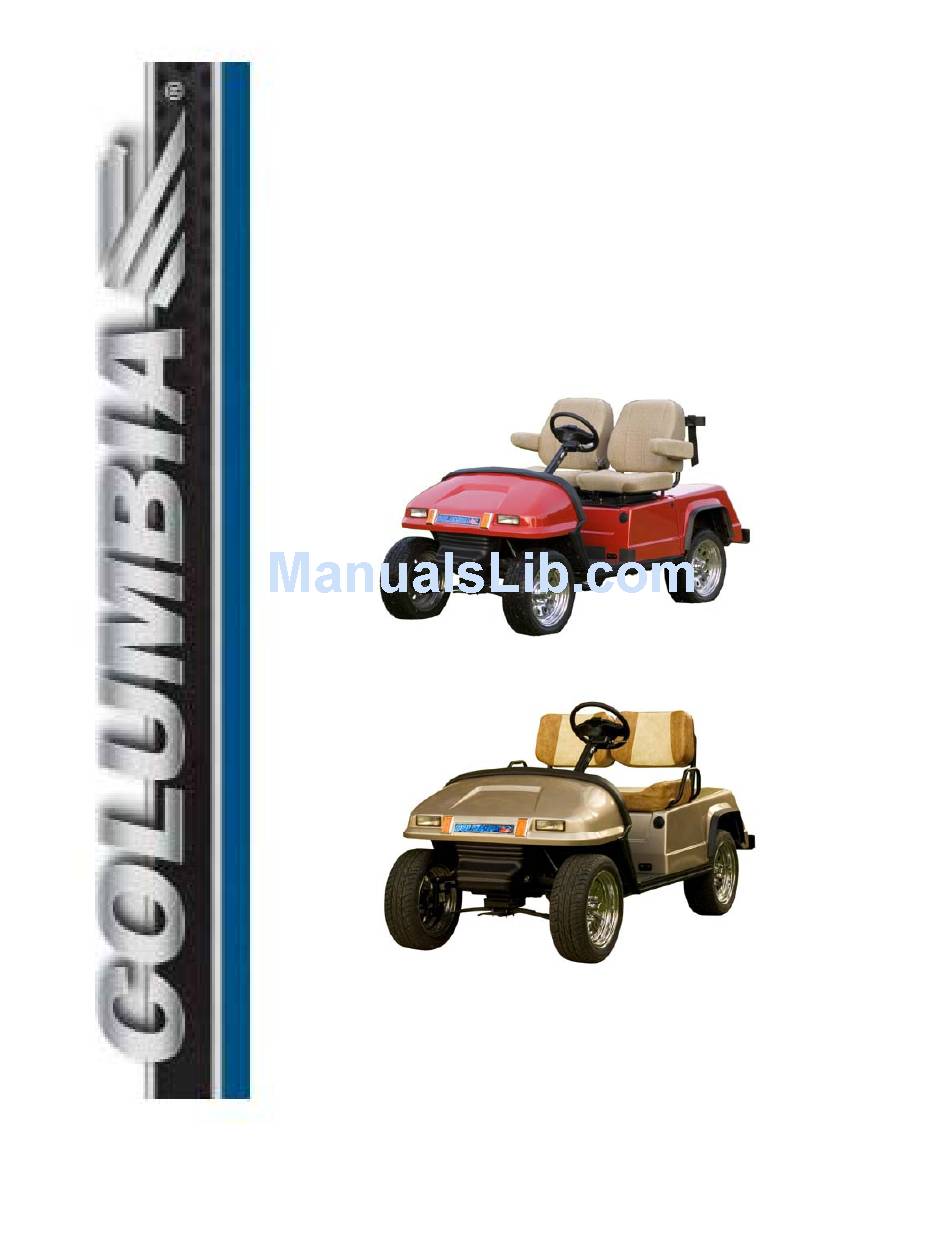

- Page 1 Owner Operator Manual EAGLE Electric Vehicles P/N 712081-03 2012 P4...
- Page 2 Standards Institute (ANSI) standards. Your safe use and operation of your vehicle is important to us. Any alteration of your Columbia ParCar vehicle that results in the vehicle being in noncompliance with applicable ANSI standards is strictly prohibited. Columbia ParCar is not responsible or liable for any damage that results from any such alteration, and all warranties for any such altered vehicles are null and void.
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION SAFETY MESSAGES VEHICLE IDENTIFICATION NUMBER VIN MATRIX VEHICLE SPECIFICATIONS SAFETY GETTING STARTED SAFETY GUIDELINES SAFETY VEHICLE STATEMENTS BATTERY DISCONNECT METHODS OPERATIONS AND CONTROLS IMPORTANT FIRST STEP INSPECTING THE VEHICLE VEHICLE CONTROLS 3.3.1 POWER KEYSWITCH 3.3.2 DIRECTION SELECTOR 3.3.3 LIGHT SWITCH 3.3.4... - Page 4 VEHICLE PREPARATION RETURNING VEHICLE TO SERVICE NOTICE: In an effort to streamline product support, please ensure your vehicle is properly registered with Columbia ParCar. Registration allows for more effective product support including product updates and warranty processing. Please consult with your servicing dealer to verify or complete the registration process.
-
Page 5: Introduction
1.0 INTRODUCTION This manual provides important safety information, operating instructions, model specifications and maintenance instructions for Eagle electric vehicles. The information in this manual is limited to care and maintenance information only. Information covering repairs is provided in detailed service manuals available from Columbia Dealers. Such major repairs require the attention of a skilled technician and the use of special tools and equipment. -
Page 6: Vin Matrix
For your own personal reference, fill in the VIN in the space provided below: 1.3 VIN MATRIX 13 DIGIT VIN – USED AFTER FEBRUARY 2006 P4L = Eagle - LE Digit 1 – 3 Model P4S = Eagle - SE C = Sep. -
Page 7: Vehicle Specifications
1.4 VEHICLE SPECIFICATIONS MODELS LE-48 SE-48 Speed 19 mph (30.6 kph) Passenger Capacity 2 or 4 Turning 243 in (6.2m) Curb to Curb 4.5 in (114 mm) Ground Clearance 5.5 in (140 mm) Wheelbase 63 in (1.6 m) 94 in (2.4 m) Overall Length Overall Width 45 in (1.14 m) -
Page 8: Safety
It is Columbia ParCar Corporation’s specific recommendation that the following warnings must be observed at all times. Not all are repeated throughout this manual, but the recommendations included must be observed whenever these subjects (vehicle operation hazards, battery hazards, etc.) are... -
Page 9: Battery Disconnect Methods
Follow all procedures exactly and observe all safety messages stated in this manual. Working on vehicles without following proper procedures and using proper equipment may result in vehicle damage or personal injury. Do not attempt to service hot motor or components. Failure to observe this warning could result in severe burns. -
Page 10: Operations And Controls
3.0 OPERATIONS AND CONTROLS 3.1 IMPORTANT FIRST STEP Upon initial delivery, it is very important that the battery pack is properly charged. This is required if the vehicle is to be stored for later use or is to be used immediately. ... -
Page 11: Vehicle Controls
If vehicle has just been delivered, report any physical damage or missing items to the shipping company and your local Columbia Dealer. Report any battery or service issue problems to the individual(s) responsible for correction and/or repair or contact your local Columbia Dealer for service. If any problems are found, do not operate vehicle until repairs are made. -
Page 12: Light Switch
Arrow F & G Read this information carefully before operating the vehicle. Promptly replace if removed or damaged. Contact Columbia ParCar for replacements if needed. 3.3.7 SYSTEM STATUS LIGHT – Figure 3.3.1 Arrow H Some vehicle will be equipped with an additional green System Status LED light located on the dash. -
Page 13: Accelerator Pedal
Figure 3.3.3 shows the brake pedal (Arrow L) and parking brake (Arrow N) for vehicles with hydraulic brakes. These vehicles will have a hand parking brake located either on the floor as shown in Figure 3.3.3 or if equipped with bucket seats, located between the seats. To lock the brake, pull the brake lever upward. -
Page 14: Charger Receptacle
3.3.12 CHARGER RECEPTACLE & REMOTE LED The charger receptacle (Figure 3.3.4) is located on the panel by the driver’s left leg. The AC cord is plugged in here for battery charging. The charger is inter-locked with the traction control system which powers down the vehicle during charging. Near the receptacle is a remote multicolored LED which will indicate the Delta Q charge status. -
Page 15: Pre-Operation Checklist
3.6 PRE-OPERATION CHECKLIST Should any item malfunction or need adjustment, do not operate vehicle until the problem has been corrected. ITEM PROCEDURE Fully charged or adequately charged to provide power for duration of operations. The AC cord is disconnected from the vehicle. Electrolyte level in each cell covers the top of cell plates. -
Page 16: Electric System
4.0 ELECTRIC SYSTEM 4.1 IMPORTANT INFORMATION The type of battery used in a Columbia vehicle has a service requirement which is quite different from that of an automotive battery. The electric vehicle battery supplies all of the power to drive the vehicle. During operation the power stored in the batteries is expended. -
Page 17: Battery Inspection & Maintenance
To reduce the risk of electrical shock or injury: Do not use an ungrounded two to three-prong adapter to connect the charger to a two-prong outlet or extension cord. The battery charger must be properly grounded. Use a three prong No. 12 AWG heavy duty power cord n more than 50 feet long. -
Page 18: Battery Cleaning
Do not overfill batteries. Electrolyte expands and can overflow during charging. Water added to replace the spillage dilutes the electrolyte and reduces its specific gravity. Use only distilled water. Vehicle batteries may use up to 16 quarts of water during their useful life and non-distilled water may contain harmful minerals which will have a cumulative adverse effect on battery performance and life. -
Page 19: Delta-Q Battery Charging
As batteries age, they finish charge at progressively higher charge rates and tend to use more distilled water. At this point in battery age, charger will automatically begin reducing charge time. Batteries found defective must be replaced. All batteries in a vehicle should be matched according to age, capacity and brand. -
Page 20: Red Light Charger Error Codes
NOTICE: You can terminate charging at this point if necessary. The vehicle can be used, but completing the charge cycle is highly recommended. Charge completion is when the 100% Green LED is lit (Fig. 4.5A No. 5). The remote LED will be green. Repeated “Short Charging”... -
Page 21: Check / Change Charging Algorithm
4.5.3 CHECK / CHANGE CHARGING ALGORITHM he Delta-Q Charger has been programmed for use with the Columbia ParCar supplied batteries and contains ten algorithms for use with different batteries. The Table 2 details these battery models. TABLE 2... -
Page 22: Specific Gravity Test
The Delta Q will not charge dead batteries. First establish that none of the batteries have an internal fault or bad cell. If a battery has remained too long in a discharged state (i.e. 2-4 volts each), it may be internally damaged and not capable of accepting a charge and must be replaced. -
Page 23: Battery Removal & Installation
Make it a regular habit to check (and water) your batteries after charging. Always add water after charging. This will reduce the chance for overflow due to expanding water. Weekly equalize the battery pack. If the vehicle is not operated daily the Power keyswitch should be turned off. This will power down the traction control system and reduces power loss on the batteries. -
Page 24: Servicing Your Vehicle
5.0 SERVICING YOUR VEHICLE MAINTENANCE GUIDELINES To ensure that the vehicle is kept in a safe and correct operating condition, it must be inspected and maintained on a regular basis. Proper lubrication, electrical control adjustments, safety feature checks, etc. performed at recommended intervals will help prevent damage or failure of the unit while providing optimum performance. -
Page 25: Brake Fluid Maintenance
If any of the listed limits are exceeded stop and do not use the vehicle. Contact your Columbia Dealer for qualified service assistance. 5.4 BRAKE FLUID MAINTENANCE Check the brake fluid in the master cylinder periodically (under normal conditions, every 3 months). Use DOT 3 Motor Vehicle Brake fluid. -
Page 26: Maintenance Schedule - Owner/Operator
5.9 MAINTENANCE SCHEDULE - OWNER/OPERATOR Item Operation Lug nuts tight. Tires Check tire pressure, wear, damage. dented rims. Check electrolyte level. Apply equalization charge to the battery pack. Electrical As required, clean battery terminals and wash cases. Check the general condition of the electrical system (connections, frayed/broken cables). -
Page 27: Maintenance Schedule Qualified Technician
MAINTENANCE SCHEDULE QUALIFIED TECHNICIAN 5.10 It is recommended that the following be performed by a trained qualified technician or your Columbia Dealer Item Operation Tires Front wheel alignment and camber. Test batteries. Electrical Inspect motor condition and operation. Check brakes, clean, adjust, replace if needed. Brakes Check brake fluid (when equipped) Check differential fluid level. - Page 28 “7 flash fault”, the battery voltage may be low. Check and charge batteries or replace batteries. If the operational fault persists or the LED is not lit or there is a “flash fault” other than 2 or 7, contact your Columbia ParCar Dealer. Figure 5.12.1 2012 P4...
-
Page 29: Towing & Transporting
NOTICE: Never tow a vehicle behind an auto or truck unless on an approved trailer. When trailering your vehicle over long distances or on the highway observe the following: Use trailers specifically designed to carry your Columbia ParCar vehicle that meets all federal, state and local requirements. -
Page 30: Vehicle Storage
7.0 VEHICLE STORAGE (over 6 weeks) 7.1 BATTERY PREPARATION Before storage make sure batteries are fully charged and the electrolyte is full in all cells per Section 4.2. Clean the batteries and connections per Section 4.3. The Delta-Q charger has the capability to test and recharge batteries during storage. Leave the batteries connected and the Delta-Q charger plugged into a reliable AC source. -
Page 31: Returning Vehicle To Service
NOTICE: Make sure power keyswitch is in the OFF position. 7.3 RETURNING VEHICLE TO SERVICE If necessary, connect the battery pack and fully recharge batteries. Check tire pressure and readjust if necessary. See Section 1.4. Perform initial maintenance per Section 3.6. For vehicles with a single point watering system: ... - Page 32 1115 Commercial Avenue • Reedsburg, WI 53959 Phone: (608) 524-8888 • Fax: (608) 524-8380 (800) 222-4653 • Web: www.parcar.com 2012 P4...
