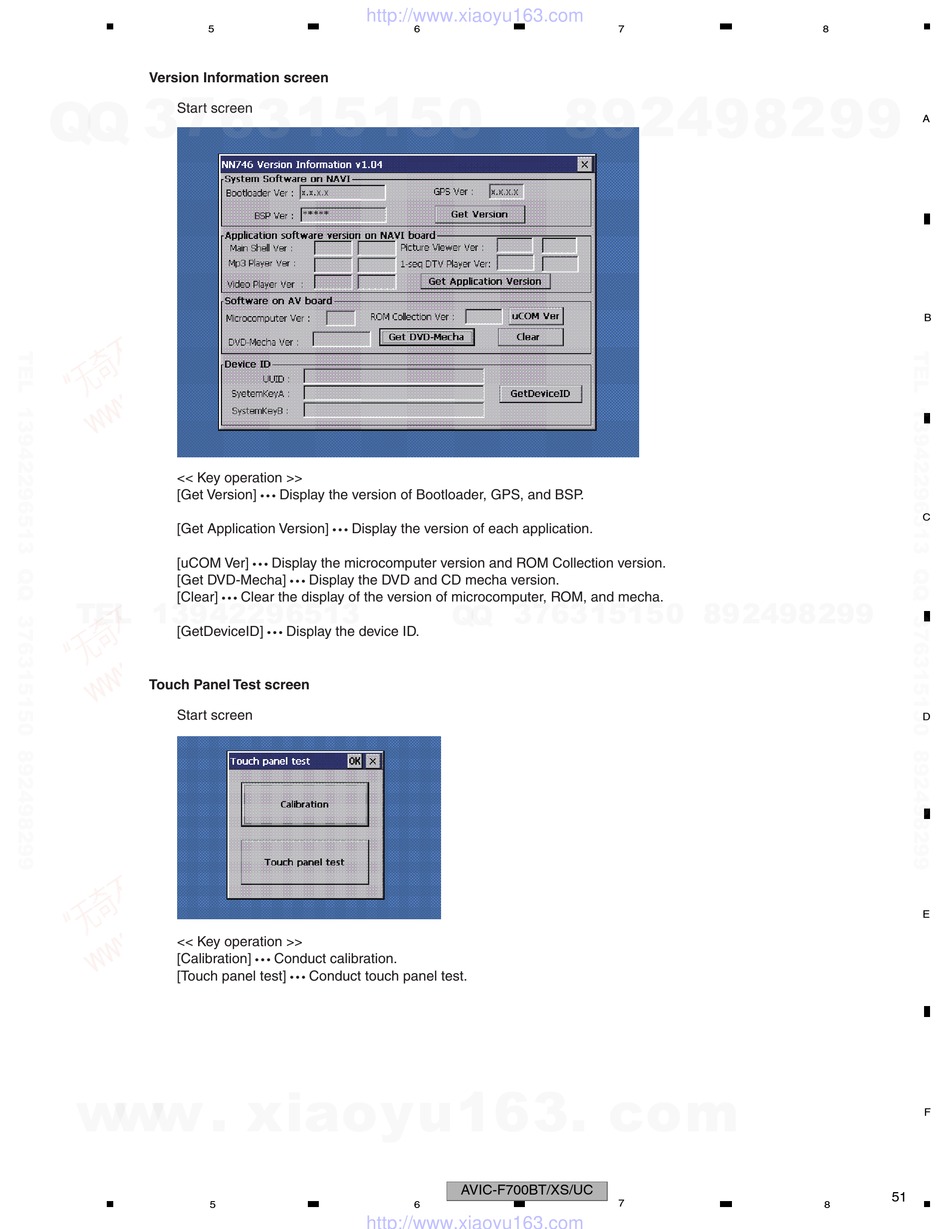

Version Information screen
Start screen
<< Key operation >>
[Get Version]
[Get Application Version]
[uCOM Ver]
[Get DVD-Mecha]
TE
L 13942296513
[Clear]
• • •
[GetDeviceID]
Touch Panel Test screen
Start screen
<< Key operation >>
[Calibration]
[Touch panel test]
www
.
5
http://www.xiaoyu163.com
6
Display the version of Bootloader, GPS, and BSP.
• • •
Display the version of each application.
• • •
Display the microcomputer version and ROM Collection version.
• • •
Display the DVD and CD mecha version.
• • •
Clear the display of the version of microcomputer, ROM, and mecha.
Display the device ID.
• • •
Conduct calibration.
• • •
Conduct touch panel test.
• • •
