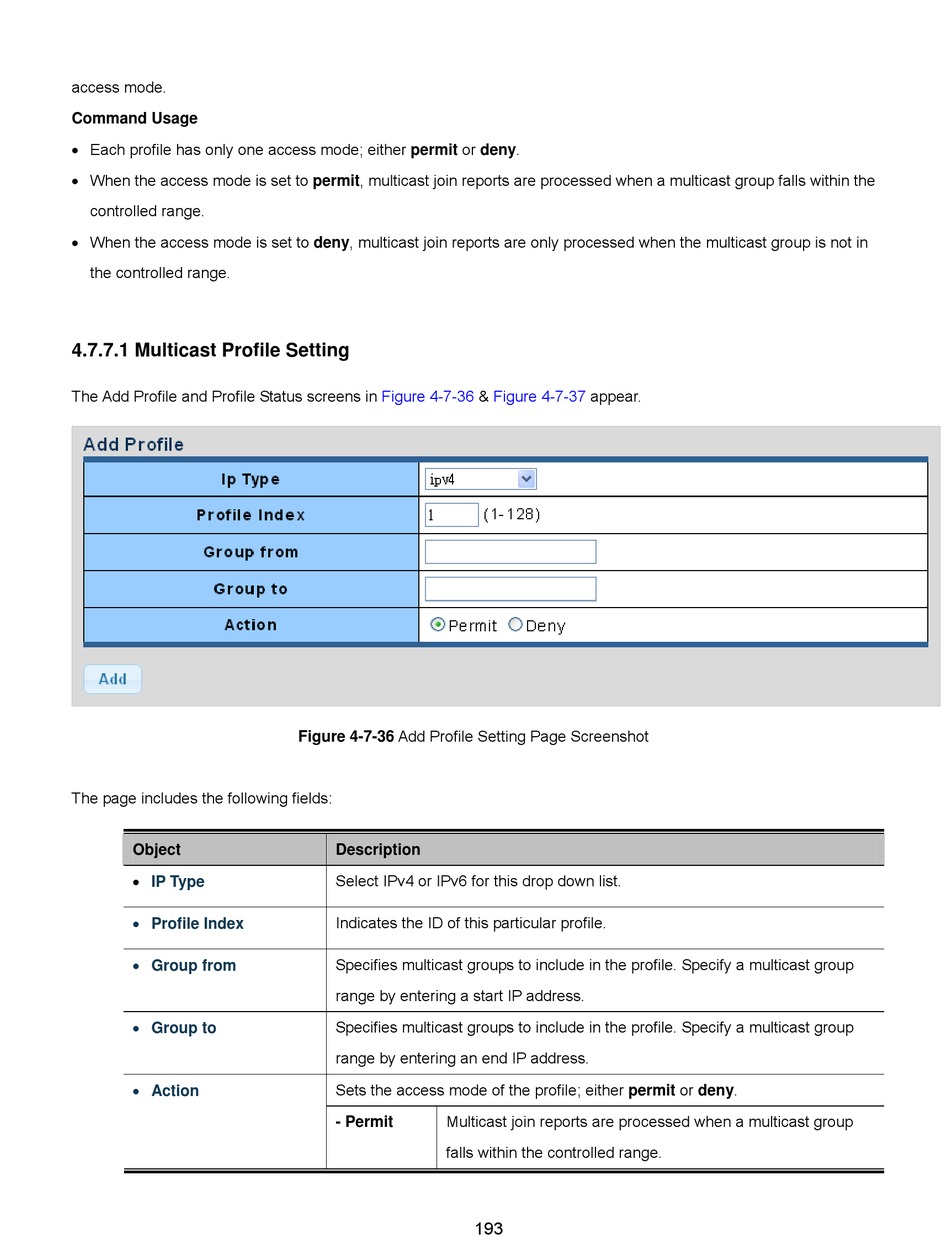

Multicast Profile Setting - Interlogix NS3500-28T-4S User Manual

access mode.
Command Usage
 Each profile has only one access mode; either permit or deny.
 When the access mode is set to permit, multicast join reports are processed when a multicast group falls within the
controlled range.
 When the access mode is set to deny, multicast join reports are only processed when the multicast group is not in
the controlled range.

4.7.7.1 Multicast Profile Setting

The Add Profile and Profile Status screens in
The page includes the following fields:
Object

IP Type
 Profile Index
 Group from
 Group to
 Action
Figure 4-7-36
Figure 4-7-36 Add Profile Setting Page Screenshot
Description
Select IPv4 or IPv6 for this drop down list.
Indicates the ID of this particular profile.
Specifies multicast groups to include in the profile. Specify a multicast group
range by entering a start IP address.
Specifies multicast groups to include in the profile. Specify a multicast group
range by entering an end IP address.
Sets the access mode of the profile; either permit or deny.
Multicast join reports are processed when a multicast group
- Permit
falls within the controlled range.
193
& Figure 4-7-37 appear.
