VIDEO CASSETTE RECORDER
КАССЕТНЫЙ ВИДЕОПЛЕЙЕР
ODTWARZACZ KASET VIDEO
KAZETOVÝ VIDEOREKORDĒR
TUNER NÉLKÜLI VIDEOMAGNÓ
INSTRUCTIONS
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
POKYNY
INSTRUKCJA
HASZNÁLATI ÚTMUTATÓ

Advertisement

   Also See for JVC HR-P111EE

   Related Manuals for JVC HR-P111EE

No related manuals

   Summary of Contents for JVC HR-P111EE

  • Page 1

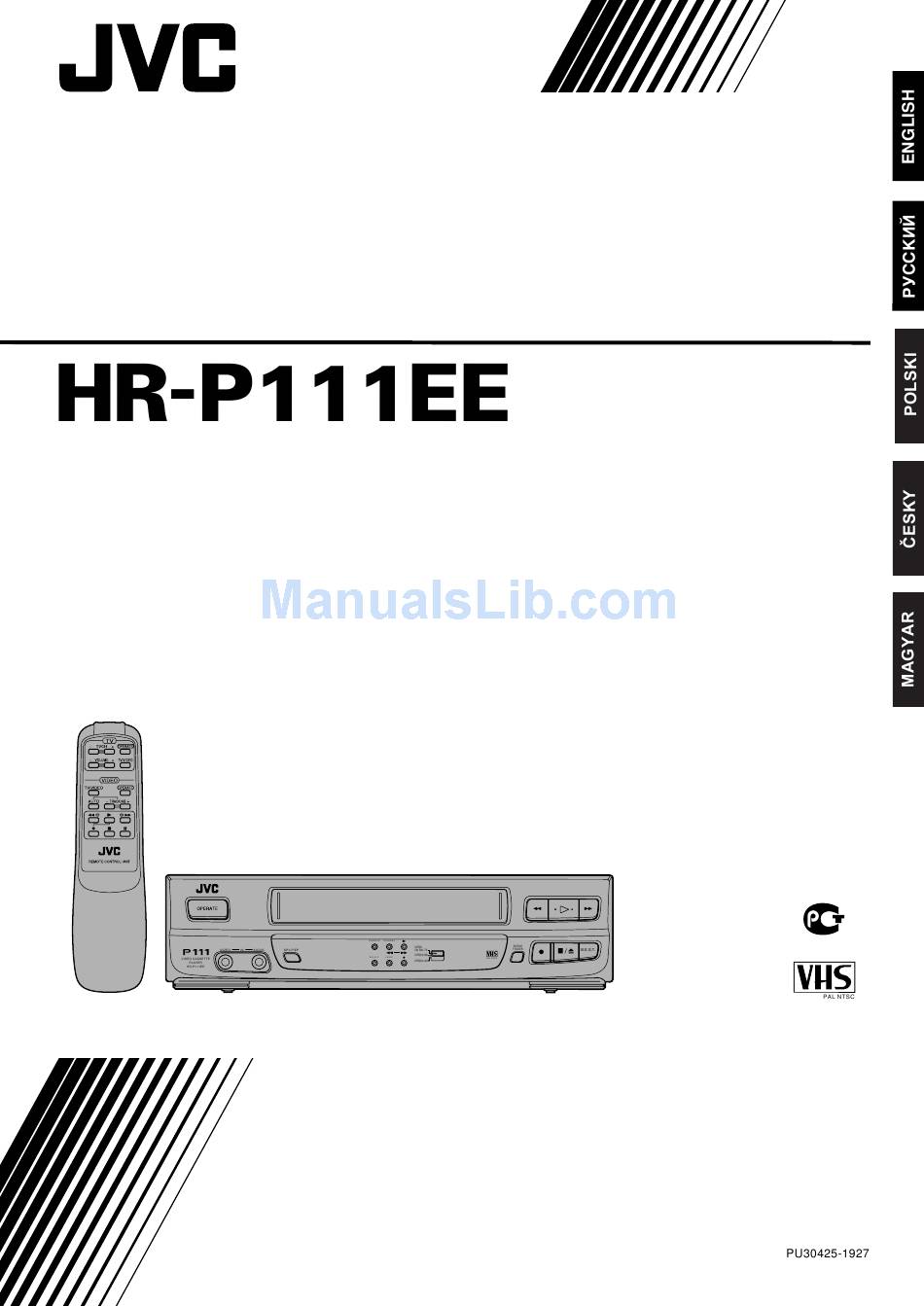

    VIDEO CASSETTE RECORDER КАССЕТНЫЙ ВИДЕОПЛЕЙЕР ODTWARZACZ KASET VIDEO KAZETOVÝ VIDEOREKORDĒR TUNER NÉLKÜLI VIDEOMAGNÓ INSTRUCTIONS РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ POKYNY INSTRUKCJA HASZNÁLATI ÚTMUTATÓ...

  • Page 2: Table Of Contents

    Table of contents Thank you for purchasing this JVC video cassette player. To ensure optimum performance of this unit, please read this instruction manual thoroughly. Precautions ... 2 Controls and terminals ... 3 Wireless remote control ... 4 Connections ... 5 Setting the video channel ...

  • Page 3: Controls And Terminals

    Controls and terminals Front panel VIDEO VIDEO CASSETTE PLAYER HR-P111EE OPERATE button To turn the power on and off (standby mode). Cassette loading slot Load the video cassette here. Rewind 1 button To rewind the video tape and to start reverse shuttle search playback mode.

  • Page 4: Wireless Remote Control

    Replace the battery compartment cover. When using the remote control for operation of the video cassette player, make sure that it is pointed at the remote sensor window. You can also use the player’s remote control to operate a JVC SCENE FINDER B.E.S.T.

  • Page 5: Connections

    Connections Make sure that the power to the video cassette player and TV is off before making the following connections. Connection A (basic) In order to use the video cassette player it must be connected between the antenna and the TV. Connect your TV antenna cable to the video cassette player’s ANT.

  • Page 6: Setting The Video Channel

    The video cassette Inserting a cassette VIDEO AUDIO SP/LP/EP VIDEO CASSETTE PLAYER HR-P111EE VIDEO VIDEO CASSETTE PLAYER HR-P111EE 7 Insert the cassette as shown and push it gently into the video cassette player. The video cassette player will be turned on automatically and the cassette will be loaded.

  • Page 7: Playback

    Playback NTSC, PAL and MESECAM video tapes can be played back on this video cassette player. Refer to the “Colour system output mode selection” section for details. Before proceeding: Turn on the power of the TV and video cassette player. Make sure that the TV is set to the video channel or that the TV’s TV/VIDEO switch is set to VIDEO (refer to the “Setting the video channel”...

  • Page 8: Playback Features

    Playback features Slow motion playback Slow motion playback is 1/6 of the normal playback speed. The sound will be cut during slow motion playback. During playback: Press the Pause 8 button for 2 seconds. 7 Press the Play 3 button to return to the normal playback speed.

  • Page 9: Recording

    Playback features (cont’d) Rewind power off When the tape has finished rewinding, the VCR will turn itself off. During stop: Press the Rewind 1 button. Press the OPERATE button within 2 seconds. The STANDBY indicator will blink. Tracking adjustment Automatic tracking is adjusted each time a cassette is inserted in the video cassette player, you may wish to adjust tracking manually during playback.

  • Page 10: Editing

    7 Dirt accumulated on the video heads after long periods of use causes such troubles. In this case, head cleaning requiring highly technical care is necessary. 7 For head cleaning, consult the nearest JVC dealer. Check point Is the power cord plugged...

  • Page 11: Specifications

    Specifications Format ... VHS Standard Video recording system ... Rotary, slant azimuth two-head helical scan system Rotary heads ... 2 video heads RF output ... System G/K type modulation UHF ch 32 – 40 adjustable (preset ch 36) Recording (line input) ... PAL, SECAM (MESECAM tape) NTSC 3.58, NTSC 4.43 Playback (line output) ...
