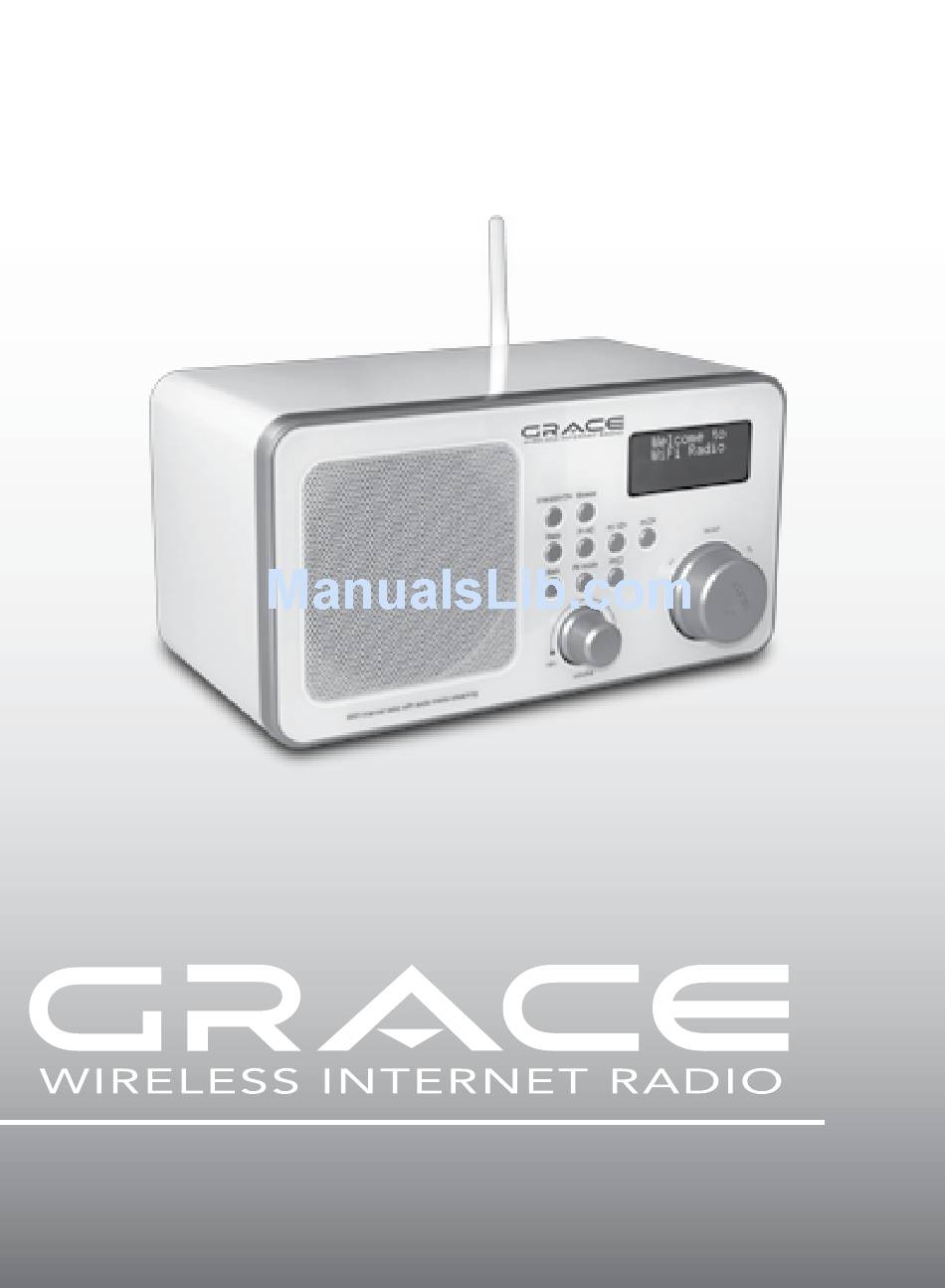

USER GUIDE
ITC-IR1000W / ITC-IR1000B
1
grace wireless internet radio

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ITC-IR1000W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Grace ITC-IR1000W

  • Page 1 USER GUIDE ITC-IR1000W / ITC-IR1000B grace wireless internet radio...
  • Page 2: Table Of Contents

    Playing tracks in random order ....................22 Playing tracks in the queue repeatedly ..................23 Set up a Windows PC to allow GRACE to access your audio files via a UPnP server ....24 Locating and playing media files using the radio and UPnP ............26 Browsing the list of tracks currently queued up for playback ............27...
  • Page 3 Troubleshooting ........................33 Specifications ..........................34 License Information and Warranty ....................34 Appendix ..........................35 Step 1: Set Up Media Sharing in Windows Media Player 11 ............35 Step 2: Play Music on the Internet Radio..................37 Contact ........................... 37 grace wireless internet radio...
  • Page 4: Safety Warnings

    Internet radio it can cause serious damage. If you spill any liquid into your Internet radio switch it off at the mains immediately. Contact your store immediately. CAUTION –Do not open any covers and do not repair yourself. Qualified personnel must carry out repair work. grace wireless internet radio...
  • Page 5: Internet Radio Quickstart Guide

    Before you continue, make sure that your wireless access point is powered up and connected to your broadband Internet. To get this part of the system working you must read the instructions supplied with the wireless access point. grace wireless internet radio...
  • Page 6: Controls

    Press to load Preset station P3 Back Go back to previous menu page Go back to previous menu page P4 Mode Press and hold to save Preset station P4 Repeat On/Off Press to load Preset station P4 Shuffle On/Off grace wireless internet radio...
  • Page 7 Increase volume by turning the knob Increase volume by turning the clockwise knob clockwise Decrease volume by turning the knob Decrease volume by turning the counter clockwise knob counter clockwise Scroll No function at present No function at present grace wireless internet radio...
  • Page 8: Steps For Connecting Your Radio To Your Wireless Network

    When the display says < Scan for networks >, press the SELECT button. (Note: if you make a mistake at any point, press the BACK button to go back to the previous screen.) The radio will now scan for all available wireless networks and will display: Scanning grace wireless internet radio...
  • Page 9: Step 3 - Connect To The Wireless Network

    When the ESSID for the access point you want to connect to is displayed on the screen, press the SELECT button. If your network is not configured to need an encryption code, the screen should say: Connecting to network grace wireless internet radio...
  • Page 10 After the final character, use the knob to select the END character and press the SELECT button. The radio should now be able to connect to the network. If the display shows “Invalid key” or “Network Error”, an incorrect password has probably been entered. grace wireless internet radio...
  • Page 11: Choosing A Radio Station To Listen To

    Note that some radio stations do not broadcast 24 hours per day, and some stations are not always on-line. If this station has on-demand content (that is, it gives the option of listening to programmes which have already been broadcast), see “Stations which enable you to choose what you listen to”. grace wireless internet radio...
  • Page 12: Changing The Volume

    STORING A RADIO STATION IN A PRESET When a radio station is playing, hold down one of the preset buttons (1 to 5) until the screen says. Assigned to Preset # Where # is the number of the button you held down. grace wireless internet radio...
  • Page 13: Playing A Preset Radio Station

    If you choose <On Demand> then more screens are displayed where you choose what you want to listen to. What is displayed will depend on the station you have chosen - the following steps are only a guide. grace wireless internet radio...
  • Page 14: Setting The Clock

    2. Turn the knob until the display says <Configure>. Stations < Configure > Media Player 3. Press the SELECT button. 4. Turn the knob until the display says <Clock>. Register < Clock > Sleep Timer grace wireless internet radio...
  • Page 15: Set Time

    8. Turn the knob until the minute setting is correct, then press the SELECT button. Set Time 15:06 The display says Time Set with the new time shown beneath for 3 seconds, then returns to the radio station display. grace wireless internet radio...
  • Page 16: Setting The Alarm

    4. Turn the knob until the display says <Clock>. Register < Clock > Sleep Timer 5. Turn the knob until the display says <Set Alarm>. Set Time < Set Alarm > 6. Press the SELECT button. Enable Alarm Yes/No grace wireless internet radio...
  • Page 17: Alarm Set

    The display says Alarm Set with the time of the alarm shown beneath for 3 seconds and then returns to the radio station display. When in Standby, the Alarm time is shown next to the clock time with brackets. Reciva Radio 11:58 (07:45) Ensure the volume is set to the desired level. grace wireless internet radio...
  • Page 18: Media Player Quickstart Guide

    6. Select ‘Share this folder on the network’ and ‘Allow network users to change my files’. 7. Copy the files you wish to play from the radio to the shared folder. We suggest using the “Shared Music” folder. grace wireless internet radio...
  • Page 19: Locate The Shared Audio Files Using The Radio

    ‘Play lists’ – if available. Note: The first time the file scan is done a file called ‘.reciva_media_cache’ is written to the folder where the audio files are stored. This is in order to speed up subsequent file scans. grace wireless internet radio...
  • Page 20: Listening To A Single Shared Track

    6. Press the SELECT button. ‘[Add to Queue]’ will be displayed. 7. Press the SELECT button. The album will begin playing. ARRANGING (QUEUING UP) TRACKS FOR PLAYBACK LATER 1. Highlight the required track. 2. Press the SELECT button. ‘Track Added To Queue’ will be displayed. grace wireless internet radio...
  • Page 21: Queuing Up Albums For Playback Later

    2. Turn the knob to see which tracks are queued up for playback. 3. If you want to jump to a particular place in the queue then press the SELECT button when the required track is displayed. grace wireless internet radio...
  • Page 22: Removing Tracks From The Queue

    4. Turn the knob until ‘Playback Mode’ is displayed. 5. Press the SELECT button. 6. Turn the knob until ‘Shuffle’ is displayed. 7. Press the SELECT button. 8. Turn the knob to select YES/NO to confirm that shuffle mode should be enabled. grace wireless internet radio...
  • Page 23: Playing Tracks In The Queue Repeatedly

    8. Turn the knob to select YES/NO to confirm that repeat mode should be enabled. Note: 1. If the shared folders contain more songs than the Internet Radio memory limit, it will display “Too many files”. 2. Repeatedly pressing button P4 will toggle Repeat and Shuffle modes grace wireless internet radio...
  • Page 24: Set Up A Windows Pc To Allow Grace To Access Your Audio Files Via A Upnp Server

    2. You will first need to configure Windows Media Connect to allow certain devices to connect to it. This can be done by selecting ‘Settings’ from Windows Media Connect and checking the box for ‘Automatically allow new devices’, as shown below. Settings for Windows Media Connect grace wireless internet radio...
  • Page 25 You can select which devices you want to connect from the ‘Devices’ section by clicking on ‘Deny’ / ‘Allow’. Sharing Files With Windows Media Connect: grace wireless internet radio...
  • Page 26: Locating And Playing Media Files Using The Radio And Upnp

    9. The radio will display ‘[Add to Queue]’, press SELECT and the radio will add the tracks to its queue and begin playing them automatically. Note: If you have a very large collection, “All Music” may not function, please use “Album” or “Artist” to browse. grace wireless internet radio...
  • Page 27: Browsing The List Of Tracks Currently Queued Up For Playback

    ARRANGING (QUEUING UP) ALBUMS FOR PLAYBACK LATER 1. Highlight the required album. 2. Press the SELECT button. 3. Turn the knob until ‘[Add To Queue]’ is displayed. 4. Press the SELECT button. ‘Tracks Added to Queue’ will be displayed. grace wireless internet radio...
  • Page 28: Controlling Playback

    6. If ‘Yes’ was selected then ‘Removed From Queue’ will be displayed. 7. To remove all tracks from the queue, keep pressing BACK until the ‘Media Player’ menu item is selected, press SELECT and then turn the knob to select ‘Clear Queue’ and press SELECT again. grace wireless internet radio...
  • Page 29: Playing Tracks In Random Order

    4. Turn the knob until ‘Playback Mode’ is displayed. 5. Press the SELECT button. 6. Turn the knob until ‘Repeat’ is displayed. 7. Press the SELECT button. 8. Turn the knob to select YES/NO to confirm that repeat mode should be enabled. grace wireless internet radio...
  • Page 30: Configure Menu

    Note, at this stage, you can press the radio’s BACK button to cancel the radio beginning a firmware upgrade. A Firmware upgrade may take several minutes, so do not switch off the power to the radio until the operation is complete otherwise the radio may become permanently damaged. grace wireless internet radio...
  • Page 31: Upgrade Firmware

    This will display a key that can be used to register the radio on the Reciva Customer portal: http://www.reciva.com/ <Clock> Use this option to set the time, to set an alarm and to view the current alarm setting, see “Setting the alarm”. grace wireless internet radio...
  • Page 32: Sleep Timer

    2. Rotate the knob to highlight the desired menu mode and press SELECT. 3. The radio will now display the current backlight value for this menu mode. You can alter this value by rotating the knob to increase or decrease it. grace wireless internet radio...
  • Page 33: Troubleshooting

    Try using a PC to play back the stream via the broadcaster’s web site. If you can play back the station with a PC, use the form at: http://www.reciva.com/stations/add_station.asp to notify us so that we can change the station data that is used by the radio. grace wireless internet radio...
  • Page 34: Specifications

    • Speaker Output Level: 4.5W • Headphone Speakers Level: 15mW This Product is intended for European and North American markets. The GRACE Wire- less Internet Radio ITC-IR1000 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC FCC Compliance and Advisory Statement: This device complies with Part 15 of the FCC Rules.
  • Page 35: Appendix

    The following steps describe how to set up media sharing in Windows Media Player 11. 1. In Windows Media Player 11, click the small arrow below the Library tab, and then click Media Sharing. 2. In the Media Sharing dialog box, select the Share my media check box. grace wireless internet radio...
  • Page 36 4. The display may show “Access Denied (801)” 5. Your device will now appear in the list. If you want to confirm this is your radio, right click the device and select Properties your radio’s MAC address will be shown. grace wireless internet radio...
  • Page 37: Step 2: Play Music On The Internet Radio

    4. Select the music track/tracks you want to play, and then press the Select button. Enjoy the music! CONTACT If you have any questions regarding your Grace Wireless Internet Radio please contact a Customer Representative Monday - Friday 8:30 AM - 5:30 PM Pacific Standard Time at (866) 446 0961.
  • Page 38 USER GUIDE ITC-IR1000W / ITC-IR1000B Grace Digital Inc. San Diego, CA grace wireless internet radio...
