Summary of Contents for Grace GDI-IRP600

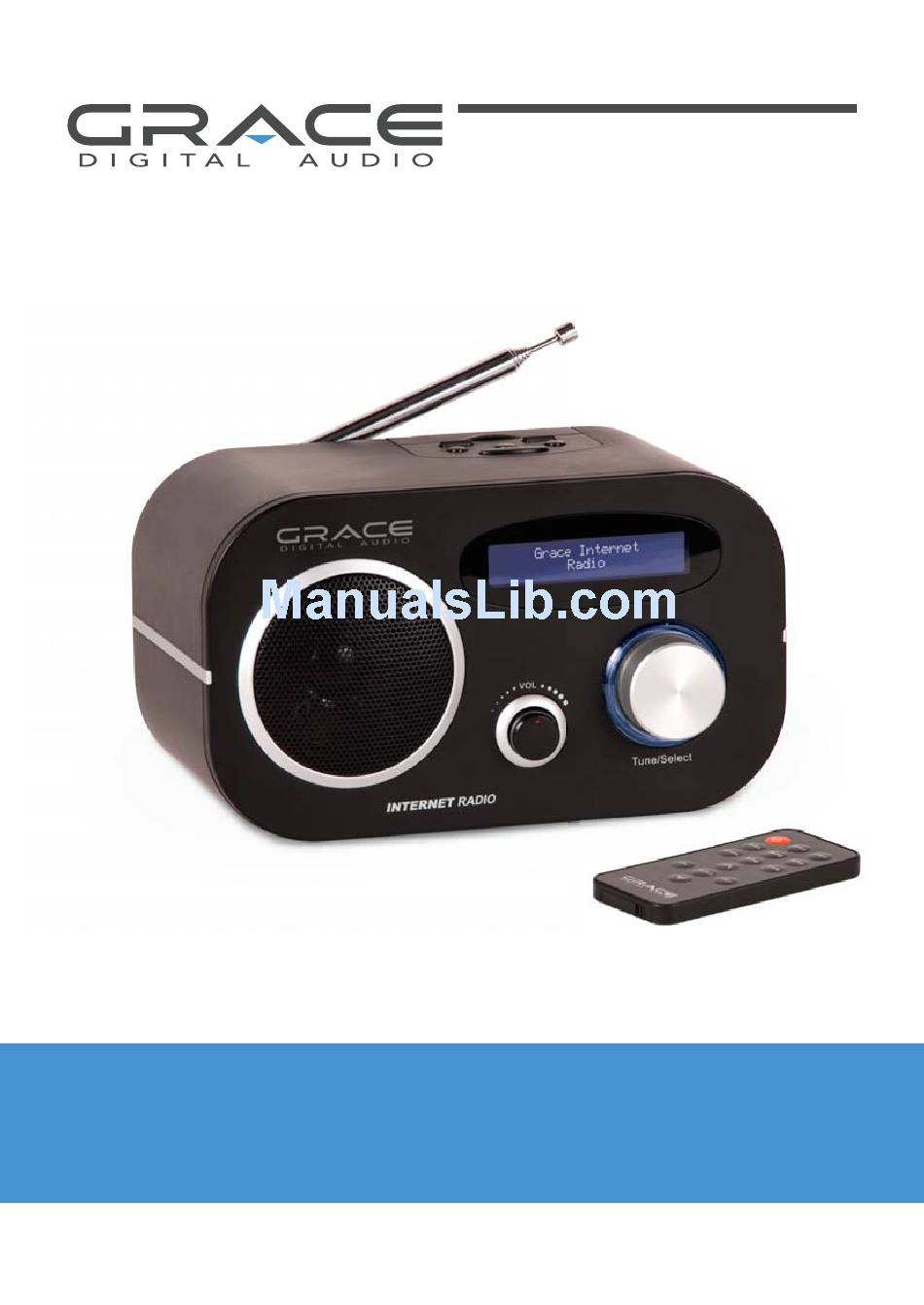

- Page 1 Wi-Fi Internet Radio User Guide GDI-IRP600...
-
Page 2: Functional Modes And Features
The Radio is a small, lightweight and stylish design battery operated Internet Radio. This Radio incorporates an Internet radio and Music streaming features to be used with Wi-Fi network. Other features include Music Player and FM radio. Powered by an external battery and optional DC Power Adaptor, the Radio provides hours of network audio streaming from Internet radio stations and music steaming from your own networked PC connected to your Wi-Fi access point. -
Page 3: Locations Of Controls
Volume knob Battery compartment To fit 6 x AA-size battery Telescopic Antenna Earphone Jack 3.5mm earphone Jack DC input +9V DC Input Remark: Please remove batteries in the battery compartment if the radio is not in use. Locations of Controls... -
Page 4: Getting Started
Tuning Knob to navigate and select it. If the saved profile has the correct information that match to the router that you are going to connect to, the Radio will try to connect to it and you will find a * next to the name of router if the connection is successful. - Page 5 Then you will see a screen showing “Searching” while the radio is trying to search and show you all the available Access Points that the radio is able to find. It will show all the Wi-Fi networks SSID in the range as shown in the screen for example.
- Page 6 Adjust the Tuning knob to the right to select “Yes” and it will display successful. If you have selected to save the Profile, then next time when you use the radio, it will connect the wireless network automatically, or you can load the saved profile. It does not require entering the WPA/WEP code again.
-
Page 7: Internet Radio
Internet Radio Internet radio gives you the access to all the Radio stations available worldwide. Once your Radio is connected to the Wi-Fi, you can listen to Internet Radio station worldwide. Listening to the Internet Radio Select Internet Radio from the Main Menu, or simply press the “Internet” button at the top panel. -
Page 8: Station Presets
To preset the station, long press one of the number until it appears with P# saved. If you are listening to the preset station and would like to do the Radio search again, adjust the Tuning knob and it will display as follow Navigate to the Radio Search and select by pushing down the Tuning knob. - Page 9 Once you select the Music folder in your PC server, you can stream and listen to all the music from your PC’s Media Player. Select the Music Folder or Song that you wish to listen to by turn and press the NAVI Knob and the Radio will start to play the song as shown.
- Page 10 Setting up Windows Media Player version 11 You should be running Windows XP OS on your PC/Laptop, and Windows Media Player version 11. Now open the Windows Media Player, and choose Library. From the drop down list of the menu select the Media sharing. Now tick the ‘Share my media to’...
- Page 11 Please un-tick Pictures and video under Media type. Next tick the ‘Allow new devices and computers automatically and press OK To select the folders for monitor and for sharing, choose Library. From the drop down list of the menu select the Add to Library . Select the folders to monitor as below After selected the folders to monitor and share in the Player Library, click OK to complete.
-
Page 12: Auto Scan
FM Radio FM Radio connects you to the local radio channels available in your city. To listen to the FM Radio, select the FM Radio, from the main menu, or press the FM button on the top panel. To change the channels use Tuning Knob. - Page 13 AUPEO! music portal. Once your Internet Radio is connected to the Wi-Fi, you can perform the AUPEO! Music streaming immediately and by interacting with your Internet Radio, it will start to stream music that is personalized to your personal music taste based on the below methods.
- Page 14 Enter your email address, your preferred user name, password and a favorite artist’s name to start playing music you love right away. Listening to the Music from AUPEO! Music Portal To stream music from the AUPEO! Music Portal, first the device must be connected to Wi-Fi network as explained on the above section, then select AUPEO!, from the Main Menu.
- Page 15 Mixtapes, let you listen to your predefined music play list based on artist typed. It plays back your selected play list that you have previously managed online at AUPEO! Portal under your user account. Friend Channels, play your Friend Personal station music stream. It displays your Friends Personal station that you have previously managed online at AUPEO! Portal under your user account.
- Page 16 Setting Setting allows you to customize the settings of your Radio. Select the Setting from the main menu and you will see the settings menu. It includes the following categories: Network Configuration, helps you set up and disconnect from the Wi-Fi network and show you the current network status of the Radio, for more details on how to do Wi-Fi Setup please refer Setting up the Wi-Fi section above.
- Page 17 Factory Reset - allows you to reset all the setting to the default factory settings. Use the Tuning knob to select the Yes or No option. About - To check the details of the radio model name and the firmware version. < Norsk <...
- Page 18 Source - http://en.wikipedia.org/wiki/Wi-Fi Wired Equivalent Privacy (WEP) is a scheme to secure IEEE 802.11 wireless networks. It is part of the IEEE 802.11 wireless networking standard. Because wireless networks broadcast messages using radio, they are susceptible to eavesdropping. Source - http://en.wikipedia.org/wiki/Wired_Equivalent_Privacy WPA –...
-
Page 19: Troubleshooting And Faq
Answer: Radio search service provides online internet radio directory which aggregates tens of thousands of radio stations and podcasts. The directory maintained by Radio search are updated time to time in order to make sure the maximum level of accessibility of individual Internet Radio channel. Your Radio... - Page 20 Question: What wireless standards are compatible with my Radio? Answer: Radio is an 802.11 wireless b/g compatible device.It includes support for WEP / WPA / WPA2. Personal authentication security standards. WPA/WPA2 Enterprise authentication security is not supported. Question: Why does my Radio only have Wi-Fi antenna icon but no signal bar? Answer: Please check your Wi-Fi access point and network server configuration on DHCP portion.
- Page 21 Remote control Power: Power off / only 1-10: preset button Mute: mute the volume Internet: Internet mode PC: Media player mode FM: FM mode Back: Press to back previous menu Menu: Press to display main menu vol+ : Increase the volume 10.
