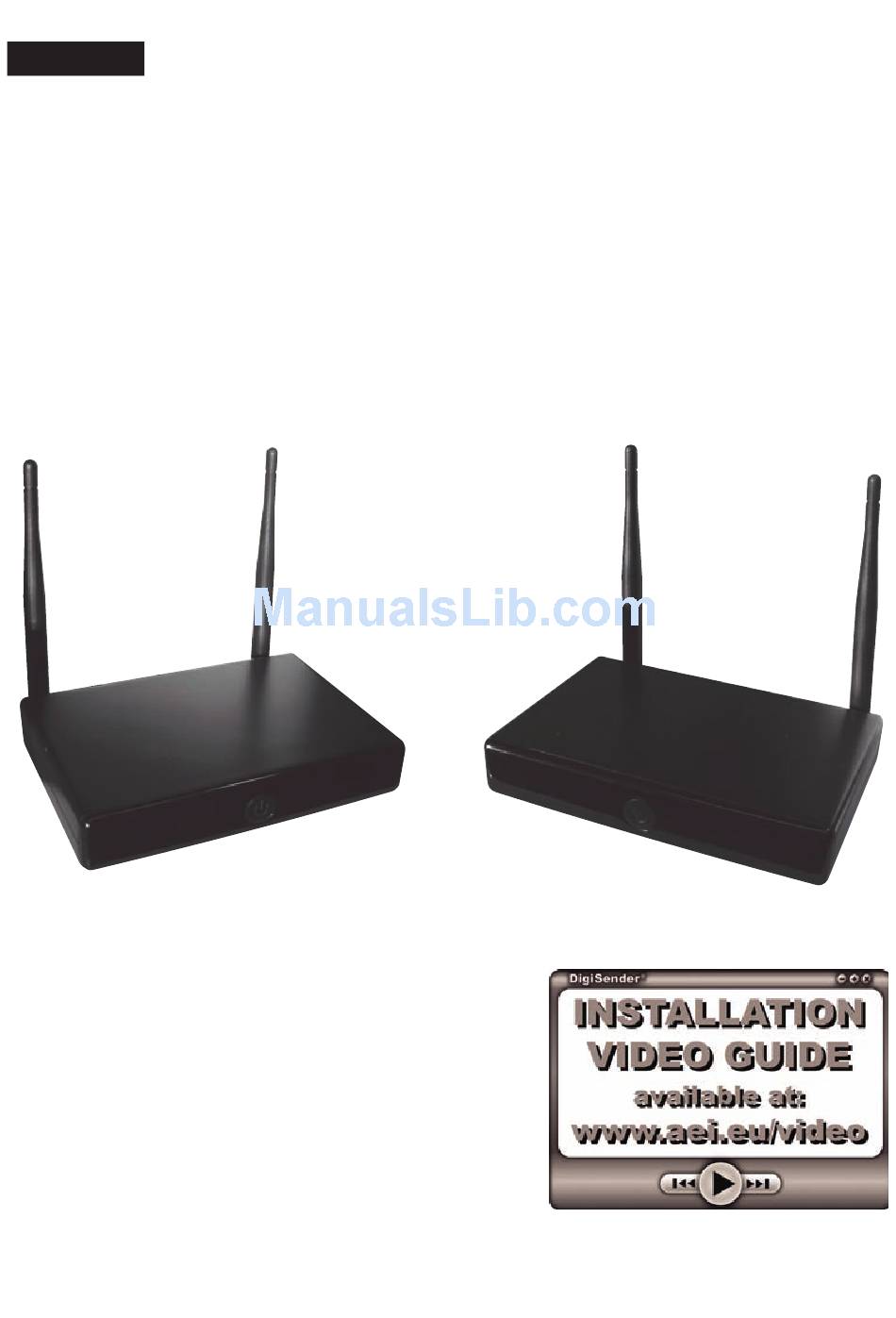

150309-5
DigiSender HQ2
MODEL: DG258
®
Twin Input 5.8GHz Wireless AV Sender
PLEASE KEEP THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DigiSender HQ2 DG258 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AEI Security & Communications DigiSender HQ2 DG258

Summary of Contents for AEI Security & Communications DigiSender HQ2 DG258

  • Page 1 150309-5 DigiSender HQ2 MODEL: DG258 ® Twin Input 5.8GHz Wireless AV Sender PLEASE KEEP THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE...

  • Page 2: Table Of Contents

    DG258 - DigiSender® HQ2 - Twin Input 5.8GHz Wireless AV Sender Table of Contents Introduction STEP 1 - Unpack your DigiSender® HQ2 STEP 2 - Install the DigiSender® HQ2 Transmitter 05-06 STEP 3 - Install the IR Systeme Technik™ STEP 4 - Install the DigiSender® HQ2 Receiver STEP 5 - Using the DigiSender®...

  • Page 3: Introduction

    DG258 - DigiSender® HQ2 - Twin Input 5.8GHz Wireless AV Sender Introduction Congratulations on purchasing the DigiSender® HQ2 - Twin Input 5.8GHz Wireless AV Sender. This product represents state of the art wireless audio and video technology and the most advanced Infra-Red relay technology at exceptional value for money.

  • Page 4: Step 1 - Unpack Your Digisender® Hq2

    DG258 - DigiSender® HQ2 - Twin Input 5.8GHz Wireless AV Sender STEP 1 - Unpack your DigiSender® HQ2 All DigiSender® orders are computer weight checked when packed. However, it is a good idea to check all kit contents are present before proceeding with the installation.

  • Page 5: Step 2 - Install The Digisender® Hq2 Transmitter

    STEP 2 - Install the DigiSender® HQ2 Transmitter The DG258 Transmitter will send the audio and video from two connected sources (your Satellite receiver and DVD Player for example) to the DG258 Receiver, located in another room in your home. Connect DigiConnector™ 1 to your Satellite, Connect DigiConnector™...
  • Page 6 DG258 - DigiSender® HQ2 - Twin Input 5.8GHz Wireless AV Sender continued... Note: Try to avoid positioning the DG258 Transmitter directly on top of other electrical devices as this could lead to a poor picture. Connect the Power Supply Unit (PSU) to the Connect the Power Supply Unit (PSU) to an socket labelled ‘PSU’...

  • Page 7: Step 3 - Install The Ir Systeme Technik

    DG258 - DigiSender® HQ2 - Twin Input 5.8GHz Wireless AV Sender STEP 3 - Install the IR Systeme Technik™ Once set up correctly, the IR Systeme Technik™ will enable you to control your source equipment from the receiving location in your home.

  • Page 8: Step 4 - Install The Digisender® Hq2 Receiver

    DG258 - DigiSender® HQ2 - Twin Input 5.8GHz Wireless AV Sender STEP 4 - Install the DigiSender® HQ2 Receiver The DG258 Receiver will pick up the signals being sent by your DG258 Transmitter and output them to a connected TV.

  • Page 9: Step 5 - Using The Digisender® Hq2

    DG258 - DigiSender® HQ2 - Twin Input 5.8GHz Wireless AV Sender STEP 5 - Using the DigiSender® HQ2 Turn on the DG258 Transmitter and Receiver by Switch on the source equipment (Satellite, pushing the Power button on the front of the Freeview, DVD, VCR, etc.).

  • Page 10: The Digisender® Remote Control

    DG258 - DigiSender® HQ2 - Twin Input 5.8GHz Wireless AV Sender Using the DigiSender® HQ2 The DigiSender® Remote Control 1. POWER The POWER button will turn your DigiSender® HQ2 Transmitter or Receiver On or Off. POWER 2. Input 1 The Input 1 button will select Input 1 on the Transmitter and Receiver.

  • Page 11: Digisender® Hq2 Basic Functions

    DG258 - DigiSender® HQ2 - Twin Input 5.8GHz Wireless AV Sender Using the DigiSender® HQ2 Basic Functions Turning the DigiSender® HQ2 On and Off To turn the DigiSender® HQ2 On, press the power button on the front of the Transmitter and Receiver.

  • Page 12: Digisender® Hq2 Advanced Function

    DG258 - DigiSender® HQ2 - Twin Input 5.8GHz Wireless AV Sender Using the DigiSender® HQ2 Advanced Functions Changing the Audio/Video Channel The DigiSender® HQ2 features 4 Audio/Video Channels. Each of these Audio/Video Channels slight- ly changes the frequency on which the DigiSender® HQ2 operates. Because the Audio/Video Channel switch allows you to ‘fine tune’...

  • Page 13: Upgrades And Accessories

    DG258 - DigiSender® HQ2 - Twin Input 5.8GHz Wireless AV Sender Upgrades & Accessories Additional Receiver - DG15RX Aerial Convertor - MOD01PIS • Get your Satellite channels to additional • Connect a DigiSender® Receiver to an TV’s in your home! aerial socket on your TV •...

  • Page 14: Troubleshooting

    DG258 - DigiSender® HQ2 - Twin Input 5.8GHz Wireless AV Sender Troubleshooting Picture Problems Q: What do you see on your second television? The picture is present but I see a black or blank screen poor quality POOR RANGE Switch OFF your DigiSender® TRANSMITTER What do you now see at the second TV? 1.
  • Page 15 DG258 - DigiSender® HQ2 - Twin Input 5.8GHz Wireless AV Sender cont... I see a snowstorm effect or I see lines over the picture plain blue screen INTERFERENCE Switch OFF your DigiSender® RECEIVER. Q: What do you now see at the second TV?

  • Page 16: Audio Problems

    DG258 - DigiSender® HQ2 - Twin Input 5.8GHz Wireless AV Sender Troubleshooting Audio Problems 1. Disconnect both the Transmitter AND Receiver SCART cables. Reconnect the cables ensuring they are pushed into the sockets firmly. I can see the picture but 2.

  • Page 17: Problems Controlling Your Source Equipment

    1) Ensure the IR Emitter is connected to the socket labelled ‘IR’ on the DG258 Transmitter. 2) Ensure you are using the correct remote control in the second room. For instance, if you are trying to control your Satellite Receiver you will need to use the Satellite remote control.

  • Page 18: Technical Support

    DG258 - DigiSender® HQ2 - Twin Input 5.8GHz Wireless AV Sender Technical Support AEI Security & Communications Ltd is dedicated to providing our customers with first class customer care and technical support. During busy periods we would suggest using the web option to obtain support.
  • Page 20 SPECIFICATIONS DG258 Transmitter : Remote Relay Receiver 433.92MHz Audio/Video Frequency 5.7250GHz ~ 5.8750GHz Modulation Video Input Level 1V PP/75Ω Colour Video Input Phase Alternate Line (PAL) Audio Input Level 1.0v PP (Mod 1KHz, Dev 15KHz) Audio Bandwidth 10Hz - 22KHz (-1dB) Input Connectors 2x DigiConnector™...
