Cisco RV042 Quick Start Manual

Quick Start Guide
Cisco Small Business
Cisco RV0xx Series VPN Router
Model RV042, RV082, and RV016
Package Contents
• 10/100 x- Port VPN Router
• Power Adapter for RV042 or AC Power Cable for RV082/RV016
• RJ45 Ethernet Cable
• Rack Mounting Kit for RV016/ RV082
• Quick Start Guide
• Product CD
Welcome

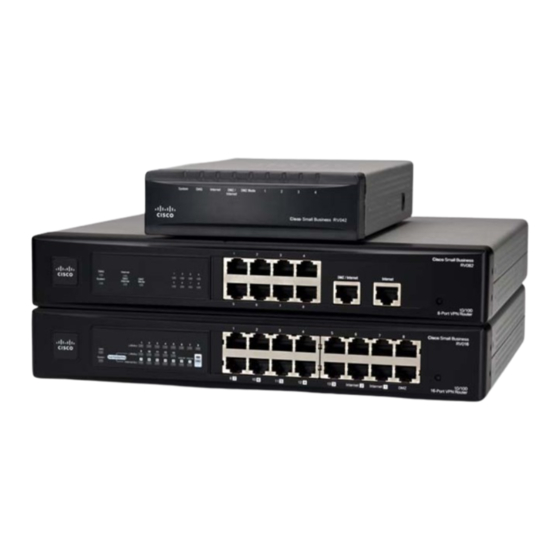

Thank you for choosing a Cisco RV0xx Series VPN Router. These routers
provide advanced connection-sharing for your small business, and allow your
remote workers to securely access your onsite network resources.
All RV0xx Series routers can support a second Internet connection to ensure
continuous connectivity or to increase available bandwidth and balance traffic.
Three models are available. A comparison is provided below.
Model LAN WAN /DMZ
Ports Ports
RV042 4 2
RV082 8 2
RV016 8-13 2-7 Internet
1 DMZ
N RV042 and RV082 have one dedicated Internet port and a DMZ/
OTE
Internet port. RV016 has two dedicated Internet ports, one dedicated DMZ
port, and five dual function ports that can be configured as LAN or Internet
ports.
RV0xx Series Router Features
1
RV042 Ports
1 2 3 4 Internet DMZ/Internet
RV042 LEDs
System DIAG Internet DMZ/ DMZMode 1 2 3 4
Internet
Cisco Small Business RV042
RV082 Ports and LEDs
1 2 3 4
Cisco Small Business
RV082
DMZ/Internet Internet
DIAG Internet 1 2 3 4
System Internet DMZ Mode DMZ 5 6 7 8
10/100
16-Port VPN Router
5 6 7 8
RV016 Ports and LEDs
1 2 3 4 5 6 7 8 Cisco Small Business
RV016
1 2 3 4 5 6 7 8
LAN/Act
DIAG
9 10 11 12 13
LAN/Act
System Dual-Function Ports 7 6 5 4 3 2 Internet Internet 1
Internet/Act DMZ
10/100
97 106 115 124 133 Internet 2 Internet 1 DMZ
16-Port VPN
Ports
Internet (RV042 and RV082) or Internet 1-2 (RV016): Use this port to
connect the router to a broadband network device.
DMZ/Internet (RV042 and RV082): Use this port to connect the router to
either a second broadband network device or a DMZ host such as a web
server or FTP server. A DMZ allows public Internet traffic to access a specified
computer on your network without exposing your LAN.
DMZ (RV016): Use this port to connect the router to a DMZ host such as a
web server or FTP server. A DMZ allows public Internet traffic to access a
specified computer on your network without exposing your LAN.
1-4 (RV042) or 1-8 (RV082 and RV016): Use these numbered ports to
connect computers and other local network devices.
Dual Function Ports (RV016): Use these ports as LAN ports (numbered 9-13)
or configure them for use as Internet ports (numbered 3-7). The status is shown
on the corresponding LEDs: LAN/Act 9-13 or Internet/Act 3-7.
LEDs
DIAG: The LED is steady red when the router is preparing for use. It is unlit
when the router is ready for use.
System: The LED is steady green when the router is powered on. It flashes
when the router is running a diagnostic test.
Internet (all models), DMZ/Internet (RV042 and RV082), or Internet/ACT
(RV016): The LED is steady green when a device is connected to the
corresponding port. It flashes to indicate network activity over the port.
DMZ Mode (RV042 and RV082): The LED is steady green when the DMZ/
Internet port is configured as a DMZ. This LED is unlit when the port is
configured as a secondary Internet connection.
DMZ (RV016): The LED is steady orange when the router is connected to a
DMZ host through the DMZ port. It flashes to indicate network activity over the
port.
1-4 (RV042), 1-8 (RV082), or LAN/Act 1-8 (RV016): The LED is steady green
when a device is connected to the corresponding port. It flashes to indicate
network activity over the port.
Dual Function Ports LAN/Act 9-13 and Internet/Act 3-7 (RV016): For each
dual function port, only one LED is lit, indicating the current port function (LAN
or Internet). The LED is steady green when a device is connected to the
corresponding port. It flashes to indicate network activity over the port.
Other Hardware Features
Reset: The reset button is an indented black button on the back panel of the
RV042 and on the front panel of the RV082 and RV016.
• To restart the router or restore connectivity: If the router is having
problems connecting to the Internet, use the tip of a pen to press and hold
the Reset button for one second.
• To restore factory default settings: If you are experiencing extreme
problems with the router and have tried all other troubleshooting measures,
press and hold the Reset button for 30 seconds to restore the factory
default settings. All previously entered settings will be abandoned.
Security Slot: Use the security slot on the side panel to attach a lock to
protect the router from theft.
Power:
• RV042: Connect the provided power adapter to the power port on the side
panel.
• RV082 and RV016: Connect the provided AC power cable to the power
port on the back panel.
Default Settings
Parameter Default Value
Username admin
Password admin
LAN IP 192. 1 68. 1 . 1
DHCP Range 192. 1 68. 1 . 1 00 to 149
Netmask 255.255.255.0
Mounting Options
2
Placement Tips
• Ambient Temperature—To prevent the router from overheating, do not
operate it in an area that exceeds an ambient temperature of 104°F (40°C).
• Air Flow—Be sure that there is adequate air flow around the router.
• Mechanical Loading—Be sure that the router is level and stable to avoid
any hazardous conditions.
Desktop Placement
Before placing the router on a desktop, install the four adhesive pads onto the
the bottom panel. Place the router on a flat surface near an electrical outlet.
W Do not place anything on top of the router; excessive weight could
ARNING
damage it.
Wall Mounting
The router has two wall-mount slots on the bottom panel. To mount the router
on a wall, you need mounting hardware (not included). Suggested hardware is
illustrated below (not true to scale).
Suggested Hardware for Suggested Hardware for
RV042 RV082 and RV016
5-5.5 mm 20-22 mm 6.5-7 mm 16.5-18.5 mm
W Insecure mounting might damage the router or cause injury. Cisco
ARNING
is not responsible for damages incurred by insecure wall-mounting.
