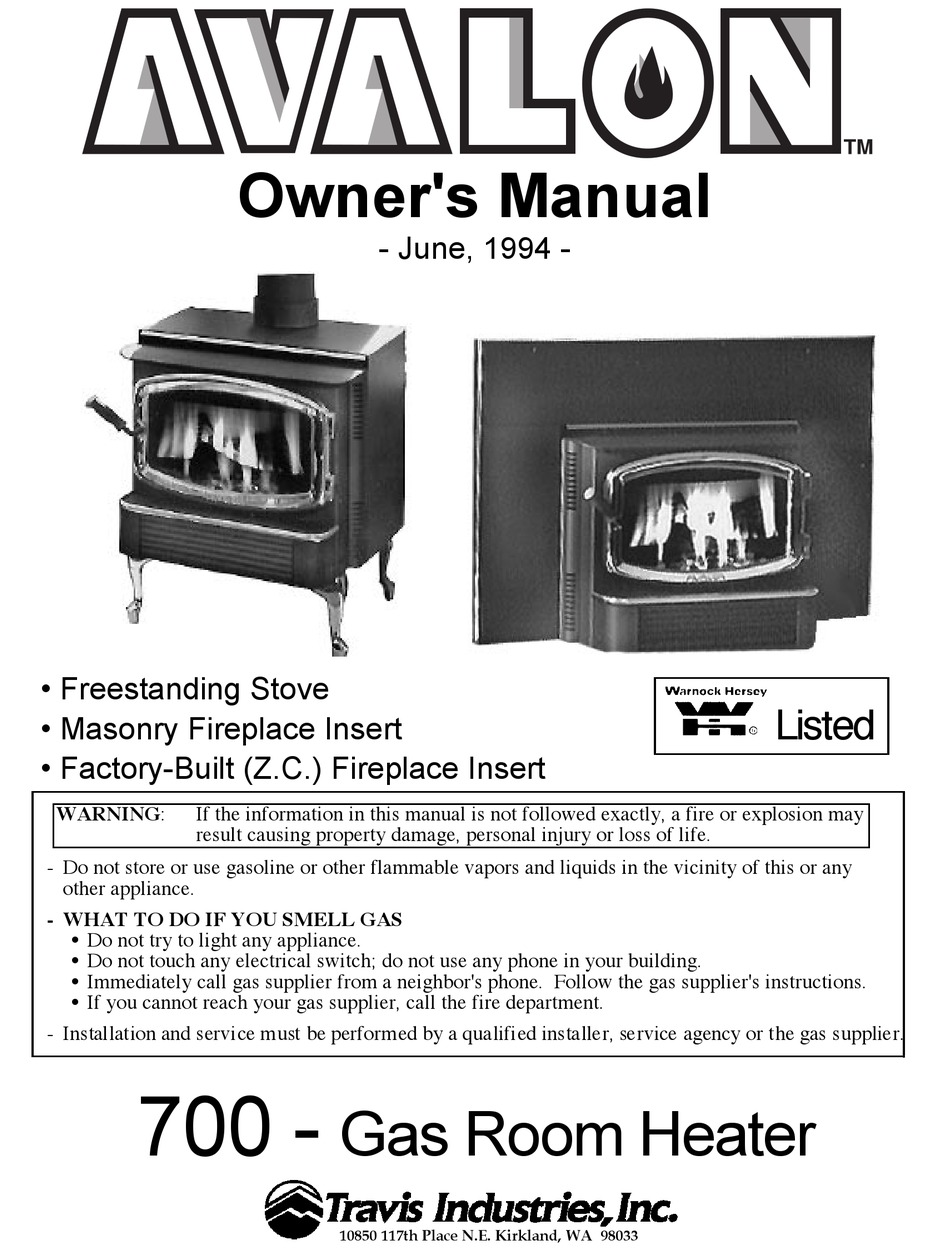

T U R N U P T H E H E A T !
¥ Freestanding Stove
¥ Masonry Fireplace Insert
¥ Factory-Built (Z.C.) Fireplace Insert
WARNING:
If the information in this manual is not followed exactly, a fire or explosion may
result causing property damage, personal injury or loss of life.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
¥ Do not try to light any appliance.
¥ Do not touch any electrical switch; do not use any phone in your building.
¥ Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
¥ If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
700 -
Owner's Manual
- June, 1994 -
Gas Room Heater
10850 117th Place N.E. Kirkland, WA 98033
TM
Listed
