User's Manual
(Model Name: MS-200)
Version: 1.0
Date: December 5, 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS-200 and is the answer not in the manual?

Questions and answers

Related Manuals for MobiShow MS-200

Summary of Contents for MobiShow MS-200

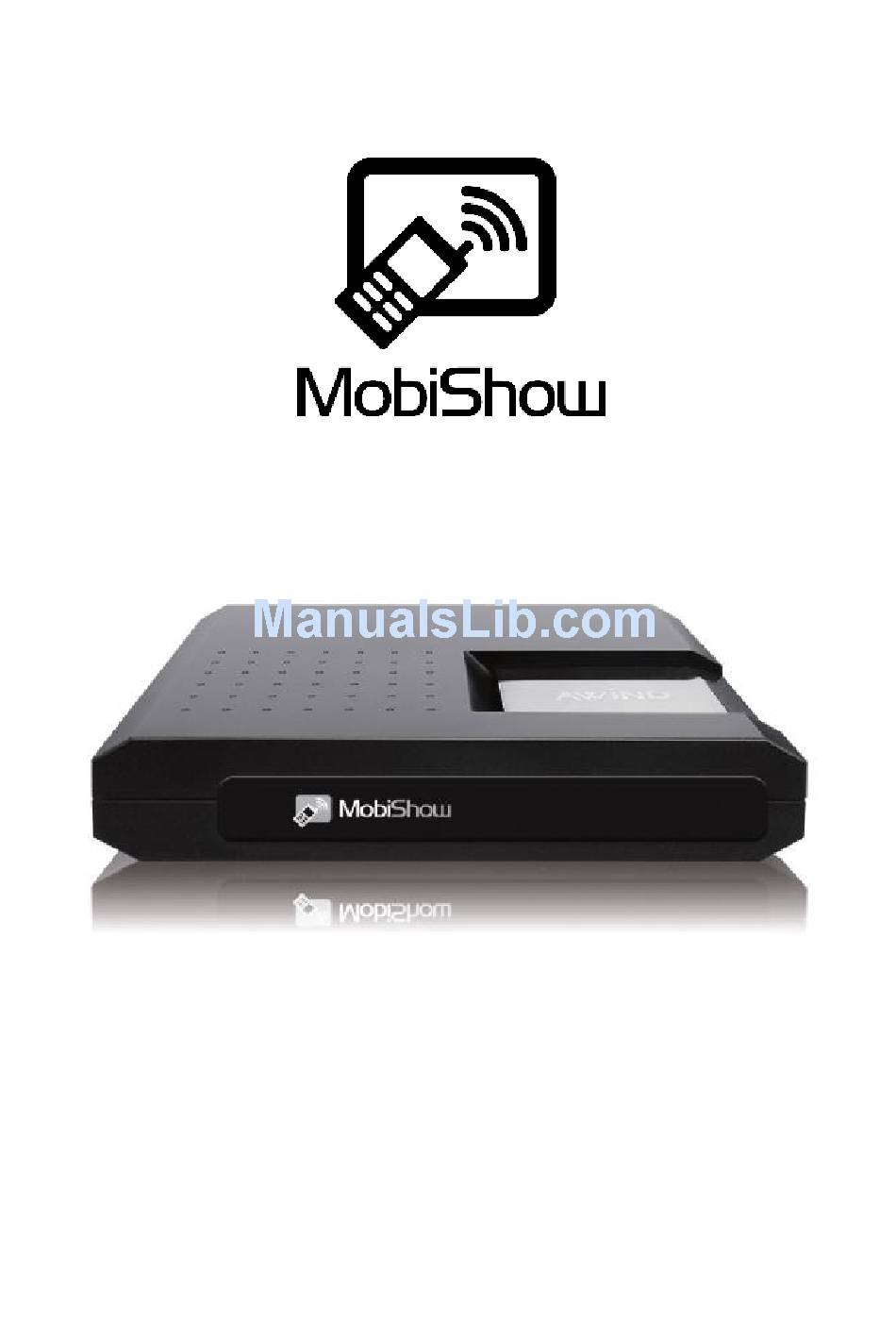

  • Page 1 User’s Manual (Model Name: MS-200) Version: 1.0 Date: December 5, 2008...

  • Page 2: Package Contents

    MobiShow Quick Installation Guide Awind Inc. 1) Package Contents MobiShow Box Power Adapter (DC +5V, 2.5A) CD-ROM with Smartphone & PC utilities and User’s Manual inside. Quick Installation Guide Warranty Card Carry Bag 2) Physical Details Front Panel Rear Panel...

  • Page 3: Hardware Installation

    3) Hardware Installation 1) Connect power adapter DC plug to MobiShow DC jack. AC plug DC in 2) Connect Projector’s VGA cable to MobiShow VGA connector on the rear panel. 3) Turn on projector. 4) Turn on MobiShow box ♦...

  • Page 4: Software Installation

    2) Connect your phone to MobiShow wireless network. The SSID is displayed on screen (default SSID is MobiShow). 3) Open the browser on your phone and enter the IP address of the MobiShow box. ♦ The default IP address is 192.168.100.10.
  • Page 5 2) Insert MobiShow Setup CD to PC. 3) The AutoRun program will automatically bring up the Setup page. If the system asks you what to do on CD insertion, please select “Launch MobiShow Setup CD”. 4) On the Setup page, select “Install to Phone”.

  • Page 6: Using Mobishow With A Smartphone

    3) MobiShow client will search for MobiShow box automatically. When a box is found, it will automatically login and the following main menu is shown on your phone. If more than one MobiShow is found, the following list is displayed for you to select the one to use.
  • Page 7 (such PowerPoint Viewer) or open any file (such as Word document or JPG image) and it will be projected to the projector. Note: Do not exit MobiShow application while opening other application to keep screen projected. Click the “Stop” icon to stop projection.
  • Page 8 Click “Play” again to play the file if it is stopped. Click “Home” to go to the first slide. Click “Jump” and MobiShow client will show every slide on the phone. You can select any page to go to.
  • Page 9 Awind Inc. Media Sender: When you select Media Sender function, MobiShow client will automatically open Explorer for you to select a media file. Select a file (videos in mpeg or wmv9 format, or MP3 music files) to play. When the file is open, the media will be projected, and the following screen is displayed on the phone for you to control your media playback.
  • Page 10 8) Using MobiShow with a PC Besides Smartphones, you may also use MobiShow with one PC. To use MobiShow with your PC, follow the steps to install MobiShow client to your PC and use MobiShow. 1) Insert the MobiShow Setup CD to your PC.
  • Page 11 MobiShow Quick Installation Guide Awind Inc. 8) The following control panel is displayed on your Desktop if it login successfully. Click the “ Play” button to start projection. Click the “ Pause” icon to pause projection. The icon will become “...

  • Page 12: Using Ptg Converter

    MobiShow Quick Installation Guide Awind Inc. 9) Using PtG Converter Open “MobiShow PtG Converter” in “MobiShow\MobiShow PtG Converter” folder from “Programs” in the Start menu. The following control panel is displayed on your Desktop when it is launched. Click the “...

  • Page 13: Web Management

    Home Page ♦ Make sure your PC connect to MobiShow box successfully. ♦ Open your browser, and enter the IP address of your MobiShow on the browser. ♦ The IP address is displayed on the bottom of the projector screen. ♦...
  • Page 14 ♦ Default Gateway：default gateway ♦ Wireless MAC address：wireless MAC address ♦ Wire MAC address：wire MAC address Connection Status: ♦ Projecting status: which is “Waiting for projecting” or “Projecting” ♦ Total Users: It shows how many users login into MobiShow box.

  • Page 15: Network Setup

    LAN that already has a DHCP server present, the MobiShow box takes an IP address assigned to it by the server. When the MobiShow box is connected to a LAN that does not have a DHCP server, the MobiShow box becomes the DHCP server in the network.

  • Page 16: Projection Setup

    <DHCP Server Setup> You can select “Auto” or “Disable”. When “Auto” is selected, it will automatically disable DHCP on MobiShow is another DHCP server is detected, otherwise it will enable its DHCP service. ♦ Start IP: The start IP address of DHCP Server.

  • Page 17: Change Passwords

    MobiShow Quick Installation Guide Awind Inc. <Resolution>: XGA (1024X768) or SVGA (800X600). <Screen Refresh Rate>: This is VGA output refresh rate, provides 60 Hz and 75Hz to suit for different kinds of projectors. <Apply>：Confirmation and Save modifications <Cancel>: Cancel all the modifications n Change Passwords *** Click [Change Password] button, to change password value.

  • Page 18: Firmware Upgrade

    15 minutes, please manually turn off the device and turn on again. Warning: Don’t power off MobiShow while firmware upgrade in progress, otherwise will cause your Box doesn’t work and have to return device to your vendor...

  • Page 19: Reboot System

    MobiShow Quick Installation Guide Awind Inc. n Reboot System *** Click [Reboot System] button, to restart system <Reboot>: reboot system automatically.
