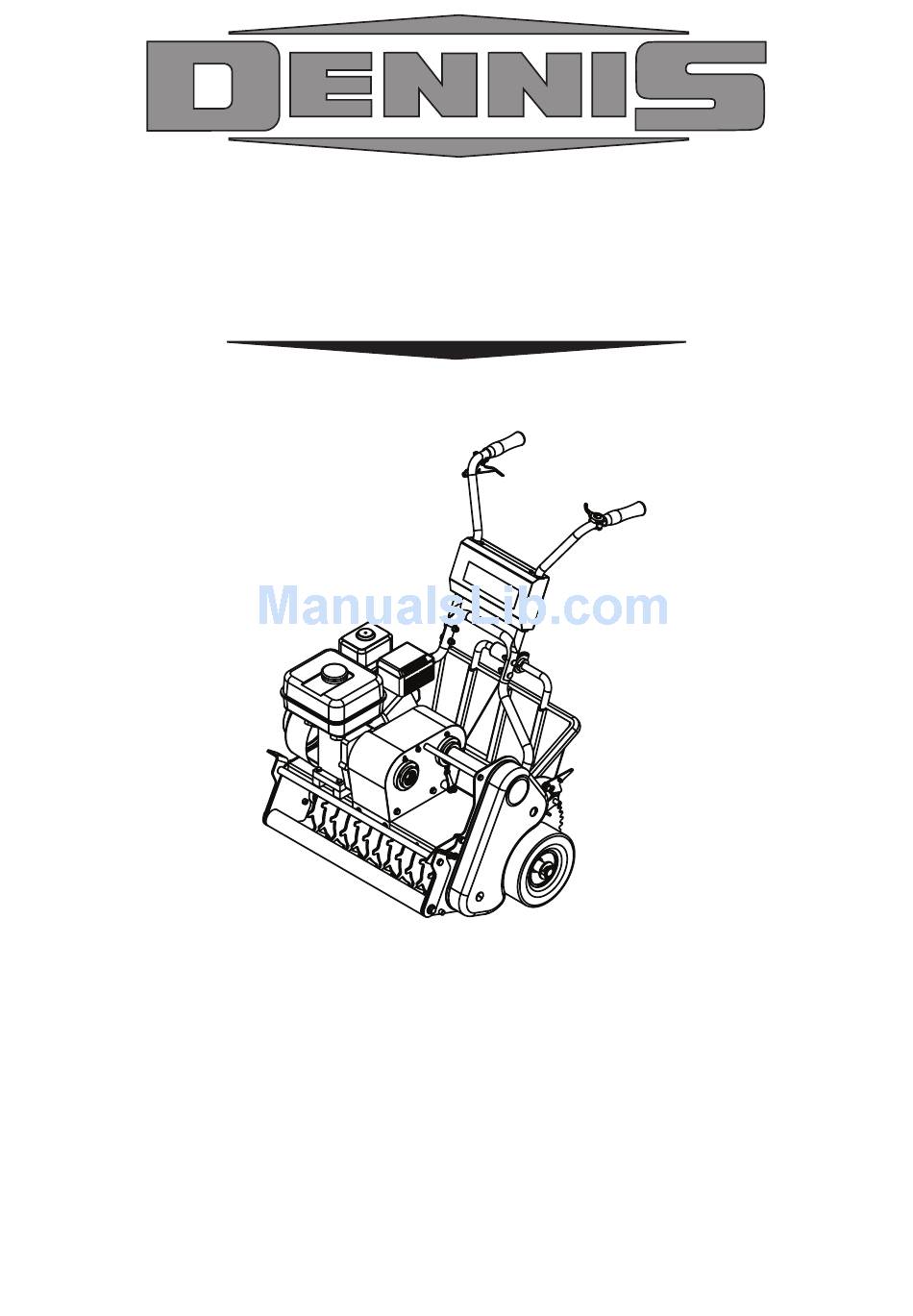

- Page 1 S500 PLUS INSTRUCTION MANUAL DENNIS, Ashbourne Road, Kirk Langley, Derby, DE6 4NJ, United Kingdom Telephone:- 01332 824777 Fax:- 01332 824 525 E-mail:- sales@dennisuk.com E-mail:- spares@dennisuk.com SP20002_REV_1 www.dennisuk.com 10/12...
-
Page 3: Declaration Of Conformity
Ian Howard Serial Numbers MAKE A NOTE OF THE SERIAL NUMBERS OF YOUR MACHINE & ENGINE AND ALWAYS NOTE QUOTE THEM IN ANY COMMUNICATION WITH PERSONNEL AT DENNIS. MACHINE SERIAL NUMBER ENGINE SERIAL NUMBER Introduction The reliability and quality of performance of this machine depends upon some simple care maintenance carried out regularly. -
Page 4: Table Of Contents
Storage ....................................12 General Lubrication ................................12 Notes ..................................13 & 21 Parts Listings ................................14 - 20 Technical Data Model S500 Plus A - Width (mm) B - Length with Grassbox (mm) C - Height (mm) 1014 Weight (Kg) -
Page 5: Machine Description
8. Seeder Box 2. Reel 9. Latch 3. Belt Guard 10. Seeder Drive Wheel 4. Throttle Lever 11. Exhaust 5. Handle Bar 12. Clutch Lever 6. Air Filter 13. Seeder Control 7. Fuel Tank 14. Stand Latch S500 Plus SP20003_REV_1... - Page 6 The Spiker Reel is for surface aeration, punching through the surface pan and allowing water and fertiliser to penetrate to the root zone. The 3mm x 20mm slots gives a massive 3% of holes on any green. Seeder / Slotter Reel Spiker Reel Seeder / Slotter Disc Spiker Disc Handle Handle Drive Gear Drive Gear S500 Plus SP20003_REV_1...
-
Page 7: Important Safety Instructions
TRAINING READ THE INSTRUCTIONS CONTAINED IN THIS MANUAL WITH CARE. IF YOU ARE IN CAUTION ANY DOUBT PLEASE ASK YOUR EMPLOYER OR CONTACT US DIRECT AT DENNIS. • Be familiar with the controls and the proper use of the equipment. -
Page 8: Controls
When seeding is complete, simply push down on the handle bars causing the machine to lean backwards and latching onto the seed box. Return the machine to the upright position and the seed box will raise off the ground. S500 Plus SP20003_REV_1... -
Page 9: Operating Instructions
• Shift the choke lever to the “Closed” position. (Note: The choke is not required if the engine is warm or the air temperature high.) • Grasp the recoil start handle until resistance is felt, then pull it with force. • Do not allow the starter grip to snap back against the engine. Return it gently to prevent damage to the starter. • Once the engine is started, gradually “Open” the choke lever. (Warm-up running of 3-5 minutes is recommended.) • Set the throttle control back to the idle position. STOPPING THE ENGINE • Set the throttle control to the idle position. • Switch the cut off to OFF (Mounted on Engine) • Close the fuel tap. S500 Plus SP20003_REV_1... -
Page 10: General Adjustments
The Reel can be removed easily for maintenance or to fit an interchangeable unit. • With the stand in the “Down” position (see image 1), slacken the 3-off bolts Item 1 (item 1) [13mm spanner] • Rotate the Reel handle to align the large holes with the bolt heads. • Pull the handle, this will cause the drive to disengage and the reel to rest on the floor. • Move to the back of the machine, push down on the handles causing the front of the machine to lift. • Put the stand in the “Up” position (see image 2) and simply maneuver the machine off the Reel. Leaving it on the ground. Image 2 • To fit the new Reel, reverse the above. Item 1 S500 Plus SP20003_REV_1... -
Page 11: Routine Maintenance
TENSIONER BOLTS ARE SECURE BEFORE REPLACING THE COVER. “Belts will be sufficiently tensioned if the deflection force applied at mid span to produce a deflection equal to 16mm per meter of span distance falls between 5 and 9 Newtons per Rib” (TBA Belting). In practical terms this relates to about 5mm of deflection under moderate finger pressure on the non tensioner side. If fitting new belts it is advisable to observe the drive for the first 20-30 minutes. It may be necessary to make an adjustment to compensate for the normal drop in tension during the run-in period. S500 Plus SP20003_REV_1... -
Page 12: Storage
A grease point is located under the belt guard on the side plate of the machine. This is to lubricate the internal spur gear that provides drive to the reel. Apply one pump of grease. Do not over grease. S500 Plus SP20003_REV_1... - Page 13 S500 Plus SP20003_REV_1...
-
Page 14: Parts Listings
SP02002 Nut M5 Nyloc SP02006 Nut M8 Nyloc SP02008 Nut M10 Nyloc SP03004 Washer M8 Toothed SP03008 Washer M8 Form A SP03016 Washer M10 Form C SP05001 Rivet 4.8 x 10 SP01045 Hex Set M8 x 25 S500 Plus SP20003_REV_1... - Page 15 SP02008 Nut M10 Nyloc SP03004 Washer M8 Toothed SP03008 Washer M8 Form A SP03009 Washer M5 Form A SP03011 Washer M10 Form A SP04001 Screw M5 x 16 Slotted NOT SHOWN J20112 Throttle Cable 229723 Drive Cable S500 Plus SP20003_REV_1...
- Page 16 Washer M8 Form A 250002 Side Plate R.H. Assy (Slotter) SP03010 Washer M6 Form A 250021 Collar Front Tie Bar SP03016 Washer M10 Form C 250023 Weight Bar SP05001 Rivet 4.8 x 10 SP05008 Pin Spirol M5 x 50 S500 Plus SP20003_REV_1...
- Page 17 Washer M8 Form A 250002 Side Plate R.H. Assy (Slotter) SP03010 Washer M6 Form A 250021 Collar Front Tie Bar SP03016 Washer M10 Form C 250023 Weight Bar SP05001 Rivet 4.8 x 10 SP05008 Pin Spirol M5 x 50 S500 Plus SP20003_REV_1...
- Page 18 4.01 Wheels Item No. Part No. Description Quantity 228071 Pin Linch 250019 Wheel Spacer 250045 Axle (Slotter) SP03001 Washer ID25 4 Form C SP09002 Wheel Assembly 9 3.50 - 4.4PR S500 Plus SP20003_REV_1...
- Page 19 Pin Spirol M5 x 24 J209246 Top Drive SPring SP03017 Washer M12 Form C SP03022 Washer M20 Form A SP05012 Clevis Pin 20 x 30 SP05013 Pin Spirol M5 x 30 SP07001 Starlock 12mm SP12006 Cable Seeder S500 Plus SP20003_REV_1...
- Page 20 Item No. Description Part Number Quantity 194946 Chain Case Screw 228031E Chain Case Seal 229093 Transmission Guard W.A. 250100 Guard Drive Belt D136-1 Slotter Reel SP01066 Hex Taptite Screw M8 x 20 NOT SHOWN D136-2 Spiker Reel S500 Plus SP20003_REV_1...
-
Page 21: Notes
