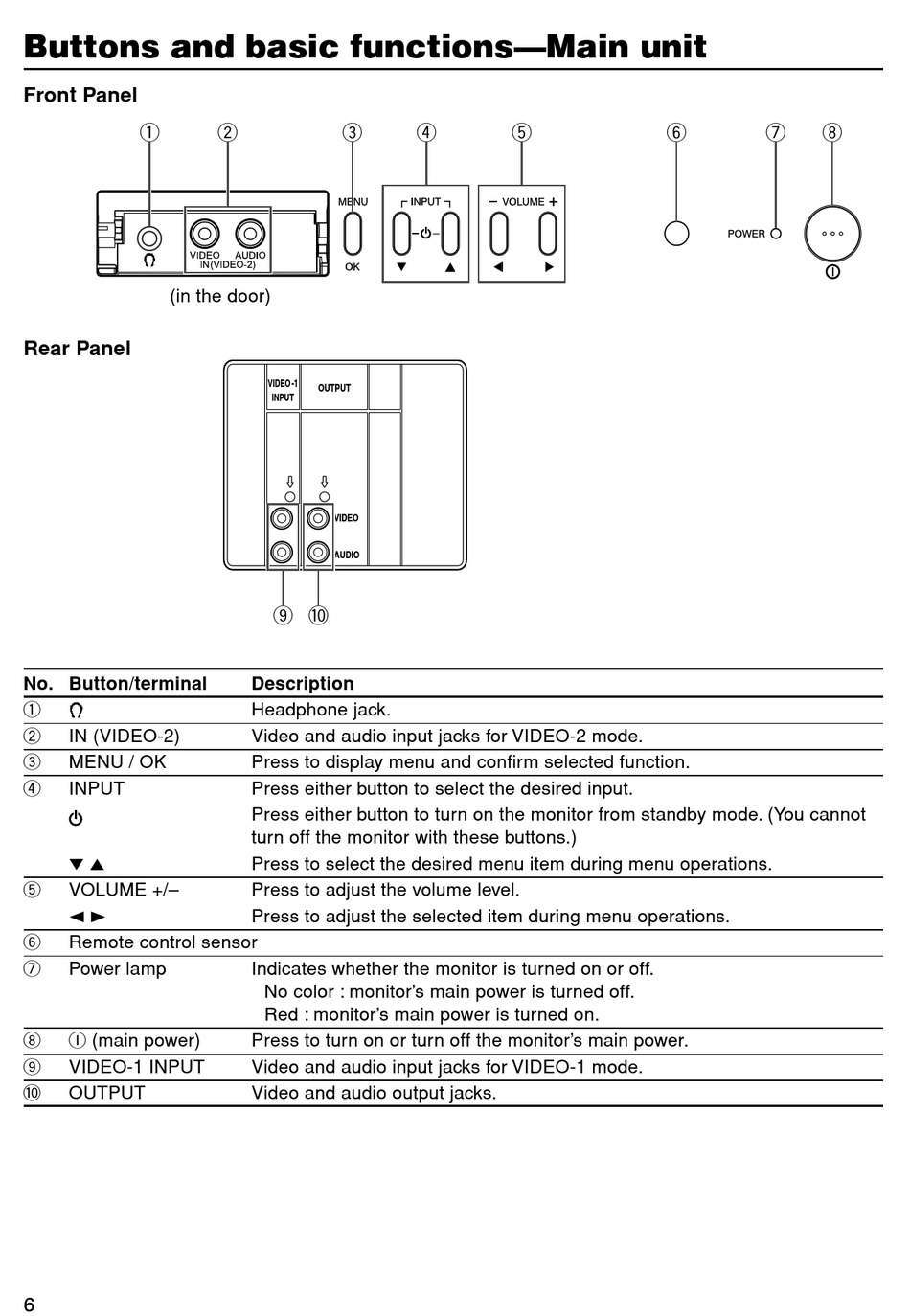

Buttons and basic functions—Main unit
Front Panel
1
(in the door)
Rear Panel
No. Button/terminal
1
2
IN (VIDEO-2)
3
MENU / OK
4
INPUT
∞ 5
5
VOLUME +/–
2 3
6
Remote control sensor
7
Power lamp
8 I (main power)
9
VIDEO-1 INPUT
0
OUTPUT
6
2 3
VIDEO-1
OUTPUT
INPUT
VIDEO
AUDIO
9 0
Description
Headphone jack.
Video and audio input jacks for VIDEO-2 mode.
Press to display menu and confirm selected function.
Press either button to select the desired input.
Press either button to turn on the monitor from standby mode. (You cannot
turn off the monitor with these buttons.)
Press to select the desired menu item during menu operations.
Press to adjust the volume level.
Press to adjust the selected item during menu operations.
Indicates whether the monitor is turned on or off.
No color : monitor's main power is turned off.
Red : monitor's main power is turned on.
Press to turn on or turn off the monitor's main power.
Video and audio input jacks for VIDEO-1 mode.
Video and audio output jacks.
4 5 6 7 8
