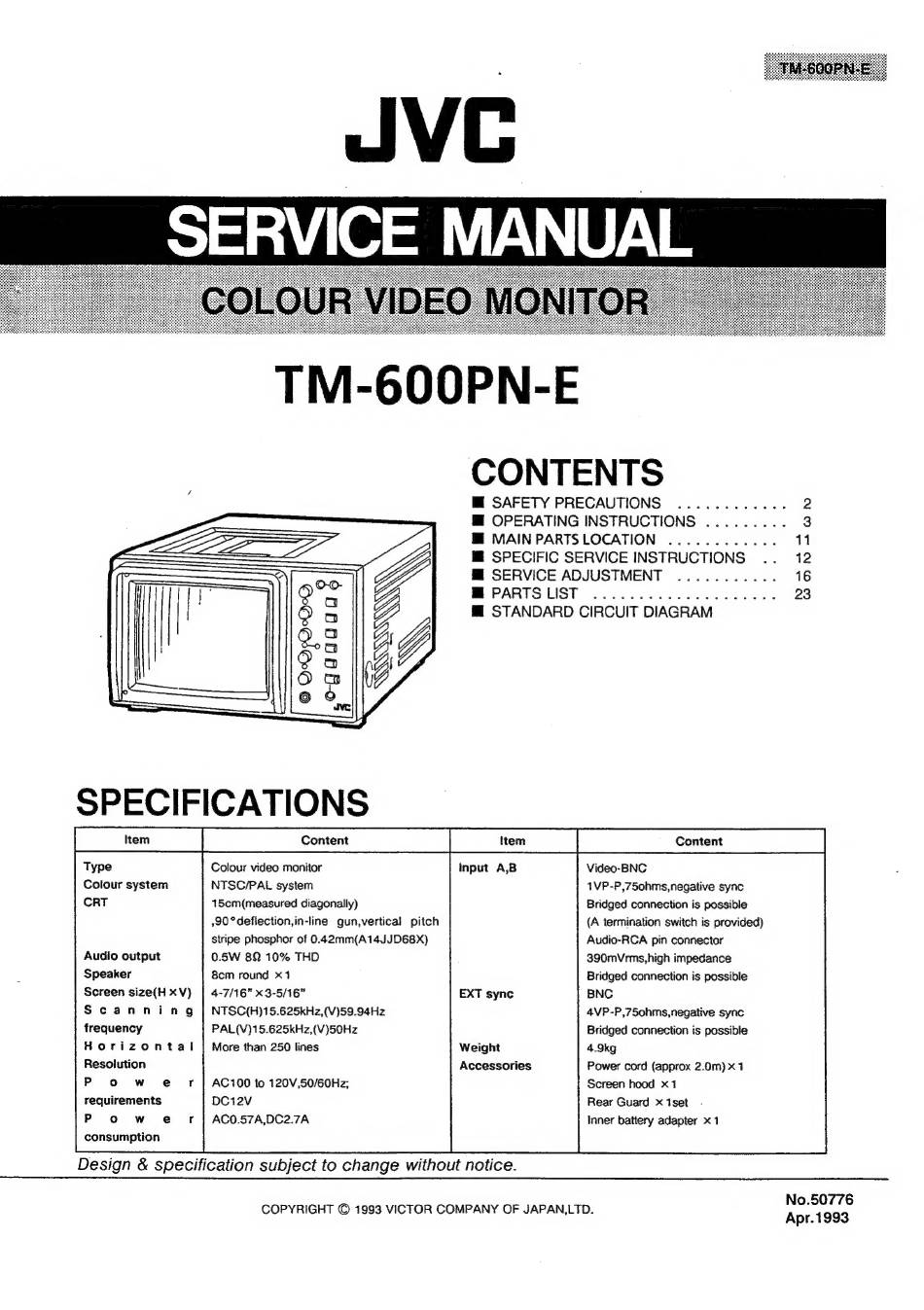

TM-600PN-E
CONTENTS
Ml SAFETY PRECAUTIONS
............
2
HM OPERATING INSTRUCTIONS .........
3
HE MAIN PARTSLOCATION
............
11
Ze
Ml SPECIFIC SERVICE INSTRUCTIONS
..
12
Ca
M SERVICE ADJUSTMENT
...........
16
ane
BM PARTS USE «boo ose iced Seaweed,
23
M STANDARD CIRCUIT DIAGRAM
WIN
\\
® OOO
<>
eoggaggag
Fd
SPECIFICATIONS
a
Type
Input A,B
Video-BNC
Colour system
1VP-P,750hms,negative sync
CRT
Bridged connection is possible
(A termination switch is provided)
Audio-RCA pin connector
390mVrms,high impedance
Bridged connection is possible
BNC
4VP-P,75ohms,negative sync
Bridged connection is possible
4.9kg
Power cord (approx 2.0m) x1
Screen hood x1
Rear Guard X1tset_
-
Inner battery adapter x1

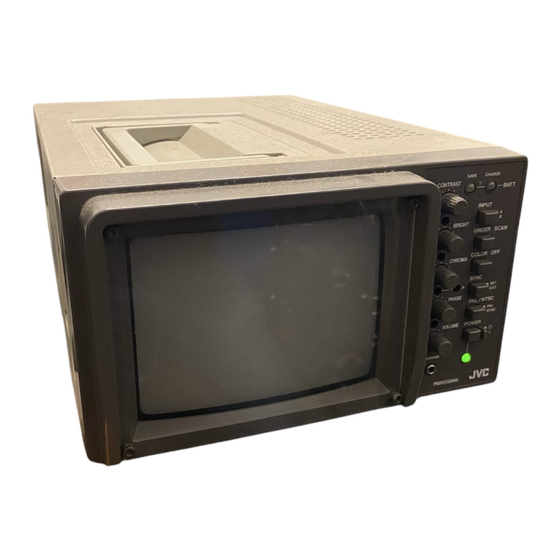

Colour video monitor
NTSC/PAL system
15cem(measured diagonally)
:90°deflection,in-line
gun,vertical
pitch
stripe phosphor of 0.42mm(A14JJD68X)
O.5W 82 10% THD
8cem round x1
4-7/16" X3-5/16"
NTSC(H)15.625kHz,(V)59.94Hz
PAL(V)15.625kHz,(V)50Hz
More than 250 lines
Audio output
Speaker
Screen size(H x V)
Scanning
frequency
Horizontal
Resolution
Pow
ier
requirements
Power
consumption
EXT syne
Weight
Accessories
AC100 to 120V,50/60Hz;
DC12V
AC0.57A,DC2.7A
Design & specification subject to change without notice.
No.50776
COPYRIGHT © 1993 VICTOR COMPANY OF JAPAN,LTD.
Apr.1993
