HomePro ZTW230 Instructions Manual

HomePro
RF Home Automation
ZTW230

ZTW230 WALL MOUNTED TRANSMITTER

The ZTW230 Wall Mounted Transmitter is a component of the HomePro lighting control system. Wire the
Transmitter anywhere power is available according to the diagram above and program from the Wireless
Controller to operate loads. Inclusion of the ZTW230 Wall Mounted Transmitter on the ZTH200 Wireless
Controller menu allows remote ON/OFF control and dimming of lights controlled by associated modules, as it does
not control any electrical load directly.
This Wall Mounted Transmitter is designed to work with other Z-Wave enabled devices. Z-Wave nodes of other
types can be Included in the network and will also act as repeaters to increase the range of the network.
There are no field repairable assemblies on this unit. If service is needed, the unit must be returned where
purchased.

INSTALLATION

DANGER! SHOCK HAZARD. Read and understand these instructions before installing. It is recommended that a
qualified electrician perform this installation. For indoor use only. Retain instructions for future use.
STEP 1. With power off, wire this ZTW230 and AS200's (if used) according to the legend above.
Refer to your Controller operating instructions for instructions on how to include this module in the RF network.
1. Remove the paddle. Using small screw driver, push out the paddle through holes in back side of mounting
plate. The paddle can also be pried out from the face, from the top or the bottom of the paddle.
2. Remove the four screws through the retaining ring holding the Trim ring to the mounting plate. This will allow
removal of Trim ring. When removing the Trim ring make sure not to bend or disrupt the shape of the
antenna wire.
3. Wire the product according to the diagram.
4. Install the product in the wall box.
5. Reinstall the Trim ring and the retaining ring with the four screws. Position of this ring is important. The
stamped word "Bottom" on the Metal and retaining ring will be aligned with each other. Again do not disrupt
the integrity of the antenna wire.
6. Return the paddle to the face of the product. Simply press into place. Make sure the LED window is toward
the stamped word "Bottom" on the retaining ring.
HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
Radio Frequency Controlled, 230 VAC, European 3-Way,
Wall Mounted Transmitter, Single Paddle, Release 1.1
Note: This module must be "Included in the
Network" only where it will be permanently
installed. The proper operation of this node in the
mesh network is dependent on it knowing its
location with respect to other nodes. You cannot
"test bench" configure this module.
0721-01
1
ZTW230

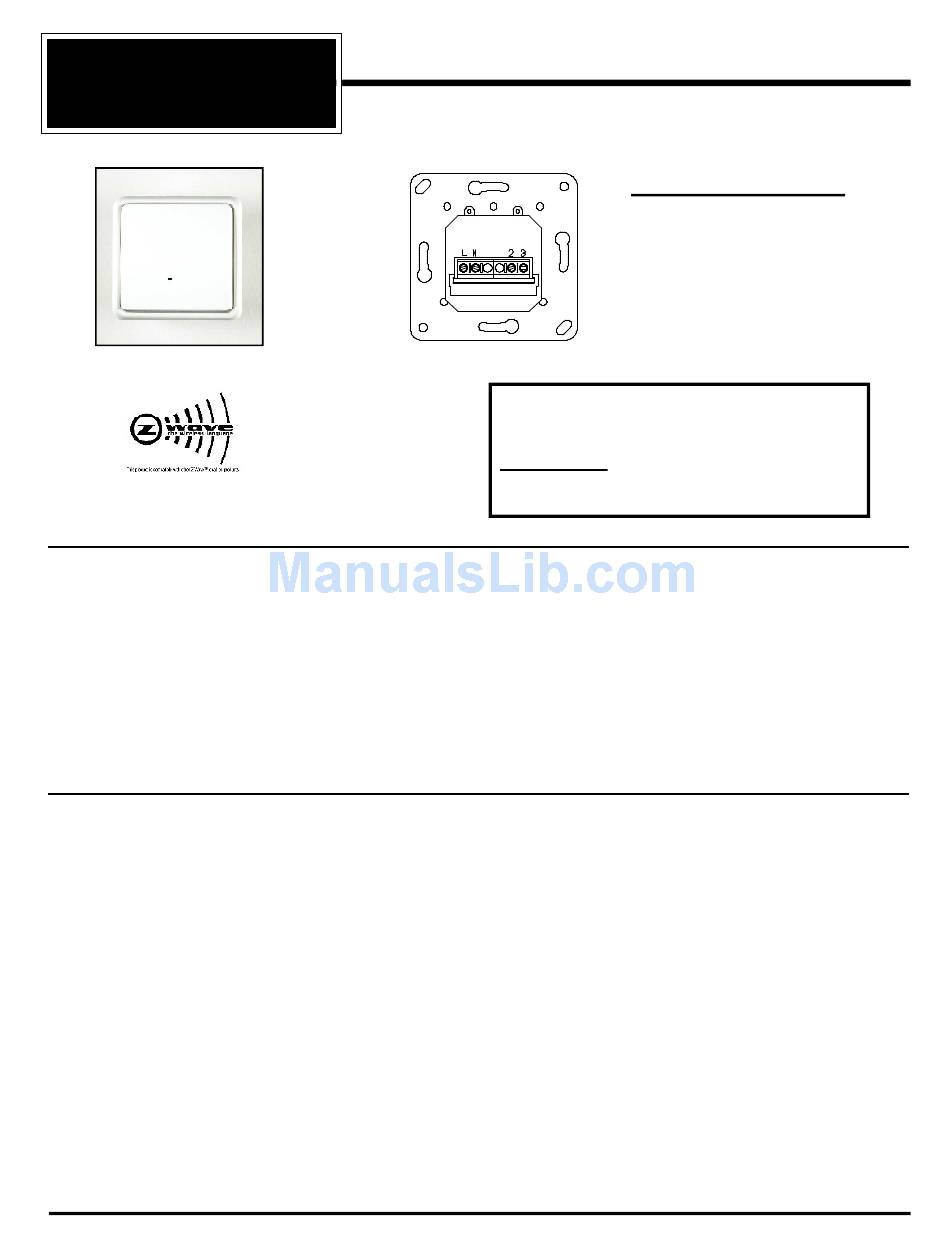

ZTW230 Connections:
L: Line Voltage Input
N: Line Neutral
2: Auxiliary Switch reference
(Line Neutral)
3: Auxiliary Switch Signal Input
ZTW230 Advanced Instructions, Release 1.1
P/D 100407
