HomePro
RF Home Automation
Note: This module must be "Included in
the Network" only where it will be
permanently installed.
operation of
this node in the mesh
network is dependent on it knowing its
location with respect to other nodes.
You cannot "test bench" configure this
module.
ZIR010 WALL MOUNTED SENSOR
The ZIR010 Wall Mounted Sensor is a component of the HomePro lighting control system. Inclusion of this Wall
Mounted Sensor on the ZTH200 Wireless Controller menu allows remote turn-on of HomePro receivers and their
connected lighting when the ZIR010 is triggered. Z-Wave nodes of other types can be added to the system and will
also act as repeaters if they support this function of repeating the signal received to other modules in the system.
There are no field repairable assemblies on this unit. If service is needed, the unit must be returned where purchased.
CAUTION! Read and understand these instructions before installing. For indoor use only. Retain instructions for
future use.
INSTALLATION
Battery Installation and Sensitivity Selection
1. Remove the screw from the bottom of the enclosure.

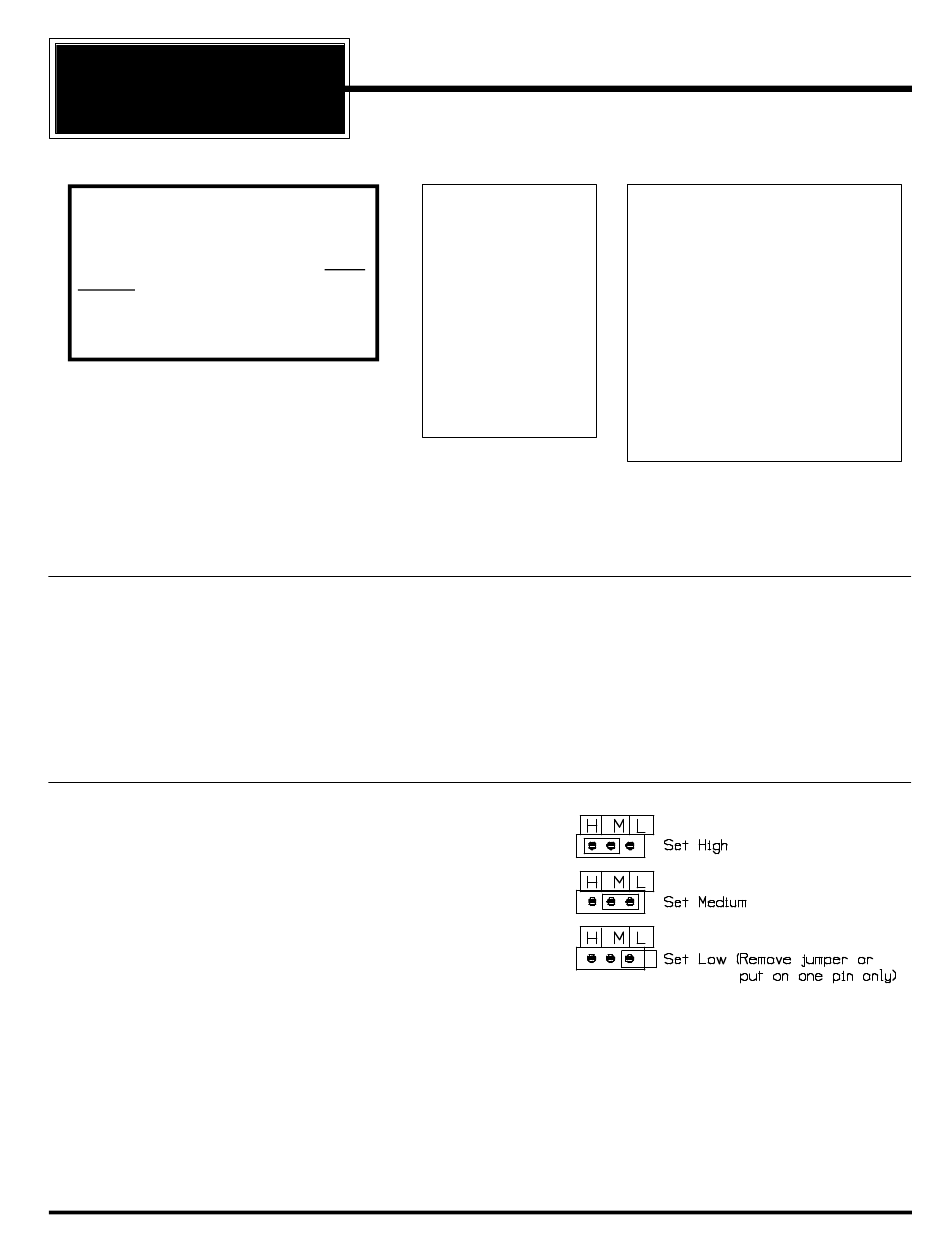

3. Select the sensitivity setting preferred for the ZIR010 by
setting the corresponding jumpers on the electronic
module.
Note that H option is the highest sensitivity while the L
option is the lowest. See Figure 1.
4. Install the four AAA batteries into the ZIR010.
Mounting Location
The ZIR010 is designed for indoor use. It should not be mounted near large metal objects or on metal sur-
faces. It should be mounted on a wall or in a corner at a height of approximately 6.5 to 8.2 feet (2 to 2.5
meters) for the best general coverage in an average room.
The detector has been designed to avoid false alarms, nevertheless, it is best to avoid looking directly at
sources of heat such as fires and boilers, and always try to keep away from a window.
The ZIR010 can be positioned across from a radiator but not placed above one. Do not mount the ZIR010
where its field of view may be obstructed (e.g. by curtains).
HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
Wall Mounted Passive Infrared (PIR) Sensor, Release 1.1
The proper
Shown with supplied
wall mount bracket
Radio Frequency Transmitter, Battery Powered,
39 foot (12 m) range, 110 degree coverage
with convex honeycomb hemispherical
infrared lens
0685-01
1
ZIR010
Fig. 1
ZIR010 Instructions, Release 1.1
P/D 102406
Advertisement
Table of Contents
Related Manuals for HomePro ZIR010
Summary of Contents for HomePro ZIR010
- Page 1 Mounted Sensor on the ZTH200 Wireless Controller menu allows remote turn-on of HomePro receivers and their connected lighting when the ZIR010 is triggered. Z-Wave nodes of other types can be added to the system and will also act as repeaters if they support this function of repeating the signal received to other modules in the system.
- Page 2 Mounting the Detector 1. Hold the provided mounting bracket in the location you want to mount the ZIR010. Mark the wall (or ceiling) where the two screw holes will be drilled. 2. Complete the following two steps if mounting in drywall, if there is no stud (or joist).
- Page 3 BATTERY LEVEL The level of the battery will report a “good” level until it reaches a level where the ZIR010 will not work reliably unless the battery is changed. The battery level is typically sent from the ZIR010 every 4 hours to any device that is associated into Group 3.
- Page 4 The ZIR010 will send a Wakeup Notification Command approximately 3 minutes after power up IF and only IF it has been included into a Z-Wave network. From that point on, the ZIR010 will wake up every 4 hours and re-send the Wakeup Notification Command unless configured for another time interval. The ZIR010 will stay awake by default for 30 seconds and then go back to sleep to conserve battery life.
