Tracker P200 User Manual

Gps/ gsm/indoor

Advertisement

Quick Links

Tracker P200
GPS/ GSM/Indoor

User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tracker P200

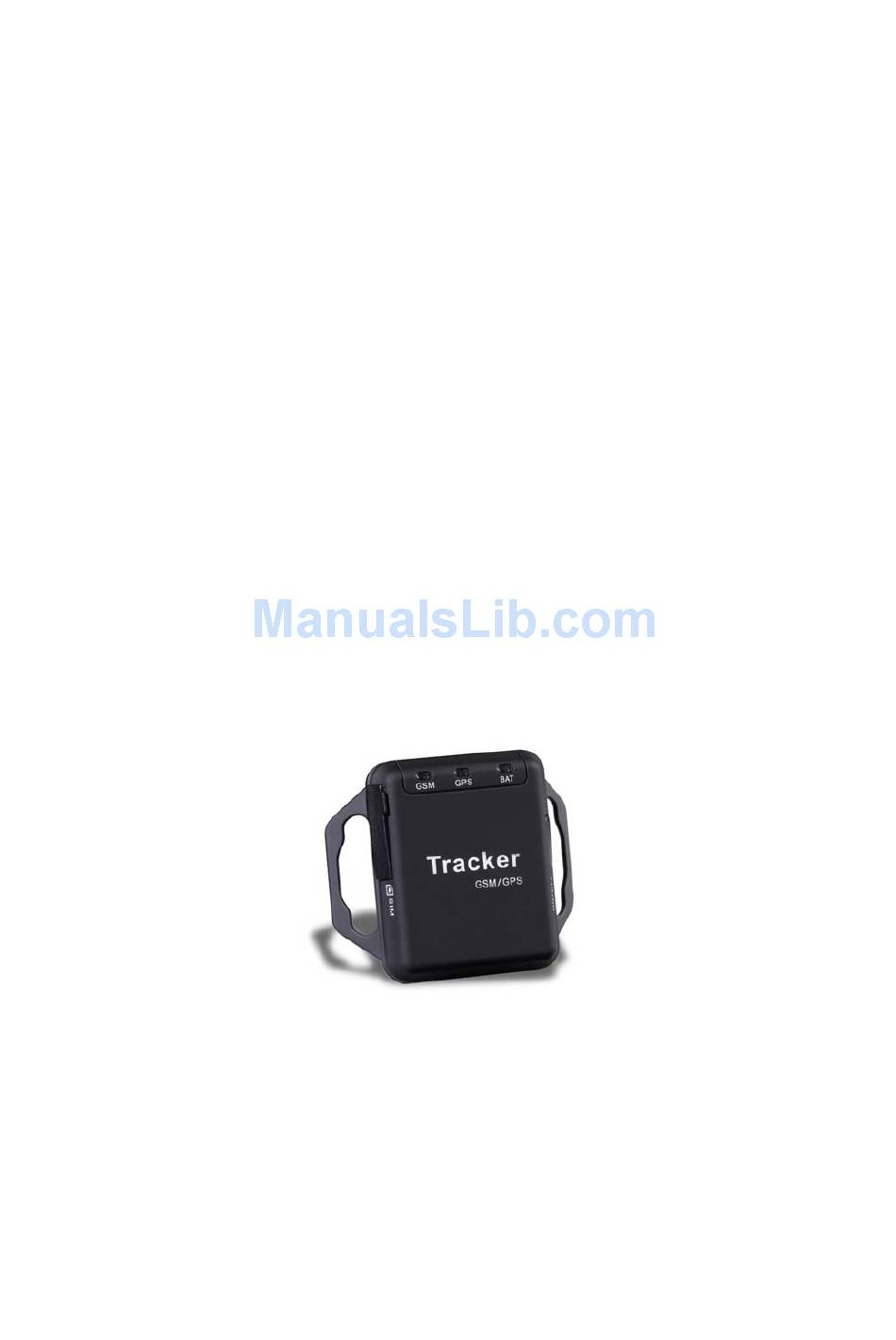

  • Page 1: User Guide

    Tracker P200 GPS/ GSM/Indoor User Guide...
  • Page 2: Table Of Contents

    Content USER GUIDE ……………………………………………………………………………1 1 INTRODUCTION………………………...………………………………………………..3 2 FEATURE …………………………………………………………………………………4 3 GET STARTED……………………………………………………………………….……5 (3.1)Accessories…………………………………………………………………………..6 (3.2) Charge Battery………………………………………………………………………6 (3.3) Buy SIM Card……………………………………………………………….……… 6 (3.4) Install SIM Card……………………………………………………………………...6 4 OPERATION………………………………………………………………………………..7 (4.1)Fast Startup operation……………………………………………………….……..7 (4.2)Authorized User/s setting……………………………………………...…………..7 (4.3) Usage…………………………………………………………………...……...…..8 5 DISPLAYING LOCATION……………………………………………………..…………10 6 SPECIFICATION………………………………………………………………………..11 7 FREQUENTLY ASKED QUESTIONS……………………………………………..…..12...
  • Page 3: Introduction

    Animal Tracking: Finding the missing pets location Outdoor activities: Bike riding and hiking P200 is a personal remote position device with build-in GPS and GSM/GPRS modules. It is a small size, high accuracy remote location tracking device. Based on GPS satellite , it provides accurate position information under dynamic conditions .
  • Page 4: Feature

    ♦ Very Low power consumption, Standby time is more than 12 hours ♦ Fast Signal Acquisition ♦ Support single location tracking ♦ Support location triggered by tracker ♦ Support location triggered by authorized cell phone ♦ Support alarm and remote monitor ♦...
  • Page 5: Get Started

    3 Get Started (3.1) Accessories 1. P200 2. AC adapter 3. Tool for inserting SIM card USB charge socket GSM indicate light GPS indicate light Power indicate light SIM card slot Power ON/OFF...
  • Page 6: (3.2) Charge Battery

    The battery might burst , explode or release dangerous chemicals. ◆ Before you can use the P200, you must FULLY charge the battery by AC adapter or Cigarette car charger at least 3 hours under the power off condition. ◆...
  • Page 7: Operation

    The GPS indicator light flahes every 2 seconds. When the GPS functions successfully, the GPS indicator light is on. ◆ When both GPS and GSM of the tracker work, you can use your mobile phone to dial to the number of the tracker to locate it. 4.2. Authorized User/s Setting After you purchase the tracker, you should set the authorized user/s immediately.
  • Page 8: (4.3) Usage

    Repeat the same SMS command to set up the other authorized users. d. If a non-authorized user try to add an authorized user by SMS, the tracker will not reply any message.
  • Page 9 【Hints】If a non-authorized dial to the tracker, the tracker will not respond to it. • If the tracker cannot receive any GPS signal, the tracker will send a SMS with the indoor location information. For example:- SMS content: Indoor location!
  • Page 10: Displaying Location

    After 3 minutes later, tracker will send a current position again to all authorized user, for example:- SMS content: Warn!!! Out of fence! Lat:22.5394 Long:114.0202 GPS:05 20 Batt:94% http://www.tracker2map.com/m.php?a=991462&b=1914238 【Hints】The default setting of the distance is empty. 5 Displaying location on map 5.1 download google earth software from http://earth.google.com/...
  • Page 11: Specification

    6 Specification GPS Module 20 Channels all in view tracking GPS module Sensitivity -158 db Acquisition Reacquisition < 0.1 sec time: • Hot Typically < 6sec Time To First Fix (TTFF) • Warm Typically < 35sec TTFF • Cold Typically < 45sec TTFF Positioning Less than 10 meters Accuracy :...
  • Page 12: Frequently Asked Questions

    7 Frequently Asked Questions 7.1 Q: The first time to use tracker but it do not reply you the current locate just reply “indoor location” A: Switch on the tracker to received the GPS signal in openning field and call it again to get the current position 7.2 Q: Tracker do not reply SMS to your mobile phone after you call it...
