-ESP0033-

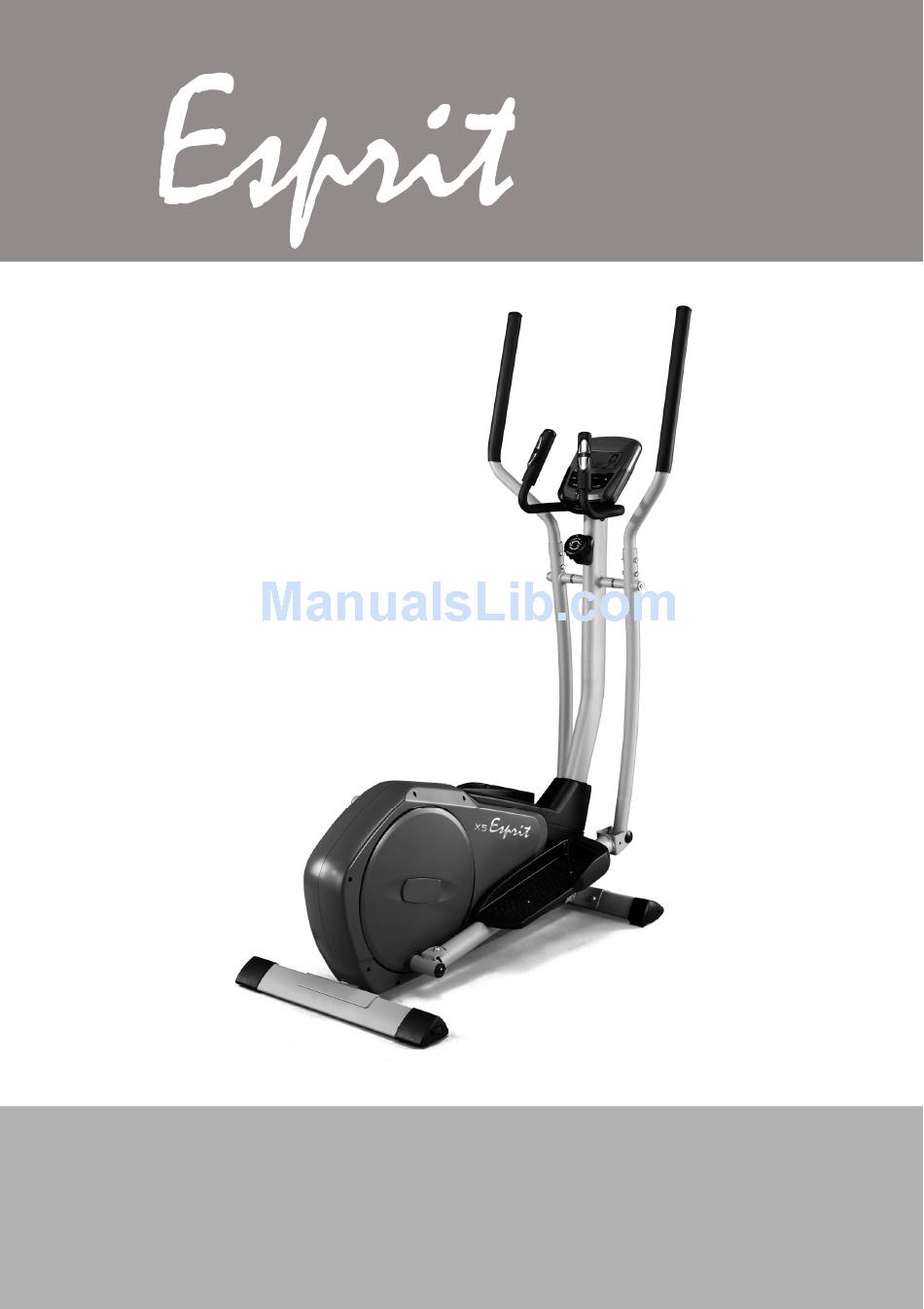

Esprit X5 Cross Trainer
OWNER'S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE
OPERATING YOUR ELLIPTICAL!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ESPRIT X5

Summary of Contents for ESPRIT X5

  • Page 1 -ESP0033- Esprit X5 Cross Trainer OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR ELLIPTICAL!

  • Page 2: Safety Hints

    Safety Hints WARNING Read all instructions before using this appliance Do not operate elliptical on deeply padded, plush or shag carpet. Damage ■ to both carpet and elliptical may result. Keep children away from the elliptical. There are obvious pinch points and ■...

  • Page 3: Assembly Pack Check List

    Assembly Pack Check List STEP 1. #53- M5 × 12 mm Phillips #43- 5/16" × 3/4" Button #45- 5/16" Curved Head Screw (4pcs) Head Socket Bolt (13pcs) Washer (1pc) #89- M5 × 65m/m Phillips #46- 5/16" Split #44- 5/16” Flat Head Screw (1pcs) Washer (9pcs) Washer (8pcs)
  • Page 4 Assembly Pack Check List STEP 4. #46- 5/16" Split #91- 5/16" × 1" Button #44- 5/16” Flat Washer (2pcs) Head Socket Bolt (2pcs) Washer (2pcs) #29- 1/2" × 70mm #30- 1/2" Nyloc Carriage Bolt (2pcs) Nut (2pcs) #68- 19m/m Wrench (1pc) #67- Combination M5 Allen Wrench &...
  • Page 5 Assembly Instructions STEP 1: Install the Steel Cable Assembly (59) on the Console Mast (2) using 1pcs of M5 × 65m/m Phillips Head Screw (89) to tighten. Locate the Console Mast (9) and slide on Console Mast Cover (79). Make sure the cover is facing the correct direction, as shown below, before sliding onto mast.
  • Page 7 STEP 2: Locate the Right Swing Arm (Upper) (8) and install it through the Swing Arm Bushing (23) and secure to the Lower swing arm (6). Use M5 Allen Wrench (67) to tighten 2pcs of 5/16” Button Head Socket Bolts (56) and 2pcs of 5/16" Nyloc Nuts (55) to the swing arm assembly.
  • Page 8 STEP 3: Locate the Left Swing Arm (Upper) (7) and install it through the Swing Arm Bushing (23) and secure to the Lower swing arm (5). Use M5 Allen Wrench (67) to tighten 2pcs of 5/16” Button Head Socket Bolts (56) and 2pcs of 5/16" Nyloc Nuts (55) to the swing arm assembly.
  • Page 9 STEP 4: 1. Locate Right side Pedal Arm Assembly (2) and install onto the pedal axle at the large rotating wheel at the rear of the elliptical. Use the M5 Allen Wrench (67) to tighten the 5/16” Button Head Socket Bolt (91), 5/16" Split Washer (46) and 5/16” Flat Washer (44).

  • Page 10: Function Buttons

    Console FUNCTION BUTTONS MODE 1. Press Mode button to select hour, minute, year, month and date when batteries are installed. 2. Press the mode button to select TIME, DISTANCE, CALORIES or PULSE to preset a goal value. 3. Press the mode button during exercise to select which data will be displayed in large LCD window.

  • Page 11: Lcd Functions

    BODY FAT Press this button to enter Body Fat measure function then press MODE key to enter setup of your personal data of Gender, Age, Height and Weight. After completing data entry press it again to measure your Body fat ratio (FAT%) and BMI. RECOVERY Press to enter the heart rate recovery function.

  • Page 12: Monitor Operation

    TEMPERATURE Displays current room temperature from 10 to 60 when the ℃ ℃ monitor is in sleep mode. MONITOR OPERATION: Power on: Install two 1.5V UM-3 or AA batteries. The monitor will perform an LCD segment test indicated by a long beep sound. (Whenever batteries are removed, all the data values will be reset to zero or default value.) Setting the clock: Press the MODE and SET buttons to set the clock time, year, month, and day.
  • Page 13 Body Fat - 9-1. Press BODY FAT key to enter body fat measurement. 9-2. Press MODE and SET buttons to input your personal data. Each personal data setting is described as the following: AGE: 10 ~ 99 years HEIGHT: 100 ~ 250 cm (or 3’03” ~ 8’02“) WEIGHT: 10 ~ 200 kg (or 22 ~ 440 lb) 9-3.

  • Page 14: Parts List

    Parts List DESCRIPTION O'TY Main Frame Pedal Bar Assembly (R) Pedal Bar Assembly (L) Cross Bar Lower Handle Bar (L) Lower Handle Bar (R) Left Swing Arm (Upper) Right Swing Arm (Upper) Console Mast Hand Pulse Sensor Arm (L) Hand Pulse Sensor Arm (R) Front Stabilizer Rear Stabilizer Crank Axle...
  • Page 15 DESCRIPTION O'TY Sleeve 5/16" × 20L_Carriage Bolt 20m/m_C Ring M10 × 1.25_Nut 3/8"-26UNF × 4T_Nut 3/8"-26UNF × 11T_Nut 5/16" × 3/4"_Button Head Socket Bolt 5/16" × 18 × 1.5T_Flat Washer 5/16" × 19 × 1.5T_Curved Washer 5/16" × 1.5T_Split Washer 1/4"...
  • Page 16 DESCRIPTION O'TY Front Shroud (L) Rear Shroud (R) Rear Shroud (L) Round Disk Round Disk Cover Console Mast Cover Pedal (L) Pedal (R) Power Bracket Console Mast Cover M5-75L_Phillips Head Screw M5-5T_Nyloc Nut 5.5 × 15 × 1.5T_Flat Washer 3.5 × 20L_Sheet Metal Screw 5 ×...
  • Page 18 WARRANTY, SAFETY AND ASSEMBLY INFORMATION ESP0033 – X5 IMPORTANT Please read and retain this manual as it will assist with identification for parts and service. ------------------------------------------------------------------------------------------------------------ BOYLES FITNESS warrants their Cross Trainer to be free from defects in material and workmanship under normal use and service conditions.
  • Page 19 This Esprit X5 Cross Trainer is warranted to be free from defects in material and workmanship under normal use and service conditions for a period of 6 months from the date of purchase of this article.
  • Page 20 A service representative will then assist you in the appropriate action to be taken. For efficient processing of your enquiry please have proof of purchase, the date of purchase and the retailer name you purchased the item from, and the brand on the product.
