A. INTRODUCTION
Thank you for choosing the NEOS3000A series product. This innovative product make you connect
to standard telephone equipment with GSM engine into a cellular network for total communications
flexibility. You can connect the NEOS3000A to the land phone or the analog trunk of the PABX or
key system.
B. CHECKING YOUR PARTS
Item
1
NEOS3000A
2
DC12V/1A Switching Adapter
3
Phone Cord
4
Telephone Box
5
Male SMA Antenna
6
Operation Manual
7
Display
8
Data Cable
9
SCM50

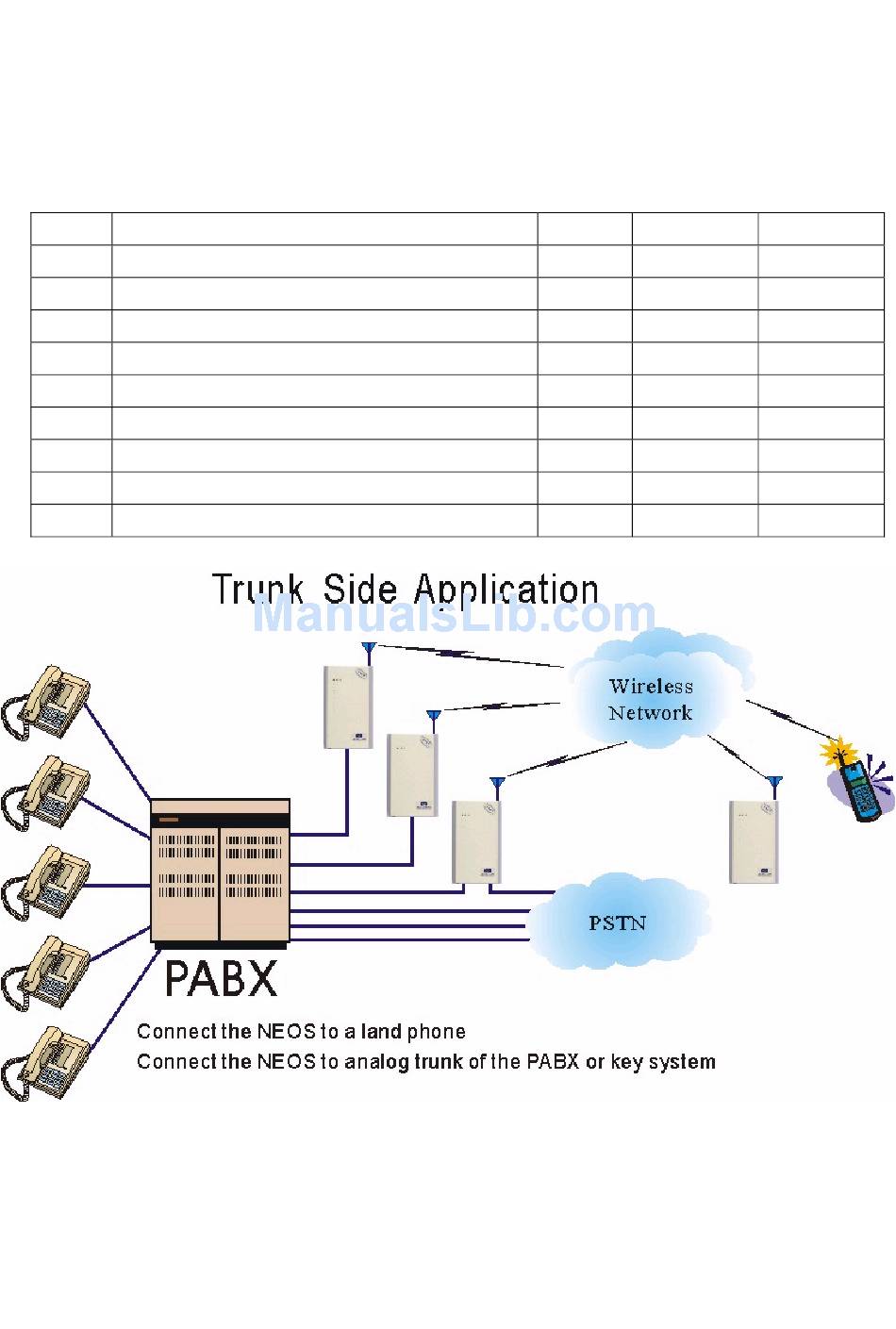

C. SYSTEM ARCHITECTURE
D. INSTALLATION (see diagram below)
1. SIM Card Installation(figure 1)
1-1. Remove the 12VDC switching adapter
1-2. Gently insert the mini-SIM card in the slot of bottom of NEOS3000A
1-3. Make sure the SIM card is put exactly
1-4. Attach the 12VDC switching adapter
NEOS3000 S
ERIES
GWT-NEOS3000AE
Description
1
Qty
Included
1
◎
1
◎
1
◎
1
◎
1
◎
1
◎
1
1
1
VER1.0
Optional
◎
◎
◎
U
M
SER
ANUAL
