TOTALINE IntelliMist Owner's Manual

TOTALINE IntelliMist Owner's Manual

Hide thumbs

Advertisement

Quick Links

Enlarged version

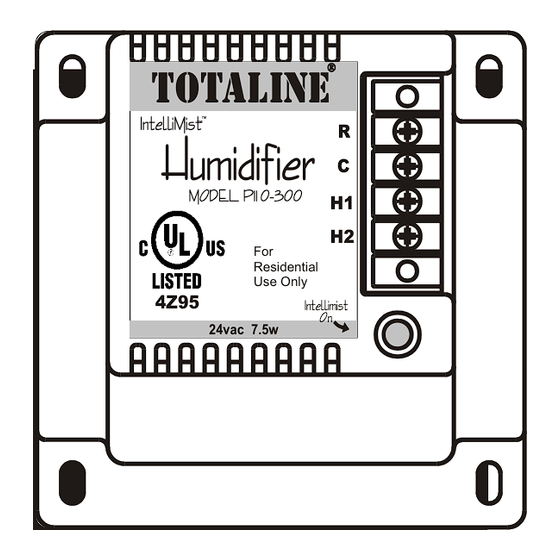

OWNER'S MANUAL
I
M
NTELLI
TOTALINE
Intelli M i s t
TM
TM
R
Humi d i f i e r
C
MODEL P11 0-300
H1
H2
For
Residential
Use Only
4Z95
Intelli m i s t
On
24vac 7.5w
USE ONLY WITH CENTRAL AIR CONDITIONING SYSTEMS.
THE HUMIDIFIER MUST BE MOUNTED OVER THE
EVAPORATOR COIL OR EVAPORATOR COIL DRAIN PAN.
IF THERE IS NOT A DRAIN PAN, ONE MUST BE INSTALLED.
TOTALINE
PATENTS PENDING
Replacement Components Division
P/N P110-300
IST
H
UMIDIFIER
I
M
NTELLI
IST
MicroFine Spray
M
P
Technology
ICRO
ULSE
Assures Maximum Efficiency
Scale Reducing Filter Included
Up to 24 Gallons Per Day of
Additional Humidity
For Use With 1 - 7 Ton HVAC
Systems
Designed For Use Only With:
P110-0009 Humidistat
P474-3000 Humidistat
P374-1600
Carrier Corporation 3/01
I
S
NTELLI
TAT

Advertisement

loading

Related Manuals for TOTALINE IntelliMist

Summary of Contents for TOTALINE IntelliMist

  • Page 1 OWNER'S MANUAL P/N P110-300 NTELLI UMIDIFIER NTELLI MicroFine Spray TOTALINE Technology ICRO ULSE Intelli M i s t Humi d i f i e r Assures Maximum Efficiency MODEL P11 0-300 Scale Reducing Filter Included Up to 24 Gallons Per Day of...

  • Page 2: Table Of Contents

    NTELLI UMIDIFIER TABLE OF CONTENTS CONTENTS & ACCESSORIES.....2 MOUNTING LOCATIONS......3 ASSEMBLY & INSTALLATION.......4 WATER HARDNESS........6 WATER FILTER..........7 WIRING DIAGRAMS........8 TROUBLE SHOOTING GUIDE.....11 OUTPUT CHECK..........16 Page 1...

  • Page 3: Contents & Accessories

    NTELLI UMIDIFIER CAUTION This Humidifier MUST be used with Totaline NTELLI P110-0009, P474-3000 Humidistats or P374-1600 Follow Installation Instructions for Humidifier carefully. UNIT MUST NOT BE INSTALLED WHERE FREEZING TEMPERATURES MAY OCCUR. DO NOT INSTALL ON FURNACE JACKET, OR WHERE UNIT AND ITS COMPONENTS MAY COME INTO CONTACT WITH HOT SURFACES.

  • Page 4: Mounting Locations

    NTELLI UMIDIFIER SELECT MOUNTING LOCATION 1. The humidifier should be installed on the supply plenum, preferably near the coil. Mounting near the evaporative coil, if applicable, will allow any excess moisture to exit the system via the condensation drain pan. 2.

  • Page 5: Assembly & Installation

    TOTALINE NTELLI HUMIDIFIER INSTALL THE HUMIDIFIER MODEL: P110-300 24 VAC 7.5 WATTS LISTED INTELLIMIST 4Z95 Be sure to use a cold water connection. Fig. 3 Mount the humidifier to the sheet metal using the four #6 mounting screws supplied. (Page 3)
  • Page 6 NTELLI UMIDIFIER WATER CONNECTION Run 1/4” tubing from the water supply to the in-line filter. The saddle valve and tubing is supplied for this purpose. SADDLE VALVE INSTALL The self piercing feature of the saddle valve is for copper pipe only.

  • Page 7: Water Hardness

    NTELLI UMIDIFIER WATER HARDNESS If water hardness is 15 grains/gal or under the filter & nozzle (P/N P110-0008) should be replaced once a year. If the water hardness is higher than 15, the filter & nozzle should be replaced every 3 months during the heating season. Orifice Rotary Pin Nozzle...

  • Page 8: Water Filter

    The water filter supplied with the humdifier is specifically formulated for optimal operation. The filter design inhibits bacteria, odor, and calcium buildup. The filter should only be replaced with Totaline part # P110-0008. 4) 5 Micron Filter Screens Clear, Plastic Case...

  • Page 9: Wiring Diagrams

    NTELLI UMIDIFIER WIRING DIAGRAMS When R & C are used from a nearby thermostat: P110-0009 Humidistat Thermostat 24vac Humidifier Furnace If only 1 wire is available from the furnace to the humidistat, W1 may be obtained from the thermostat. P110-0009 Humidistat Humidifier Furnace...
  • Page 10 NTELLI UMIDIFIER WIRING DIAGRAMS P110-0009 Humidistat The C & R terminals on the IntelliMist Humidifier are not connected internally. Furnace They are provided for an easy ‘tie-off point’ when Humidifier using 1 multi-conductor cable from the Humidifier to the humidistat. In this...
  • Page 11 NTELLI UMIDIFIER WIRING DIAGRAMS When only 5 wires are available to the thermostat and humidistat, a P474-0410 Add-A-Wire may be used as shown. Thermostat P110-0009 Wire Humidistat Part A Wire Part B 24vac Humidifier Furnace START UP Open all supply water valves to permit water flow to the humidifier.

  • Page 12: Troubleshooting Guide

    NTELLI UMIDIFIER IntelliMist Humidifier Troubleshooting Guide 1. Humidity Reading Will Not Increase When humidity levels are in the teens it may take several weeks to notice an increase in humidity in your home. This is due to the fact that virtually all of the moisture has evaporated from the wood, drywall, carpets, draperies, and furniture.
  • Page 13 NTELLI UMIDIFIER 4. Too much moisture in the duct The IntelliMist Humidifier must be used with either the Totaline Humidistat (P110-0009) or Intellistat (P374-1600). Any other controller will cause a continuous (non-pulsed) spray. Check setup step 1 (Humidistat) or step 9 (Intellistat) to make sure pulse is turned on - if pulse is set to off, the humidifier sprays constantly, producing too much water.
  • Page 14 NTELLI UMIDIFIER 6. Humidifer won’t spray Check the red LED on humidifier, which must be viewed straight on. When the light is on the humidifier is attempting to to spray. If there is no spray, check the nozzle for blockage - if blocked remove and rinse or replace the nozzle.
  • Page 15 NTELLI UMIDIFIER 9. Increasing Humidity in the Home: Factors that Affect Humidity For homes that are in very dry climates with humidity levels in the teens, it may take several days or up to a week to notice increases in humidity in the spaces. This is due to the fact that virtually all the moisture has evaporated from the wood, drywall, carpets, draperies, and furniture.
  • Page 16 NTELLI UMIDIFIER 10. Factors That Affect Humidity: Additional Notes Even though the IntelliMist Humidifier puts out more humidity than any other whole-house humidifier, up to 24 gallons per day, it may not be possible to increase the humidity to a high level especially if the outside humidity is fairly low.

  • Page 17: Output Check

    Humidistat and the Humidifier. Push the 'flow' button to energize the Intellimist Humidifier. Water droplets on the bottom left hand corner of the screen will appear and the red LED will energize. Push the 'flow' button once more to deenergize the Intellimist Humidifier.
  • Page 18 Warranty One-Year Warranty - This CARRIER CORPORATION (herein referred to as “COMPANY”) product is warranted to be free from defects in material and workmanship. If it appears within one year from the date of original installation, whether or not actual use begins on that date, that the product does not meet this warranty a new or remanufactured part at the COMPANY’S sole option, to replace any defective part will be provided without charge for the part itself;...
