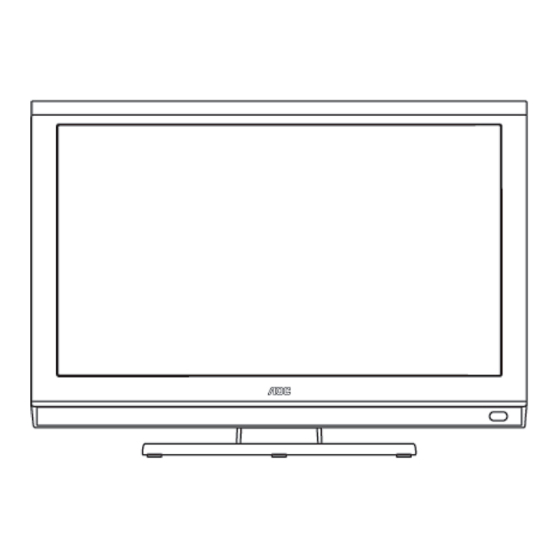

19"&22"LCD TV
Service
Service
Service
Description
Table of Contents............................................................1
Important Safety Notice...................................................2
Revision List.........................................................3
1. General Specification..................................................4
2. Operating Instructions............................................5
2.1 The Use of Remote Control...................................5
2.2 To Use The Menu................................................6
2.3 How To Connect...............................................13
2.4 Front Panel Control Knobs..................................15
3. Input/Output Specification.......................................16
4. Mechanical Instructions.........................................19
5. Repair Flow Chart ..............................................24
6. PCB Layout .......................................................29
ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS
AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING
ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.
CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING

TABLE OF CONTENTS

Page
Description
6.1 Main Board....................................................29
6.2 Power Board..................................................31
6.3 Key Board.....................................................32
6.4 IR Board.......................................................33
7. Adjustment.......................................................34
8. Block Diagram........................................................35
9. Schematic Diagram..........................................36
9.1 Main Board....................................................36
9.2 Power Board..................................................50
9.3 Key Board.....................................................52
9.4 IR Board........................................................53
10. Exploded View..............................................54
11. BOM List......................................................56
SAFETY NOTICE
1
AOC L19WA91&L22WA91
Horizontal Frequency
31.5~60 kHz
Page

Advertisement

Table of Contents

   Also See for AOC L19WA91

   Related Manuals for AOC L19WA91

   Summary of Contents for AOC L19WA91

  • Page 1: Table Of Contents

    19″&22″LCD TV AOC L19WA91&L22WA91 Service Service Service Horizontal Frequency 31.5~60 kHz TABLE OF CONTENTS Description Page Description Page Table of Contents..……........…..1 6.1 Main Board…………..……………...…….……..29 Important Safety Notice........……..2 6.2 Power Board……………..……….…….………..31 Revision List…………………………………………………3 6.3 Key Board………………………..……..………..32 1. General Specification......……...…..4 6.4 IR Board………………………….……..………..33 2.
  • Page 2: Important Safety Notice

    Important Safety Notice Proper service and repair is important to the safe, reliable operation of all AOC Company Equipment. The service procedures recommended by AOC and described in this service manual are effective methods of performing service operations. Some of these service operations require the use of tools specially designed for the purpose. The special tools should be used when and as recommended.
  • Page 3: Revision List

    Revision List Version Release Date Revision Instructions Customer Model TPV Model L19WA91 E19922NB4WACNN Aug.11,2009 Initial Release L22WA91 E22922NB4WACNN L19WA91 E199C2NB4WG22N Apr.22,2010 Add new models L22WA91 E229G2NB4WG22N...
  • Page 4: General Specification

    1. General Specification...
  • Page 5: Operating Instructions

    2. Operating Instructions 2.1 The Use of Remote Control...
  • Page 6: To Use The Menu

    2.2 To Use the Menus OSD Settings Press the MENU button on the side of the TV or press the MENU/EXIT button on the remote control to display or close the main menu. 2. Use the Navigation Ring to move around to select, adjust or confirm an item in the OSD (On Screen Display) menu.
  • Page 7 Picture Menu Descriptions To set the best picture appearance to a predefined picture setting from Standard, Smart Picture Vivid, Movie, Eco, or Personal. Brightness To brighten the dark parts of the picture. Contrast To sharpen the picture quality. Colour To add or reduce colour. Tint To adjust the picture tint.
  • Page 8 Sound Menu Descriptions Sound To set the TV to a predefined sound setting from Personal, Music, or Speech. Mode Balance To adjust the balance between left and right channels. Virtual To add greater depth and dimension to the TV sound. surround Digital To select the Digital Audio Out from Off, Dolby Digital, or PCM.
  • Page 9 Menu Descriptions To select the relevant country. This is the country you are in, or the country whose channels Country you want to receive if you live near its borders. Audio Carrier Select Stereo, Dual 1, Dual 2, or Mono for ATV channel. (ATV only) 1st and 2nd Use this function when two or more audio languages are broadcast.
  • Page 10 TV/Channels Menu Descriptions Channel scan Channel Scan will re-tune the television automatically. It is recommended to run the Channel Scan periodically to ensure that all new services are added. Update scan Search the new channels automatically that are not in the channel list. Single RF Scan (Digital Only) Enter the Single RF Scan in the Channels submenu to scan digital channels.
  • Page 11 Features Menu Descriptions Menu Language To select the on-screen display menu language. To select the available display format from Auto, Normal, Native (HDMI only), Wide, Zoom 1, Picture Format or Zoom2. Time Zone To select the time zone you are in. Time Time setup To set the time and date or select auto synchronization.
  • Page 12 Parental Menu Descriptions Channel To block certain TV channels. Block To control access programs based on their age ratings. All settings apply to digital channels. Note: Parental This function operates according to information from the broadcasting station. Therefore if the Guidance signal has no information, this function does not operate.
  • Page 13: How To Connect

    2.3 How to Connect...
  • Page 15: Front Panel Control Knobs

    2.4 Front Panel Control Knobs...
  • Page 16: Input/output Specification

    3. Input/Output Specification 3.1 RGB Signal Input 15 - Pin Color Display Signal Cable Pin No. Description Pin No. Description Red Video +5V(Supply From PC) Green Video Sync Ground Blue Video Bi-directional Data(SDA) Ground H-Sync. Red Video Ground V-Sync. Green Video Ground Data Clock(SCL) Blue Video Ground 3.2 HDMI Digital Connector Pin Assignments...
  • Page 17 Full Scart Connector Pin Assignments Pin No. Description Pin No. Description Audio Output Right N.C. Audio Input Right GND(Red) Audio Output Left GND(Blanking) GND(Audio) Red Input GND(Blue) RGB Switching Control Audio Input Left GND(Video Input & Output) Blue Input GND(RGB Switching Control) Switch Signal Input (Fast Video Output(Composite) Blanking)
  • Page 18 3.4 Compatible Mode Table Vesa Modes Horizontal Vertical Nominal Nominal Nominal Sync Sync Pixel Mode Resolution Frequency Freq. Polarity Polarity Clock (KHz) (Hz) (MHz) 640x480@60Hz 31.469 59.940 25.175 640x480@72Hz 37.861 72.809 31.500 640x480@75Hz 37.5 31.500 720x400@70Hz 31.469 70.087 28.322 800x600@56Hz 35.156 56.25 36.000...
  • Page 19: Mechanical Instructions

    4. Mechanical Instructions 1. Remove the 3 screws to remove the stand base. 2. Remove the screws to remove the rear cover.
  • Page 20 3. Release connectors. L19WA91 L22WA91...
  • Page 21 4. Remove hinge BKT. L19WA91 L22WA91...
  • Page 22 5. Remove the screws to remove the main board and power board. 6. Remove speakers.
  • Page 23 7. Remove panel. 8. Remove key board and IR board.
  • Page 24: Repair Flow Chart

    5. Repair Flow Chart 1. No Power (No LED Indicator) Plug in power cord and interface Check power cord and board interface Replace F901 or BD901 or C905 Check F901, BD901, C905 Check D901, D902 Replace D901 or D902 Replace T901 Check T901 Check D904, C930, C915 Replace D904 or C930 or C915...
  • Page 25 3. No Display (LED Indicator Green) Check 12V Check PS Check power Check back light is OK power supply signal board Check BL-ON/OFF signal Check LVDS cable and connector Replace U401 Check U401 Replace Q151 Check Q151 Check U400 Replace U400 Check Panel Replace Panel...
  • Page 26 4. Abnormal Display Check the source Reset source Check signal filter circuit Replace the filter or inductance Check input signal TV signal Check TV system setup AV, S-video, Comp,PC,HDMI signal Replace TU201 Check TU201 Replace U401 Check U401 Replace U400 Check U400 Replace LVDS cable Check LVDS cable...
  • Page 27 5. No Sound Reset source Check the source Check signal filter circuit Replace the filter or inductance Replace the Earphone jack Check Earphone jack Check input signal SIF signal Check TV system setup Replace TU201 Check TU201 Replace U605 Check U605 Replace U600 Check U600 Replace speaker...
  • Page 28 6. Key Board OSD is unstable or not working Is Key Pad Board connecting normally? Connect Key Pad Board Is Button Switch normally? Replace Button Switch Replace Key Pad Board Is Key Pad Board Normally? Check Main Board...
  • Page 29: Pcb Layout

    6. PCB Layout 6.1 Main Board 715G3292 1...
  • Page 31: Power Board

    6.2 Power Board 715G3414 1...
  • Page 32: Key Board

    6.3 Key Board 715G3375 1...
  • Page 33: Ir Board

    6.4 IR Board 715G3392 1...
  • Page 34: Adjustment

    7. Adjustment It’s no need to adjust the white balance for this model. 1. Enter into the factory mode: Turn on the TV, press MENU key with remote control, then press number key 1 9. It will achieve the factory mode. 2.
  • Page 35: Block Diagram

    8. Block Diagram...
  • Page 36: Schematic Diagram

    9. Schematic Diagram 9.1 Main Board 715G3292 1 OPWRSB OPWRSB STAND_BY STAND_BY BRIGHT_ADJ BRIGHT_ADJ INVERTER_ON_OFF INVERTER_ON_OFF MEM_VREF MEM_VREF +18V_A +18V_A +18V +18V_A R129 NC/0 OHM +-5% 1/4W +5V_STB +5V_SW +5V_STB FB100 120R/3000mA DC POWER INPUT Q105 FB101 120R/3000mA Q104 SI5441DC BRIGHT_ADJ: C106 Normal:Max:+3V3, Min:0V...
  • Page 37 Add Thermal Pad PANEL_VCC_ON/OFF PANEL_VCC_ON/OFF Add Thermal Pad Add Thermal Pad OPWRSB OPWRSB +18V_A +18V_A +5V_STB DV33SB +5V_SW AV25 U153 AV25 AV12 U154 +5V_SW AV33 LD1117ADT-TR U152 U151 VOUT VIN VOUT AME8810-AEGTZ 0.6A/3.3V LD1117ADT33TR C164 VOUT(heat sink) C169 C161 100N 16V C162 VIN VOUT 100N 16V...
  • Page 38 +5V_T +5V_T +5V_T +5V_T +5V_TUNER ATV_MUX_IN ATV_MUX_IN FB203 FB204 FB205 FB201 ATV_CVBS_OUT ATV_CVBS_OUT CVBS0P CVBS0P +5V_T2 +5V_T3 +5V_T4 CVBS0N CVBS0N SCT1_AV_OUT SCT1_AV_OUT NC/120R/500mA 120R/500mA NC/120R/500mA 220R/2000mA SCT1_AVO_GND SCT1_AVO_GND C215 C216 C217 C218 C219 C220 C201 C202 U400B NC/100N 16V NC/10U 10V 100N 16V 10U 10V NC/100N 16V...
  • Page 39 AOBCK AOBCK AOLRCK AOLRCK OPWM0 OPWM0 DV33 U400F MT5362BMG/B OPWM1 OPWM1 VCC3IO OPWM2 VCC3IO OPWM2 DVSS OPCTRL3 DVSS OPCTRL3 OPCTRL4 DVSS OPCTRL4 OPCTRL5 DVSS OPCTRL5 DVSS PDD0 DVSS PDD0 PDD1 DVSS PDD1 PDD2 DVSS PDD2 PDD3 DVSS PDD3 DV33 PDD4 DVSS PDD4 PDD5...
  • Page 40 CE#_CI CE#_CI RESET_CI RESET_CI U400I NEAR IC NEAR IC INT_CI INT_CI JRTCK TP301 AV12 FB323 AV33 FB322 JRTCK OPWM2 R331 OPWM2 JTDI NEAR IC AVDD12_USB USB_VRT AVDD33_USB OPWRSB JTDI OPWRSB JTCK DV33SB 120R/500mA 5K1 1/10W 1% 120R/500mA JTCK OPWM1 OPWM1 OPWM0 AVDD33_XTAL C327...
  • Page 41 MEM_VREF MEM_VREF U400D U351 U352 RDQS0 RA12 RDQS0 RA12 RDQS0# RA11 RDQ0 MRA0 RDQ16 MRA0 RDQS0_ RA11 RDQM0 RA10 RDQ1 MRA1 RDQ17 MRA1 RDQM0 RA10 RDQ0 RDQ2 MRA2 RDQ18 MRA2 RDQ0 RDQ1 RDQ3 MRA3 RDQ19 MRA3 RDQ1 RDQ2 RDQ4 MRA4 RDQ20 MRA4 RDQ2...
  • Page 42 KEY _MENU_L_R_SOURCE KEY _MENU_L_R_SOURCE DV33 DV33 LED_G 16MB Nand Flash 512KB Nor Flash for Boot Code LED_G LED_R U390 LED_R KEY _UP_DN_DCSW KEY _UP_DN_DCSW U391 POCE0# U0TX 5,10 U0TX GPIO_14 R366 NC/0R05 1/16W DV33 U0RX HOLD 5,10 U0RX R371 PDD0 FRESET# R373 NC/0R05 1/16W GPIO_16...
  • Page 43 CLOSE TO CI CONNECTOR CLOSE TO CI CONNECTOR TH400 CI_VCC CI_VCC +5V_SW +5V_SW CI_DV33 CI_DV33 FB405 NC/220R/200mA NC/PTCR +5V_SW R401 R402 R406 R408 R436 R435 FB404 CI_VCC CI_VPP Q400 10KOHM +-5% 1/10W NC/10K 1/10W 5% 10KOHM +-5% 1/10W 10KOHM +-5% 1/10W 4.7KOHM +-5% 1/10W 4.7KOHM +-5% 1/10W CI_IREQ#...
  • Page 44 TV SCART CVBS BYPASS MUX +18V_A +18V_A D506 NC/BAS316 SC1_RIN SC1_RIN SC1_LIN +5V_SW SC1_LIN FB500 +5V_TUNER MUX SELECT TV_BYPASS_SEL C512 10U 10V R523 SC1_Y _CVBS_IN SC1_Y _CVBS_IN +5V_MUX +5V_MUX SCT1_AUR_IN SC1_RIN TV_BY PASS_SEL TV_BY PASS_SEL ATV_CVBS_BYPASS 27K 1/16W 5% ADIN1 ADIN1 C501 120R/500mA...
  • Page 45 U400E AV12 L550 AV12 AB24 CVBS0P 0U10 H L5510U10 H CVBS0P AC24 SIDE_CVBS_IN AVDD12_RGB DVDD12_RGB AV1_RIN CVBS1P AV1_RIN AC25 CVBS0N AV1_LIN CVBS0N AV1_LIN AD25 SIDE_C_IN VGA_RIN CVBS3P VGA_RIN AD26 SIDE_Y_IN C552 C551 C553 C566 C555 C554 C550 C578 VGA_LIN CVBS2P VGA_LIN AB22 AVSS33_CVBS...
  • Page 46 SIDE_LIN SIDE_LIN SIDE_RIN SIDE_RIN U400J SIDE_CVBS_IN SIDE_CVBS_IN AVSS33_VDAC SIDE_C_IN AVSS33_VDAC SIDE_C_IN AVSS33_VDAC SIDE_Y _IN AVSS33_VDAC_BG SIDE_Y _IN AVDD33_VDAC R699 ASPDIF AVDD33_VDAC ASPDIF AVDD33_VDAC 560R 1/16W 1% AVDD33_VDAC_BG DACOUT2 SMD/0402 SC2_Y _CVBS_IN VDAC_OUT2 SC2_Y _CVBS_IN DACOUT1 SC2_C_IN VDAC_OUT1 SC2_C_IN AB23 CVBS_BY PS1 TP602 CVBS_BY PASS1 AC23...
  • Page 47 EDID_WEN 5,10 EDID_WEN HPD0 HPD0 HPD1 HPD1 U400H R703 NC/0R05 1/16W ASPDIF ASPDIF SPDIF_D SPDIF_D ALIN SPDIF_D ASPDIF SMD/0402 ASPDIF DV33SB AVDD12_CVCC AVDD12_HDMI AB12 HDMI_SDA2 AC12 NEAR IC HDMI_SCL2 AD12 PWR5V_2 L700 AC13 HDMI_CEC AV33 HDMI_CEC AC14 HDMI1_SDA AVDD33_H HDMI_SDA1 AD14 R702 OPWR1_5V...
  • Page 48 SC2_RIN SC2_RIN SC2_LIN SC2_LIN AV1_RIN AV1_RIN AV1_LIN AV1_LIN SIDE_RIN SIDE_RIN SIDE_LIN SIDE_LIN SC1_RIN SC1_RIN U400A SC1_LIN SC1_LIN ADCOUTR Near IC Near MT8292 AV33 FB608 8292_V33 VGA_RIN AIN_R VGA_RIN ADCOUTL C723 10U 10V INPUT2R VGA_LIN AIN_L VGA_LIN AVSS33_AADC R698 10U 10V 10U 10V AVSS33_AADC REFN_AADC...
  • Page 49 BL_DIM BL_DIM INVERTER_SW INVERTER_SW BRIGHT_ADJ BRIGHT_ADJ INVERTER_ON_OFF INVERTER_ON_OFF TP752 Dual signal Single Signal U400G TP762 Single Signal Dual signal AVDD12_LVDS AVDD12_LVDS A0N# A4N# LVDS AVDD33_LVDS AVDD33_LVDSA Click 19&22 CN751 AVDD33_LVDS TP753 Connector AVDD33_LVDSB CN750 A0P# A4P# PnS 22" A0N# PnS 19" NC/CON30-2TH A0P# TP763...
  • Page 50: Power Board

    9.2 Power Board 715G3414 1 R918 100 OHM 1/4W C921 F902 0.001uF +16V R919 L904 100 OHM 1/4W 3.5uH T901 ZD920 FUSE R940 POWER X'FMR C917 C918 RLZ18B R920 C922 150OHM 2W C920 100 OHM 1/4W 0.1uF 470UF/25V 1000uF25V R908 D906 1000uF25V R943...
  • Page 51 CN801 CONN C819 68pF3KV R805 +16V 100R 1/10W 5% C820 CN802 ON/OFF D801 68pF3KV CONN LL4148 PT801 Q805 POWER X'FMR R806 G1 D1 100R 1/10W 5% L801 D802 R804 AO4616 200mH ZD802 R803 ZD803 R831 LL4148 5K1 1/10W 5% RLZ5.6B 5K1 1/10W 5% RLZ5.6B R807...
  • Page 52: Key Board

    9.3 Key Board 715G3375 1 VOL+ VOL- 2.44V 1.04V 0.35V 1.73V R001 R002 R003 R004 C001 0.1uF/25V 11K OHM 1% 1/10W 4.3K OHM 1% 1/10W 1.8K OHM 1% 1/10W 470 OHM 1% 1/10W CN001 SW001 SW002 SW003 SW004 KEY1 KEY2 CONN MENU INPUT...
  • Page 53: Ir Board

    9.4 IR Board 715G3392 1 DV33SB R006 R007 1.2KOHM +-5% 1/10W 560 OHM +-5% 1/10W LED001 R001 2.2KOHM +-5% 1/10W Q001 MMBT3906 R002 2.2KOHM +-5% 1/10W Q002 BC847C DV33SB KSM-603TM2E CN001 U001 GREEN VOUT R003 33 OHM 1/10W R004 100 OHM 1/10W CONN R005 10K OHM 1/10W...
  • Page 54: Exploded View

    10. Exploded View L19WA91...
  • Page 55 L22WA91...
  • Page 56: Bom List

    11. BOM List Note: The parts information listed below are for reference only, and are subject to change without notice. Please go to http://cs.tpv.com.cn/hello1.asp for the latest information. L19WA91 E19922NB4WACNN Location Part No. Description Remark 050G 600 2 HANDLE1 050G 600 3...
  • Page 57 R007 061T0603180 1F RST CHIPR 1.8 KOHM +-1% 1/10W R003 061T0603180 1F RST CHIPR 1.8 KOHM +-1% 1/10W C002 065G0603104 22 CAP CHIP 0603 0.1UF K 25V X7R C001 065G0603104 22 CAP CHIP 0603 0.1UF K 25V X7R ZD002 093T 64 37 N V-PORT-0603-100K V05 ZD001 093T 64 37 N...
  • Page 58 CN392 033T3802 3E FP WAFER 2.0MM 3P 63043 CN392 033T3802 3E PT WAFER 2.0MM 3P H:17.5 MM CN600 033T3802 4B Y CONNECTOR CN100 033T380210B Y CONNECTOR CN100 033T380210B Y FP WAFER 2.0MM 10P 67030 CN395 033T380213B Y CONNECTOR CN751 033T801930F C JS FFC CONNECTOR 1.0PITCH 30P C684 067G215Y6814CV...
  • Page 59 040G 457624 1B LABEL-CPU U158 056G 1331PH IC LD1117S18 SOT-223 U157 056G 1334PH IC LD1117S33TR SOT-223 U154 056G 133905 IC LD1117S-TR SOT223 U400 056G 562936 IC MT5362ANG/B PBGA-470 U152 056G 563129 IC AME8810-AEGTZ 0.6A/3.3V SOT-223 U157 056G 585 4A IC AP1117E33L-13 U351 056G 615 67 IC NT5TU32M16CG-25C 512MB BGA-84...
  • Page 60 Q510 057G 760900 DIGITAL TR DTC623TK SMT3 Q511 057G 760900 DIGITAL TR DTC623TK SMT3 Q606 057G 761902 T TRA BC857BW 100MA/50V SOT-323 Q104 057G 7631PH FET POW SM SI5441DC(VISH)R Q150 057G 7631PH FET POW SM SI5441DC(VISH)R Q401 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS Q105 057G 763912 MOSFET SI4835DDY SO-8...
  • Page 61 R666 061G0402101 Y RST CHIPR 100 OHM +-5% 1/16W YAGEO R669 061G0402101 Y RST CHIPR 100 OHM +-5% 1/16W YAGEO R701 061G0402101 Y RST CHIPR 100 OHM +-5% 1/16W YAGEO R702 061G0402101 Y RST CHIPR 100 OHM +-5% 1/16W YAGEO R713 061G0402101 Y RST CHIPR 100 OHM +-5% 1/16W YAGEO...
  • Page 62 R550 061G0402222 Y RST CHIPR 2.2KOHM +-5% 1/16W YAGEO R634 061G0402223 Y RST CHIPR 22KOHM +-5% 1/16W YAGEO R568 061G0402273 Y RST CHIP 27K 1/16W 5% R572 061G0402273 Y RST CHIP 27K 1/16W 5% R578 061G0402273 Y RST CHIP 27K 1/16W 5% R586 061G0402273 Y RST CHIP 27K 1/16W 5%...
  • Page 63 R567 061G0402680 Y RST CHIP 68R 1/16W 5% R580 061G0402680 Y RST CHIP 68R 1/16W 5% R583 061G0402680 Y RST CHIP 68R 1/16W 5% R587 061G0402680 Y RST CHIP 68R 1/16W 5% R233 061G0402750 Y RST CHIPR 75 OHM +-5% 1/16W YAGEO R501 061G0402750 Y RST CHIPR 75 OHM +-5% 1/16W YAGEO...
  • Page 64 R448 061G0603000 Y RST CHIP MAX 0R05 1/10W YAGEO R451 061G0603000 Y RST CHIP MAX 0R05 1/10W YAGEO R453 061G0603000 Y RST CHIP MAX 0R05 1/10W YAGEO R508 061G0603000 Y RST CHIP MAX 0R05 1/10W YAGEO R609 061G0603000 Y RST CHIP MAX 0R05 1/10W YAGEO R611 061G0603000 Y RST CHIP MAX 0R05 1/10W YAGEO...
  • Page 65 R438 061G0603101 T RST CHIP 100R 1/10W 5% R437 061G0603101 T RST CHIP 100R 1/10W 5% R434 061G0603101 T RST CHIP 100R 1/10W 5% R433 061G0603101 T RST CHIP 100R 1/10W 5% R415 061G0603101 T RST CHIP 100R 1/10W 5% R395 061G0603101 T RST CHIP 100R 1/10W 5%...
  • Page 66 R425 061G0603103 Y RST CHIPR 10KOHM +-5% 1/10W YAGEO R408 061G0603103 Y RST CHIPR 10KOHM +-5% 1/10W YAGEO R407 061G0603103 Y RST CHIPR 10KOHM +-5% 1/10W YAGEO R406 061G0603103 Y RST CHIPR 10KOHM +-5% 1/10W YAGEO R405 061G0603103 Y RST CHIPR 10KOHM +-5% 1/10W YAGEO R404 061G0603103 Y RST CHIPR 10KOHM +-5% 1/10W YAGEO...
  • Page 67 R206 061G0603201 T RST CHIP 200R 1/10W 5% R205 061G0603201 T RST CHIP 200R 1/10W 5% R206 061G0603201 Y RST CHIPR 200 OHM +-5% 1/10W YAGEO R205 061G0603201 Y RST CHIPR 200 OHM +-5% 1/10W YAGEO R764 061G0603202 T RST CHIP 2K 1/10W 5% R764 061G0603202 Y RST CHIPR 2KOHM +-5% 1/10W YAGEO...
  • Page 68 R387 061G06033901FT RST CHIP 3K9 1/10W 1% R384 061G06033901FY RST CHIPR 3.9KOHM +-1% 1/10W YAGEO R387 061G06033901FY RST CHIPR 3.9KOHM +-1% 1/10W YAGEO R104 061G0603392 T RST CHIP 3K9 1/10W 5% R106 061G0603392 T RST CHIP 3K9 1/10W 5% R104 061G0603392 Y RST CHIPR 3.9KOHM +-5% 1/10W YAGEO R106...
  • Page 69 R202 061G0603472 Y RST CHIPR 4.7KOHM +-5% 1/10W YAGEO R424 061G0603473 T RST CHIP 47K 1/10W 5% R424 061G0603473 Y RST CHIPR 47KOHM +-5% 1/10W YAGEO R331 061G06035101FF RST CHIPR 5.1KOHM +-1% 1/10W FENGHUA R331 061G06035101FT RST CHIP 5K1 1/10W 1% R331 061G06035101FY RST CHIPR 5.1KOHM +-1% 1/10W YAGEO...
  • Page 70 R529 061T0402000 T RST CHIP MAX 0R05 1/16W R521 061T0402000 T RST CHIP MAX 0R05 1/16W R510 061T0402000 T RST CHIP MAX 0R05 1/16W R702 061T0402101 T RST CHIP 100R 1/16W 5% R701 061T0402101 T RST CHIP 100R 1/16W 5% R669 061T0402101 T RST CHIP 100R 1/16W 5%...
  • Page 71 R595 061T0402152 Y RST CHIP 1K5 1/16W 5% R569 061T0402180 T RST CHIP 18R 1/16W 5% R566 061T0402180 T RST CHIP 18R 1/16W 5% R564 061T0402180 T RST CHIP 18R 1/16W 5% R564 061T0402180 Y RST CHIPR 18 OHM +-5% 1/16W YAGEO R566 061T0402180 Y RST CHIPR 18 OHM +-5% 1/16W YAGEO...
  • Page 72 R712 061T0402473 T RST CHIP 47K 1/16W 5% R587 061T0402680 T RST CHIP 68R 1/16W 5% R583 061T0402680 T RST CHIP 68R 1/16W 5% R580 061T0402680 T RST CHIP 68R 1/16W 5% R567 061T0402680 T RST CHIP 68R 1/16W 5% R559 061T0402680 T RST CHIP 68R 1/16W 5%...
  • Page 73 C505 065G040210312K CAP CHIP 0402 10N 16V X7R +/-10% C243 065G040210312K CAP CHIP 0402 10N 16V X7R +/-10% C242 065G040210312K CAP CHIP 0402 10N 16V X7R +/-10% C208 065G040210312K CAP CHIP 0402 10N 16V X7R +/-10% C207 065G040210312K CAP CHIP 0402 10N 16V X7R +/-10% C367 065G040210412K CAP CHIP 0402 100N 16V X7R +/-10%...
  • Page 74 C553 065G040210412K CAP CHIP 0402 100N 16V X7R +/-10% C550 065G040210412K CAP CHIP 0402 100N 16V X7R +/-10% C532 065G040210412K CAP CHIP 0402 100N 16V X7R +/-10% C531 065G040210412K CAP CHIP 0402 100N 16V X7R +/-10% C529 065G040210412K CAP CHIP 0402 100N 16V X7R +/-10% C504 065G040210412K CAP CHIP 0402 100N 16V X7R +/-10%...
  • Page 75 C273 065G040210412K CAP CHIP 0402 100N 16V X7R +/-10% C265 065G040210412K CAP CHIP 0402 100N 16V X7R +/-10% C266 065G040210412K CAP CHIP 0402 100N 16V X7R +/-10% C267 065G040210412K CAP CHIP 0402 100N 16V X7R +/-10% C268 065G040210412K CAP CHIP 0402 100N 16V X7R +/-10% C269 065G040210412K CAP CHIP 0402 100N 16V X7R +/-10%...
  • Page 76 C413 065G060310412K CAP CHIP 0603 100N 16V X7R +/-10% C416 065G060310412K CAP CHIP 0603 100N 16V X7R +/-10% C417 065G060310412K CAP CHIP 0603 100N 16V X7R +/-10% C420 065G060310412K CAP CHIP 0603 100N 16V X7R +/-10% C423 065G060310412K CAP CHIP 0603 100N 16V X7R +/-10% C425 065G060310412K CAP CHIP 0603 100N 16V X7R +/-10%...
  • Page 77 C742 065G060310512K CAP CHIP 0603 1UF K 16V X7R C743 065G060310512K CAP CHIP 0603 1UF K 16V X7R C744 065G060310512K CAP CHIP 0603 1UF K 16V X7R C745 065G060310512K CAP CHIP 0603 1UF K 16V X7R C119 065G060310512K CAP CHIP 0603 1UF K 16V X7R C252 065G060310512K CAP CHIP 0603 1UF K 16V X7R...
  • Page 78 C512 065G0805106A7Z CAP CHIP 0805 10UF Z 10V Y5V C500 065G0805106A7Z CAP CHIP 0805 10UF Z 10V Y5V C430 065G0805106A7Z CAP CHIP 0805 10UF Z 10V Y5V C429 065G0805106A7Z CAP CHIP 0805 10UF Z 10V Y5V C428 065G0805106A7Z CAP CHIP 0805 10UF Z 10V Y5V C427 065G0805106A7Z CAP CHIP 0805 10UF Z 10V Y5V...
  • Page 79 C255 065G0805475A2K CAP CHIP 4U7 10V X7R 10% C237 065G0805475A2K CAP CHIP 4U7 10V X7R 10% C234 065G0805475A2K CAP CHIP 4U7 10V X7R 10% C231 065G0805475A2K CAP CHIP 4U7 10V X7R 10% C214 065G0805475A2K CAP CHIP 4U7 10V X7R 10% C121 065G0805475A7Z CAP CHIP 4.7UF 10V Y5V -20%~+80%...
  • Page 80 FB390 071G 59C601 MR CHIP BEAD 600R/200MA BLM18AG601SN1D FB566 071G 59C601 MR CHIP BEAD 600R/200MA BLM18AG601SN1D FB567 071G 59C601 TA CHIP BEAD 600R/200MA FCM1608K-601T02 FB566 071G 59C601 TA CHIP BEAD 600R/200MA FCM1608K-601T02 FB390 071G 59C601 TA CHIP BEAD 600R/200MA FCM1608K-601T02 FB750 071G 59D121 TA CHIP BEAD 120R/600MA FCM1608KF-121T06...
  • Page 81 FB350 071G 59Q121 T CHIP BEAD 120R/500MA MMZ1608S121CT FB208 071G 59Q121 T CHIP BEAD 120R/500MA MMZ1608S121CT FB209 071G 59Q121 T CHIP BEAD 120R/500MA MMZ1608S121CT FB302 071G 59Q121 T CHIP BEAD 120R/500MA MMZ1608S121CT FB323 071G 59Q121 T CHIP BEAD 120R/500MA MMZ1608S121CT FB322 071G 59Q121 T CHIP BEAD 120R/500MA MMZ1608S121CT...
  • Page 82 D608 093G 64S3PH BAS32L D701 093G 64S3PH BAS32L D702 093G 64S3PH BAS32L D703 093G 64S3PH BAS32L D703 093G 64S522SEM LL4148 D702 093G 64S522SEM LL4148 D701 093G 64S522SEM LL4148 D608 093G 64S522SEM LL4148 D607 093G 64S522SEM LL4148 D606 093G 64S522SEM LL4148 D604 093G 64S522SEM LL4148...
  • Page 83 R592 061G0603472 JT RST CHIP 4K7 1/10W 5% TZAI YUAN R598 061G0603472 JT RST CHIP 4K7 1/10W 5% TZAI YUAN R673 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R673 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN C387 065G040247132K CAP CHIP 0402 470P 50V X7R +/-10% C388...
  • Page 84 C918 067G215S1024KV EC 105℃ CAP 1000UF M 25V C905 067G315Z12115K CAP 105℃ 120UF M 450V L801 073G 174 35DNA FILTER 200MH±25% L802 073G 174 35DNA FILTER 200MH±25% L903 073G 253 91 H CHOKE COIL L904 073G 253 91 H CHOKE COIL L902 073L 174 40 HG GBQM4.778.391...
  • Page 85 R845 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R819 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W R817 061G0603105 RST CHIPR 1M OHM +-5% 1/10W R821 061G0603105 RST CHIPR 1M OHM +-5% 1/10W R826 061G0603105 RST CHIPR 1M OHM +-5% 1/10W R838 061G0603105 RST CHIPR 1M OHM +-5% 1/10W...
  • Page 86 R905 061G1206822 RST CHIPR 8.2 KOHM +-5% 1/4W R904 061G1206822 RST CHIPR 8.2 KOHM +-5% 1/4W R824 061T0603620 1F RST CHIP 6.2K 1/10W 1% C807 065G060310312K CAP CHIP 0603 10NF K 16V X7R C805 065G060310312K CAP CHIP 0603 10NF K 16V X7R C806 065G060310512K CAP CHIP 0603 1UF K 16V X7R...
  • Page 87 PE BAG Q45T 99609100 EPE COVER Q50G 4 10 Q52G 1185 98 MIDDLE CARTON TAPE FOR AOC Q52G 1185 99 BIG CARTON TAPE FOR AOC 045G 76 28 RN PE BAG FOR MANUAL 092TB1JX1A3WGM BATTERY FOR ALL EXPORT MODE LR03...
  • Page 88 Q45G 76 28NV2 PE BAG FOR CLAMP 040G 58162435A P/N LABEL FOR MANUAL PE BAG Q26G 800504 2 BARCODE LABEL FOR 3 0Q1G1030 8 47 CR3 SCREW P15T0445401 BKT-SIDE-AV Q40G0003615 3A SIDE LABEL Q85T 583131 2 GP GASKET_ELECTRIC 705TQ949001 COMSUPTIVE ASS'Y-A4...
  • Page 89 L22WA91 E22922NB4WACNN Location Part No. Description Remark 050G 600 2 HANDLE1 050G 600 3 HANDLE2 052G 1186 SMALL TAPE 052G 1209500 AL TAPE 052G 2191 A PAPER TAPE 089G176E30N 23 FFC CABLE 30P 130MM P1.0 089G404A18N IS POWER CORD/32E1818018 098GRABDPNTACR REMOTE CONTROL RC2444601/01 0D1G1730 8120 SCREW...
  • Page 90 R001 061G0603110 2F RST CHIPR 11 KOHM +-1% 1/10W R002 061G06034301FF RST CHIPR 4.3KOHM +-1% 1/10W FENGHUA R006 061G06034301FF RST CHIPR 4.3KOHM +-1% 1/10W FENGHUA R004 061G06034700FF RST CHIPR 470 OHM +-1% 1/10W FENGHUA R003 061T0603180 1F RST CHIPR 1.8 KOHM +-1% 1/10W R007 061T0603180 1F RST CHIPR 1.8 KOHM +-1% 1/10W...
  • Page 91 CN395 033T380213B Y CONNECTOR CN751 033T801930F C JS FFC CONNECTOR 1.0PITCH 30P C684 067G215Y6814CV LOW ESR EC 680UF M 25V 10*16MM C630 067G215Y6814CV LOW ESR EC 680UF M 25V 10*16MM C623 067T305V471 4C EC 470UF 25V KM 10X16MM L101 073T 253916 H CHOKE COIL 15UH+/-10% 38MOHM DR10*8 L102 073T 253916 H...
  • Page 92 U152 056G 563129 IC AME8810-AEGTZ 0.6A/3.3V SOT-223 U157 056G 585 4A IC AP1117E33L-13 U351 056G 615 67 IC NT5TU32M16CG-25C 512MB BGA-84 U352 056G 615 67 IC NT5TU32M16CG-25C 512MB BGA-84 U352 056G 615917 IC HYB18TC512160CF-2.5 TFBGA84 U351 056G 615917 IC HYB18TC512160CF-2.5 TFBGA84 U550 056G1133 34 M24C02-WMN6TP...
  • Page 93 Q401 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS Q105 057G 763912 MOSFET SI4835DDY SO-8 Q506 057T 417907 T TRA MMBT3906 PNP -200MA/-40V SOT-23 Q507 057T 417907 T TRA MMBT3906 PNP -200MA/-40V SOT-23 Q508 057T 417907 T TRA MMBT3906 PNP -200MA/-40V SOT-23 Q509 057T 417907 T TRA MMBT3906 PNP -200MA/-40V SOT-23...
  • Page 94 R358 061G0402101 Y RST CHIPR 100 OHM +-5% 1/16W YAGEO R322 061G0402101 Y RST CHIPR 100 OHM +-5% 1/16W YAGEO R320 061G0402101 Y RST CHIPR 100 OHM +-5% 1/16W YAGEO R319 061G0402101 Y RST CHIPR 100 OHM +-5% 1/16W YAGEO R218 061G0402101 Y RST CHIPR 100 OHM +-5% 1/16W YAGEO...
  • Page 95 R586 061G0402273 Y RST CHIP 27K 1/16W 5% R578 061G0402273 Y RST CHIP 27K 1/16W 5% R572 061G0402273 Y RST CHIP 27K 1/16W 5% R568 061G0402273 Y RST CHIP 27K 1/16W 5% R303 061G0402330 Y RST CHIPR 33 OHM +-5% 1/16W YAGEO R391 061G0402330 Y RST CHIPR 33 OHM +-5% 1/16W YAGEO...
  • Page 96 R661 061G0402750 Y RST CHIPR 75 OHM +-5% 1/16W YAGEO R657 061G0402750 Y RST CHIPR 75 OHM +-5% 1/16W YAGEO R584 061G0402750 Y RST CHIPR 75 OHM +-5% 1/16W YAGEO R581 061G0402750 Y RST CHIPR 75 OHM +-5% 1/16W YAGEO R579 061G0402750 Y RST CHIPR 75 OHM +-5% 1/16W YAGEO...
  • Page 97 R668 061G0603000 Y RST CHIP MAX 0R05 1/10W YAGEO R649 061G0603000 Y RST CHIP MAX 0R05 1/10W YAGEO R644 061G0603000 Y RST CHIP MAX 0R05 1/10W YAGEO R614 061G0603000 Y RST CHIP MAX 0R05 1/10W YAGEO R613 061G0603000 Y RST CHIP MAX 0R05 1/10W YAGEO R611 061G0603000 Y RST CHIP MAX 0R05 1/10W YAGEO...
  • Page 98 R555 061G0603101 T RST CHIP 100R 1/10W 5% R439 061G0603101 T RST CHIP 100R 1/10W 5% R438 061G0603101 T RST CHIP 100R 1/10W 5% R437 061G0603101 T RST CHIP 100R 1/10W 5% R760 061G0603101 Y RST CHIPR 100 OHM +-5% 1/10W YAGEO R591 061G0603101 Y RST CHIPR 100 OHM +-5% 1/10W YAGEO...
  • Page 99 R403 061G0603103 Y RST CHIPR 10KOHM +-5% 1/10W YAGEO R401 061G0603103 Y RST CHIPR 10KOHM +-5% 1/10W YAGEO R376 061G0603103 Y RST CHIPR 10KOHM +-5% 1/10W YAGEO R375 061G0603103 Y RST CHIPR 10KOHM +-5% 1/10W YAGEO R370 061G0603103 Y RST CHIPR 10KOHM +-5% 1/10W YAGEO R234 061G0603103 Y RST CHIPR 10KOHM +-5% 1/10W YAGEO...
  • Page 100 R764 061G0603202 Y RST CHIPR 2KOHM +-5% 1/10W YAGEO R115 061G06032201FY RST CHIPR 2.2KOHM +-1% 1/10W YAGEO R627 061G06032202FF RST CHIPR 22KOHM +-1% 1/10W FENGHUA R640 061G06032202FF RST CHIPR 22KOHM +-1% 1/10W FENGHUA R627 061G06032202FT RST CHIP 22K 1/10W 1% R640 061G06032202FT RST CHIP 22K 1/10W 1%...
  • Page 101 R104 061G0603392 Y RST CHIPR 3.9KOHM +-5% 1/10W YAGEO R106 061G0603392 Y RST CHIPR 3.9KOHM +-5% 1/10W YAGEO R174 061G06034701FF RST CHIPR 4.7KOHM +-1% 1/10W FENGHUA R174 061G06034701FT RST CHIP 4K7 1/10W 1% R174 061G06034701FY RST CHIPR 4.7KOHM +-1% 1/10W YAGEO R623 061G0603471 T RST CHIP 470R 1/10W 5%...
  • Page 102 R331 061G06035101FY RST CHIPR 5.1KOHM +-1% 1/10W YAGEO R220 061G0603620 Y RST CHIPR 62 OHM +-5% 1/10W YAGEO R120 061G0603683 T RST CHIP 68K 1/10W 5% R120 061G0603683 Y RST CHIPR 68KOHM +-5% 1/10W YAGEO R500 061G0603750 T RST CHIP 75R 1/10W 5% R222 061G0603750 T RST CHIP 75R 1/10W 5%...
  • Page 103 R714 061T0402101 T RST CHIP 100R 1/16W 5% R713 061T0402101 T RST CHIP 100R 1/16W 5% R702 061T0402101 T RST CHIP 100R 1/16W 5% R701 061T0402101 T RST CHIP 100R 1/16W 5% R669 061T0402101 T RST CHIP 100R 1/16W 5% R666 061T0402101 T RST CHIP 100R 1/16W 5%...
  • Page 104 R566 061T0402180 Y RST CHIPR 18 OHM +-5% 1/16W YAGEO R569 061T0402180 Y RST CHIPR 18 OHM +-5% 1/16W YAGEO R357 061T0402220 T RST CHIP 22R 1/16W 5% R356 061T0402220 T RST CHIP 22R 1/16W 5% R355 061T0402220 T RST CHIP 22R 1/16W 5% R354 061T0402220 T RST CHIP 22R 1/16W 5%...
  • Page 105 R559 061T0402680 T RST CHIP 68R 1/16W 5% R553 061T0402680 T RST CHIP 68R 1/16W 5% R522 061T0402680 T RST CHIP 68R 1/16W 5% R520 061T0402680 T RST CHIP 68R 1/16W 5% R513 061T0402680 T RST CHIP 68R 1/16W 5% R233 061T0402750 T RST CHIP 75R 1/16W 5%...
  • Page 106 C345 065G040210412K CAP CHIP 0402 100N 16V X7R +/-10% C346 065G040210412K CAP CHIP 0402 100N 16V X7R +/-10% C347 065G040210412K CAP CHIP 0402 100N 16V X7R +/-10% C348 065G040210412K CAP CHIP 0402 100N 16V X7R +/-10% C349 065G040210412K CAP CHIP 0402 100N 16V X7R +/-10% C353 065G040210412K CAP CHIP 0402 100N 16V X7R +/-10%...
  • Page 107 C763 065G040210412K CAP CHIP 0402 100N 16V X7R +/-10% C785 065G040210412K CAP CHIP 0402 100N 16V X7R +/-10% C382 065G040210412K CAP CHIP 0402 100N 16V X7R +/-10% C383 065G040210412K CAP CHIP 0402 100N 16V X7R +/-10% C384 065G040210412K CAP CHIP 0402 100N 16V X7R +/-10% C385 065G040210412K CAP CHIP 0402 100N 16V X7R +/-10%...
  • Page 108 C267 065G040210412K CAP CHIP 0402 100N 16V X7R +/-10% C266 065G040210412K CAP CHIP 0402 100N 16V X7R +/-10% C265 065G040210412K CAP CHIP 0402 100N 16V X7R +/-10% C264 065G040210412K CAP CHIP 0402 100N 16V X7R +/-10% C401 065G040227031J CAP CHIP 0402 27P 50V NPO +/-5% C400 065G040227031J CAP CHIP 0402 27P 50V NPO +/-5%...
  • Page 109 C425 065G060310412K CAP CHIP 0603 100N 16V X7R +/-10% C426 065G060310412K CAP CHIP 0603 100N 16V X7R +/-10% C432 065G060310412K CAP CHIP 0603 100N 16V X7R +/-10% C433 065G060310412K CAP CHIP 0603 100N 16V X7R +/-10% C562 065G060310412K CAP CHIP 0603 100N 16V X7R +/-10% C570 065G060310412K CAP CHIP 0603 100N 16V X7R +/-10%...
  • Page 110 C352 065G060310512K CAP CHIP 0603 1UF K 16V X7R C311 065G060310512K CAP CHIP 0603 1UF K 16V X7R C252 065G060310512K CAP CHIP 0603 1UF K 16V X7R C119 065G060310512K CAP CHIP 0603 1UF K 16V X7R C742 065G060310512K CAP CHIP 0603 1UF K 16V X7R C743 065G060310512K CAP CHIP 0603 1UF K 16V X7R...
  • Page 111 C218 065G0805106A7Z CAP CHIP 0805 10UF Z 10V Y5V C175 065G0805106A7Z CAP CHIP 0805 10UF Z 10V Y5V C155 065G0805106A7Z CAP CHIP 0805 10UF Z 10V Y5V C407 065G0805106A7Z CAP CHIP 0805 10UF Z 10V Y5V C414 065G0805106A7Z CAP CHIP 0805 10UF Z 10V Y5V C415 065G0805106A7Z CAP CHIP 0805 10UF Z 10V Y5V...
  • Page 112 C121 065G0805475A7Z CAP CHIP 4.7UF 10V Y5V -20%~+80% C122 065G0805475A7Z CAP CHIP 4.7UF 10V Y5V -20%~+80% C156 065G0805475A7Z CAP CHIP 4.7UF 10V Y5V -20%~+80% C221 065T040210505K CAP CHIP 0402 1UF 6V3 X5R +/-10% C358 065T040210505K CAP CHIP 0402 1UF 6V3 X5R +/-10% C371 065T040210505K CAP CHIP 0402 1UF 6V3 X5R +/-10%...
  • Page 113 FB302 071G 59D121 TA CHIP BEAD 120R/600MA FCM1608KF-121T06 FB209 071G 59D121 TA CHIP BEAD 120R/600MA FCM1608KF-121T06 FB208 071G 59D121 TA CHIP BEAD 120R/600MA FCM1608KF-121T06 FB207 071G 59D121 TA CHIP BEAD 120R/600MA FCM1608KF-121T06 FB206 071G 59D121 TA CHIP BEAD 120R/600MA FCM1608KF-121T06 FB204 071G 59D121 TA CHIP BEAD 120R/600MA FCM1608KF-121T06...
  • Page 114 FB500 071G 59Q121 T CHIP BEAD 120R/500MA MMZ1608S121CT FB600 071G 59Q121 T CHIP BEAD 120R/500MA MMZ1608S121CT FB701 071G 59S601 T CHIP BEAD 600R/500MA MMZ1608S601CT FB751 071T 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30 FB324 071T 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30 FB101 071T 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30...
  • Page 115 D702 093G 64S522SEM LL4148 D701 093G 64S522SEM LL4148 D608 093G 64S522SEM LL4148 D607 093G 64S522SEM LL4148 D606 093G 64S522SEM LL4148 D604 093G 64S522SEM LL4148 D603 093G 64S522SEM LL4148 D565 093G 64S522SEM LL4148 D564 093G 64S522SEM LL4148 D704 093G 64S900 T DIODE BAS316 SOT-323 PHILIPS X400 093T 22S921 C...
  • Page 116 C388 065G040247132K CAP CHIP 0402 470P 50V X7R +/-10% C441 065G040247132K CAP CHIP 0402 470P 50V X7R +/-10% C442 065G040247132K CAP CHIP 0402 470P 50V X7R +/-10% C443 065G040247132K CAP CHIP 0402 470P 50V X7R +/-10% C444 065G040247132K CAP CHIP 0402 470P 50V X7R +/-10% Q151 057G 7602PH TRA PDTC114EK SC-59 PHILIPS...
  • Page 117 CN902 095G 82010E 4 HARNESS 10P-10P 200MM CN902 095G 82010X 4 HARNESS 10P-10P 200MM 2nd source 0Q1G 340 8106 CR3 SCREW 705TQ951005 OIL FOR DISAPPEAR 705TQ957004 Q901 ASS"Y Q901 057G 667 21 STP10NK70ZFP 0M1G1730 8120 SCREW Q90G6263 6 HEAT SINK 705TQ993003 D904 ASS"Y 090G6064 1...
  • Page 118 R823 061G0603390 0F RST CHIPR 390 OHM +-1% 1/10W R813 061G0603474 RST CHIPR 470 KOHM +-5% 1/10W R825 061G0603511 RST CHIPR 510 OHM +-5% 1/10W R803 061G0603512 RST CHIPR 5.1 KOHM +-5% 1/10W R804 061G0603512 RST CHIPR 5.1 KOHM +-5% 1/10W R837 061G0603682 RST CHIPR 6.8 KOHM +-5% 1/10W...
  • Page 119 C811 065G080510432K CAP CHIP 0805 100N 50V X7R +/-10% C916 065G080510432K CAP CHIP 0805 100N 50V X7R +/-10% C919 065G080510432K CAP CHIP 0805 100N 50V X7R +/-10% C920 065G080510432K CAP CHIP 0805 100N 50V X7R +/-10% C927 065G080510432K CAP CHIP 0805 100N 50V X7R +/-10% C924 065G080522131J CAP CHIP 0805 220P 50V NPO +/-5%...
  • Page 120 PE PACKING Q45G 99626 35 PE BAG Q45T 99609100 EPE COVER Q50G 4 10 Q52G 1185 98 MIDDLE CARTON TAPE FOR AOC Q52G 1185 99 BIG CARTON TAPE FOR AOC Q52T 1150522 TAPE_INSULATING 092TB1JX1A3WGM BATTERY FOR ALL EXPORT MODE LR03...
  • Page 121 705TQ949001 COMSUPTIVE ASS'Y-A4...
