Summary of Contents for Premier SX-2735TFT

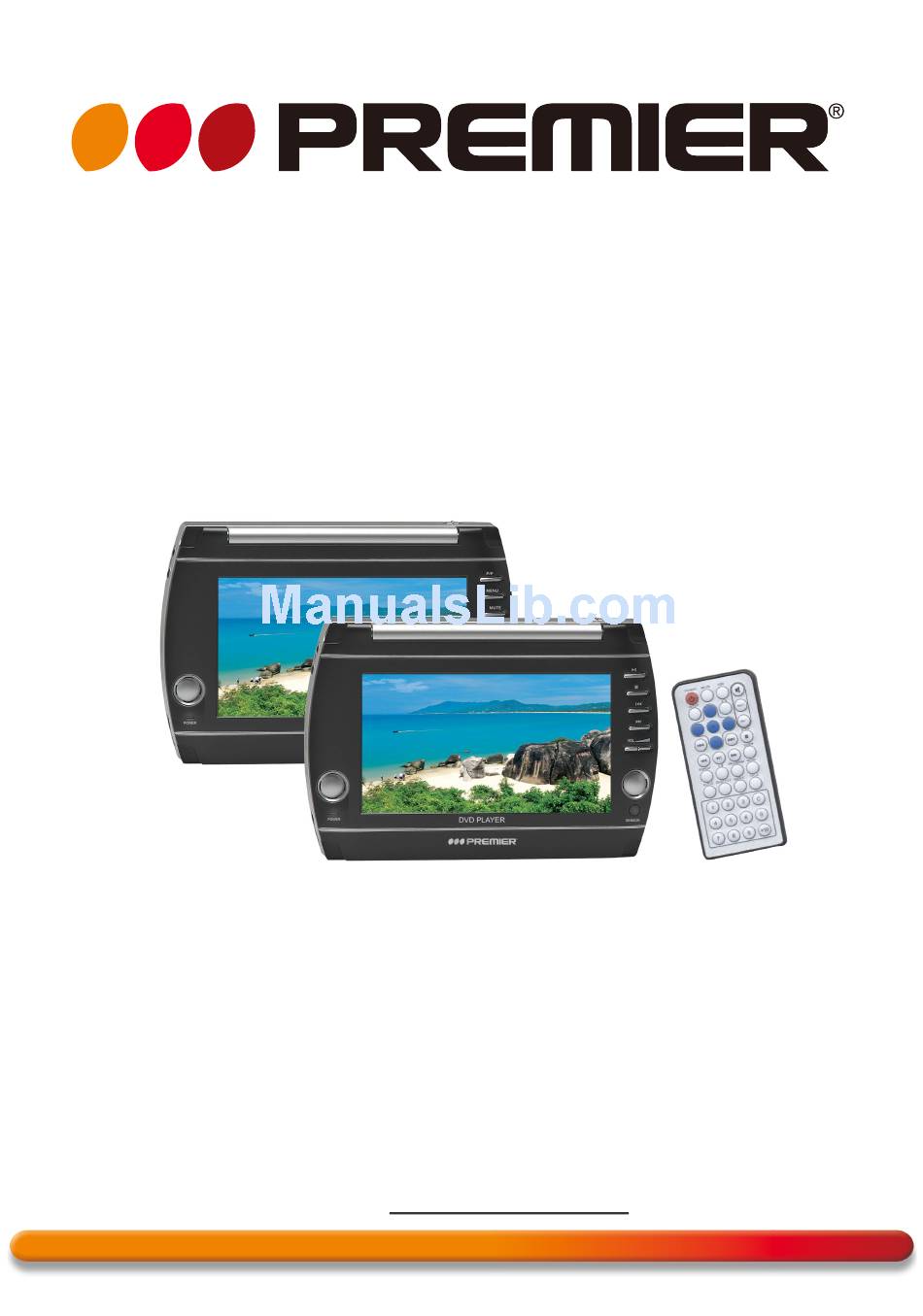

- Page 1 INSTRUCTION MANUAL PORTABLE DVD PLAYER SX-2735TFT DEAR CUSTOMER Congratulations for your purchase! Please read this manual carefully, and keep it for future reference. If you need extra support, please write to info@premiermundo.com...
-
Page 3: Table Of Contents
CONTENT • PRECAUTIONS ....................4 • CAUTIONS ON USING THIS PLAYER ............7 • PORTABLE DVD ACCESSORIES ..............9 • TECHNICAL DATA ................... 9 • SPECIFICATION ....................10 Types of discs playable on this player Portable dvd specifications Monitor accessories and specifications •... - Page 4 CONTENT Connecting to a tv set Connecting to an amplifier. Connecting to an active speaker system. Connecting to an audio/video player System if you want the unit as a monitor Connect to a monitor • BASIC OPERATIONS ..................32 Turning on/off the main unit. Placing disc.
- Page 5 PRECAUTIONS Thank you for purchasing Portable DVD player. Please read this manual carefully before operating and reserve it for future reference. It will be helpful to you if you encounter any operational problem. Warning To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
- Page 6 PRECAUTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION Use of controls or adjustments or performance of proceduresthose specified may result in hazardous radiation exposure. CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
-
Page 7: Fcc Notice
PRECAUTIONS MACROVISION This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. -
Page 8: Cautions On Using This Player
CAUTIONS ON USING THIS PLAYER Do not move the player during playback During playback, the disc spins at high speed, so do not lift or move the player. Doing so may damage the disc. Transporting the player When transporting the player be sure to remove the disc and turn off the power, then unplug the power cord . - Page 9 CAUTIONS ON USING THIS PLAYER When using with car power cable in cars Please turn on the engine and then connect with the car power cable for using. Cleaning the player Normally clean the player using a soft, dry cloth. For tough dirt, apply some neutral detergent diluted in 5 to 6 parts water to a soft cloth, wring out thoroughly, wipe off the dirt, then wipe the player with a dry cloth.
-
Page 10: Portable Dvd Accessories
PORTABLE DVD ACCESSORIES After unpacking, check that all the accessories listed below are included AC/DC ADAPTER AV CABLE EAR PHONE CAR POWER CABLE OPERATING CARD-TYPE REMOTE (OPTIONAL) INSTRUCTIONS CONTROL UNIT AC&DC CABLE HEADREST BAG (OPTIONAL TECHNICAL DATA 7’ tft 16:9 lcd screen and dvd-player Usb and sd/mmc multi-media cardreader Pal / ntsc compatible Plays dvd, mpeg4, dvd-r/+r, dvd-rw/+rw, cd, cd-r, mp3, vcd/svcd, jpeg... -
Page 11: Specification
PORTABLE DVD SPECIFICATIONS The discs listed on the below can be played on this player without any adapter. Video CDs 8 cm / 12 cm Audio CDs 8 cm / 12 cm CDs JPG 8 cm / 12 cm J P G Noted: Don’t using the disc that is scratched seriously Specifications Disc type... -
Page 12: Monitor Accessories And Specifications
MONITOR ACCESSORIES AND SPECIFICATIONS After unpacking, check that all the accessories listed below are included. Operating instructions AC&DC Cable Ear phone (this manual) (optional) Specifications Audio input 1Vrms – 2Vrms Video input 1.0 Vpp / 75 ohm Power CC 12V / 0.6° Earphone output 20 Hz - 20 kHz LCD panel... -
Page 13: Parts Name And Function
PORTABLE DVD PARTS NAME AND FUNCTION Part in the front of the player 1. TFTcover 2. LCD display 3. Speakers 4. Control keypad 5. IRreceiver window 6. Power LED indicator • LEDlight: Power switch is on • LEDoff: Power switch is off 7. -
Page 14: Part In The Front Of The Monitor
MONITOR PARTS NAME AND FUNCTION Part in the front of the monitor 1. LCD display 2. Speakers 3. Control keypad 4. Power LED indicator • LED light: Power switch is on • LED off: Power switch is off Keypad in the monitor M ENU MUTE MODE... -
Page 15: Part In The Back Of The Player
PORTABLE DVD PARTS NAME AND FUNCTION Part in the back of the player 1. Support Pull out the support to the proper position in order to let the unit stand. 2. Battery cover Open the battery cover and place six rechargeable LR-06 NiMH 1.2V/1800mAH batteries into it. -
Page 16: Part In The Left Side Of The Player
PORTABLE DVD PARTS NAME AND FUNCTION Part in the left side of the player •A•V• •I •N•/ •O•U •T •D•C• •O •U•T• •1 •2•V •D•C• •I •N• •1•2 •V 1. Earphone jack, Connecting to earphone. 2. Audio/Video input or output, input/output audio/video signal. -
Page 17: Part In The Back Of The Monitor
PORTABLE DVD PARTS NAME AND FUNCTION Part in the back of the monitor 1. Support Pull out the support to the proper position in order to let the unit stand. Part in the top of the monitor •O •N •/ • O •F •F 1. -
Page 18: Part In The Left Side Of The Monitor
PORTABLE DVD PARTS NAME AND FUNCTION Part in the left side of the monitor •A•V• •I •N •D•C• •O •U•T• •1 •2•V •D•C• •I •N• •1•2 •V 1. Earphone jack connecting to earphone. 2. Audio/Videoinput Input audio/video signal. 3. 12V DC output. 4. -
Page 19: Remote Control
PORTABLE DVD PARTS NAME AND FUNCTION Remote control Power on/off the unit MODE Press this to switch LCD mode •O •K Press this buttons to displaythe disc and playing information in the LCD Switch off the speakers or earphone VOL+ Increasing the volume VOL- Decreasing the volume... - Page 20 PORTABLE DVD PARTS NAME AND FUNCTION Press this to fast backward play when the unit in play mode Press this to fast forward play when the unit in play mode Press this to play or pause Displaying DVD title 21. REPEAT DVD: repeat play the title, chapter VCD,CD: repeat the track or whole disc 22.
-
Page 21: Remote Control Unit Operating Range
USING REMOTE CONTROL UNIT Precautions before using remote control unit • Please pull out the PVC when the remote control unit is first using • Don’t drop or step on the remote control unit or subject it to shocks • Note that it may not be possible to operate the main unit if there are obstacles between it and the remote sensor. -
Page 22: Replacing The Battery
USING REMOTE CONTROL UNIT Replacing the battery 1. Place your finger nails onto A on the diagram below, push (A) according to the direction, then open the battery cover . R03"AAA”1.5V battery R03 "AAA"1. 5V bat t er y 2. Remove the old battery, then insert the new battery into the battery holder with the + side correctly. -
Page 23: Using The Battery
USING THE BATTERY Precautions before using the battery • Please fully charge the battery unit before using it for the first time.The rechargeable time is about 12-15 hours. • When the battery unit is recharged in a hot environment, it may not recharge fully •... -
Page 24: Installing And Removing The Battery
USING THE BATTERY Installing and removing the battery 1. Please install the battery as following: (1) Push A of the battery cover (back of the player) according to the direction; (2) Place the battery into the battery slot, make sure that + sideof the battery is connected to the battery slot correctly;... -
Page 25: Recharging The Battery By Using Ac-Dc Adapter
USING THE BATTERY Recharging the battery by using AC-DC adapter Please recharge the battery as following: 1. Install the battery 2. Connect the AC-DC adapter to the player • The charging time is around 16 hours •A•V• •I •N•/ •O•U •T •D•C•... -
Page 26: Connecting The Player To Other Components
CONNECTING THE PLAYER TO OTHER COMPONENTS Connecting to AC-DC adapter 1. Please plug the AC-DC adapter to AC power socket; 2. Connecting the DC output of adapter to DC in of the main unit •A•V• •I •N•/ •O•U •T •D•C• •O • U•T• •1 • 2•V •D•C• •I • N• •1•2 • V Note: AC-DC adapter specification: DC 12V/1.2A Please using the adapter that is the standard accessory of the main unit. -
Page 27: Connecting To Usb Storage
CONNECTING THE PLAYER TO OTHER COMPONENTS Connecting to USB storage (optional) 1. Please connect the USB storage to the USB terminal of the main unit. 2. The main unit can be read the USB storage contents in the automatically. USB storage Main Unit right side •S•D •/•M •M•C •/•M •S•... -
Page 28: Connecting To A Tv Set
CONNECTING THE PLAYER TO OTHER COMPONENTS Precautions Make sure the player is turned Off before making connections Connecting to a TV Audio/video output/input Main unit left side Black Video / audio cable (included) Note: Please set the main unit to AV To video input jack (yellow) To audio input L jack (white) output mode. -
Page 29: Connecting To A Digital Amplifier
CONNECTING THE PLAYER TO OTHER COMPONENTS Connecting to a digital amplifier Audio/video output/input Main unit left side Black Signal flow Video / audio cable(included) White / Red / Yellow Video input To digital audio input jack Audio input Left Right Note: Do not play DVDs when the audio settings are not correct. -
Page 30: Connecting To An Active Speaker System
CONNECTING THE PLAYER TO OTHER COMPONENTS Connecting to active speaker systems Audio/video output/input Main unit left side Video/audio cable Black (included) Signal flow To video input jack To Audio input jack Video input White / Red / Yellow Left Right Active speaker systems Note: Please set the main unit to AV output mode. - Page 31 CONNECTING THE PLAYER TO OTHER COMPONENTS Connecting to a Audio/Video player system if you want the unit as a monitor Audio/video output/input Main unit left side Black Video/audio cable (included) Signal flow Video Out Yellow To Video Output jacks Connect to AV system video To Audio Output jacks output...
-
Page 32: Connect To A Monitor
CONNECTING THE PLAYER TO OTHER COMPONENTS Connecting to a monitor Audio/video input To audio/video Monitor left side input jack To DC IN jack AC&DC cable (included) Signal flow The main unit left side To audio/ To DC out video input jack jack AC-DC adapter... -
Page 33: Basic Operations
BASIC OPERATIONS Turning on/off the main unit 1. Turn power on • Push power switch to ON (main unit) to turn on the unit when the unit is powered, power indicator led light. 2. Turn power off • Press POWER (remote control unit) or push power switch to OFF (main unit) to turn off the unit, power indicator led off. -
Page 34: Removing Discs
BASIC OPERATIONS Removing disc 1. Press STOP to stop play 2. Open the TFT cover 3. Take out the disc 4. Close the TFT cover Mode settings Brightness / Contrast / Color / TFT display mode / TFT Reverse mode / AV out/in mode (optional) Please press MODE (remote control unit) to select a suitable mode for your favourite when the main unit is in play mode. -
Page 35: Stopping The Playing
BASIC OPERATIONS Stopping the playing 1. Press STOP to pause the playing, the unit can memorize the play point 2. Press PLAY to continues play from the pausing point •O•K STOP 3. Press STOP to stop the disc PLAY Note: The unit can not play to continues playing for some disc. Pausing the disc 1. -
Page 36: Zoom Playing
BASIC OPERATIONS 2. Repeat playing the title, chapter or track • Press REPEAT to select the title, chapter or track when the unit is in play mode • DVD: title, chapter; VCD or CD: track. Zoom playing • Press ZOOM every times, the picture will change to 2X, 3X, 4X, 1/2X, 1/3X, 1/4X and normal. -
Page 37: Using Osd
BASIC OPERATIONS 3. Using the cursor key to move the cursor to the PLAY icon, and press PROG OK to start to play the list 4. Using the cursor key to move the cursor to the 1 01 : 001 5 --- : --- 9 --- : --- CLEAR icon, and press OK to clear the play 2 02 : 002 6 --- : ---10 --- : --- list. -
Page 38: Selecting An Angle
BASIC OPERATIONS Selecting an angle Press ANGLE to select the play angle when the main unit is in play mode for DVD disc, there is no Angle function for other disc. Playing audio files and (JPEG) disc [ MP 3_1] 1001. MP 3 0 1 . -
Page 39: Playing The File Storing In A Usb Storage
BASIC OPERATIONS Playing the file storing in a USB storage (optional) Connecting the USB storage to the USB socket of the main unit, the file stored in the storage will be read automatically. 1. Power on the unit, connecting the USB storage to USB socket. (in no disc mode) 2. -
Page 40: Playing The File Storing In A Memorycard
BASIC OPERATION Playing the file storing in a memory card (optional) Please insert the card (SD,MMC and MS) in to the socket. The file will be played automatically. 1. Power on the unit, inserting the card in to the socket. (in no disc mode) 2. -
Page 41: Main Unit Settings
MAIN UNIT SETTINGS Selecting a TV system Please select the proper video signal system if you want to see on a TV set. • NTSC: please select this item when TV set. is NTSC system TV set • PAL: please select this item when TV set is PAL system TV set •... -
Page 42: Selecting A Tv Scale
MAIN UNIT SETTINGS Selecting a TV scale 16:9: Please select this item when connecting this unit to a 16:9 TV set. 4:3 L/B: Please select this item when connecting this unit to a normal TV set. 4:3 P/S: Please select this item when connecting this unit to a normal TV set. SYSTEM SETUP TV SYSTEM SCREEN SAVER... -
Page 43: Setting Parent Lock
MAIN UNIT SETTINGS Setting parent lock 1. Default setting: 0000 2. When unlock, new parent lock can be input and select the parent lock level. SYSTEM SETUP TV SYSTEM SCREEN SAVER TV TYPE PASSWORD RATING DEFAULT EXIT SETUP •• Qœ •• [• •• SU Setting parent lock level This setting can control the unit play parent lock DVD disc. -
Page 44: Default Setting
MAIN UNIT SETTINGS Default setting • To restore the factory setting, please select this item and press OK SYSTEM SETUP TV SYSTEM SCREEN SAVER TV TYPE PASSWORD RATING RESTORE DEFAULT EXIT SETUP Selecting a OSD language Please enter the OSD language select menu, use cursor key to move the cursor to the language what you want and press OK . -
Page 45: Selecting An Audio Language
MAIN UNIT SETTINGS Selecting a audio language Please enter the audio language select menu, use cursor key to move the cursor to the language what you want and press OK . LANGUAGE SETUP ODS LANGUAGE CHINESE AUDIO LANG ENGLISH JAPAN SUBTITLE LANG FRENCH MENU LANG... -
Page 46: Select A Menu Language
MAIN UNIT SETTINGS Select a menu language Please enter the menu language select menu, use cursor key to move the cursor to the language what you want and press OK. LANGUAGE SETUP ODS LANGUAGE CHINESE AUDIO LANG ENGLISH JAPAN SUBTITLE LANG FRENCH MENU LANG SPANISH... -
Page 47: Trouble Shooting
TROUBLE SHOOTING Trouble shooting Please refer the following instruction when there are some problem with this unit. If the problem still exit, please consult your nearest service center. PROBLEM POSSIBLE REASON SOLUTION Disc error Place disc in right direction Disc can not play Disc dirty or scratch Using good disc Using right area code disc... -
Page 48: Important User Information
IMPORTANT USER INFORMATION This product conforms to European Directive 2002/96/EC. This appliance bears the symbol of the barred waste bin. This indicates that, at the end of its useful life, it must not be disposed of as domestic waste, but must be taken to a collection centre for waste electrical and electronic equipment, or returned to a retailer on purchase of a replacement. -
Page 49: Important Safety Information
IMPORTANT SAFETY INFORMATION DISC USAGE INFORMATION Video disc contains high-density compressed data that needs proper handling. MAINTENANCE CD Hold the CD with fingers. Hold the disc’s outer edge and/or the center spindle hole. Do not touch the CD surface. Do not bend or press the CD. Do not expose the CD to direct sunlight or heating sources. - Page 50 IMPORTANT SAFETY INFORMATION CONDENSATION Condensation may form inside this player under following conditions: • If warm air comes in contact with any cold parts inside the player; • If the player is located in a room with high humidity; When condensation forms inside the player, the player may not operate correctly. If this occurs, leave the player at room temperature until the inside of the player becomes dry and operational.
- Page 51 OTHER INFORMATIONS...
