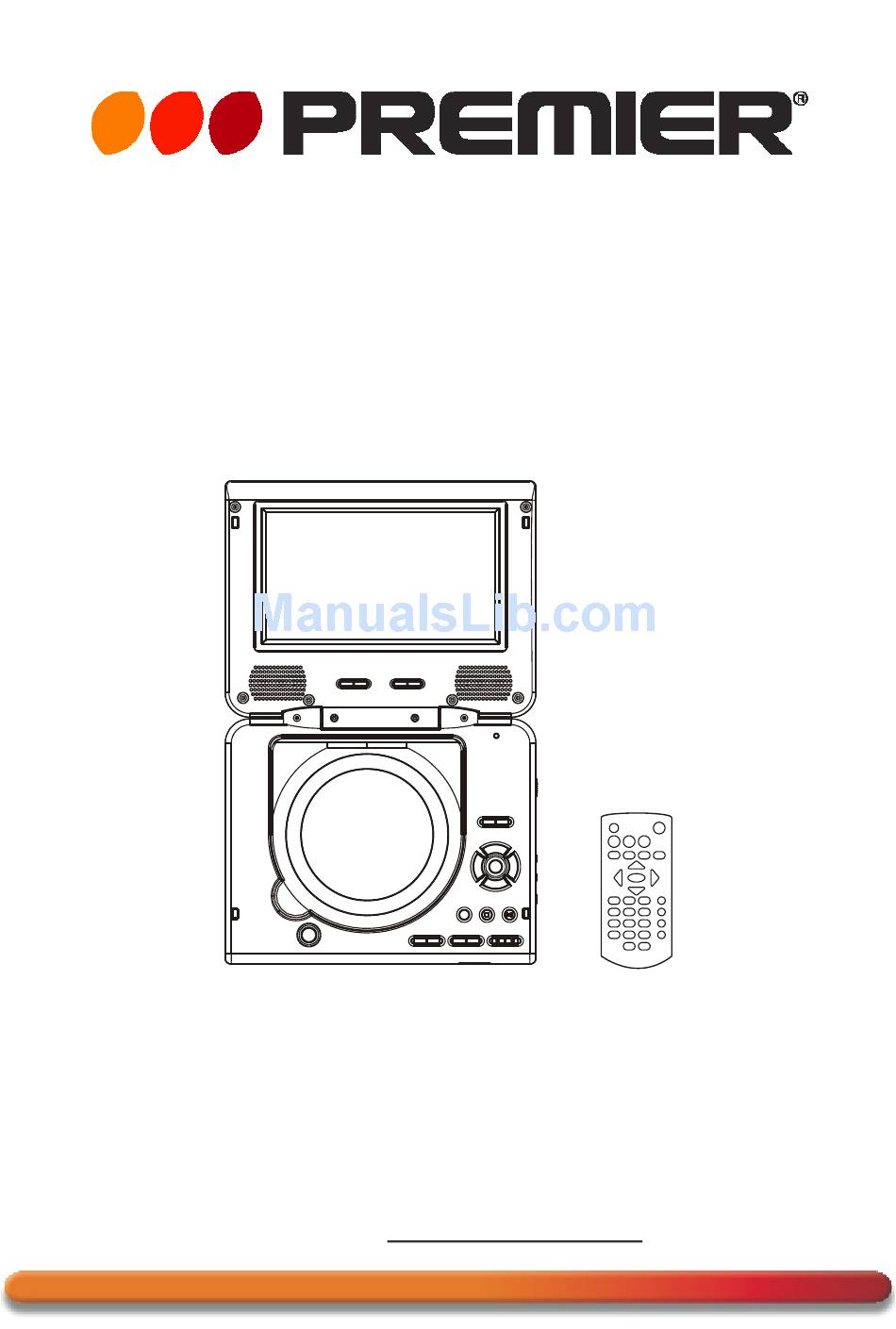

INSTRUCTION MANUAL
PORTABLE LCD DVD PLAYER
& TV RECEIVER
SX-3083TVD
DEAR CUSTOMER
Congratulations for your purchase!
Please read this manual carefully, and keep it for future reference.
If you need extra support, please write to info@premiermundo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SX-3083TVD and is the answer not in the manual?

Questions and answers

Related Manuals for Premier SX-3083TVD

Summary of Contents for Premier SX-3083TVD

  • Page 1 INSTRUCTION MANUAL PORTABLE LCD DVD PLAYER & TV RECEIVER SX-3083TVD DEAR CUSTOMER Congratulations for your purchase! Please read this manual carefully, and keep it for future reference. If you need extra support, please write to info@premiermundo.com...

  • Page 2: Overview Of The Dvd Player

    CONNECT DVD PLAYER TO OTHER APPLIANCES OVERVIEW OF THE DVD PLAYER: 1. TFT SCREEN 2. L&R SPEAKERS 3. BRIGHTNESS ADJUST KEYS 4. COLOR ADJUST KEYS 5. DISC COVER OPEN KEY 6. DISC COVER 7. PREVIOUS KEY 8. NEXT KEY 9. F.BWD KEY 10.

  • Page 3: Get A Quick Glance At The Remote Controller

    GET A QUICK GLANCE AT THE REMOTE CONTROLLER 1. DVD/TV button ON/STANDBY DVD/TV 2. TITLE button 3. PREVIOUS&F.BWD/CH- button TITLE MENU SETUP 4. NEXT&F.FWD/CH+ button 5. NAVIGATION buttons STOP DISPLAY 6. NUMERIC buttons 7. PROGRAM/ANGLE button DVD/SD/ 8. VOLUME- button 9.

  • Page 4: Connecting To A Car Adaptor

    CONNECT DVD PLAYER TO OTHER APPLIANCES After connection is firmed and securely done, plug AC Adapter to an applicable wall outlet and turn on the player. The unit not only could be powered by the supplied adapter but also by the rechargeable battery. If the battery is low power, please recharge it in time for normal play.

  • Page 5: Fuse Replacement

    FUSE REPLACEMENT FUSE POSITIVE(+) CAP NOTE: Don't throw out the positive(+) cap when replace the fuse. OPERATIONS PREPARATION Power on the TV set and select video input mode. Power on the audio system which is connected to the player. GET STARTED 1.

  • Page 6: Repeat Button

    CONNECT DVD PLAYER TO OTHER APPLIANCES REPEAT BUTTON Press REPEAT button during play, it will repeat play one chapter/title or repeat all (for DVD disc), or repeat play a track or all tracks (for CD), or repeat the specified points (A-B). SEARCH FOR PREFERRED SCENE 1.

  • Page 7: Changing Subtitle Language (Dvd Only)

    CHANGING SUBTITLE LANGUAGE (DVD ONLY) Press SUBTITLE button during playback, the subtitle language shown on the screen will change as a response to each press; When the desired language appears, release the button to view the subtitle in that language. Note: this function only works on the DVDs recorded with multi-language subtitles.

  • Page 8: Picture Zoom In/Out

    CONNECT DVD PLAYER TO OTHER APPLIANCES 3. PICTURE ROTATIONS Press RIGHT and LEFT navigation buttons to rotate the picture Clockwise and anti-clockwise respectively. 4. PICTURE FLIPS Press UP navigation button to flip the picture vertically. Press DOWN navigation button to flip the picture horizontally. 5.

  • Page 9: Get Started

    TV OPERATIONS GET STARTED Be sure your player is connected to the TV antenna properly; Power on the player and press the DVD/TV button to switch to TV Mode. SEARCH A PROGRAM Press NEXT/PREV button once, the channel number changes. A desired channel can be reached using these two keys.

  • Page 10: System Setup

    CONNECT DVD PLAYER TO OTHER APPLIANCES 1. SYSTEM SETUP 1.1 TV SYSTEM - it is used to select the TV mode. Please select this option as per your TV set. SYSTEM SETUP 1.2 SCREEN SAVER - when the player is not in used for TV SYSTEM several minutes, a running DVD logo will move across SCREEN SAVER...

  • Page 11: Speaker Setup

    SPEAKER SETUP 4. SPEAKER SETUP DOWNMIX 4.1 DOWNMIX Options: EXIT SETUP LT/RT- Left/Right mix mode STEREO- Select this option if you don't have a 5.1 channels amplifier. EXTERNAL MEMORY MEDIA OPERATION (USB&SD/MMC CARD) Prepare the player for External Memory media operation 1.

  • Page 12: Troubleshooting

    CONNECT DVD PLAYER TO OTHER APPLIANCES TROUBLESHOOTING If your DVD player does not seem to be functioning properly, check the items below before you contact an authorized service center. Symptom Check Power does not turn on or Make sure the AC adapter is securely plugged into an AC suddenly turns off.

  • Page 13: Specifications

    SPECIFICATIONS Power source: AC 100-240V~ 50/60Hz DC: 9V-12V Power consumption: 9W Output Power (RMS): 0.8W x 2 TV Output (DVD): NTSC/PAL/AUTO Operating Temperature Range: +5 C to +35 Continuous playing time: 120 minutes Dimensions: 208 (L)X165(W)X46.1(H) mm Operating Humidity Range: 10 % to 75 % Disc supportable: 1.
  • Page 14 SCHEMATIC DIAGRAM MODEL NO.: SX-3083TVD POWER SCH DC_IN 9V_ON BATT_OUT SS540 VCC_MCU 10uH BATT_VCC 10UH SS24 PGND AGND COMP 220u/10V AOZ1071 DCJACK 220UF/16V 1000pF 0.1uF +9V/12V INPUT 4405 9014 USB+5V 9014 DC_IN 9V_ON TFT+3.3V VCC1.8 TFT+1.8V U4 A1117_1V8 BATT_VCC S_01...
  • Page 15 SCHEMATIC DIAGRAM MODEL NO.: SX-3083TVD MCU SCH RMC1 VCC_MCU REMOTE 10K(8P4R) 10K(8P4R) VCC_MCU VCC_MCU R_LED DCOLOR VCC_MCU G_LED 220uF/10V 100uF/10V LOWBAT_DET 10uF 1N4148 MCU_POWER_DET 8550 VCC_MCU VOL_PWM RN3 10K(8P4R) 10K(8P4R) VCC_MCU MCU3.3 10uF/10V 4.7K 10K(8P4R) KEY1 KEY2 KEY3 P1.5 P0.4 P1.6...
  • Page 16 SCHEMATIC DIAGRAM MODEL NO.: SX-3083TVD SDRAM / SPI FLASH SCH M_A0 M_D0 SPI Mode Setting M_A1 M_D1 M_A2 M_D2 2bit 1bit M_A3 M_D3 M_A4 M_D4 R184 NC M_CLK RAM_CLK M_A5 M_D5 M_A6 M_D6 R177 10pF M_A7 M_D7 M_A8 M_D8 M_A9...
  • Page 17 SCHEMATIC DIAGRAM TV_DAC0 CVB1 5 TV_DAC1 MODEL NO.: SX-3083TVD SPHE8202T SCH G/Y_O/SY TV_DAC2 A+5V TV_DAC3 R/V_O/SC EC18 10uF/16V V_COMP VVCC3 A+5V LDSW CLKOUT V_FSADJ FOC- FOC+ DAC_REF CLKIN RAD+ 100K 3(C) 1(E) 27MHz RAD- AOUT_FR 2SK3018 2(B) 4.7K AOUT_FR AOUT_FL...

  • Page 18: Schematic Diagram

    SCHEMATIC DIAGRAM MODEL NO.: SX-3083TVD AUDIO SCH R106 AUDIO_VCC AUDIO_VCC R107 3K9 AMP_L R108 R109 100K 100pf USB+5V R110 R111 SPR1 VOL(13PIN)--->L:-85db H:+14db AUDIO_VCC ROUTN RPGND AOUT_FL SPR2 SE\BTL(14PIN)--->L:BTL H:SE RPVDD ROUTP ML_OUT R112 100K S_DOWN(10PIN)--->L:STBY H:POWER ON R_IN SEBTLB...
  • Page 19 SCHEMATIC DIAGRAM MODEL NO.: SX-3083TVD MOTOR DRIVER SCH AM5888 DIP28-SSOPH FOC+ VOFC+ VINFC FOC- VOFC- CFCerr1 CFCerr2 VNFFC RAD+ VOTK+ VINTK RAD- VOTK- VREF2 BIAS CTKerr1 BC43 0.1u CTKerr2 VNFTK AM5888 R101 SP+SNSR R102 R103 XOPVIP VOSP+ SPDCO R104 R105...
  • Page 20 SCHEMATIC DIAGRAM MODEL NO.: SX-3083TVD TCON SCH TFT+1.8V KEY2 TFT+3.3V KEY3 KEY4 TFT_5V CN4_1.5MM TFT_SDA TFT_SCL TO KEY BORAD TFT_RESET BL_EB KEY1 CN1.5A_10 TO TFT DRIVER BORAD TV_DC_IN TV_AUDIO TV_AUDIO TV_CVBS TV_CVBS MCUSDA MCUSCL MCUSDA MCUSDA CN1.5A-6P MCUSCL USB_DP MCUSCL...
  • Page 21 SCHEMATIC DIAGRAM MODEL NO.: SX-3083TVD CARD SCH +3.3V +3.3V DVCC3 +3.3V SD and MMC CARD_SENSE 0.1uF 100uF/16V SD_INS 1N4148 USB_DP USB_DM CARD_RST CARD_SENSE R_SD_D1/MMC_WP R_MS_D1 R_SD_D0/MMC_SI R_MS_D0 R_SD_CLK/MMC_SCK R_MS_CLK +3.3V USB104 R_SD_CMD/MMC_SO R_MS_BS FUSE(1206,500mA) R_SD_D3/MMC_CS R_MS_D3 VCC5 R_SD_D2/MMC_RST R_MS_D2 USB_DM DVCC3 +3.3V...
  • Page 22 SCHEMATIC DIAGRAM MODEL NO.: SX-3083TVD TFT SCH TCON-VCC5 VAA5 TCON-VCC5 PANEL_VCC TFT+3.3V IO_VCC3 27MHz VCC_BIAS 4.7K 0.1uF 100uF/16V 22PF 22PF 0.1uF 0.1uF 47uF/16V 10uF/16V 3.9K 10UF PANEL_VG 10UF 2N3904 VCC_BIAS PANEL_VAA ADC_VCC3 1.2K 0.1uF CON1 GNDV 0.1uF 0.1uF 47uF/16V GNDV...
  • Page 23 SCHEMATIC DIAGRAM MODEL NO.: SX-3083TVD TUNER SCH DVB/T-MN702 GND_TV TV_CVBS GND_TV VCC5_Tuner 22uH VCC5_Tuner VCC5_Tuner 0.1uF GND_TV 220uF/6.3V TV_AUDIO TV_CVBS GND_TV MCUSDA MCUSCL GND_TV 22uF/6.3V VCC5_Tuner CN2.0-6P GND_TV 220uF/6.3V MCUSDA MCUSCL GND_TV NOTE: subject to change without notice for improvement!
