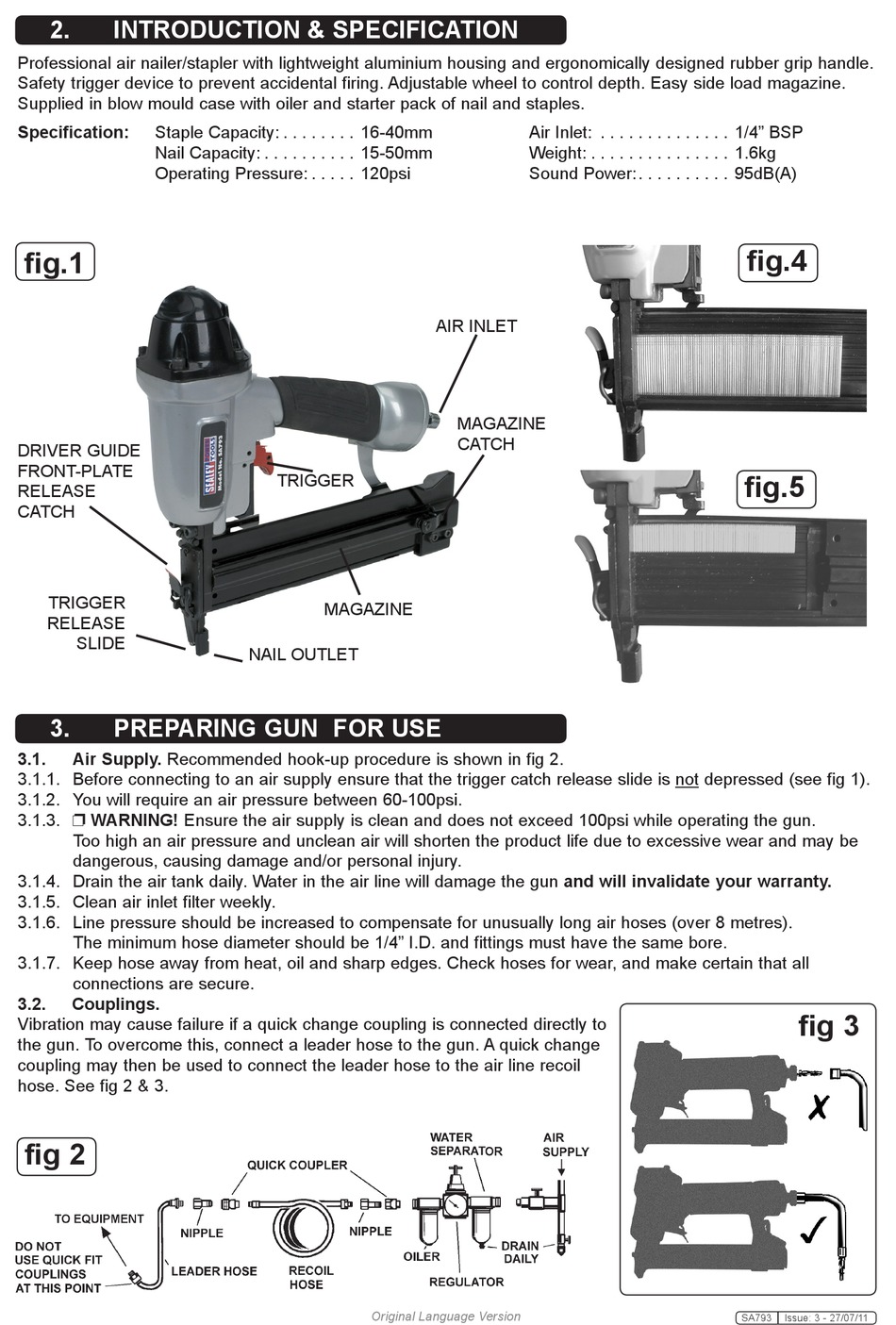

2.
INTRODUCTION & SPECIFICATION
Professional air nailer/stapler with lightweight aluminium housing and ergonomically designed rubber grip handle.
Safety trigger device to prevent accidental firing. Adjustable wheel to control depth. Easy side load magazine.
Supplied in blow mould case with oiler and starter pack of nail and staples.
Specification:
Staple Capacity: . . . . . . . . 16-40mm
Nail Capacity: . . . . . . . . . . 15-50mm
Operating Pressure: . . . . . 120psi
fig.1
DRIVER GUIDE
FRONT-PLATE
RELEASE
CATCH
TRIGGER
RELEASE
SLIDE
3.
PREPARING GUN FOR USE
3.1.
Air Supply. Recommended hook-up procedure is shown in fig 2.
3.1.1. Before connecting to an air supply ensure that the trigger catch release slide is not depressed (see fig 1).
3.1.2. You will require an air pressure between 60-100psi.
3.1.3. WARNING! Ensure the air supply is clean and does not exceed 100psi while operating the gun.
Too high an air pressure and unclean air will shorten the product life due to excessive wear and may be
dangerous, causing damage and/or personal injury.
3.1.4. Drain the air tank daily. Water in the air line will damage the gun and will invalidate your warranty.
3.1.5. Clean air inlet filter weekly.
3.1.6. Line pressure should be increased to compensate for unusually long air hoses (over 8 metres).
The minimum hose diameter should be 1/4" I.D. and fittings must have the same bore.
3.1.7. Keep hose away from heat, oil and sharp edges. Check hoses for wear, and make certain that all
connections are secure.
3.2.
Couplings.
Vibration may cause failure if a quick change coupling is connected directly to
the gun. To overcome this, connect a leader hose to the gun. A quick change
coupling may then be used to connect the leader hose to the air line recoil
hose. See fig 2 & 3.
fig 2
TRIGGER
MAGAZINE
NAIL OUTLET
Original Language Version
Air Inlet: . . . . . . . . . . . . . . 1/4" BSP
Weight: . . . . . . . . . . . . . . . 1.6kg
Sound Power:. . . . . . . . . . 95dB(A)
AIR INLET
MAGAZINE
CATCH
fig.4
fig.5
fig 3
SA793
Issue: 3 - 27/07/11
