Summary of Contents for Solwise WL-STATION-N5

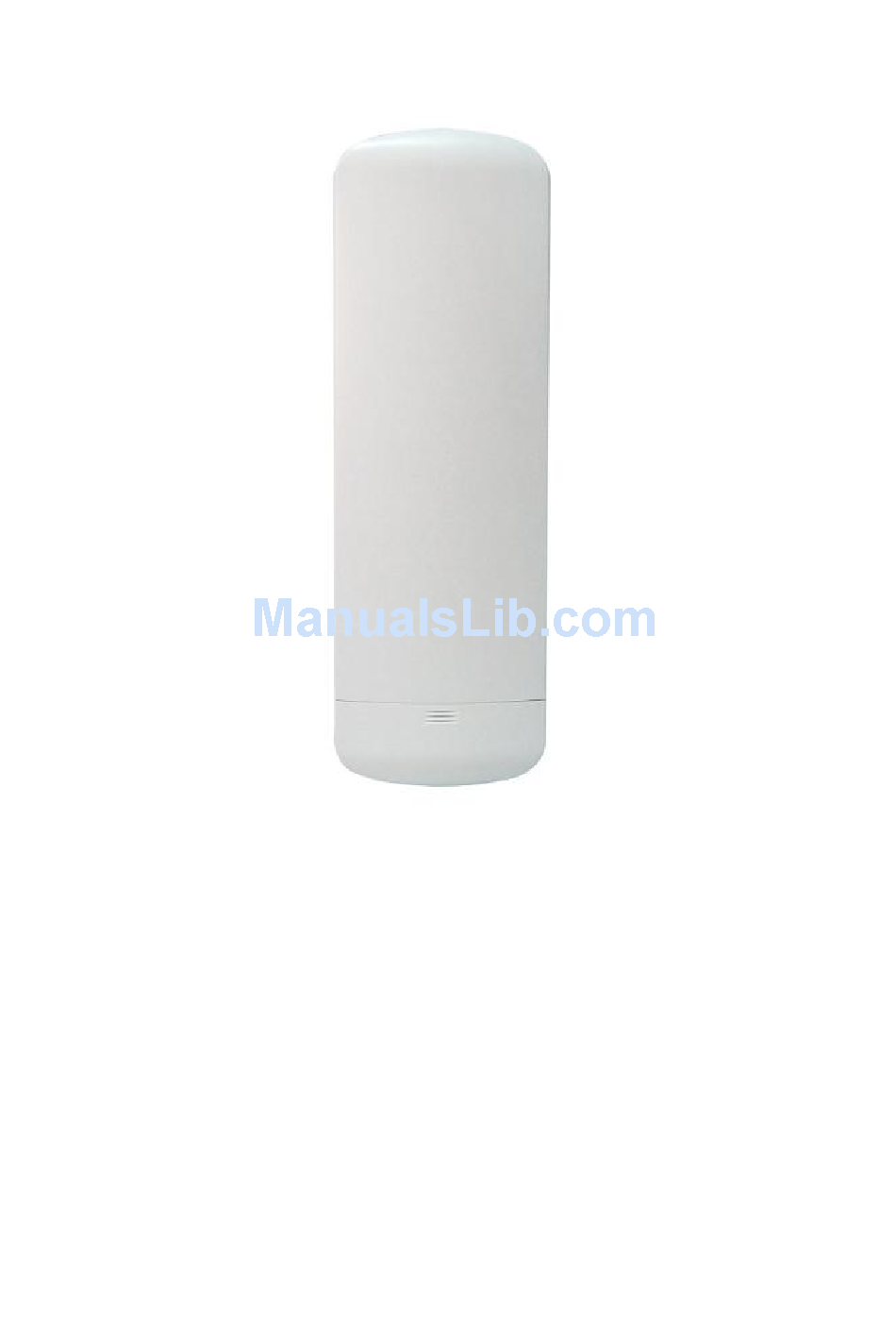

- Page 1 5GHz 802.11a/n Outdoor AP/CPE User Guide...
-
Page 2: Table Of Contents
....................... 3 NTRODUCTION ..................3 ARDWARE ESCRIPTION ..................4 ARDWARE NSTALLATION ....................6 NITIAL ONFIGURATION ................. 6 ONNECTING TO THE LOGIN PAGE ........................ 6 TATUS ........................7 ETUP – AP R ................. 7 PERATION OUTER – PPPoE(ADSL) ................. 8 ETTINGS –... -
Page 3: Introduction
NTRODUCTION The OUTDOOR AP/CPE is a 2x2 MIMO IEEE 802.11a/n wireless outdoor AP/CPE which support data rates up to 300Mbps. It is rain and splash proof when install in upright position. OUTDOOR AP/CPE available with integrated 14dBi patch antenna or two RSMA connectors for external antenna. Also uses passive PoE for simplify installation. -
Page 4: Hardware Installation
ARDWARE NSTALLATION ◆How to open the sliding door Slide the weatherproof sliding Unlatch the weatherproof door downwards by griping sliding door from the rear of onto the indented surface of the base to open. the weatherproof sliding door and the rear. ◆How to close the sliding door Slide the weatherproof Align the base with the... - Page 5 ◆Mounting and Radio forward Diagram Standard Pole Mount *Option Adjust Antenna L- Mount *Option Wall Mount...
-
Page 6: Initial Configuration
NITIAL ONFIGURATION The outdoor 5GHz AP/CPE offers a user-friendly web-based management interface for the configuration of all the unit’s features. Any PC directly attached to the unit can access the management interface using a web browser, such as Internet Explorer (version 6.0 or above). ONNECTING TO THE LOGIN PAGE It is recommended to make initial configuration changes by connecting a PC directly to the OUTDOOR AP/CPE’s LAN port. -
Page 7: Easy Setup
ETUP The Easy Setup is designed to help you to configure the basic settings required to get the OUTDOOR AP/CPE up and running. There are only a few basic steps you need to set up the OUTDOOR AP/CPE to get the connection. Click on Easy Setup to bring up the wizard –... -
Page 8: Settings - Pppoe(Adsl)
– PPPoE(ADSL) ETTINGS 1) Select PPPoE to be assigned automatically from an Internet service provider (ISP) through a DSL modem using Point-to-Point Protocol over Ethernet (PPPoE). ◆User Name — Sets the PPPoE user name for the WAN port. ◆Password — Sets a PPPoE password for the WAN port. ◆Verify Password —... -
Page 9: Settings - Static (Fixed Ip)
Network Name (SSID) — SSID (Service Set Identification) must be assigned to all wireless devices in your network. Considering your wireless network security. Security Mode — Select the security method and then configure the required parameters. (Options: Disabled, WEP-AUTO, WPA-PSK, WPA2-PSK, WPA-Auto-PSK, WPA, WPA2, WPA-Auto, 802.1X;... -
Page 10: Settings - Cable /Dynamic Ip (Dhcp)
Security Setup Network Name (SSID) — SSID (Service Set Identification) must be assigned to all wireless devices in your network. Considering your wireless network security. Security Mode — Select the security method and then configure the required parameters. (Options: Disabled, WEP-AUTO, WPA-PSK, WPA2-PSK, WPA-Auto-PSK, WPA, WPA2, WPA-Auto, 802.1X;... -
Page 11: Settings - Pptp / L2Tp
Security Setup Network Name (SSID) — SSID (Service Set Identification) must be assigned to all wireless devices in your network. Considering your wireless network security. Security Mode — Select the security method and then configure the required parameters. (Options: Disabled, WEP-AUTO, WPA-PSK, WPA2-PSK, WPA-Auto-PSK, WPA, WPA2, WPA-Auto, 802.1X;... - Page 12 DNS maps numerical IP addresses to domain names and can be used to identify network hosts by familiar names instead of the IP addresses. To specify a DNS server, type the IP addresses in the text field provided. Otherwise, leave the text field blank.
-
Page 13: Settings - Ips Ec
◆Server IP — Sets the L2TP server IP Address. (Default: l2tp_server) ◆User Name — Sets the L2TP user name for the WAN port. ◆Password — Sets a L2TP password for the WAN port. ◆Address Mode — Sets a L2TP network mode. (Default: Dynamic IP) ◆Operation Mode —... - Page 14 Verify the desire settings and use scroll down for more options. IPSec Connection Type – Use drop down menu to select from Road Warrior ◆ Tunnel, Host to Host Tunnel, Subnet to Subnet Tunnel, Host to Host Transport, Pass trough, Drop, or Reject. Default setting is Road Warrior Tunnel IPSec Authentication –...
-
Page 15: Operation Mode - Ap Bridge
WPA, WPA2, WPA-Auto, 802.1X; Default: Disabled) – AP B PERATION RIDGE 1) In this mode bridge your OUTDOOR AP/CPE to another Access Point. Network Name (SSID) — SSID (Service Set Identification) must be assigned to all wireless devices in your network. Considering your wireless network security. Security Mode —... - Page 16 connect in this example. Press Next button when finished. 3) Now, it shows the Profile Name, SSID, BSSID, and encryption type received from your target network and press Next button to continue.
-
Page 17: Operation Mode - Client Bridge
4) Finally, you need to tell the system about IP address received from WAN, DHCP Hostname, and DNS Server then press Next button to finish the wizard. – C PERATION LIENT RIDGE OUTDOOR AP/CPE will behave just the same as In the Client Bridge mode your Wireless adapter. - Page 18 2) Press Site Survey button and look for available wireless network then click on the SSID that you attempt to connect to it; 5G is the SSID that we are going to connect in this example. Press Next button when finished.
- Page 19 3) Now, it shows the Profile Name, SSID, BSSID, and encryption type received from your target network and press Next button to finish the wizard.
-
Page 20: Advanced Setup
DVANCED ETUP In the Advanced Manual Bar, it includes all the settings such as firmware upgrade, LAN, WAN and wireless settings that change the RF behaviors. It is important to read through this section before attempting to make changes. -
Page 21: Management
ANAGEMENT The Management section is provided for configuration of administrative needs such as language type, user name / Password, firmware upgrade, export and import settings, load factory defaults and reboots system. ◆Password — The new password must not exceed 32 characters in length and must not include any spaces. - Page 22 4. The Router will reboot after the upgrading has been finished. ◆Export Settings — Click the Export Button to download current router configuration to your PC. ◆Import Settings — Click the Import Button to browse for the configuration file that is currently saved on your PC.
-
Page 23: Advanced Settings
DVANCED ETTINGS The Advanced Settings section is provided for configuration of Time Zone, DDNS, UPnP, SNMP, and Telnet/SSH. ◆Time Zone Settings — The Time Zone Settings allows you to configure, update and maintain the correct time on the OUTDOOR AP/CPE’s internal system clock. SNTP Server —... - Page 24 UPNP Settings – UPnP permits network devices to discover other network device(s) preference and establish functional network services for data sharing, communication, and entrainment. SNMP Settings – Managing devices on IP networks. ◆Telnet Settings – Enable your OUTDOOR AP/CPE unit to be accessed via telnet utility.
-
Page 25: Operation Mode
PERATION The Operation Mode content four modes: AP Bridge, AP Router, Client Router and Client Bridge. ◆AP Bridge — The wired Ethernet and wireless are bridged together. Once the mode is selected, all WAN related functions will be disabled. ◆AP Router — The WAN port is used to connect with ADSL/Cable modem and the wireless is used for your private WLAN. - Page 26 dropped as soon as it matches a deny rule. If no rules match, the packet is either accepted or dropped depending on the default policy setting. ◆MAC/IP/Port Filtering — Enables or disables MAC/IP/Port Filtering. ◆Default Policy — When MAC/IP/Port Filtering is enabled, the default policy will be enabled.
-
Page 27: Virtual Server Settings
IRTUAL ERVER ETTINGS Virtual Server (sometimes referred to as Port Forwarding) is the act of forwarding traffic from one network node to another based on received protocol port number. This technique can allow an external user to reach a port on a private IP address (inside a LAN) from the outside through a NAT enabled router. -
Page 28: Dmz
DMZ is to specified host PC on the local network to access the Internet without any firewall protection. Some Internet applications, such as interactive games or video conferencing, may not function properly behind the firewall. By specifying a Demilitarized Zone (DMZ) host, the PC's TCP ports are completely exposed to the Internet, allowing open two-way communication. -
Page 29: Qos
◆Remote Management (via WAN) — allow or deny to manage the router from anywhere on the Internet. ◆Remote Management Port — The port that you will use to address the management from the Internet. For example, if you specify port 2020, then to access the OUTDOOR AP/CPE from Internet, you would use a URL of the form: http://xxx.xxx.xxx.xxx:2020/ ◆Ping from WAN Filter —... -
Page 30: Content Filtering
◆QoS Setup — Enable or Disable the QoS service on your CPE. ◆Upload Bandwidth / Download Bandwidth — Value you configure should be real bandwidth your ISP provides to you ◆Target — Defined priority for the application in the QoS, and the application not in the rule list would automatically have lower priority. -
Page 31: Network Settings
Current URL Filters — Displays current URL filter. ◆ Add a URL Filter — Adds a URL filter to the settings. ◆ Delete a URL Filter — Deletes a URL filter entry from the list. ◆ Web Host Filter Settings — Allows Internet content access to be restricted based on ◆... - Page 32 ◆Primary DNS Server — The IP address of the Primary Domain Name Server. A DNS maps numerical IP addresses to domain names and can be used to identify network hosts by familiar names instead of the IP addresses. To specify a DNS server, type the IP addresses in the text field provided.
- Page 33 PPTP Server IP — Sets the PPTP server IP Address. (Default: pptp_server) ◆ User Name — Sets the PPTP user name for the WAN port. ◆ Password — Sets a PPTP password for the WAN port. ◆ Address Mode — Sets a PPTP network mode. (Default: Dynamic IP) ◆...
- Page 34 IPSec Connection Type – Use drop down menu to select from Road Warrior ◆ Tunnel, Host to Host Tunnel, Subnet to Subnet Tunnel, Host to Host Transport, Pass trough, Drop, or Reject. Default setting is Road Warrior Tunnel IPSec Authentication – Use drop down menu to select from SHA-1, or MD5. ◆...
-
Page 35: Lan
In this section, the LAN settings are configured based on the IP Address and Subnet Mask. The IP address is also used to access this Web-based management interface. It is recommended to use the default settings if you do not have an existing network. -
Page 36: Dhcp Static Lease List
VLAN ID — This will cause the device to send packets with VLAN tags. The switch connecting with the device must support VLAN IEEE802.1Q frames. The wireless stations connecting to the SSID of a specified VLANID can communicate with the PC connecting to the port with the same VLANID on the Switch. - Page 37 ◆Destination — The IP address of packets that can be routed. ◆Type — Defines the type of destination. ( Host: Signal IP address / Net: Portion of Network ) ◆Netmask — Displays the subnetwork associated with the destination. ◆Gateway — Defines the packets destination next hop ◆Interface —...
-
Page 38: Wireless Settings
IRELESS ETTINGS ASIC ◆Wireless On/Off — Enables or Disable the radio. (Default: Turn On) ◆Wireless Mode — There are 4 wireless mode, those are Access Point, WDS Access Point, WDS Repeater and WDS Client Note. If WEP authentication is selected for WDS communication, you will then only have one set of encryption for the entire channel. -
Page 39: Security
ECURITY (WEP) IRED QUIVALENT RIVACY WEP provides a basic level of security, preventing unauthorized access to the network, and encrypting data transmitted between wireless clients and an access point. WEP uses static shared keys (fixed-length hexadecimal or alphanumeric strings) that are manually distributed to all clients that want to use the network. When you select to use WEP, be sure to define at least one static WEP key for user authentication or data encryption. - Page 40 update the client keys. ◆WEP Keys — Sets WEP key values. The user must first select ASCII or hexadecimal keys. Each WEP key has an index number. Enter key values that match the key type and length settings. Enter 5 alphanumeric characters or 10 hexadecimal digits for 64-bit keys, or enter 13 alphanumeric characters or 26 hexadecimal digits for 128-bit keys.
- Page 41 WPA2-compliant hardware. Auto — Uses either TKIP or AES keys for encryption. WPA and ■ WPA2 mixed modes allow both WPA and WPA2 clients to associate to a common SSID. In mixed mode, the unicast encryption type (TKIP or AES) is negotiated for each client.
- Page 42 Key are accepted for authentication. The default data encryption type is TKIP/AES. ◆WPA Algorithms — Selects the data encryption type to use. (Default is determined by the Security Mode selected.) TKIP — Uses Temporal Key Integrity Protocol (TKIP) keys for encryption. WPA ■...
- Page 43 user authentication. When 802.1X is used, a RADIUS server must be configured and be available on the connected wired network. RADIUS Server — Configures RADIUS server settings. IP Address — Specifies the IP address of the RADIUS server. ◆ Port — The User Datagram Protocol (UDP) port number used by the ◆...
-
Page 44: Advanced
network clients wanting to join the network: WPA Algorithms — Selects the data encryption type to use. (Default is determined by the Security Mode selected.) TKIP — Uses Temporal Key Integrity Protocol (TKIP) keys for encryption. WPA ◆ specifies TKIP as the data encryption method to replace WEP. TKIP avoids the problems of WEP static keys by dynamically changing data encryption keys. - Page 45 Packet Aggregate — A performance enhancement that combines data packets ◆ together when the feature is supported by compatible clients. (Default: Enabled) WMM — Sets the WMM operational mode on the access point. When enabled, the ◆ QoS capabilities are advertised to WMM-enabled clients in the network. WMM must be supported on any device trying to associated with the access point.
-
Page 46: Access Control
sends a CTS (clear to send) frame to notify the sending station that it can start sending data. If the RTS threshold is set to 0, the access point always sends RTS signals. If set to 2347, the access point never sends RTS signals. If set to any other value, and the packet size equals or exceeds the RTS threshold, the RTS/CTS (Request to Send / Clear to Send) mechanism will be enabled.
