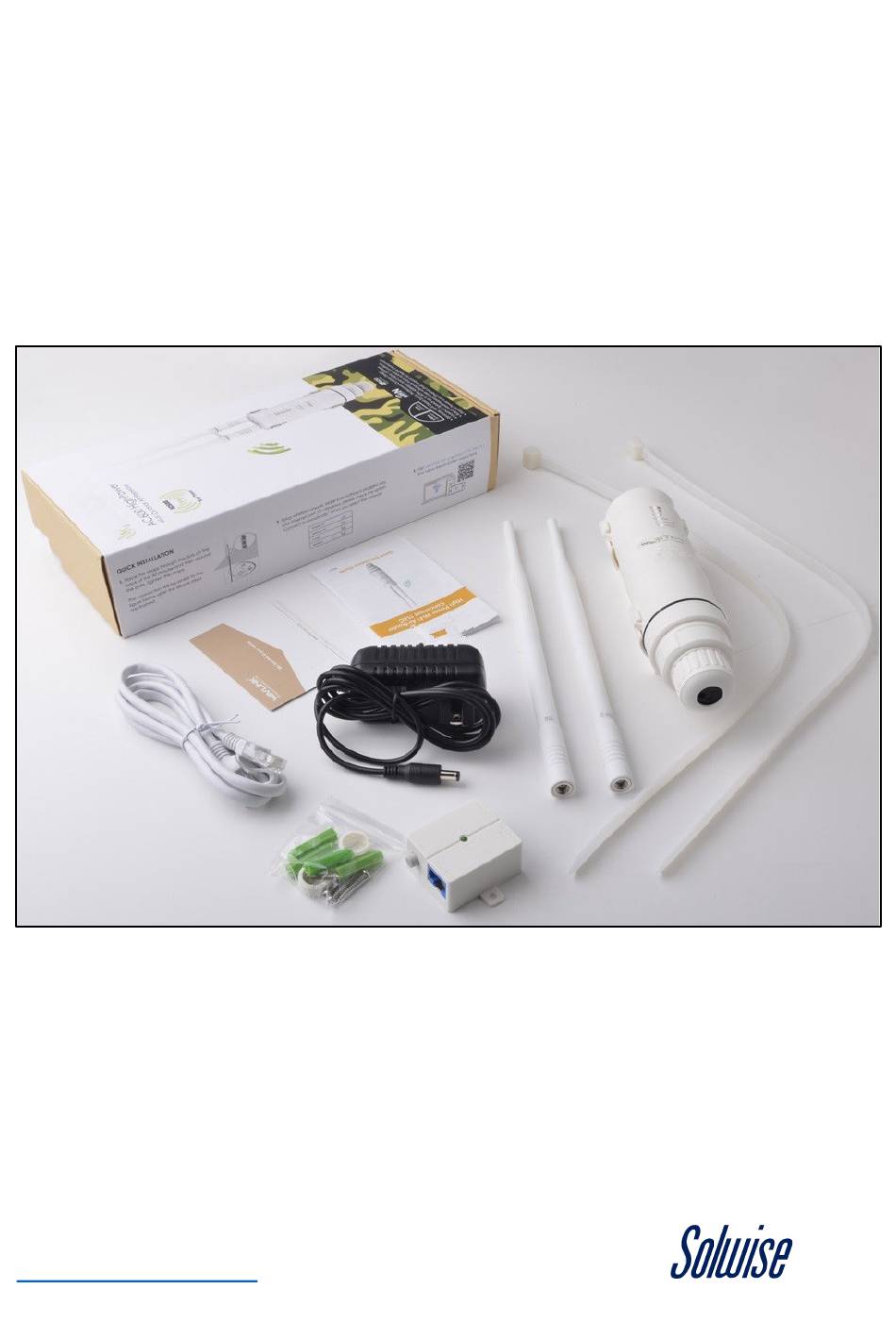

- Page 1 Patriot-DB Flexible Access-Point and Wi-Fi Extender www.solwise.co.uk...
-
Page 2: Table Of Contents
Configure Using a Wi-Fi Device ........5 Use as a Stand-alone Access Point ......6 Use as a WiFi repeater ..........12 Use with Another Access Point ........ 18 Use with the RPT-3000 Router......... 22 Use with the RPT-3000A Router....... 27 www.solwise.co.uk... -
Page 3: Powering Up
Patriot-DB Powering Up Powering Up The Patriot-DB is powered via its WAN/LAN (PoE) Port using a PoE injector on mains electricity, but other options are available if you need to operate from other power sources. Before starting this guide, please ensure that you have connected the Ethernet cables in the below correct order. -
Page 4: Configure Using A Wired Laptop / Pc
Patriot-DB Configure Using a Wired Laptop / PC Configure Using a Wired Laptop / PC This is the easiest way to get started as all you need to do is establish a wired connection between the Patriot- DB and either a laptop or computer using Ethernet cables. -
Page 5: Configure Using A Wi-Fi Device
Smartphone or any other Wi-Fi enabled device that has a Web Browser. This is done by wirelessly connecting to either Wireless-N or Wireless-AC, which are the default open wireless networks that the Patriot-DB broadcasts. Once done, you can proceed. www.solwise.co.uk... -
Page 6: Use As A Stand-Alone Access Point
Use as a Stand-alone Access Point Use as a Stand-alone Access Point In this mode the Patriot-DB will be used to serve an outdoor area with a WiFi service sourced through a wired connection to a Home Hub, Router or similar Internet access device. - Page 7 Patriot-DB Use as a Stand-alone Access Point Step 2: Once this is done, you will be redirected to the ‘Status Page’, the next step is to click on the `Wizard’ icon at the bottom of the page to proceed. www.solwise.co.uk...
- Page 8 Patriot-DB Use as a Stand-alone Access Point Step 3: There will be three operating modes; ‘Repeater’, ‘AP(LAN Bridge)’ and ‘Router’. For the purpose of this instruction you will be choosing ‘AP(LAN Bridge)’ by clicking on the circled ‘Orange Tick’ to proceed.
- Page 9 Patriot-DB Use as a Stand-alone Access Point Step 4: On this screen, there is a couple of details you need to provide. Wi-Fi SSID – this is the name of the wireless network that will be broadcast, this can be anything you wish.
- Page 10 The wizard will start applying the settings specified previously. Step 5: Now that the configuration is complete, all you need to do now is plug the Patriot-DB into a source of Internet connection, such as a network switch or router.
- Page 11 Patriot-DB Use as a Stand-alone Access Point You have now configured the Patriot-DB as a standalone access point, so all you need to do now is to connect to your existing network. www.solwise.co.uk...
-
Page 12: Use As A Wifi Repeater
Use as a WiFi repeater Use as a WiFi repeater In this mode the Patriot-DB will re-transmit ALL the WiFi signals it can ‘see’. We DO NOT recommend this mode for use with public WiFi services as each repeater can... - Page 13 Patriot-DB Use as a WiFi repeater Step 2: Once this is done, you will be redirected to the ‘Status Page’, the next step is to click on the `Wizard’ icon at the bottom of the page to proceed. www.solwise.co.uk...
- Page 14 Patriot-DB Use as a WiFi repeater Step 3: By default, the Patriot-DB will be set up in the ‘AP(LAN Bridge) operating mode, so we need to change this to ‘Repeater’. This can be changed by clicking on the > symbol.
- Page 15 Patriot-DB Use as a WiFi repeater Step 4: Once this is changed to ‘Repeater’ mode then the wizard will begin to scan for nearby wireless networks to repeat. You will notice that under ‘Repeater Mode’ there is a choice of two ‘Repeater Modes’:...
- Page 16 Patriot-DB Use as a WiFi repeater You can also change the name of the ‘Extended 2.4G’ and ‘Extended 5G’ network names if you wish. Once done click the ‘Connect’ button to apply the settings. www.solwise.co.uk...
- Page 17 Once the process reaches 100%, click the ‘Back’ button to proceed. At this stage the Patriot-DB is set up for use as a WiFi repeater. If want to add another Access Point, for instance to provide a service indoors, read on.
-
Page 18: Use With Another Access Point
Use with Another Access Point Use with Another Access Point In this mode the Patriot-DB will get its service from an existing WiFi source, such as a caravan site, and make the service available to another access point, for instance within your caravan. - Page 19 Patriot-DB Use with Another Access Point Step 2: You will now be redirected to the ‘Status’ page, so click on the ‘WiFi’ icon at the bottom of the screen. www.solwise.co.uk...
- Page 20 Patriot-DB Use with Another Access Point Step 3: Click on the ‘WiFi Setup’ option. www.solwise.co.uk...
- Page 21 ON/OFF’ setting to ‘OFF’ for both ‘2.4G Wi-Fi’ and ‘5G Wi-Fi ’. Once done, then click the ‘Apply’ button to finish. Now it is possible for you to connect any Access Points to the Patriot-DB using the LAN port on the PoE injector. www.solwise.co.uk...
-
Page 22: Use With The Rpt-3000 Router
Since many people may already own a Solwise RPT- 3000 or 3000A router, you will be pleased to know that these work with the Patriot-DB. You just need change the operating mode to ‘Bridge(AP)’ as explained below. Step 1: Open up a Web Browser such as Mozilla Firefox or Google Chrome and type the IP address 192.168.2.1 into the... - Page 23 Patriot-DB Use with the RPT-3000 Router Step 2: You will then be redirected to the ‘Status’ page so next click on the `Easy Setup’ tab at the top of the page. www.solwise.co.uk...
- Page 24 Patriot-DB Use with the RPT-3000 Router Step 3: Next you need to select the connection type option ‘Bridge(AP)’. www.solwise.co.uk...
- Page 25 Patriot-DB Use with the RPT-3000 Router Step 4: On this page, you need to setup the following: The name of your wireless network (SSID Choice). Choose some security for your wireless network (Security Mode), we recommend using WPA2-PSK. Choose the encryption for the wireless network (WPA Algorithm), we recommend ‘Auto (TKIP/AES)’.
- Page 26 Step 5: The Solwise RPT-3000 Router will now reboot and once done you will be redirected to the ‘Status’ page again. You will now be able to connect the Solwise RPT-3000 Router to the Patriot-DB, via the LAN port on the PoE injector.
-
Page 27: Use With The Rpt-3000A Router
Use with the RPT-3000A Router Since many people may already own the Solwise RPT- 3000A Router, you will be pleased to know that it is compatible with the Patriot-DB. You will just need to change the operating mode to ‘Ethernet Router’ to achieve this. - Page 28 Patriot-DB Use with the RPT-3000A Router Step 2: Once the ‘System Status’ page appears, you need to select the `Ethernet router’ operating mode by clicking the green `Next’ button. www.solwise.co.uk...
- Page 29 DNS Server – this should be set to ‘Auto’. Network Name – this is the name of the wireless network that will be broadcast from the RPT-Solwise 3000A Router. Network Password – this is the password you will need to type in once you connect to the above wireless network.
- Page 30 You may notice that throughout the setup the ‘Internet Status’ will be listed as ‘Disconnect’, this is incorrect and is a bug with the firmware of the Solwise RPT-3000A Router. You will be connected to an Internet connection at the end of this setup guide.
- Page 31 Step 5: On this page, all you need to do is disable the ‘DHCP Server’ by choosing the ‘disable’ option on the dropdown menu. Once done click the ‘Apply’ button and the Solwise RPT-3000A Router is setup to be used as an Access Point with the Patriot- You can now connect the Solwise RPT-3000A Router to the Patriot-DB’s LAN port on the PoE Injector.
