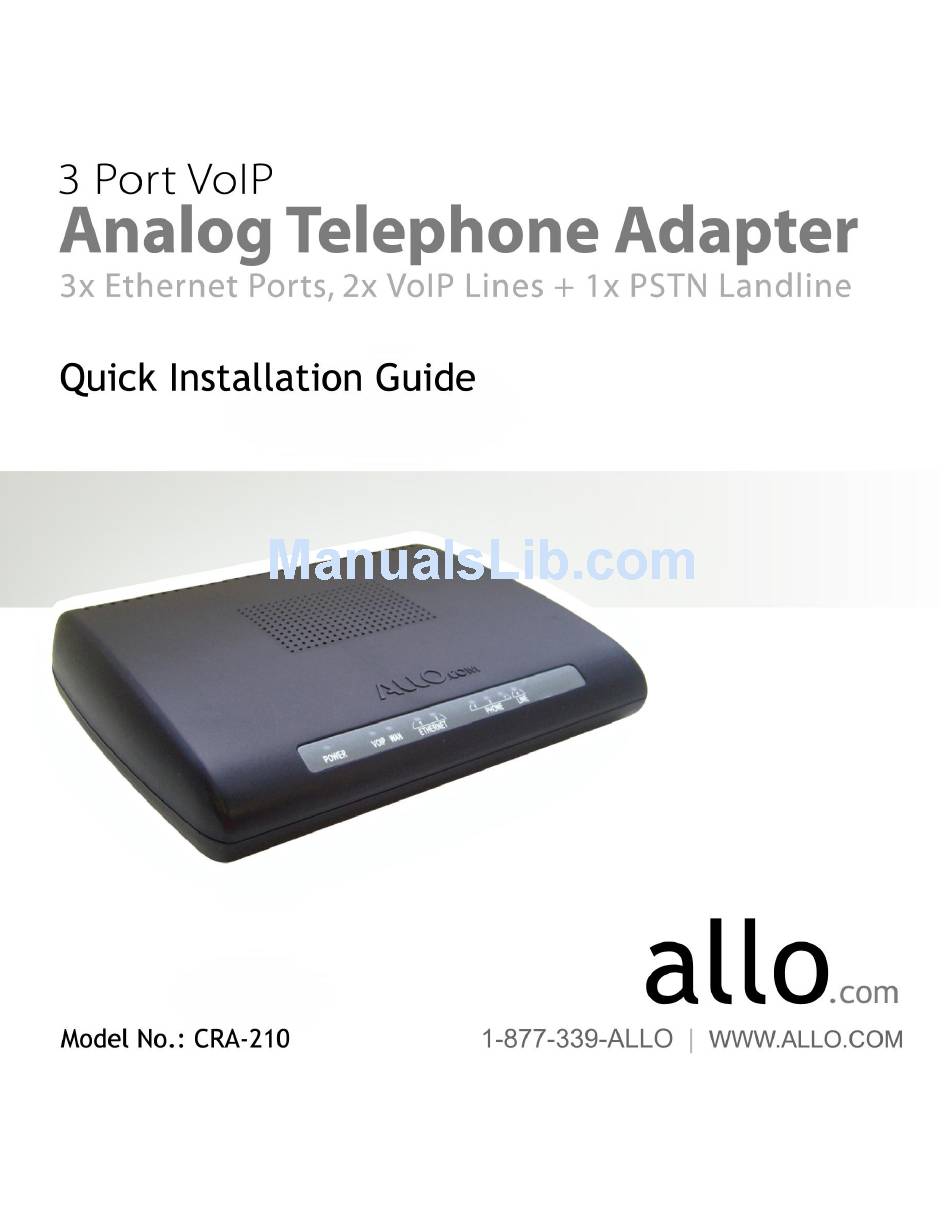

Allo.com Cra-210 Quick Installation Manual

3 port voip analog telephone adapter 3x ethernet ports, 2x voip lines+1x pstn landline
Hide thumbs Also See for Cra-210:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual and Warranty

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cra-210 and is the answer not in the manual?

Questions and answers

Related Manuals for Allo.com Cra-210

Summary of Contents for Allo.com Cra-210

  • Page 2: Installation Requirements

    1. Installation Requirements 1.1. Package Contents Analog Telephone Adapter (CRA-210) Standard Telephone Cable (RJ11) Ethernet Cable (RJ45) Power Adapter 1.2. You will also need the following: 1.2.1. A standard corded or wireless telephone 1.2.2. Access to a Broadband Internet connection (DSL or Cable) 1.2.3.

  • Page 3: Front Panel

    Front Panel Back Panel 1.3. Hardware Installation To install the Analog Telephone Adapter (ATA) follow these instructions. 1.3.1. Connect the Ethernet Cable (RJ45) into the WAN port of the ATA unit, as seen below: 1.3.2. Connect the other end of the cable into a free port on your Broadband Router (such as Linksys of Dlink)
  • Page 4 1.3.3. Connect the Standard Telephone Cable (RJ11) into the phone port labeled PHONE1 (FXS1 below) as seen below (If you have a secondary account, or T.38 Fax line, you can plug another phone or fax machine into PHONE2): 1.3.4. Connect the other end of the cable to your telephone 1.3.5.
  • Page 5 2. Accessing Your ATA Web Panel Your ATA Web Panel will allow you to check the status of your account, modify network and SIP settings (if you have purchased an Unlocked ATA), and upgrade your ATA's Firmware. 2.1. To access your ATA Web Panel, follow these simple guidelines: With your ATA connected, pick up your telephone’s receiver and press ** (Star 2.1.1.
  • Page 6 3.1.3. 3.1.4. You will come to a screen that looks like the following: 3.1.5. Go to the following link to download the latest Firmware from Allo.com: http://www.allo.com (select ATA and check the Firmware section) 3.1.6. If anything newer is available to download, save the file to your local PC (for example, on your Desktop –...

  • Page 7: Warranty Information

    4. Warranty Information One Year Limited Hardware Warranty Allo.com provides a one (1) year hardware warranty. Allo.com warrants to customer that this product will conform to its published specifications and will be free from defects in material and workmanship at the time of delivery and for a period of one year thereafter. Without limiting the foregoing, this warranty does not cover any defect resulting from, (i.) any design or specification...
  • Page 8 For more information about the ATA and other products we have please visit our website: http://www.allo.com For direct support, please contact support@cem-solutions.net or visit www.cem-solutions.net to use the Online Live Support Thank you for choosing Allo.com! http://www.allo.com | 1-877-339-ALLO...
