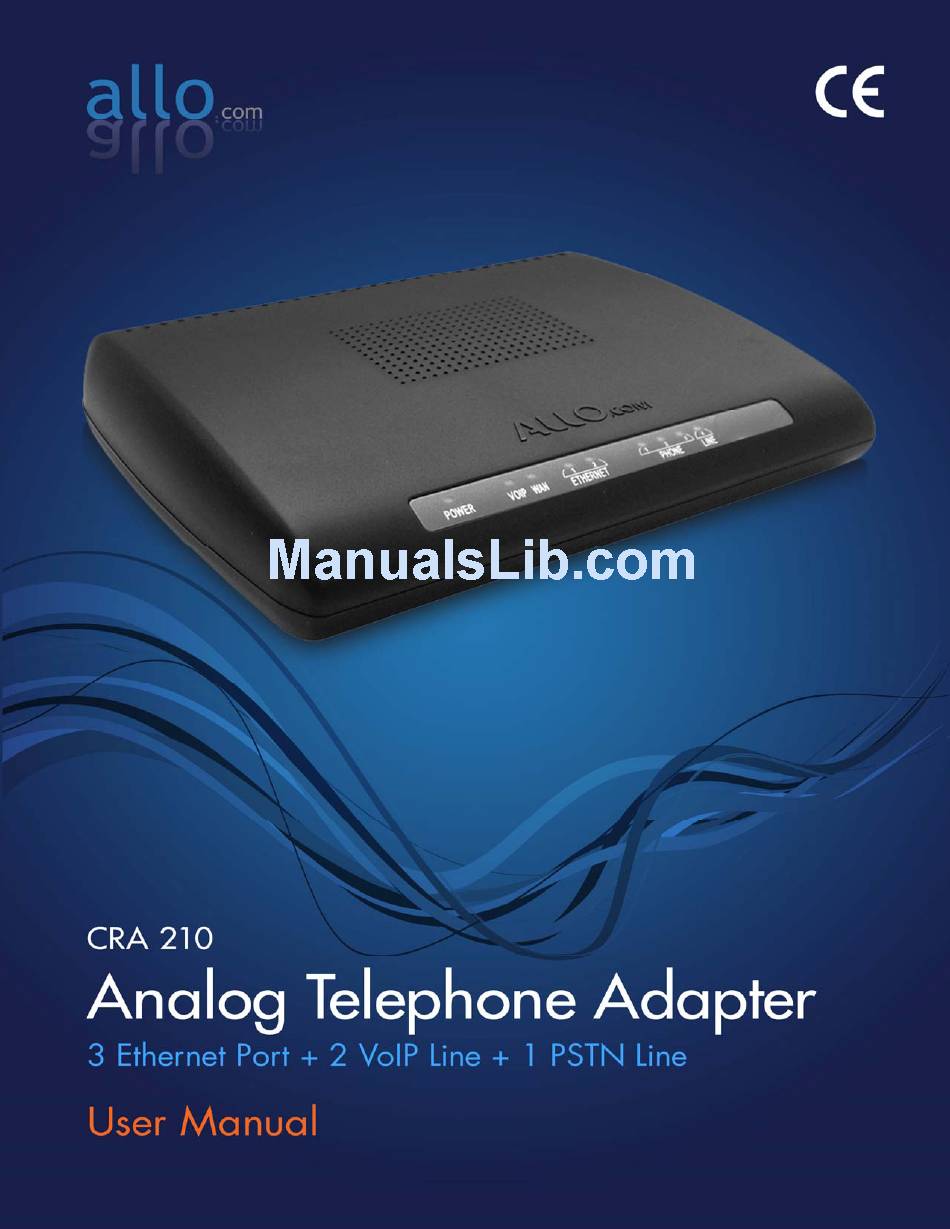

- Page 1 CRA-210 User Manual Guide CRA – 210 Analog Telephone Adapter 3 Ethernet Port + 2 VoIP Line + 1 PSTN Line Getting Started Guide _______________________________________________________________________________ Page: 1 of 30...
-
Page 2: Table Of Contents
CRA-210 User Manual Guide Table of Contents 1. WELCOME - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -5 2. - Page 3 CRA-210 User Manual Guide 4.2.4.2. Fax Configuration - - - - - - - - - - - - - - - - - - - - - - - - - - - -19 4.2.4.3. Codec Configuration - - - - - - - - - - - - - - - - - - - - - - - - - - 19 4.2.4.4.
- Page 4 CRA-210 User Manual Guide _______________________________________________________________________________ Page: 4 of 30...
-
Page 5: Welcome
CRA-210 User Manual Guide 1. WELCOME Thank you for choosing the CRA-210 for Voice-over-IP. This Phone Adapter will allow you to make phone or fax calls using your broadband connection. The CRA-210 offers a rich set of functionality and superb sound quality at ultra- affordable price. -
Page 6: Back Panel Ports
CRA-210 User Manual Guide 2.2. Back Panel Ports The Phone Adapter’s ports are located on the back panel. Figure 2-1: Back Panel PHONE Port: For your Internet phone line, this port allows you to connect your telephone or fax machine to the Phone Adapter using an RJ-11 telephone cable ETHERNET Port: The ETHERNET port allows you to connect the Phone Adapter to your router or gateway using a Category 5 Ethernet network cable. -
Page 7: Key Features
CRA-210 User Manual Guide Power LED Green: The Power LED lights up when the Phone Adapter is powered on and ready. VoIP LED Green: The VoIP LED lights up only when ATA got registered to any ITSP SIP account. ETHERNET LED Green: The ETHERNET LED lights up when the Phone Adapter is connected to your network through the Ethernet port. -
Page 8: Hardware Specifications
CRA-210 User Manual Guide 2.5. Hardware Specifications The table below lists the hardware specification of CRA-210 Model CRA-210 Three RJ-45 10/100 Mbps Ethernet One Power Port Port Two RJ-11 FXS Port One RJ-11 FXO Port Power & Ethernet (Green) Phone (Blue & Orange) Power Adaptor Input: 100-240VAC Output: +12VDC, 1500mA... -
Page 9: Installation Requirements
CRA-210 User Manual Guide 3. INSTALLATION REQUIREMENTS 3.1. Package Contents Analog Telephone Adapter Unit (CRA-210) Standard Telephone cable (RJ11) Power Adaptor Ethernet Cable (RJ 45) Quick Installation Guide _______________________________________________________________________________ Page: 9 of 30... -
Page 10: Other Requirements
CRA-210 User Manual Guide 3.2. Other Requirements: • Telephone Unit • Broadband Internet connection (DSL or Cable Modem) • A Router (if you have multiple devices using Internet connections) • An ITSP VoIP Account 4. CONFIGURATION GUIDE 4.1. Hardware Installation To install the Analog Telephone Adapter (ATA) follow these instructions. -
Page 11: Configuring Cra-210 Through Web Browser
CRA-210 User Manual Guide Wait until the POWER, and WAN LED's turn green and remain stable on the Front Panel of your ATA (LAN LED might also be green). Figure 4.3 4.2. Configuring CRA-210 through Web Browser Your ATA Web Panel will allow you to configure and modify the Network Settings, SIP settings and to upgrade your ATA's Firmware. - Page 12 CRA-210 User Manual Guide STEP 3: Once this request is entered and sent from a Web browser, the ATA will respond with the login screen as shown in Figure4.4. Figure4.4 STEP 4: Use the Login Information which is specified in the 4.2.2 to login to the ATA.
-
Page 13: Login Information
CRA-210 User Manual Guide Status Page Ping It is used to check the packet loss and latency time from your ATA to check the quality of your network connection. Traceroute It is used to determine the route taken by packets across an IP network. Hardware Test It contains a suite of diagnostics that will test the hardware of your ATA It provides detailed information about SIP Proxy Status, SIP Phone... -
Page 14: Network Configuration
CRA-210 User Manual Guide 4.2.3. Network Configuration 4.2.3.1. LAN Setup Figure 4.6 The table below lists the LAN Setup of CRA-210 LAN Setup LAN Static IP Configuration IP Address It is a Base IP Address of a LAN Port, which functions as a gateway for its LAN. -
Page 15: Wan Setup
CRA-210 User Manual Guide Starting IP Address Starting IP address in the DHCP Scope Ending IP Address Ending IP address in the DHCP Scope DHCP Lease Time The amount of time that a given IP address will be valid for a LAN client. Default value is 24hr(86400 seconds) DHCP IP Reservation IP Address Allows you to assign a specific IP address to a specific... -
Page 16: Port Forwarding And Firewall
CRA-210 User Manual Guide The table below lists the WAN Setup of CRA-210 WAN Setup WAN Configuration Automatic configuration It automatically takes IP addresses and other network via DHCP Server configuration information (subnet mask, broadcast address, etc) from DHCP Server Using ISP Account (PPPoE) It is a PPPoE username. -
Page 17: Advanced Routing
CRA-210 User Manual Guide Figure 4.9 Port Forwarding and Firewall Allow user to forward a matching (TCP/UDP) port to a Port Forwarding specific LAN IP address with a specific (TCP/UDP) port. If it is Enabled, it will protect the resources of a private Firewall network from users from other networks. -
Page 18: Voip Configuration
CRA-210 User Manual Guide 4.2.4. VoIP Configuration VoIP Configuration includes not only the basic configuration, but also advanced configuration such as SIP configuration, Codec selection, NAT Setting and other miscellaneous configuration. Following is a snap shot of the advanced configuration page shown in Figure 4.11 4.2.4.1. -
Page 19: Fax Configuration
CRA-210 User Manual Guide VoIP Configuration SIP Configuration Display Name SIP service subscriber’s name which will be used for Caller ID display. User account information, provided by VoIP service provider User ID (ITSP), usually has the form of digit similar to phone number or actually a phone number. -
Page 20: Configuring The Pstn (Fxo) Gateway
CRA-210 User Manual Guide 4.2.4.2. Configuring the PSTN (FXO) Gateway This method allows you to enable a user to make IP-to-PSTN voice calls without using a VoIP service provider or their gateways. The architecture is based on a 'personal' IP-to-PSTN gateway (PIPG) deployed at the residence or business of a user, where both PSTN and Internet service are assumed to exist. - Page 21 CRA-210 User Manual Guide Connecting to PSTN to VoIP Services Configuration Max Rings All Callers are accepted for service but it will rings until it reaches to Maximum Rings set by the Admin. Then it will prompt for Secret PIN to connect to VoIP Gateway. Authenticate Caller ID Here it will authenticate the Caller ID in the Added list to prompt for Secret PIN to connect to VoIP Gateway.
-
Page 22: Connecting To Voip To Pstn Services
CRA-210 User Manual Guide 4.2.4.2.2. Connecting to VoIP to PSTN Services Connecting VoIP-To-PSTN calling function is referred to as a PSTN gateway. VoIP callers can be authenticated by one of the method called Secret PIN to connect to PSTN Gateway which is shown in the below figure. Secret PIN Caller is prompted to enter a PIN right after the call is answered. -
Page 23: Make A Pstn Call From The Phone Port (Fxs) Directly
CRA-210 User Manual Guide 4.2.4.2.4. Make a PSTN call from the Phone Port (FXS) directly By using this ATA you can make a PSTN call from the Phone port (FXS) with the prefix hash button (#) without prompting for PIN. Once you pressed the hash button wait for a second, then ATA device takes the FXO port off hook by giving PSTN dial tone and it is ready to make a PSTN call. -
Page 24: Local Extensions
CRA-210 User Manual Guide 4.2.4.3. Local Extension This option allows you to make a call between the Extension without connecting to VoIP Gateway or SIP Proxy Server. This Local Extension and their prefix can be configured in the below mentioned path. VoIP Config ->... -
Page 25: Ata Configuration
CRA-210 User Manual Guide 4.2.5. ATA Configuration 4.2.5.1. User Administration This field allows only administrator to create, modify and delete the users available in the list of users created. Only created users can able to Login into the ATA through Web Panel. Figure 4.12 4.2.5.2. -
Page 26: Ata System Reset
CRA-210 User Manual Guide 4.2.5.3. ATA System Reset Figure 4.14 System Reset Re-Provision It will allows VoIP telephone users to configure personal telephone preferences and features from their corresponding ITSP provide Auto Provisioning System through Internet. Factory Reset Restore the Factory Default Setting will DELETE all configuration information of the device. -
Page 27: Firmware Upgrade
CRA-210 User Manual Guide 4.2.6. Firmware Upgrade Keeping your ATA up-to-date is very important, especially when we release new features and modify existing ones. Figure 4.15 Use the following step by step to upgrade the firmware. Step 1 Be sure to take note of the current Firmware Version you are running. Step 2 Click “Firmware Upgrade”... -
Page 28: Telephony Features
CRA-210 User Manual Guide 4.3. Telephony Features 4.3.1. Call Hold While A and B are in conversation, pressing the “FLASH” button on the attached phone will put the remote end on hold. Pressing the “FLASH” button again will release the previously Hold party and the bi-directional media will resume. -
Page 29: 3-Way Conferencing
CRA-210 User Manual Guide 4.3.4. 3-way Conferencing Assuming that A party wants to bring B and C party in a conference: 1. A party press “ * 9 * ” to create conference. 2. A party dials the B’s party number followed by “*”, then A party and B party both of them will be in the conversation. - Page 30 5.2.3. This product bears the CE marking indicating compliance with the 89/336/ EEC directive 5.2.4. Modifications to this product not authorized by Allo.com could void FCC Approval terminating end user’s authority to use this product 5.2.5. The REN is useful to determine the quantity of devices you may connect to your telephone line and still have those entire devices ring when your number is called.
