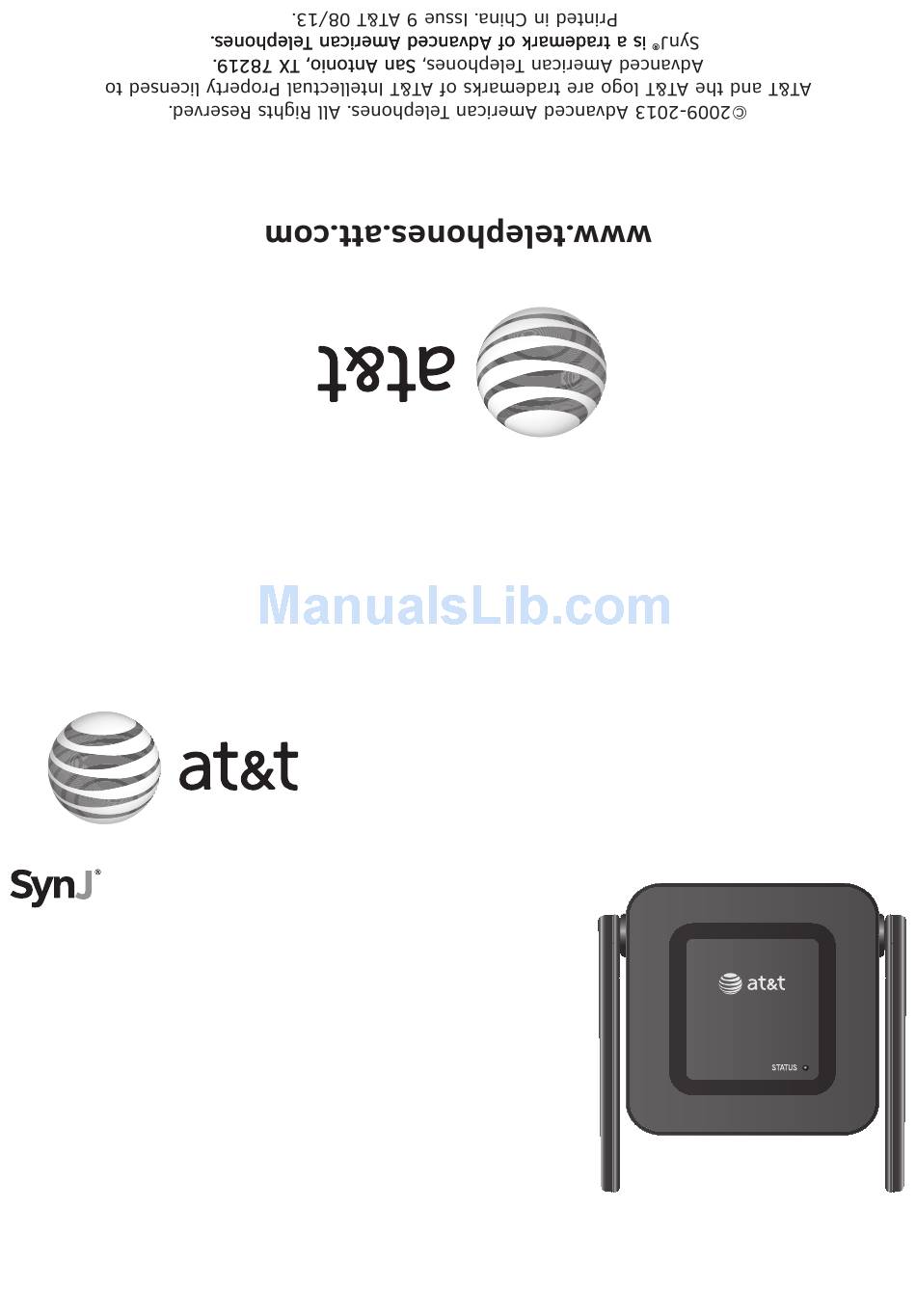

User's manual
Part 2

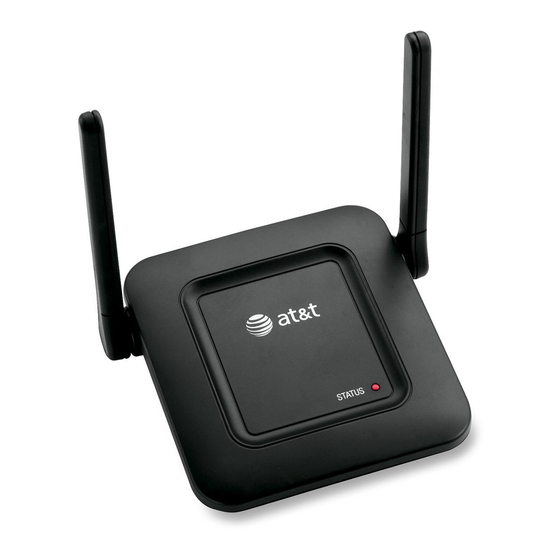

SynJ SB67128 DECT 6.0 Repeater
This manual contains information about
this product's installation and operation.
Please also read Part 1 - Important
product information.
For customer service or product information,
www.telephones.att.com
visit our website at
1 (888) 915-2007.
1 (866) 288-4268.
or call
In Canada, dial

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SynJ SB67128 DECT 6.0 Repeater and is the answer not in the manual?

Questions and answers

Related Manuals for AT&T SynJ SB67128 DECT 6.0 Repeater

Summary of Contents for AT&T SynJ SB67128 DECT 6.0 Repeater

  • Page 1 User’s manual Part 2 SynJ SB67128 DECT 6.0 Repeater This manual contains information about this product’s installation and operation. Please also read Part 1 - Important product information. For customer service or product information, www.telephones.att.com visit our website at 1 (888) 915-2007.

  • Page 2: Before You Install

    Before you install Parts list • �ynJ�� ����12� ��CT �.0 repeater �� ����12� ��CT �.0 repeater ����12� ��CT �.0 repeater • Power adapter • Part 1 Important product information • Part 2 User’s manual • Package of screws Use only the power adapter supplied with this product. To obtain a www.telephones.att.com replacement, visit our website at 1 (888) 915-2007.
  • Page 3 About the repeater You can use a repeater to extend the operating range for the �ynJ ����11�/����13�/����15� ��CT �.0 4-line corded/cordless telephone system to cover areas where the signal is very weak or not available. The repeater extends the range in all directions, even going around certain barriers.
  • Page 4 Registration You should register your repeaters to the telephone base before choosing locations for them in the building. NOTE: You can register a repeater to a �ynJ ����11�/����13�/����15� telephone base without deregistering it from the previous telephone base. New registrations overwrite any previous repeater registrations. Repeater registration 1.
  • Page 5 Registration STATUS indicator light Slow flash The repeater is powered on and in idle mode waiting to be registered again. -OR- The registered repeater is not connected to the telephone base. -OR- Your telephone base has no power. Quick flash The repeater is registering to the telephone base.

  • Page 6: Installation

    Installation After you have plugged in your repeaters in the locations you think the best, place a call from a cordless handset (�ynJ ����10�). While talking, move around the building to test the reception. You may want to adjust the position of repeaters to receive the best reception. Plug the small end of the power adapter into the power jack on the front of the repeater and route the cord through the slot on the bottom of the repeater.
  • Page 7 Installation You can place the repeater on a tabletop. You can install your repeater on a wall or other object with the provided screws. Please use the recommended placement and installation tips as follows: • The antennas need to be in a high location (not on the floor or under a desk) for reception.
  • Page 8 Installation If you want to install your repeater on a wall or other object, use the provided screws. Professional assistance may be required to install screws on the wall. Then plug the large end of the power adapter into a nearby electrical wall outlet and raise the antennas. �crew holes �crew spacing=2.5 inches...

  • Page 9: Troubleshooting

    Troubleshooting If you have difficulty operating this repeater, try the suggestions below. To contact Customer �ervice, purchase accessories or obtain www.telephones.att.com replacement parts, visit our website at 1 (888) 915-2007 1 (866) 288-4268 or call . In Canada, dial Please retain your receipt as your proof of purchase. My repeater doesn’t work at all.
  • Page 10 Troubleshooting My repeater cannot register to my telephone base. • First try all the suggestions on the previous page. • Make sure your telephone base is a �ynJ ����11�/����13�/ ����15� ��CT �.0 4-line corded/cordless telephone system. • Carefully follow the registration instructions on pages 3 of this user’s manual.

  • Page 11: General Product Care

    General product care To keep the repeater working and looking good, follow these guidelines: • Avoid putting it near appliances and devices that generate electrical noise (motors, fluorescent lights, etc.) • DO NOT expose it to direct sunlight or moisture. •...

  • Page 12: Technical Specifications

    Technical specifications RF frequency band 1921.53�MHz - 192�.44�MHz Channels Operating temperature 32°F - 122°F 0°C - 50°C Repeater voltage 110Vrms - 120Vrms (AC voltage, �0Hz) Repeater voltage �V�C @�00mA (AC adapter output) SynJ SB67128 repeater disclaimer range 980 feet Open range test was performed by Wyle Laboratories, an independent commercial test facility.
