INSTALLATION AND INSTRUCTION MANUAL
MODELS: PRO-T, PRO-TB
AUG, 2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO-T and is the answer not in the manual?

Questions and answers

Elton Matos
April 23, 2025

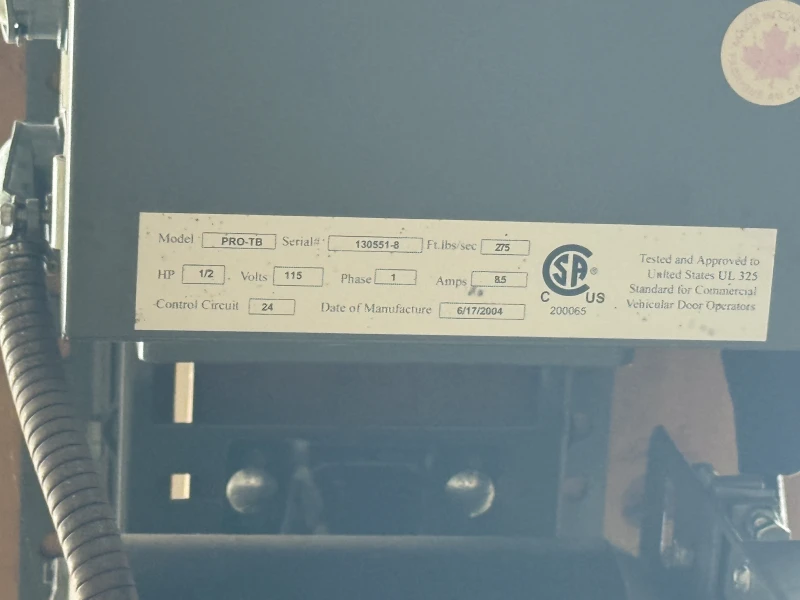

Hi, I have a PRO-TB model operator, and sometimes it works, and sometimes it does not. Can you please guide me in a repair direction? Thank you in advance.

User image 680963c2c6916
1 comments:
Mr. Anderson
May 12, 2025

Common repair solutions for intermittent functionality of the Micanan PRO-T model operator include:

1. Clutch Adjustment: Ensure the clutch is properly adjusted. Loosen the clutch nut, then gradually tighten until the door operates smoothly but can still slip if obstructed.

2. Brake Adjustment (for PRO-TB model): Check brake shoe contact and spring tension. Adjust the nylon lock nut on the brake spring bolt to ensure proper engagement and release of the brake.

3. Motor Direction: Verify motor rotation. For single-phase units, interchange black and white wires; for three-phase units, reverse any two power supply leads.

4. Limit Switch Wiring: Check limit switch connections. Interchange wires as needed (e.g., grey and red for open/close limits) if door does not stop at limits.

5. Limit Switch Cam Adjustment: Use the push-button station to move the door to full open/close positions and adjust cams accordingly.

These steps address mechanical and electrical causes of intermittent operation.

This answer is automatically generated

Summary of Contents for Micanan PRO-T

  • Page 1 INSTALLATION AND INSTRUCTION MANUAL MODELS: PRO-T, PRO-TB AUG, 2010...
  • Page 2 VERIFICATION OF OPERATOR AND HARDWARE ___________________________ SPECIFICATIONS ___________________________________________________________ SAFETY INSTRUCTIONS ____________________________________________________ INSTALLATION_____________________________________________________________ ELECTRICAL CONNECTIONS AND SETTINGS________________________________ LIMIT SWITCH ADJUSTMENT _______________________________________________ MICANAN PHOTOBEAM INSTALLATION INSTRUCTIONS_____________________ CLUTCH ADJUSTMENT______________________________________________________ BRAKE ADJUSTMENT_______________________________________________________ EMERGENCY MANUAL OPERATION _________________________________________ OPERATOR MAINTENANCE _________________________________________________ MECHANICAL DRAWINGS AND PARTS LISTS ________________________________...
  • Page 3: Verification Of Operator And Hardware

    SAVE THESE INSTRUCTIONS VERIFICATION OF OPERATOR AND HARDWARE Upon delivery of your MICANAN SYSTEMS heavy-duty trolley door operator, please inspect the unit carefully for damage. Verify that operator horsepower, voltage, phase and amperage correspond to available power supply and door application.
  • Page 4: Operator Dimensions

    PRO-T, PRO-TB SPECIFICATIONS PRO-T and PRO-TB heavy-duty trolley operators are designed for standard lift overhead sectional garage doors. Model PRO- TB is essentially the same as model PRO-T with the exception that the PRO-TB operator has a solenoid operated braking system.
  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING TO REDUCE THE RISK OF INJURY OR DEATH: READ AND FOLLOW ALL INSTRUCTIONS Never allow children to operate or play with door controls. Keep the remote control (where provided) away from children. Personnel should keep away from a door in motion and keep the moving door in sight until it is completely closed or opened. NO ONE SHOULD CROSS THE PATH OF A MOVING DOOR.
  • Page 6: Installation Instructions

    INSTALLATION INSTRUCTIONS WARNING DO NOT INSTALL THIS OPERATOR BEFORE READING THIS MANUAL CAREFULLY. Note: Installation of operator must be done by a qualified installer. Door must be properly installed and working smoothly. Remove all door locks prior to installation. Install control station away from all moving door parts, within sight of the door and a minimum of 5 ft (1.5 m) from the ground.
  • Page 7 PREPARATION: Lay out operator and trolley tracks on ground in front of door with door operator motor facing away from door. Install track spacers evenly to track assembly. Install 3/8” take-up bolt to carriage using two 3/8” hex nuts and lock washer provided. Slide trolley carriage through end of tracks towards operator with take-up bolt facing operator.
  • Page 8 WALL MOUNTING BRACKET AND OPERATOR INSTALLATION: NOTE: Trolley type operators should generally be mounted directly over the center of the door and the trolley tracks should clear the tracks by 2-1/2” (6.5 cm). However, if interfering structures or other reasons do not allow for centered mounting, it is possible to install it up to 18”...
  • Page 9 Install hanging brackets (braces) from ceiling or structure to any of the five 3/8” holes located on operator frame. For tracks over 14’ long it is recommended to install braces to the tracks at 4’(1.2m) to 5’ (1.5m) from operator. TROLLEY ARM INSTALLATION Manually close door to fully closed position.
  • Page 10: Electrical Connections

    MSL100-110V-WW, MSL100-220V-WW, MSL300-WW or MSLC300-WW in the electrical drawings section at the end of this manual. IMPORTANT MICANAN HIGHLY RECOMMENDS THAT EACH INDIVIDUAL COMMERCIAL DOOR OPERATOR HAVE IT’S OWN DEDICATED POWER SUPPLY MICANAN HIGHLY RECOMMENDS THAT EACH INDIVIDUAL COMMERCIAL DOOR OPERATOR...
  • Page 11: Section A: Pro-T, Pro-Tb Standard Relay Logic Controls

    SECTION A: PRO-T, PRO-TB Standard relay logic controls (not UL325 2010 compliant, not available in US) CONNECTION OF POWER SUPPLY AND CONTROL STATION POWER WIRING: Use 1-1/8” (2.85 cm) diameter holes for all power wiring. Single phase: Connect single phase power supply to terminals L/L1 (line) and N/L2 on three-pole power terminal strip.
  • Page 12 CONNECTION OF A REVERSING EDGE DEVICE AND CONTROL ACCESSORIES Reversing Edge device (must be normally open contact): Note: If the door is controlled by any device or wired in such a manner that the door is not controlled by constant pressure on close then an appropriate reversing edge must be installed.
  • Page 13: Section B: Pro-T(M), Pro-Tb(M) Relay Logic Controls With Interface Module

    Operator electrical connections and start-up instructions NOTE: THIS OPERATOR COMES WITH AN INTERFACE MODULE INTEGRATED INTO THE CONTROL CIRCUIT. THE PURPOSE OF THE INTERFACE MODULE IS TO ALLOW FOR FAILSAFE MONITORING OF A MICANAN COMPATIBLE SAFETY DEVICE AS PER UL 325 (2010) REQUIREMENTS.
  • Page 14 3) Verify motor direction: After the electrical power connections are made and push button station is connected, manually move the door to mid- position. Press Close button for several seconds and then press stop button. If door did not move in correct direction (or if limit cams not moving in correct direction towards the close limit switch) see below: Single phase operators: The operators leave the factory with correct motor and limit shaft direction according to standard door installations.
  • Page 15 Primary monitored safety device: MICANAN monitored failsafe photo beams or MICANAN compatible monitored failsafe devices must be connected to terminals P1 and P2 if momentary close on pushbutton is required (B2 mode). If not connected, door can only be closed by constant pressure on close pushbutton.
  • Page 16: Section C: Pro-T(E), Pro-Tb(E) Full Feature Logic Board Smart

    SECTION C: PRO-T(E), PRO-TB(E) Full feature logic board Smart 10.0 (UL325 2010 compliant) Note: The operator is shipped from the factory in the D1 mode setting (constant pressure open and close). The operator should remain in this mode until all connections and limit switch adjustments are completed.
  • Page 17: Limit Switch Adjustments

    1 or more secondary non-monitored safety device(s). Primary monitored safety device: MICANAN monitored failsafe photo beams or MICANAN compatible monitored failsafe devices must be connected to terminals P1 and P2 as primary monitored safety device. Primary monitored safety device must be connected if momentary activation on close is required in B2, T and TS modes.
  • Page 18: Modes Of Operation

    Secondary non-monitored safety device(s): A standard 2-wire safety edge, non-monitored photo beams or any other non-monitored reversing devices with a N.O contact can be connected to terminals S1 and S2 as secondary non-monitored safety device. Note: More than one secondary non-monitored safety device can be connected to terminals S1 and S2. Important: Do not remove the resistor that is factory installed across terminals S1 and S2 unless installing a 4-wire electric edge.
  • Page 19 C2 (Momentary open, constant pressure close) • Open Button: Momentary activation opens the door. When door is closing, momentary activation reverses the door (OPEN OVERRIDE). Momentary contact from mid-stop opens the door to full open position. Constant activation when door is opening, bypass mid-stop if enabled.
  • Page 20: Programming Instructions

    de-activates the timer. Timer resumes its normal operation upon momentary activation of open push button or once the close cycle is completed. If mid-stop is enabled and “Timer from mid-stop only” dip-switch is ON, timer is enabled only from mid-stop and disabled from full open. If mid-stop is enabled and “Timer from mid-stop only” dip-switch is OFF, timer is enabled from full open and mid-stop.
  • Page 21 Unless a delay on close is required this dial should be rotated to the OFF position ON-BOARD RECEIVER PROGRAMMING This logic board has a built-in 372 MHz radio receiver and can only be used with MICANAN single button, 3-button (OPEN/CLOSE/STOP) and 3-channel radio transmitters. INSTALLING THE ANTENNA Direct Connection: Attach the antenna when supplied with the operator to the F connector on the control box.
  • Page 22: Operation

    (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: If an external radio-receiver (MICANAN or other) is used instead of the built-in radio receiver, it is highly recommended to disconnect the co-axial cable from the logic board.
  • Page 23: Dip Switch Setup

    Delay on Delay on reverse is Delay on reverse is Micanan recommends 1.5 reverse 1.5 seconds 0.5 seconds sec delay on reverse for all applications Motor Reverse motor...
  • Page 24: Section D: For All Operator Control Types

    SECTION D: For all operator control types LIMIT SWITCH ADJUSTMENT Adjustment of door travel is done by moving the limit cams on the threaded shaft. The position of the 4 limit switches are factory adjusted and should not be altered. The limit switches are: - “Open”...
  • Page 25: Section E: For Operators With Interface Modules Or Logic Boards

    IMPORTANT: For momentary activation on close, the MICANAN photobeams (or a Micanan 2-wire monitored edge), must be installed as part of the operator system. If a Micanan 2-wire monitored edge or the MICANAN infrared photobeam system is not installed (or not operating correctly), the operator will only operate in fault mode (constant pressure to close).
  • Page 26 6- Connect these paired wires to the P1 and P2 terminals on the logic board (or interface module if applicable) as shown in Figure 3. Use minimum 18 gauge wires and secure the wires to wall or ceiling. MICANAN N-4 PHOTOCELL (MK00650) Installation Note: Photo beams should be mounted as close to the door track inside the door to offer maximum entrapment protection.
  • Page 27 Photo system operation: MICANAN photo beams must be connected for the door to close in momentary mode (unless a MICANAN monitored 2- wire edge is connected). When the photo system is properly installed and aligned, the infrared beam will detect any obstruction in the path of the beam.
  • Page 28: Clutch Adjustment

    To test the photo system: Open the door to full open position. Close the door. When door is closing, obstruct the beam. The door should stop and reverse. CLUTCH ADJUSTMENT Remove cotter pin tapped to pulley. Rotate clutch nut CCW (loosen) until there is insufficient tension to permit clutch to drive door. Gradually tighten clutch nut until the tension on belleville washers is sufficient to permit clutch to drive door smoothly but will allow clutch to slip if door is obstructed.
  • Page 29: Emergency Manual Operation

    EMERGENCY MANUAL OPERATION The operator is equipped with a quick release disconnect system to manually operate door in case of emergency. This feature should not be used to manually operate a malfunctioning door. WARNING TO REDUCE THE RISK OF INJURY OR DEATH: DO NOT ATTEMPT TO USE EMERGENCY DISCONNECT SYSTEM WHILE OPERATOR IS RUNNING.
  • Page 30: Operator Maintenance

    OPERATOR MAINTENANCE WARNING TO REDUCE THE RISK OF INJURY OR DEATH: DO NOT ATTEMPT TO SERVICE THE OPERATOR UNLESS POWER SUPPLY HAS BEEN DISCONNECTED Inspect manual function of the door every 3-months. Make sure that door runs smoothly. If door does not manually open or close freely, have a qualified service person make repairs.
