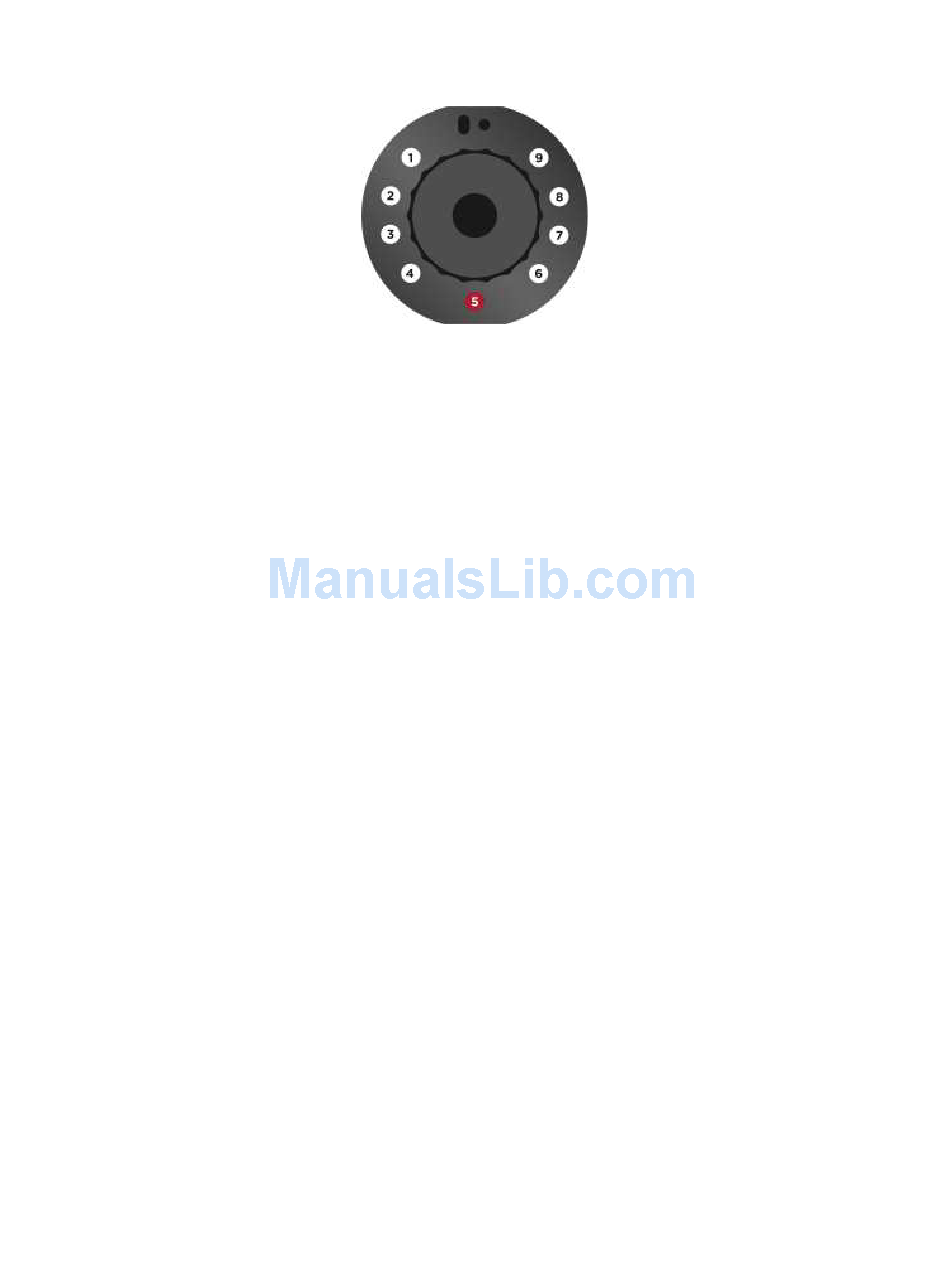

Controller Functions: Diagram
The function of each switch is divided into short presses (less than ½ second), and long presses
(hold more than ½ second).
1. Short – cycles small/medium/large focus step size
Hold – turns live view on and off
2. Constant focus towards infinity
3. Constant focus towards minimum focus distance
4. Short – cycles 1x/5x/10x zoom
Hold – initiates autofocus or metering
5. Short – starts and stops video recording
Hold – initiates image capture
6. Multi-function switch
a. Focus point mode:
Short – goes to near focus stop
Hold – saves or clears current focus stop location
b. Settings mode: Exposure compensation
c. Focus zone mode: Moves focus zone downwards
7. Multi-function switch
a. Focus point mode:
Short – goes to focus point
Hold – saves or clears current focus point location
b. Settings mode: Shutter speed
c. Focus zone mode: Moves focus zone left
8. Multi-function switch
a. Focus point mode:
Short – goes to focus point
Hold – saves or clears current focus point location
b. Settings mode: Aperture
c. Focus zone mode: Moves focus zone right
9. Multi-function switch
a. Focus point mode:
Short – goes to infinity focus stop
Hold – saves or clears current focus stop location
b. Settings mode: ISO
c. Focus zone mode: Moves focus zone up
