Network Confi guration

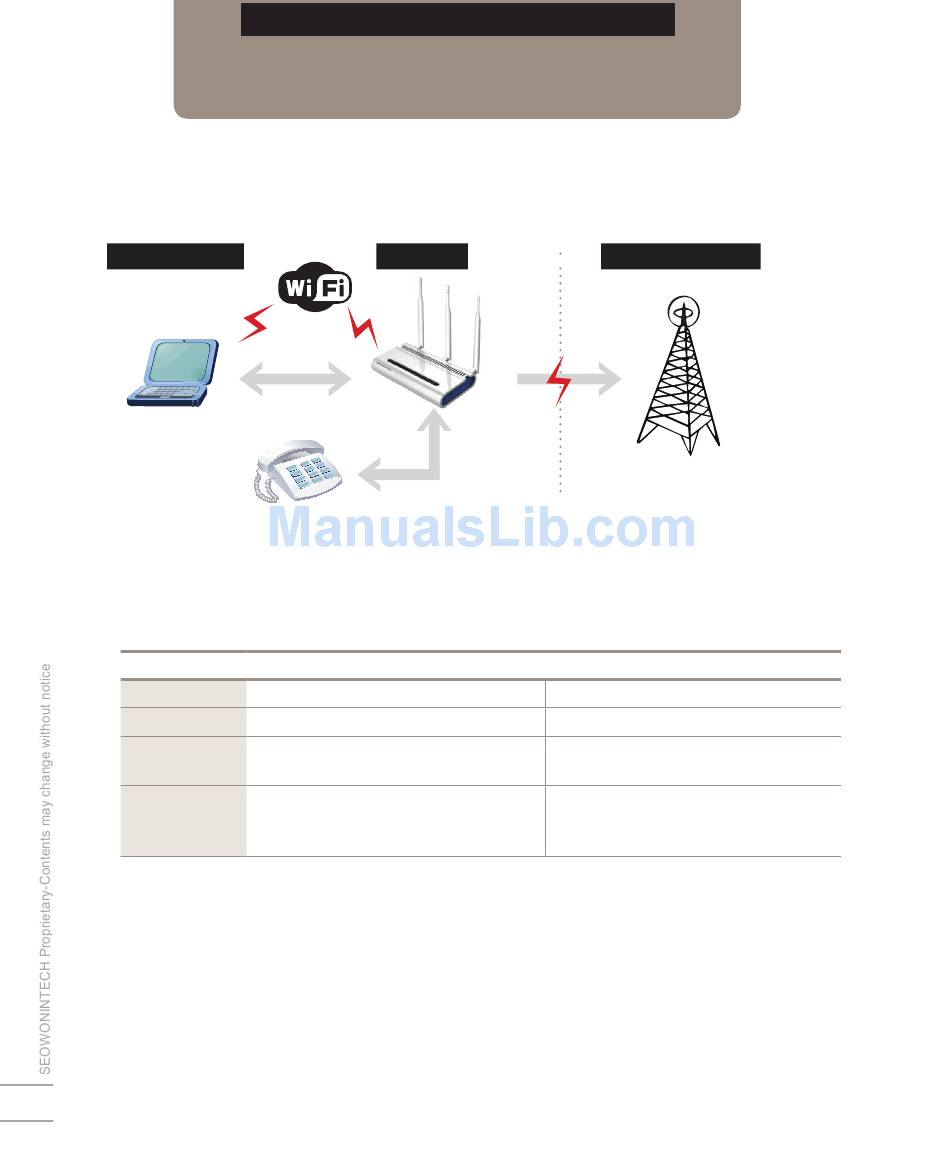

Local Network
PC
To verify the normal operation of the router, check the following LEDs after connecting
the router, modem, and PC with a LAN cable, as follows:
LED
PWR
LAN1 / LAN2
PHONE
WiMAX
RSSI
If one or more LED lights is not in"normal operation", take the actions specifi ed in the table.
Install a router after connecting to the network.
If normal connection between router and PC is checked, you have to set up the PC and router.
PC setup is to control network confi guration for Windows 98, Windows 2000, or Windows XP
to use the Internet while the PC is connected to a router.
Router setup is to connect a router to the Internet. Please refer to the CPE Setup chapter.
06
Confi guration
Gateway
Telephone
Normal Operation
ON when connecting adapter
ON when cable is connected normally
On when Phone cable is connected
normally
Represents WiMAX received signal
strength indication (RSSI), ON when in
router mode
External Network
WiMAX
Actions to take if not illuminated
Check for adapter power failure
Check for adapter power failure
Check cable connection and
Telephone
Check that router mode is selected
Internet
