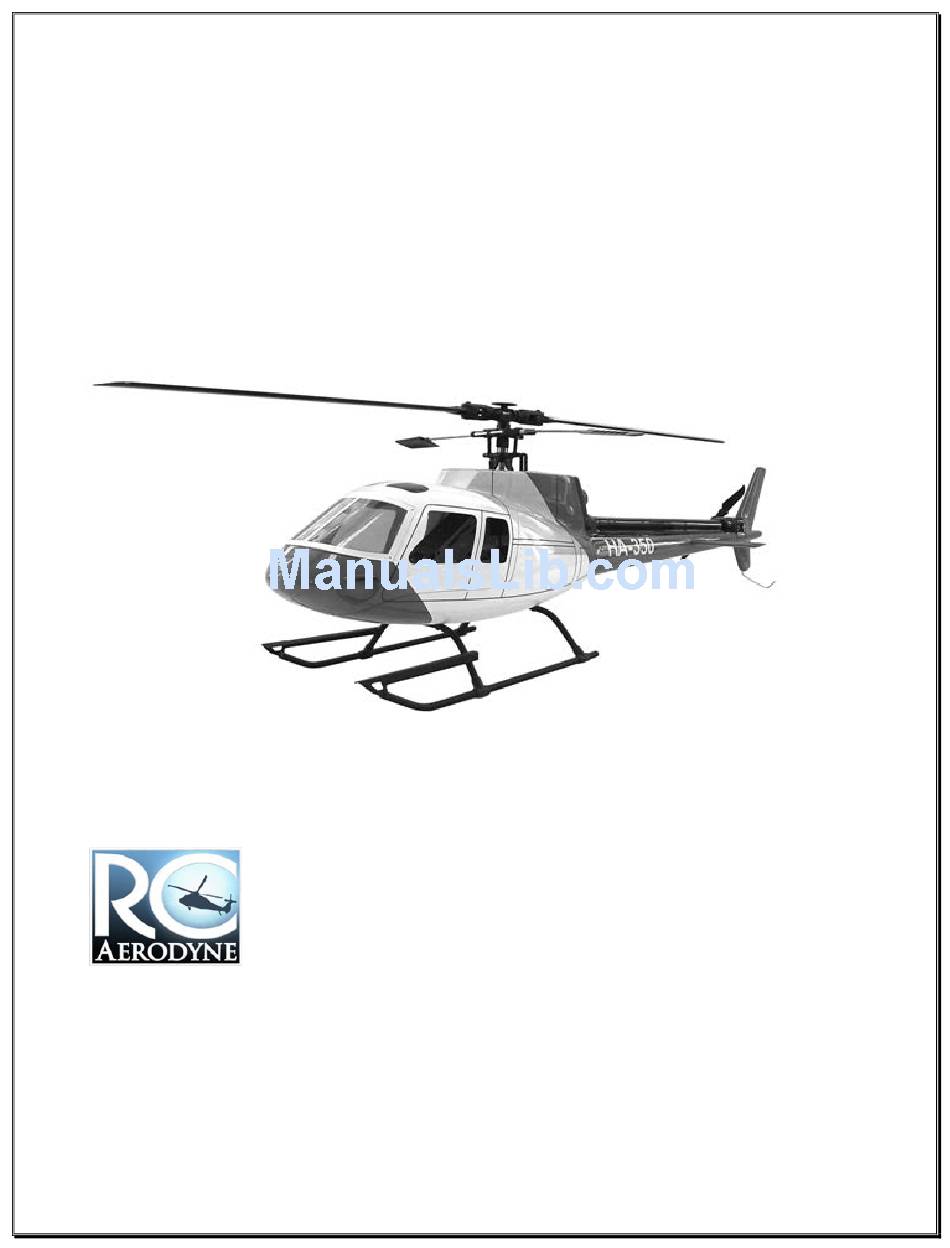

Page 1: Instruction Manual

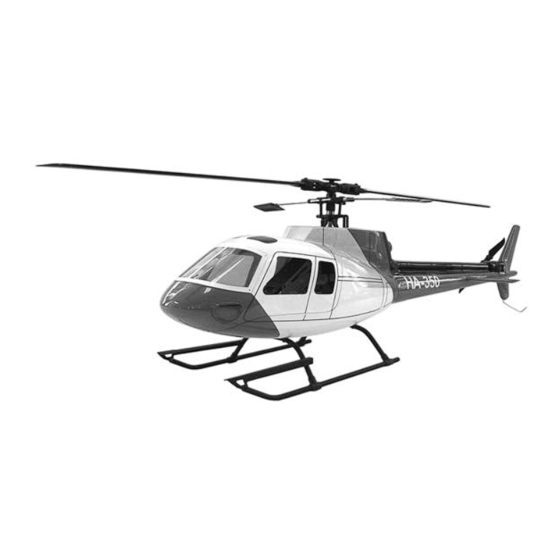

500 scale fuselage AS350 INSTRUCTION MANUAL Produced By:... -
Page 2: Table Of Contents
This helicopter fuselage is sure to bring you great joy with its amazing flight characteristics and scale appearance. So from all of us here at RC Aerodyne, thank you for your recent purchase and enjoy your new AS350. Disclaimer R.C. Aerodyne Heli’s and Aircraft are not to be treated as toys. Although every effort is made to provide a superior and dependable product, improper use can cause serious injury and death. -
Page 3: Parts Sheet
assistance in person or property damage. We strongly recommend you attain a membership with the AMA. The contact information for the AMA is: Academy of Model Aeronautics. 5161 E. Memorial Dr. Muncie IN 47302 (800) 435-9262 Helicopter and Aircraft operation requires a high degree of skill. Accidents, modifications or damage during flight are not covered by any warranty and are solely the pilot’s responsibility. -
Page 4: Initial Setup
INITIAL SET UP 1. Install the landing gear by bolting them to bottom of the fuselage. Insert the step and the skids to the landing gear and glue them in place with CA. INSTALLING THE MECHANICS 2. Glue the wood spacers together. Attach it to the bottom of the mechanics in the forward mount. 3. - Page 5 4. Insert the foam support into the tail of the fuselage and install the tail case. 5. Glue the tail skid to the tail cover and install the tail cover. 6. Bolt the mechanics to the bottom of the fuselage.
-
Page 6: Final Steps
FINAL STEPS 7. Glue in all the windows. 8. Using epoxy glue the stabs to the tail of the fuselage. -
Page 8: Flying Characteristics
The fuselage will make your helicopter look and fly more like the full scale helicopters, and that is how we advise you fly it. Thanks again from all of us here at RC Aerodyne and enjoy flying your new fuselage. Printed in China...
