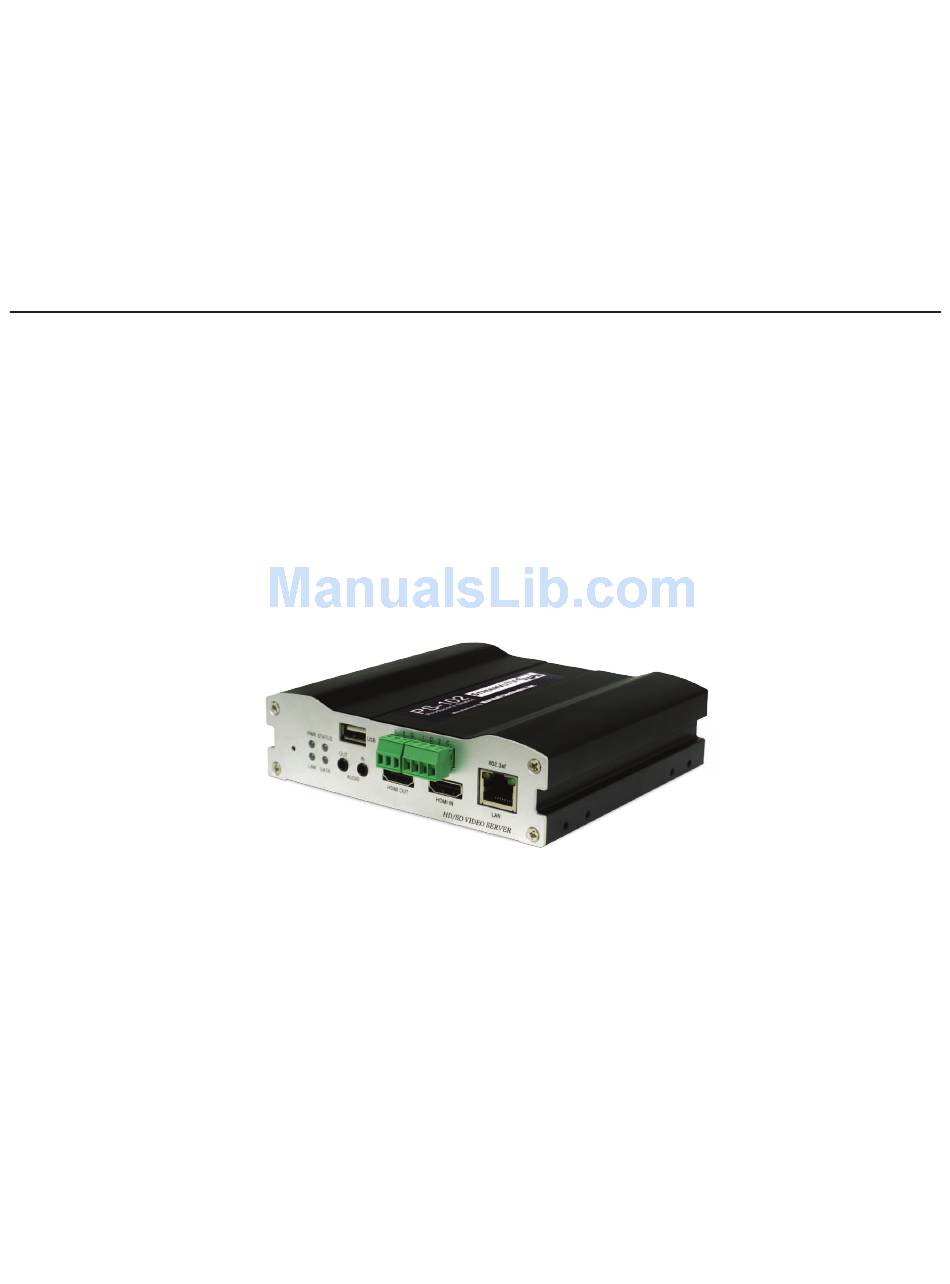

Marshall Electronics PS-102-HDSDI / HDI StreamVu Tv Producer Station For Composite Video, HDSDI Video, HDMI Video plus Stereo Audio Broadcasting on The StreamVu Tv Service Quick Start Guide Ver. 1.0... -
Page 2: Table Of Contents
PS-102-HDSDI / HDI StreamVu Tv Producer Station Table of Contents 1. Unpacking _________________________________________ 4 2. Warranty __________________________________________ 4 3. Configuration: _____________________________________ 5 IP Configuration _____________________________________ 5 PS-102-HDSDI / HDI _________________________________ 6 Main Setup Page ____________________________________ 6 Video Setup Page: ___________________________________ 7 AUDIO Setup Page __________________________________ 8 4. -
Page 3: Unpacking
This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the warranty. If there is no proof of purchase provided with a warranty claim, Marshall Electronics reserves the right not to honor the warranty set forth above. -
Page 4: Configuration
3. Configuration You must configure the Input Format and the Monitor Output before initial use and whenever the input source or output monitor changes. You can also set a name for your PS unit and change the date, time and time zone to match your broadcast location. -
Page 5: Ps-102-Hdsdi / Hdi
5. When on the main VS Manager page Right Click the unit you want to configure and select Web Setup PS-102-HDSDI / HDI After Selecting Web Setup you will be asked to Sign In to the server: the default User Name is admin •... -
Page 6: Video Setup Page
3. Configuration Video Setup Page As mentioned earlier you must select the Input Format and Resolution of your video signal. 1. Choose the Input Format of your video signal from the drop down list. If your source is Interlaced you might wish to select “Input deinterlace”... -
Page 7: Audio Setup Page
3. Configuration AUDIO Setup Page On the AUDIO Setup Page make certain that the selections are as shown to the right. 1. Algorithm AAC 2. Bitrate 128kbps 3. Mode TX-only 4. Input Gain. May be adjusted as necessary 25 is Unity Gain 5. - Page 8 4. Establish your Producers Account 2. Determine the package that best suits your requirements. Most Producers choose the DIRECT CONNECT plan which is a terrific value, providing all of the tools you will need to configure your programming. A plus to the DIRECT CONNECT plan is the capability to have any number of Producer Stations broadcasting from different locations or venues on your account.
-
Page 9: Power And Signal Connections
4. Establish your Producers Account Power and Signal Connections Virtually all Video Camcorders and newer Digital SLR Camera Bodies have a connection for Audio/Video (A/V) output. In the example shown to the right a typical consumer camcorder has a 3 wire (Composite Video plus Stereo Audio) cable that has a 3.5mm plug on one end and RCA connectors on the other end. -
Page 10: Start Broadcasting
4. Establish your Producers Account Start Broadcasting 1. On any device with a web browser navigate to www.StreamVu.com 2. Select “Producer Login” 3. Enter your User Name and Password to access your Producer Station/Channel Control Panel 4. The Control Panel will open to the “Producer Station – Listing” page where you can easily see the status of all the producer stations on your account. - Page 11 4. Establish your Producers Account 6. After the PS-102 has completed the Registration process, it will indicate it is READY to start Broadcasting. Select the Control Folder under Basic Settings. To initiate your broadcast, select the appropriate Producer Station from the drop down menu. Enter your desired transmission bit rate the click on the Broadcast Start control.
- Page 12 4. Establish your Producers Account 8. Once your broadcast has begun, a Preview Window is available to confirm your channel is on the Air. 9. There are several options that you can make available to the viewer, all of which are accessible from the Producer Station Control Panel.
- Page 13 4. Establish your Producers Account Ü Limited Direct Connect iFrame code is a special HTML (HyperText Markup Language) program that can be copied and pasted directly into your web page. The size and position of the inserted video frame can be adjusted to your liking. Like the Launchpad option, the viewer can view the broadcast as a small frame as it appears on your web page or the can choose to watch the broadcast in a format to fill the screen.
-
Page 14: Help
Ü For help with your StreamVu account: StreamVu Tv 888-650-1838 / Monday through Friday 8:00AM to 7:00PM EST. 15 Minute Callback. After normal hours callback within one hour. Ü For help with the PS-102 Hardware Marshall Electronics 800-800-6608 / Monday through Friday 9:00AM to 6:00PM PT... - Page 15 Marshall Electronics Inc. 1910 East Maple Ave. El Segundo, CA 90245 Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688 www.LCDRacks.com • sales@lcdracks.com Features, specifications, pricing and dimensions are subject to change without notice. Physical appearance of products may vary slightly from images shown in this catalog. Please visit LCDRACKS.COM for updates and information.
