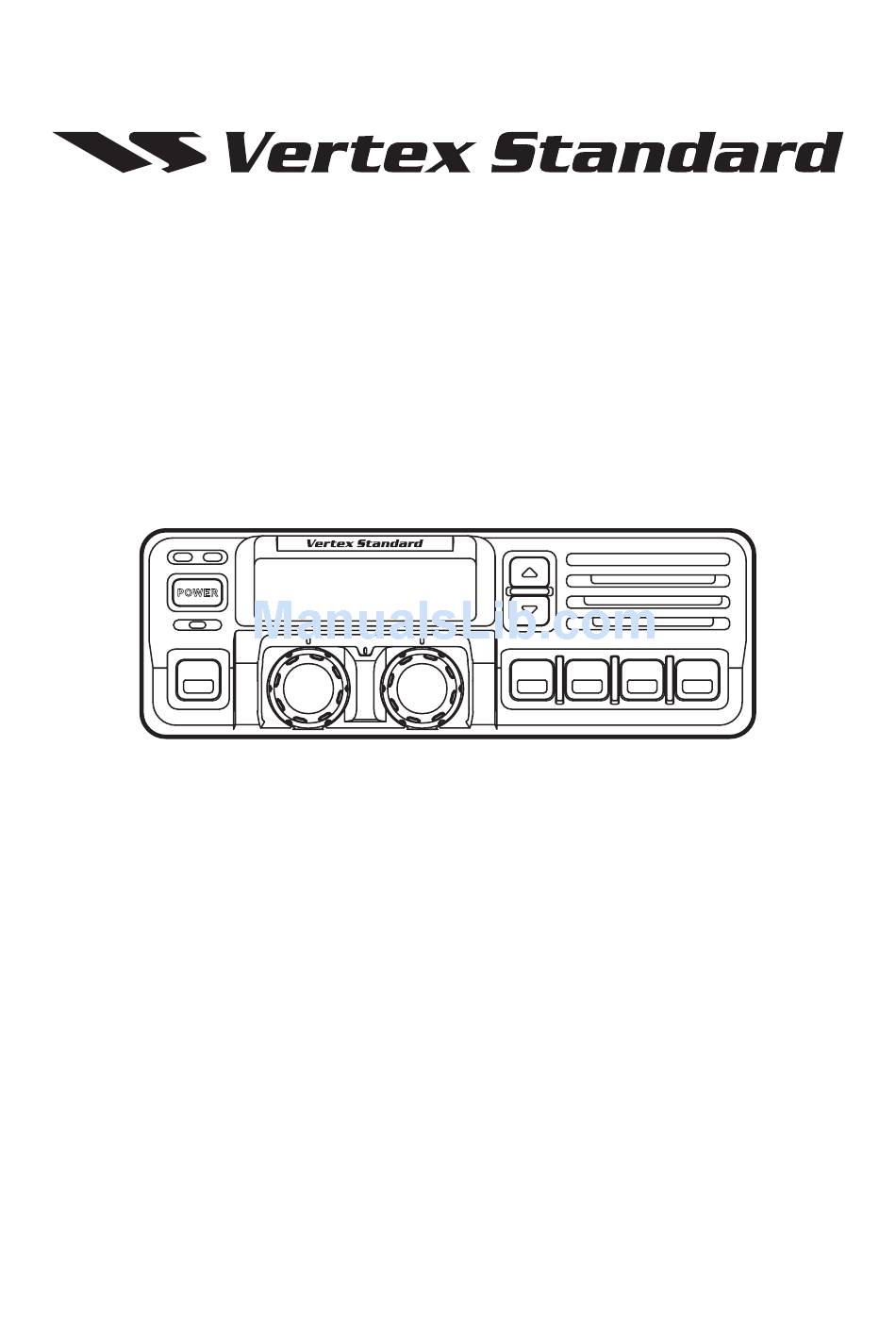

- Page 1 VX-5500 perating anual POWER Vertex Standard LMR, Inc.
-
Page 2: Safety / Warning Information
After reading it, keep the manual handy for quick reference, in case questions arise later on. We’re glad you joined the Vertex Standard team. Call on us any time, because our business is communications. Let us help you get your message across. - Page 3 VX-5500 Operating Manual POWER The VX-5500 Series are full-featured FM transceivers designed for flexible mobile and base station business communications in the VHF Low-Band (70/30 Watts: pro- grammable), VHF High-Band (50/25 Watts: programmable) and UHF (45/25 Watts: programmable) Land Mobile Bands. Each model is designed for reliable business com- munications in a wide variety of applications, with a wide range of operating capability provided by its leading-edge design.
-
Page 4: Controls And Connectors
Receiver Monitor This channel on “H ” List This channel on “S ” List lert This channel on “o ” List Channel Group Number Ption This channel on “auX a/b/c” List 8 Character Alpha-numeric Display Page 2 VX-5500 Operating Manual... -
Page 5: Side Panel
This button can be set up for special applications, such as high/low power selection, monitor, dimmer, talk-around, and call alert function, as determined by your net- work requirements and programmed by your Vertex Standard dealer. VOLUME Knob This knob sets the volume of the receiver. - Page 6 Caution: Do not connect this line to ground, and be certain that the speaker has ad- equate capability to handle the audio output from the VX-5500. 13.8-V DC Cable Pigtail w/Connector The supplied DC power cable must be connected to this 2-pin connector. Use only the supplied fused cable, extended if necessary, for power connection.
-
Page 7: Switching Power On/Off
PTT and wait for the “penalty timer” to expire (if you press the PTT before this timer expires, the timer restarts, and you will have to wait another “penalty” period). VX-5500 Operating Manual Page 5... -
Page 8: Advanced Operation
Programmable Function Button (PF button) The VX-5500 includes the seven Programmable Function Buttons ( PF button). The PF button functions can be customized, via programming by your Vertex Standard dealer, to meet your communications/network requirements. Some features may require the pur- chase and installation of optional internal accessories. - Page 9 Channel Recall ( RCL ) Selectable Tone ( ST ) Speaker ( SP ) ø Squelch Level ( SQL ) Compander ( COMP ) Encryption ( OPT ) ø ø1: for VX-5500L ø2: requires RMK-4000 ø3: requires Encryption Unit VX-5500 Operating Manual Page 7...
-
Page 10: Dual Watch
Because local noise can be particularly troublesome in the VHF Low-Band fre- quency spectrum, the Low-Band version of the VX-5500 includes a Noise Blanker feature, which may be toggled on and off by pressing the assigned PF button of the “Noise Blanker”... - Page 11 Low Power ( LOW ) Press the assigned PF button of the “Low Power” to set the radio’s transmitter to the “Low Power” mode. Press this key again to return to “High Power” operation when in difficult terrain. VX-5500 Operating Manual Page 9...
- Page 12 2. Rotate the CHANNEL selector knob to select the desired level. 3. Press the this key. A tone sounds and the display returns to the normal channel. Page 10 VX-5500 Operating Manual...
-
Page 13: Operation
When you enable this function, the signal-to-noise radio can be improved by reduc- ing the transmitted audio dynamic range. Encryption ( OPT ) When the Voice Scrambler feature is enabled, pressing the assigned PF button of the “Encryption” toggles the Scrambler on and off. VX-5500 Operating Manual Page 11... -
Page 14: Optional Accessories
Radio Programming Cable (for FIF-12) Availability of accessories may vary; some accessories are supplied standard per local requirements, others may be unavailable in some regions. Check with your Vertex Standard Dealer for changes to this list. Page 12 VX-5500 Operating Manual... -
Page 15: Warranty Policy
Olicy Vertex Standard warrants, to the original purchaser only, its Vertex Standard manufac- tured communications products against defects in materials and workmanship under normal use and service for a given period of time from the date of purchase. Limited Warranty Details: ... - Page 16 Copyright 2014 Vertex Standard LMR, Inc. All rights reserved No portion of this manual may be reproduced without the permission of Vertex Standard LMR, Inc. Printed in China...
