Triple E COMMANDER Series Owner's Manual

Commander and embassy series
Hide thumbs Also See for COMMANDER Series:
Table of Contents

Advertisement

Quick Links

COMMANDER AND
EMBASSY SERIES
OWNER'S MANUAL
Experience the Difference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COMMANDER Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Triple E COMMANDER Series

Summary of Contents for Triple E COMMANDER Series

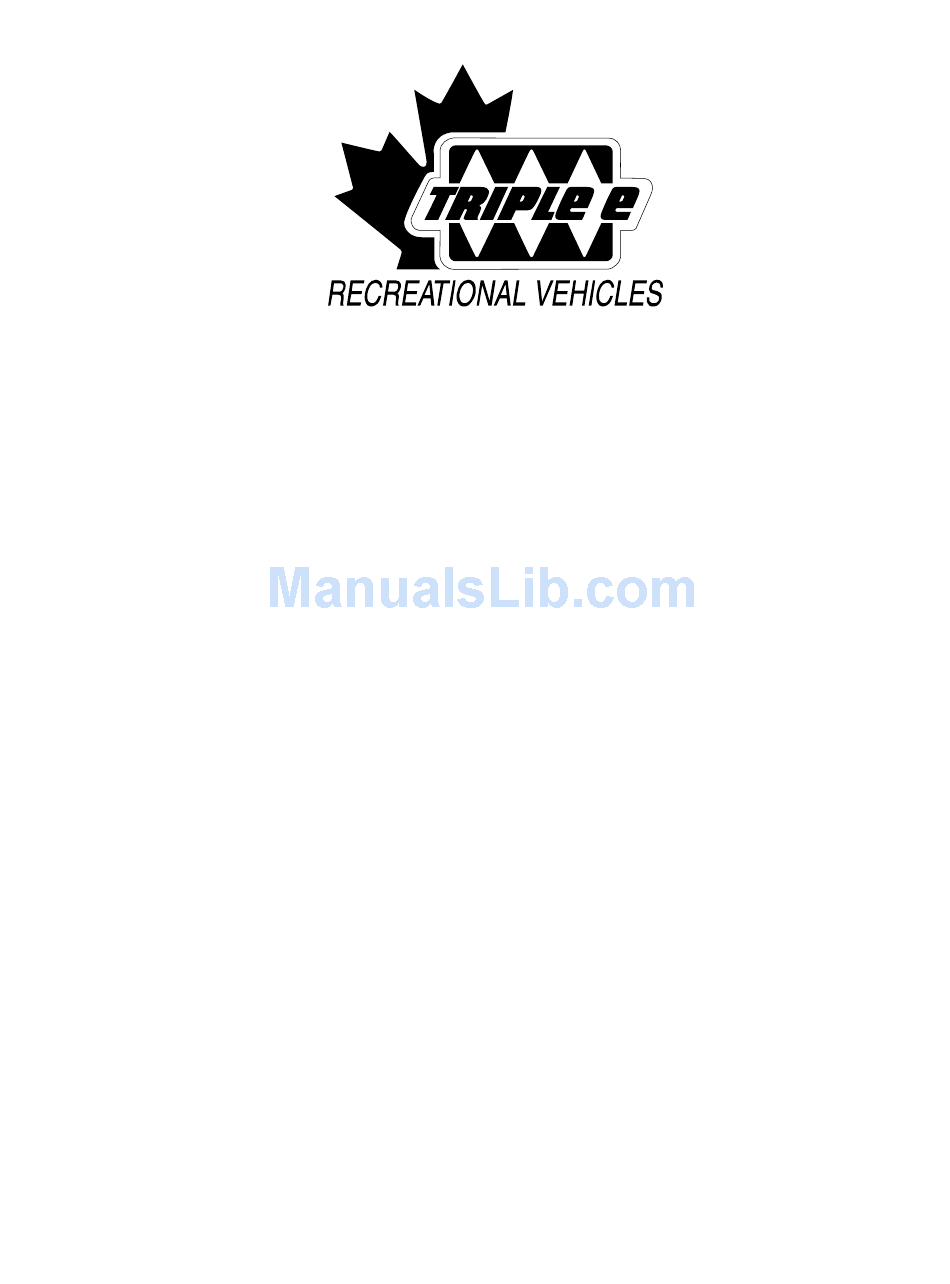

  • Page 1 COMMANDER AND EMBASSY SERIES OWNER'S MANUAL Experience the Difference...
  • Page 2 Fax: (204) 325-5241 Email:WWW.tripleerv.com NOTE Production improvement is a continuing process at Triple E Recreational Vehicles. Thus, we reserve the right to change specifications, operating instructions, standards and options on any and all products without prior notice. Errors and omis- sions excepted.
  • Page 3 P.O. Box 1230 Winkler, Manitoba Canada R6W 4C4 Tel: (204) 325-4361 (204) 325-5241 Printed in Canada www.tripleerv.com...
  • Page 4 Our company takes great pride in the quality and excel- lence that the Triple E name represents. We have sought This manual is intended to be a guideline. This to anticipate your needs and desires with respect to manual despite our best efforts should not be safety, convenience, styling, and engineering.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS SECTION DESCRIPTION PAGE SECTION DESCRIPTION PAGE Introduction ..............1-1 4.15 Water/Plumbing System ......4-15 Operator's Manuals ........1-1 4.15.1 Water Heater ..........4-15 Information Package ........1-1 4.15.2 Water Heater Bypass ....... 4-16 Options and Equipment ......1-1 4.15.3 Water Pump ..........4-17 Keys ..............1-1 4.15.4 Utility Compartment .......
  • Page 6 TABLE OF CONTENTS SECTION DESCRIPTION PAGE SECTION DESCRIPTION PAGE 7.6.2 Shoulder/Lap Belts ........7-2 LP Gas System ............11-1 7.6.3 Care and Cleaning ........7-3 11.1 Safe Use of LP Gas ........11-1 7.6.4 Child Restraints ..........7-3 11.2 How LP Gas Works ........11-1 11.3 Selecting Fuel Types ........
  • Page 7 TABLE OF CONTENTS SECTION DESCRIPTION PAGE SECTION DESCRIPTION PAGE 13.1.3 Exterior Fridge Access ......13-2 17.1.4 Waste System ..........17-1 13.2 Range And Oven........13-2 17.1.5 Fresh Water System ......... 17-1 13.2.1 Lighting Burners ........13-2 17.1.6 Exterior shower .......... 17-1 13.2.2 Lighting Oven Pilot ........

  • Page 8: Introduction

    INTRODUCTION ment. It utilizes the latest design features and manufacturing techniques to insure safe, efficient and trouble- Congratulations on your choice of a Triple E built Motorhome for your travelling and touring comfort and enjoy- free operation at all times.

  • Page 9: Vehicle Certification Label

    COMMANDER / EMBASSY 1.5 VEHICLE CERTIFICATION LABEL This label contains vehicle identification and other important reference information. The vehicle certification label is located on the sidewall to the left of the steering wheel, or on the driver's door. Never remove or destroy this label.
  • Page 10 Recreational Vehicle manufacturer. 12. Cold Tire Inflation Pressure: R.V. manufacture date. Inflation pressures recommended (while cold) for Month and year of manufacture at Triple E Rec- the tires originally equipped on your vehicle. reational vehicle. 13. Rear Axle Wheel Configuration: Gross Vehicle Weight Rating (GVWR): Single axle/Dual wheels.

  • Page 11: Identification Information

    COMMANDER / EMBASSY IDENTIFICATION INFORMATION Take a few minutes to fill in this information. It will be a handy reference for you. The Chassis label is located on the sidewall to the left of the steering wheel or on the driver's side door. (The component model and serial num- bers are recorded on a serial number data sheet stored in the owner information package.) Your Name __________________________________ Water Heater...

  • Page 12: Exterior Feature Identification

    COMMANDER / EMBASSY EXTERIOR FEATURE IDENTIFICATION - TYPICAL MODEL Composite model shown for illustration purposes only. Actual locations of features depends on coach model and options. Fig. 1-3 EXTERIOR IDENTIFICATION - COMMANDER ONLY (RIGHT) Water Heater Service Access. 12. Utility Service Compartment. Refrigerator Service Access.
  • Page 13 COMMANDER / EMBASSY TYPICAL MODEL Composite model shown for illustration purposes only. Actual locations of features depends on coach model and options. Fig. 1-5 EXTERIOR IDENTIFICATION - EMBASSY ONLY (RIGHT) Water Heater Service Access. 12. Utility Service Compartment. Refrigerator Service Access. Includes: Water Drain Valves.

  • Page 14: Service Assistance

    1.10 DRIVING COMFORT h. Ultraviolet stabilized exterior components to resist fading and deterioration. Triple E has made every effort to design and construct Exterior screws and fasteners that resist corro- your motorhome for your comfort and safety. We sion. know that your investment is important to you as well Heavy duty mud flaps for additional protection as to us.

  • Page 15: Safety

    It is the operator's responsibility Triple E Motorhomes. It is the responsibility of the to read, understand and follow all safety and op- owner or operator to read, understand and follow all...

  • Page 16: Driving Safety

    COMMANDER / EMBASSY DRIVING SAFETY FUEL (MOTOR AND LP GAS) Only trained and licensed drivers are allowed to Do not smoke when filling vehicle/generator fuel drive this vehicle. tank, or LP gas tank. Observe all applicable road and driving regula- Extinguish all pilot lights before refuelling.

  • Page 17: Asphyxiation

    COMMANDER / EMBASSY ASPHYXIATION FORMALDEHYDE Do not use portable fuel-burning equipment in- Formaldehyde based adhesives are used in some com- cluding wood and charcoal grills and stoves in the ponents in this vehicle and may release small amounts vehicle. The use of this equipment can generate of formaldehyde fumes into the vehicle for an un- deadly carbon monoxide gas or cause fires.

  • Page 18: Alarms

    COMMANDER / EMBASSY ALARMS Clean and vacuum opening on smoke alarm LP Gas Alarm: once a month. Sounds whenever there is an unsafe amount of Do not try to repair alarm. Replace it. propane gas in the vehicle. g. Smoke alarms are not perfect and do not re- b.

  • Page 19: Loose Components

    COMMANDER / EMBASSY LOOSE COMPONENTS 2.11 EMERGENCY EXITS Any loose component can become a projectile Each Motorhome is designed with an emergency exit during sudden stops, manoeuvring or an accident window in the sleeping area and the side windows can also be used as an alternate emergency exit.

  • Page 20: Preparation

    COMMANDER / EMBASSY PREPARATION the value specified by the Chassis manufacturer as the Refer to information pack supplied with the maximum allowable loaded weight of this motorhome Motorhome prior to using or driving the unit. Read, with its towed trailer or towed vehicle combined. understand and follow instructions in the chassis, motorhome, appliance and system manuals.

  • Page 21: Trailer Towing

    COMMANDER / EMBASSY 3.1.3 TRAILER / VEHICLE TOWING A trailer can affect the handling, durability, perform- ance and economy of your motorhome. The factory installed towing hitch is rated for: 500 lb. - maximum hitch or tongue weight. b. 5000 lb. - maximum trailer weight. The combined weight of the motorhome and the towed vehicle should not exceed the Gross Combined Weight Rating (GCWR).

  • Page 22: Parking, Levelling And Blocking

    COMMANDER / EMBASSY 3.1.5 PARKING, LEVELING AND BLOCKING Fig. 3-2 PARKING Try to pick a spot as level as possible on which to park WARNING your motorhome. You may choose to drive in or back in depending on your personal preference. Remember, however, that all your utility connections (water, sewer, Always exercise care and caution when parking and level- electrical, etc.) are all located on the left side of your...

  • Page 23: Controls

    This push button controls the power to the e f g interior lights above the dashboard. 12-volt DC plug-in receptacle Fig. 4-2 RIGHT SIDE - UPPER Right Side: Climate Control: This is the standard climate control used for all Class A Triple E vehicles and includes both...
  • Page 24 COMMANDER / EMBASSY Left Side: This meter displays the generator operating hours and accumulates time whenever the generator is running. g. Park Brake (Workhorse Chassis) Pull the control knob to engage the parking brake (See Chassis Operators Manual for further detaisl). h.

  • Page 25: Drivers Door Commander Only

    COMMANDER / EMBASSY Left Side - Lower (Optional): DRIVERS DOOR Commander only Fig. 4-4 LEFT SIDE LOWER Computerized Levelling System: Fig. 4-6 DRIVERS DOOR This panel contains the controls for the com- puterized hydraulic levelling system. Refer to a. This rocker switch sets the position of the drivers instructions in the information package for door window.

  • Page 26: Drivers/Co-Pilot Seat

    COMMANDER / EMBASSY DRIVERS/CO-PILOT SEAT The arm rests are designed for individual adjustment. A spring loaded lever is located at the tip of the arm rest. Pull the lever to release and adjust the arm rest. Release the lever to lock it in place.

  • Page 27: Cocktail Seat

    COMMANDER / EMBASSY COCKTAIL SEAT A cocktail chair is located behind the co-pilots seat and is part of the living room furniture. Swivel Lock: This latch releases the swivel base. Pull on the latch to release the lock and allow the chair to swivel.
  • Page 28 COMMANDER / EMBASSY Lap Belts: Pregnant women should wear their lap belts low on Only seats equipped with seat belts are approved their torsos and shoulder straps diagonally across for use by occupants while the vehicle is moving. their chests. Do not position the strap against the Never travel in a seat that is not equipped with a neck.
  • Page 29 COMMANDER / EMBASSY TV INPUT SELECTOR AND DVD/VCR COMBO (optional) Certain pieces of entertainment equipment are installed inside the front upper cabinets above the dashboard for convenience and looks. Input Selector: An input channel selector is located on top of the DVD/VCR and is used to select a specific signal to each TV in the vehicle or the VCR.
  • Page 30 COMMANDER / EMBASSY 4.8 TV's - (OPTIONAL) Each motorhome may be equipped with a TV in the cabinet over the dash and an optional TV in the bedroom. Although it functions like a standard TV, it is recommended that the operator's manual in the information pack be reviewed prior to use.

  • Page 31: Entrance Door

    COMMANDER / EMBASSY ENTRANCE DOOR The entry doorway is equipped with a switch panel that controls the following functions: Porch Light: This 2 position rocker switch con- trols the power to the outside porch light. Depress the upper portion of the switch to turn the porch light on and the lower portion for off.

  • Page 32: Refrigerator

    COMMANDER / EMBASSY 4.10 REFRIGERATOR The refrigerator control panel is located directly above the fridge and includes switches and several indicator lights. Master ON/OFF Switch: This latching push button switch Schematic controls the power to the refrigera- tor. Depress the switch and it will latch in the depressed position for the power to be on.

  • Page 33: Light Switches

    COMMANDER / EMBASSY 4.11 LIGHT SWITCHES Many rocker, slider or standard light switches are used throughout the motorhome to turn lights on and off. If there is any confusion as to which switch and light work together, try the switch. Celing Wall Fig.

  • Page 34: Comfort Control Center

    COMMANDER / EMBASSY 4.12 COMFORT CONTROL CENTER A comfort control center is located in the motorhome (living area or bedroom) to control the heating and cooling systems in the vehicle. The control center is customized to the specifications of your vehicle and will control one or more furnaces and air condi- tioners.

  • Page 35: Furnace

    COMMANDER / EMBASSY 4.13 FURNACE Each motorhome is equipped with one or two furnaces depending on the configura- tion. They are controlled by the comfort control center. Review the operator's manuals for the furnace and comfort con- trol centre in the information package for more detailed operating instructions.

  • Page 36: Thermostatically Controlled Ceiling Fan

    COMMANDER / EMBASSY 4.14 THERMOSTATICALLY CONTROLLED CEILING FAN (Optional on Embassy) Your motorhome may be equipped with a thermo- statically controlled roof vent with a reversible fan to provide a controlled air flow through the vehicle. Use the vent fan in conjunctions with an open window to provide a flow of fresh air into the unit.

  • Page 37: Water/Plumbing System

    COMMANDER / EMBASSY 4.15 WATER / PLUMBING SYSTEM A motorhome plumbing system consists of fresh, grey and black water tanks plus a water heater and plumbing. Be sure to review, understand and follow all operating instructions for the system. 4.15.1 WATER HEATER The water heater is located next to an outside wall and is only accessible from the outside.

  • Page 38: Water Heater Bypass

    COMMANDER / EMBASSY 4.15.2 WATER HEATER BYPASS The water heater is equipped with a valve that sets its plumbing circuit for normal or winterize. The valve is accessed from inside the motorhome. The location can vary depending on your specific model Watch the pointer on the pivot to determine the valve setting.

  • Page 39: Water Pump

    COMMANDER / EMBASSY 4.15.3 WATER PUMP The water system is equipped with a 12 volt pump that pressurizes the system and moves water to where it is required. A master switch is located above the coach doorway to turn the pump on or off as desired.

  • Page 40: Utility Compartment

    COMMANDER / EMBASSY 4.15.4 UTILITY COMPARTMENT (COMMANDER ONLY) Access the water system compartment through the door on the left side of the vehicle. Review the operating instructions and control functions before trying to use the system. Exterior Shower: Hot Water: This standard water tap controls the flow of hot water to the...
  • Page 41 COMMANDER / EMBASSY Fig. 4-25 UTILITY COMPARTMENT Discharge Outlet: a. Discharge Fitting: This fitting carries the discharge from the grey and black water tanks. Connect the discharge line to the fitting and route into an approved sanitary disposal system. Install dust cap when the discharge hose is removed.

  • Page 42: Water System (Embassy Only)

    COMMANDER / EMBASSY 4.15.5 WATER SYSTEM (EMBASSY ONLY) Exterior Shower (optional) (Fig 4-26): Water Fill Selector Valve: Hot Water : This valve directs the flow of fresh water This water tap controls the flow of hot water into the water tank or directly into the water to the shower head.
  • Page 43 COMMANDER / EMBASSY Black and Grey Tank Discharge Valves: Black Water Tank Valve: This is the discharge valve for the black water tank. Pull out to open valve and push in to close. Always empty black water tank first. b. Grey Water Tank Valve This is the discharge valve for the grey water tank.

  • Page 44: Tv Antenna

    COMMANDER / EMBASSY 4.17 SATELITE DISH (optional) 4.16 TV ANTENNA Each motorhome is equipped with an extendable TV The optional Satelite dish is located on top of the antenna on top of the unit to provide reception at unit to provide T.V. reception via Satelite signal. Al- remote locations.

  • Page 45: Battery Disconnect

    COMMANDER / EMBASSY 4.18 BATTERY DISCONNECT This switch located above the coach doorway disconnects the coach batteries from the electri- cal system when the motorhome is in storage to prevent battery discharge. Depress the upper portion of the switch to con- nect the batteries into the electrical system for normal operation and the indicator light will be illuminated.
  • Page 46 COMMANDER / EMBASSY 4.19 SLIDE-OUT ROOM (SLIDE-OUT EQUIPPED MODELS ONLY) b. Extend/Retract: Control Panel (Main or Galley Slides): This panel controls the operation of the Main or This spring-loaded to center neutral rocker switch controls the movement and direction Galley slide-out room. Review the extend/retract of the slide-out room.

  • Page 47: Slide-Out Room (Optional)

    COMMANDER / EMBASSY Slide-Out Room Locks: This slide-out room assembly is designed with locks that hold it securely in place for transport. Top mounted locks are located on the top of the room, one at each end, Floor mounted locks are located on the floor.

  • Page 48: System Monitor

    COMMANDER / EMBASSY 4.20 SYSTEM MONITOR A system monitor is located aboce the entrace door- Water Heater: way. This rocker switch controls the electrical power to the water heater igniter. Depress the top part of the switch and the water heater will ignite. The red light in the switch will go off when the burner ignites.

  • Page 49: Driving

    COMMANDER / EMBASSY DRIVING 10. Fill LP gas container to 80% full. Be careful not to Always review the chassis manual before starting or overfill. An overfilled LP gas container will cause the gas regulator to fail, and may result in prob- moving your motorhome.

  • Page 50: Emergency Equipment Check List

    COMMANDER / EMBASSY EMERGENCY EQUIPMENT CHECK LIST are snug. All passengers should be in a seat that Use this list as a guide to identify the minimum is equipped with a seat belt. All pregnant riders amount of emergency or safety equipment. Take more should be in a seat equipped with a shoulder strap as appropriate for your travel or personal needs.

  • Page 51: Driving Characteristics

    COMMANDER / EMBASSY b. Descending a Hill: DRIVING CHARACTERISTICS It is a good idea to select a lower gear on your transmission when descending a hill to Controls: avoid prolonged application of the brakes. The motorhome driver controls are automotive Extended application of the brakes can cause type and the steering and braking controls are unnecessary wear and tear and overheating.

  • Page 52: Travel Tips

    COMMANDER / EMBASSY 5.7 TRAVEL TIPS As you travel with your motorhome you will learn much from your own experiences. Share with other motorhome owners and learn from them. Read RV, outdoor and camping magazines for camping and travel tips. Here are a few basic suggestions to make your travel and your camping easier and more enjoy- able: Know the height and width of your mo-...

  • Page 53: Quick Loading Check List

    COMMANDER / EMBASSY QUICK LOADING CHECK-LIST Personal: Bedding: Credit Cards Sleeping Bag b. Traveller's Checks b. Sheets Cash Pillow Cases and Pillows d. Driver's License d. Mattress Pads Birth Certificate Extra Blankets Sunglasses Laundry Bags g. Vehicle Registration h. Insurance Policies Cooking: Can Opener Pet Needs:...

  • Page 54: Severe Weather Information

    COMMANDER / EMBASSY SEVERE WEATHER INFORMATION As a motorhome traveller you will find the desire to explore new and out-of-the-way places irresistible. These recreational areas can be vulnerable to unusual and severe weather conditions that could endanger your safety. A few suggestions and safety precautions may help in case you ever find yourself in this situation. IMPORTANT All motorhome occupants should be familiar with these...

  • Page 55: Safety Equipment Operation

    SAFETY EQUIPMENT OPERATION Triple E has made every effort to design the vehicle to promote safe driving, use and occupancy. In addition, it has several pieces of safety equipment that the drivers and users should be aware of and trained in their use.

  • Page 56: Fire Extinguisher

    COMMANDER / EMBASSY 6.1.2 FIRE EXTINGUISHER Function: Fire extinguishers are designed to put out a fire in its initial stages. Once a fire is out of control and you cannot get within ten feet, it is probably too big to fight with your extinguisher. b.

  • Page 57: Emergency Escape

    COMMANDER / EMBASSY EMERGENCY ESCAPE Each motorhome is designed with an alternate emergency exit via a window in the sleeping area. Emergency Exit: Release the red latches of the emergency egress window and push out the window. (The egress window has hinges on top).

  • Page 58: Alarms

    COMMANDER / EMBASSY ALARMS Each motorhome is equipped with an LP Gas, CO and smoke alarm as standard safety equipment. An intruder alarm is available as optional equipment on some models. Refer to alarm manual(s) for more detailed instruc- tions. Keep all alarms in good working order. Recurring alarm(s) indicate the slow accumulation of LP gas, carbon monoxide, or smoke.

  • Page 59: Carbon Monoxide Alarm

    COMMANDER / EMBASSY 6.3.2 CARBON MONOXIDE ALARM This alarm is located in the upper cabinets in the living area and sounds when there is an unsafe amount of carbon monoxide in the vehicle. Position motorhome so wind blows exhaust fumes away from the coach. Fig.

  • Page 60: Smoke Alarm

    COMMANDER / EMBASSY 6.3.3 SMOKE ALARM This alarm is located in the coach and sounds when- ever there is smoke in the unit. Always use the exhaust fan, over the stove when cooking. Smoke from cooking may trigger the alarm. If alarm sounds, check for the presence of a fire.

  • Page 61: Rear View Camera/Monitor System

    COMMANDER / EMBASSY REAR VIEW CAMERA/MONITOR SYSTEM A rear view monitor camera is mounted on the back of the unit to provide a view behind the unit. Camera: The camera is mounted to pick-up a view of the area behind the unit for backing up or a trailer that is being towed.

  • Page 62: Traveling

    Net Carrying Capacity (NCC) or the 7.3 VEHICLE WEIGHT LOADED Cargo Carrying Capacity (CCC) in Canada. Triple E uses sleeping capacity as opposed to seating capacity to determine the NCC or CCC. You may use all the belted seating positions available in your motorhome provided you stay within the GVWR listed on your Vehicle Certification Label.

  • Page 63: Seat Belts

    COMMANDER / EMBASSY SEAT BELTS 7.6.1 LAP BELTS Seats intended for passenger use when travelling are equipped with seat belts. Make sure lap belts are adjusted to a snug fit and as low on the hips as possible for maximum safety and protection.

  • Page 64: Care And Cleaning

    COMMANDER / EMBASSY MIRRORS Whether your vehicle is equipped with standard or 7.6.3 CARE AND CLEANING power electric mirrors, always check the adjustment Be careful not to damage the hardware or the on your mirrors for maximum rear visibility before webbing of your seat belt.

  • Page 65: Free Standing Table & Chairs

    COMMANDER / EMBASSY FREE STANDING TABLE & CHAIRS WARNING (Optional) Your motorhome may be equipped with a free stand- ing dinette. While travelling, these should always be Modern fuel systems may cause pressure to build up in secured with the harness provided to prevent the ta- the fuel tank during hot weather.

  • Page 66: Emergencies While Driving

    COMMANDER / EMBASSY EMERGENCIES WHILE DRIVING FLAT TIRE Your Triple E Motorhome is designed with features When you have a flat tire while driving, slow the vehi- that allow the driver/occupants to resolve emergency cle gradually to prevent losing control and pull off to or failures when travelling.

  • Page 67: Towing

    COMMANDER / EMBASSY 8.3 TOWING OVERHEATING Emergency Starting: If the engine overheats while driving: Do not tow the motorhome in an attempt to start it. The powertrain is not designed to transmit torque Pull off the side of the road and stop immediately. to turn the engine over for starting.

  • Page 68: Jump Starting

    COMMANDER / EMBASSY JUMP STARTING When the vehicle batteries do not have sufficient charge to start the engine, there are two ways to start the unit: Battery Boost Switch: Depress and hold the switch on the left side of the dash to connect the coach batteries into the starter circuit to use all batteries for starting.

  • Page 69: Home Use

    COMMANDER / EMBASSY HOME USE MOTORHOME LEVELLING SYSTEM (OPTIONAL) The motorhome is designed to be your home on wheels while traveling in comfort. This section will The Motorhome must be level for some appliances to cover the items that must be done or considered in function properly.
  • Page 70 COMMANDER / EMBASSY A yellow light indicates that the end or the side of the motorhome is low. Move the Control Lever to raise the cor- responding end or side until all the lights are out. If the ground is too uneven, there may not be enough stroke in the jack to raise that side...

  • Page 71: Slide Out Room

    A motorhome may be equipped with one or more expandable slide out room(s) to provide more living area for the occupants. Triple E supplies a video explaining the operation of the slide out system with each slide out equipped model. Please use this video to familiarize yourself with the operations of this system.
  • Page 72 COMMANDER / EMBASSY To Extend (Main & Galley Slide): Turn the power lock key to “on’ , press and hold the control switch located above the entrance door until it is fully extended. Make sure it is fully extended so that all weather seals will be in their proper alignment.

  • Page 73: Slide Out Room Emergency Operation

    10 mm (half an inch) at a time Keep turning the winch crank to move the room up and in. Install travel locks. Refer to the Triple E supplied video and the HWH Fig. 9-8 ELECTRIC MOTOR case of system failure.

  • Page 74: Slide Out Room Troubleshooting

    COMMANDER / EMBASSY COMMANDER ONLY) SLIDE OUT ROOM Your Motorhome may be equipped with an optional TROUBLESHOOTING central vacuum system eliminating the need for a portable unit. Low Battery Voltage: The most common cause of malfunction is low This unit operates on the 120 volt system requiring that you be hooked up to shore power or run it off the battery voltage.

  • Page 75: Electrical Systems

    Triple E provided 12-volt chassis battery fuse block locatee in the dash area. Most Triple E added loads to the chassis battery are fused at this location. The 120 Volt AC System is powered either by the...

  • Page 76: Power Control Center (Optional - Commander Only)

    COMMANDER / EMBASSY 10.1.2 POWER CONTROL CENTER - 120V Breaker Panel COMMANDER ONLY (OPTIONAL) 12V Fuse Panel This panel contains the fuses for the 12 volt system, circuit breakers for the 120 volt system. 120V power to 12V DC converter is mounted in compartment behind the panel.

  • Page 77: Ground Fault Circuit Interrupter (Gfci)

    COMMANDER / EMBASSY 10.1.4 GROUND FAULT CIRCUIT INTERRUPTER (GFCI) Various outlets in the motorhome, particularly those near sinks and water supplies, are connected to a GFCI which is a very sensitive circuit breaker that will protect you from electrical shock if a ground fault develops.

  • Page 78: Auxiliary 120-Volt Generator

    COMMANDER / EMBASSY 10.2 AUXILIARY 120 VOLT GENERATOR (OPTIONAL) Refer to the Generator Owner Operator's Manual for more detailed instructions. 10.2.1 GENERATOR SAFETY Electrical: WARNING Extreme care and caution should be exercised when han- dling the generator and its components. Carelessness can be dangerous and even fatal.

  • Page 79: Generator Operation

    COMMANDER / EMBASSY 10.2.2 GENERATOR OPERATION Controls: The generator switches are located: On the dash board, within easy reach from the driver's seat. b. Above the main entrance door, part of the main control panel. Starting: The generator starter draws current from the Coach batteries so the chassis ignition does not have to be on.

  • Page 80: Automatic Power Transfer Switch

    COMMANDER / EMBASSY 10.2.3 AUTOMATIC POWER TRANSFER SWITCH (COMMANDER ONLY) This Commander model is equipped with an auto- matic power transfer switch that transfers the electri- cal load between the shoreline or generator power source. It automatically transfers all the load to shore- line whenever it is plugged in.

  • Page 81: 12-Volt Dc System

    COMMANDER / EMBASSY 10.3 12 VOLT DC SYSTEM The DC voltage system in your motorhome consists of two separate and yet connected battery systems: The automotive batteries The auxiliary or motorhome batteries 10.3.1 AUTOMOTIVE BATTERIES These are used to operate the starter, the automotive accessories and all the controls found on the instru- ment console.

  • Page 82: 12-Volt Coach Fuses

    COMMANDER / EMBASSY 10.3.3 12 VOLT COACH FUSES All 12-volt circuits are protected by either a circuit breaker or a fuse in the control panel. When a breaker trips or a fuse blows, shut off all appliances or lights on the affected circuit and reset the breaker or replace the fuse with a new one of the same amper- Commander age.
  • Page 83 COMMANDER / EMBASSY WARNING Remove rings, metal watchbands, and other metal jewel- lery before working around a battery. Use caution when using metal tools. If a tool contacts the battery termi- nals or metal connected to them, a short circuit could occur which could cause personal injury or fire.

  • Page 84: Battery Condition Meter

    COMMANDER / EMBASSY 10.3.5 BATTERY CONDITION METER You will find a gauge on your control panel which tells you the level of charge in your coach or auxiliary batteries. Fig. 10-13 BATTERY CONDITION METER 10.4 TRAILER WIRING CONNECTOR Your motorhome is ready for trailer or car tow- ing.

  • Page 85: Electrical Schematics

    COMMANDER / EMBASSY 10.5 ELECTRICAL SCHEMATICS 30 AMP SERVICE (COMMANDER) 30 AMP SERVICE (EMBASSY) 10-11...

  • Page 86: Electric Circuit Panels

    COMMANDER / EMBASSY 10.6 ELECTRIC CIRCUIT PANELS 10.6.1 EMBASSY Fig. 10-15 EMBASSY CIRCUIT PANEL 10.6.2 COMMANDER Fig. 10-16 COMMANDER CIRCUIT PANEL 10-12...
  • Page 87 COMMANDER / EMBASSY 10.6 VEHICLE 12-VOLT FUSE PANELS Access Panel Fig. 10-17 EMBASSY FUSE PANEL Fig. 10-18 COMMANDER FUSE PANEL 10-13...

  • Page 88: Lp Gas System

    Do not lock LP tank compartments. Recreational ensure proper service and safety, always take vehicle industry standards require that all LP gas your motorhome to an authorized Triple E valves must be readily accessible at all times in service center.

  • Page 89: Selecting Fuel Types

    COMMANDER / EMBASSY 11.3 SELECTING FUEL TYPES 11.4 LP TANK SYSTEM Butane burns at a much higher temperature than The storage tank for the LP gas is mounted propane but will not change from a liquid to a gas at underneath the motorhome attached to the vehicle temperatures below 32 degrees F or 0 degrees C.

  • Page 90: Refilling Lp Tank

    COMMANDER / EMBASSY 11.6 REFILLING LP TANK WARNING Never overfill the LP gas tank. Make sure your vehicle is level when filling the tank. Make sure all pilot lights are OFF before refuelling any of the gas tanks on your motorhome. Do not smoke or have any open flame in the area where refuelling is taking place.

  • Page 91: Air In The Lp Tank

    COMMANDER / EMBASSY After tank has been filled: control valve closed when not in use even when the tank is empty. This helps prevent condensation from Check all container and line connections periodi- forming. Hold a light bulb near the regulator to thaw cally to be sure they are tight.

  • Page 92: Lp Gas Leaks

    COMMANDER / EMBASSY 11.10 LP GAS LEAKS 11.11 LP GAS DETECTOR If you ever smell LP gas in the vehicle or the detector A standard LP gas detector has been installed in your alarm sounds, follow the instructions carefully. unit. WARNING IF YOU SMELL GAS Extinguish any open flame, pilot lights and all smoking material.

  • Page 93: Water/Plumbing System

    COMMANDER / EMBASSY 12 WATER/PLUMBING SYSTEM Your motorhome is designed with a fresh water, grey water, black water systems and associated plumbing to handle all of the water and waste requirements. Re- view this section carefully to understand each system and how they function together.

  • Page 94: Fresh Water Tank Filling

    COMMANDER / EMBASSY 12.1.1 FRESH WATER TANK FILLING PROCEDURE Pump Switch Systems The water tank is not a pressure vessel. The filling Valve procedure is done via a water pressure system and cannot be done without available water under pressure. Make sure the vent/overflow drain located underneath the tank area is open, free and clear of any obstruction before attempting to fill the tank.

  • Page 95: Water Pump Switch

    COMMANDER / EMBASSY 12.1.3 WATER PUMP SWITCH The master switch for the water pump is located at the control panel above the entrance door. When this switch is in the on position, the pump will automati- cally activate when any faucet, shower or toilet is being used.

  • Page 96: Water Pump Filter

    COMMANDER / EMBASSY 12.1.4 WATER PUMP FILTER Before water can enter the various outlets in your motorhome it flows through a water filter. This filter is located on the water pump. The water pump is located either in the service module on the Commander and under the bed on the Embassy.

  • Page 97: Water Pump Troubleshooting

    COMMANDER / EMBASSY 12.1.7 WATER PUMP TROUBLE SHOOTING Disinfection instructions If pump will not prime: A. Commander: Make sure there is water in the tank. Place the pick up line (located in the service b. Make sure the battery is not run down. module) into a container of pre-mixed disenfect- Make sure there are no kinks in the inlet ant solution (1/4 cup household liquid chlorine...

  • Page 98: External Water Supply

    COMMANDER / EMBASSY 12.1.9 EXTERNAL WATER SUPPLY The external water source will supply your motorhome water system with water at city pressure when the water pump is switched off. Connecting: Turn water pump switch to off. b. Attach garden hose to city water connection at water fill selection valve.

  • Page 99: Dumping Holding Tanks

    COMMANDER / EMBASSY 12.2.3 DUMPING HOLDING TANKS When dumping holding tanks: IMPORTANT Remove drain hose from storage Holding tanks should be dumped be- compartment. fore travelling to eliminate unnecessary weight while driving. Remove dust cap from drain out- let. Attach drain hose securely. Place the other end of the hose in sewer opening.

  • Page 100: Tank Rinse

    COMMANDER / EMBASSY 12.2.4 TANK RINSE (COMMANDER ONLY) The motorhome is equipped with a built-in black wa- ter waste tank flushing system. To aid in draining the tank or to remove build-up or odors, attach a water hose to the flush connection in the utility compart- ment.

  • Page 101: Holding Tank Level Indicators

    COMMANDER / EMBASSY 12.2.7 HOLDING TANK LEVEL INDICATORS The holding tank levels may be checked on the monitor panel. Press the corresponding switch to check the level in each tank. Fig. 12-11 TANK LEVEL INDICATORS 12.3 PLUMBING SYSTEM OPERATION 12.3.1 WATER HEATER Your motorhome is equipped with a 6 gallon water heater.

  • Page 102: Toilet

    COMMANDER / EMBASSY 120-Volt Operation: 12.3.2 TOILET Open the water heater compartment door. Find the selector switch and set it to 120-volt. Refer to the operating instructions included in the infor- Refer to manufacturer's operating instructions includ- mation package. ed in information package for more details. IMPORTANT Troubleshooting: Be sure there is water in the hot water tank...

  • Page 103: Exterior Shower (Optional)

    COMMANDER / EMBASSY 12.3.4 EXTERIOR SHOWER Your motorhome may be equipped with an exterior 12.4 PLUMBING SPECIFICATIONS auxiliary shower to allow you to rinse off sand and dirt, to clean muddy footwear or to bathe pets before entering the vehicle. It is located in the utility system Commander Embassy compartment on the left side of your motorhome on...

  • Page 104: Plumbing Schematics

    COMMANDER / EMBASSY 12.4.2 PLUMBING SCHEMATICS (TYPICAL) DRAINAGE SYSTEM 12-12...

  • Page 105: Appliances And Interior Features

    COMMANDER / EMBASSY APPLIANCES AND INTERIOR FEATURES Refer to the operator's manuals in the information package for more detailed instructions if required for each appliance, component or system. 13.1 REFRIGERATOR The refrigerator in your motorhome can be operated on either: 120-volt AC electric.

  • Page 106: Exterior Fridge Access

    COMMANDER / EMBASSY 13.1.3 EXTERIOR FRIDGE ACCESS To Light The Range: Turn the burner control knob to “on”. This compartment allows access to the refrigerator for Turn the piezo ingition knob until the burner cleaning, inspection, maintenance and service. It is ignites.

  • Page 107: Lighting Oven Pilot

    COMMANDER/EMBASSY 13.2.2 LIGHTING OVEN PILOT 13.2.3 OPERATING OVEN CONTROL To adjust the oven temperature, push in the knob and Make sure all range and oven control knobs turn it counterclockwise to the desired temperature are in the off position. setting. There may be a delay of 45 seconds before Press and turn the oven control knob to the pilot the burner is ignited.

  • Page 108: Microwave Oven

    COMMANDER / EMBASSY 13.4 MONITOR PANEL 13.3 MICROWAVE OVEN The monitor panel, located above the entrance door, For complete instructions, refer to the Operating In- covers four systems in your motorhome: structions in the Owner's Information Package. Battery: Operating Tips: Do not attempt to operate microwave oven with the door open since this can result in harmful b.

  • Page 109: Lp Gas Furnace

    COMMANDER / EMBASSY 13.5 LP GAS FURNACE Your motorhome utilizes a central unit heating system. To Shut Down: The furnace is controlled by the climate control center. Slide the thermostat to the off position. This device located in the cabinet above the entrance b.

  • Page 110: Roof Air Conditioners

    COMMANDER / EMBASSY 13.7 TV ANTENNA 13.6 ROOF AIR CONDITIONERS The TV antenna on your motorhome is easily raised, The roof air conditioner(s) are controlled by the rotated through 360 degrees and lowered from inside the motorhome by turning the crank or rotating knob. climate control center.

  • Page 111: Tv Signal Amplifier

    COMMANDER / EMBASSY 13.8 SIGNAL AMPLIFIER Turn the amplifier power switch on to receive the TV signal. Depress the appropriate knob on the audio/ video selector to direct! the signal to the desired television. Refer to your TV An!tenna Manual. 13.9 TELEVISION Overhead Dash (Commander) Refer to manufacturer's manual for operating instruc-...

  • Page 112: Video Cassette Recorder

    COMMANDER / EMBASSY 13.10 VIDEO CASSETTE RECORDER (OPTIONAL) Refer to manufacturer's manual for operating instruc- tions and maintenance information. 13.11 VIDEO CONTROL CENTER Refer to manufacturer's manual for operating instruc- tions and maintenance information. This unit is pow- ered by inverter and 120 V AC. 13.12 PHONE AND CABLE TV Fig.

  • Page 113: Sleeping Facilities

    COMMANDER / EMBASSY 13.14 SLEEPING FACILITIES WARNING Do not use sleeping facilities while motorhome is in motion. Bedroom Heater (Commander and Embassy XL only): Standard bedroom sleeping facilities are located at the rear of the coach. The control for the Embassy heater are as shown in figure 13-12 and is “push/pull”...

  • Page 114: Seats

    COMMANDER / EMBASSY 13.15 SEATS See section 4.4 for how to operate the seat controls. 13.16 SEAT/SHOULDER BELTS Inspection: Twice a year check that belts, buckles, latch plates, retractors and anchorages work properly: look for loose parts or damage (without disassembly) that could keep the restraint system from doing its job.

  • Page 115: Fresh Water Toilet

    COMMANDER / EMBASSY 13.17 FRESH WATER TOILET The toilet in your motorhome is very much like the one in your home except that it uses a much smaller amount of water for flushing. When the foot pedal lever is pushed down, a high velocity stream of water produces a swirl effect that should effectively cleanse the toilet.

  • Page 116: Electric Step (Optional)

    COMMANDER / EMBASSY 13.18 ELECTRIC STEP Normal Operation - Step switch in “on” position (locat- ed on switch panel beside door entrance). Open the door. The step should descend and lock in extended position with the understep light on. Close the door. The step should retract and lock in up position.

  • Page 117: Central Vacuum System

    COMMANDER / EMBASSY 13.21 CENTRAL VACUUM 13.22 WASHER/DRYER HOOK-UP (COMMANDER ONLY) SYSTEM Your motorhome may be equipped with the water, drain The Commander Motorhome is equipped with a central and power requirements to allow the use of a washer and vacuum system giving you another comfort of home dryer.

  • Page 118: Care And Maintenance

    Triple E RV dealer. or any of the roof mounted components. It is not recommended to carry large heavy objects on the CAUTION roof.

  • Page 119: Interior

    Laminate Flooring: a soft cloth and a high quality wood finish cleaning Sweep or Vacuum regularly and wipe with a damp product available from your Triple E dealer or other cloth or mop. RV centers. The beauty of the wood is in the natural variations in...
  • Page 120 COMMANDER / EMBASSY 10. Refrigerator: 13. Micro/Convection Oven: The interior should be cleaned regularly. Remove Consult owners manuals for detailed instructions. shelves and wash the lining with lukewarm water Keep the door and inside of your microwave to which a mild soap may be added. Dry thor- oven clean.
  • Page 121 COMMANDER / EMBASSY 14. Bathroom: General: As a general rule, use warm water and mild soap to clean walls and surfaces in your bathroom. On glass doors and mirrors a good quality glass cleaner may be used. Harsh cleaners, detergents or abrasives should never be used.

  • Page 122: Motorhome Maintenance

    COMMANDER / EMBASSY MOTORHOME MAINTENANCE 15.1 CHASSIS CUSTOMER 15.3 ENGINE COOLING SYSTEM Refer to the chassis manufacturer's manual for com- SERVICE plete information and instructions on checking, filling Chassis service is a concern for every vehicle owner. and servicing the fluid level. Ford and Workhorse custom chassis have recognized this and have developed nationwide Service Cent- ers.

  • Page 123: Storing Your Rv

    COMMANDER / EMBASSY STORING YOUR RV All systems, components and appliances should be inspected and repaired prior to storage. Checklist: Fill fuel tanks to reduce excessive build-up of moisture in the fuel tanks. Check coolant level and add anti-freeze if re- quired, to protect to the lowest expected tem- perature during storage.

  • Page 124: Winterization

    COMMANDER / EMBASSY 17 WINTERIZATION 17.1 COLD TEMPERATURE holding tanks. Be sure to add suffficient amounts in OPERATION order to protect the total volume of the holding tank. Commander units are built for year-round travel Do not use alcohol-based anti-freeze or other including: Urethane installation undercoating.

  • Page 125: Cold Temperature Storage

    COMMANDER / EMBASSY 17.2 COLD TEMPERATURE STORAGE 17.2.1 WATER SYSTEM rod from the water heater. Close the shut-off valve to the water purifier WINTERIZATION (if equipped). Remove the water purifier filter a.) Commander: Place the anti-freeze pick up cartridge and store it in a warm place. line (located in the water pump compartment) Turn the winterizer valve located behind the hot into a container of potable water anti-freeze.

  • Page 126: De-Winterize Water System

    COMMANDER / EMBASSY 17.2.5 DE-WINTERIZE WATER SYSTEMS Fill the water tank with clean water. Turn the winterize valve to the normal position. CAUTION Do not turn the water heater bypass valve to the normal position until clear water appears at all faucets. Turn on the pump.

  • Page 127: Warranty Policy

    Triple E RV. C. Coach Warranty: Triple E Recreational Vehicles warrants the specified new vehicle to be free from defects in material and workmanship under normal use and service. Obligation under this warranty shall be limited to twelve (12) months or 20,000 kilometers, whichever occurs first, after the date of purchase by the original retail purchaser from an authorized dealer and shall be limited to making good at our factory, any part or parts thereof upon return to the factory.
  • Page 128 This warranty does not cover any component which is not manufactured by Triple E Recreational Vehicles or any component under separate warranties from its manufacturer (tires, batteries, re- frigerator, stove, heaters, chassis, powertrain, etc for example).
  • Page 129 Triple E RV Warranty Dept. at 1-204-325-4361 for authorization Note: Product improvement is an ongoing process at Triple E RV. Thus we reserve the right to change specification, operating instructions, standards and options on any and all products without prior notice. Errors and Omissions excepted.
  • Page 130 The terms of these extended warranties are as specified in each of the specific manufacturer’s brochures. Triple E RV will not provide a free warranty replacement or credit for defective product if the major component supplier in question has suspended operations or become insolvent. If this...
  • Page 131 COMMANDER / EMBASSY INDEX PAGE PAGE Appliances And Interior Features .............13-1 Driving ....................5-1 AC/DC Inverter..................13-8 Driving Characteristics.................5-3 Electric Step (Optional) ..............13-12 Driving Safety Tip ..................5-3 LP Gas Furnace ..................13-6 Emergency Equipment Check List ..........5-2 Microwave Oven ..................13-4 Engine Operation ..................5-2 Monitor Panel ..................13-5 Before Departing ...................5-2 Phone And Cable TV Hook-Ups ........13-8...
  • Page 132 COMMANDER / EMBASSY INDEX PAGE PAGE LP Gas System 11-1 Traveling ....................7-1 Air in the LP Tank .................11-4 Traveling 7-1..................7-1 How LP Gas Works ................11-1 Baggage Loading ..................7-1 LP Gas Detector ..................11-5 Free Standing Table and Chairs ............7-4 LP Gas Leaks ..................11-5 Front Axle Tire Alignment ..............7-1 LP Tank Capacity ..................11-2 Maximum Occupancy ................7-1...

  • Page 133: Maintenance Schedule

    Maintenance Schedule All recommended maintenance procedures are of great importance. Maintenance intervals, checks and inspections recommended in this manual are helpful to keep your vehicle in good working condition. Any damage caused by failure to follow recommended maintenance may not be covered by warranty. General maintenance work is considered the owners responsibility.
  • Page 134 CM = must be done by Certified Mechanic Interior Clean and dust fabrics Clean and dust countertops and cabinets Clean and dust floors Exterior Clean Roof Check roof for surface damage Clean walls Wax front and rear caps Sealants Check for cracks or missing sealant Replace or redo sealant Electrical System Check battery connections and fluid level...

  • Page 135: Roof Air Conditioner

    CM = must be done by Certified Mechanic Plumbing System Sanitize plumbing system Check plumbing system fittings Winterize plumbing system Winterize City water connection Water Heater Water Heater maintenance instructions Operate pressure relief valve Flush tank Check burner for proper adjustment Check electrode Check module board circuits Refrigerator...
  • Page 136 CM = must be done by Certified Mechanic Range Top / Oven Range maintenance instructions Check and clean burner assembly Frame and Chassis Chassis maintenance instructions Check and clean frame components Check and clean hitch and reciever Check tire pressure and tread wear Suspension Check air bag pressure (Gas powered units only)

This manual is also suitable for:

Embassy series

Table of Contents

Save PDF
