Summary of Contents for Sensoray 810

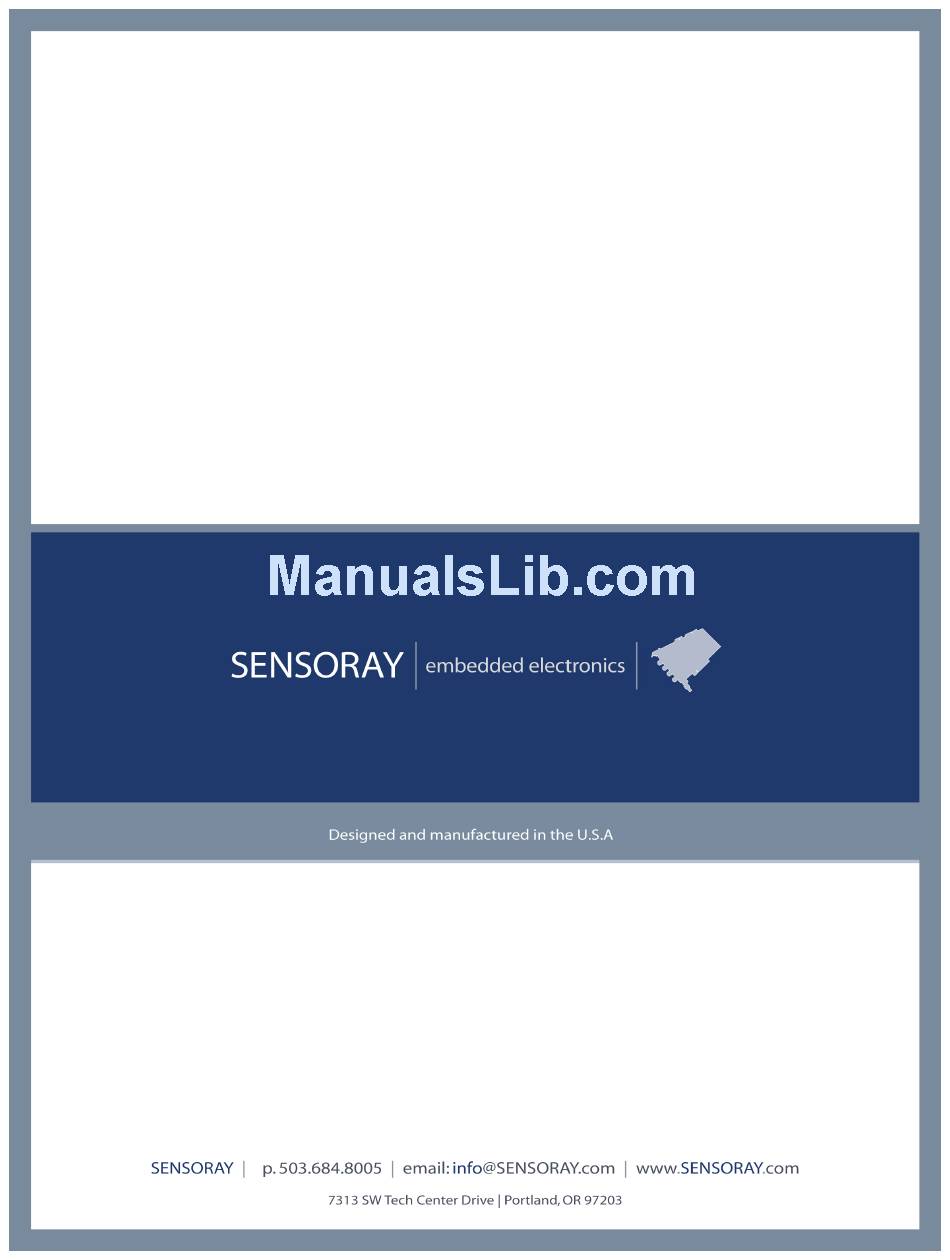

- Page 1 PCI Express 4-Channel Frame Grabber User’s Manual Model 810 | Rev.A | September 2013...
-
Page 2: Table Of Contents
Table of Contents TABLE OF CONTENTS ....................2 LIMITED WARRANTY ....................4 SPECIAL HANDLING INSTRUCTIONS................5 INTRODUCTION ......................6 Feature Summary....................7 REFERENCE ........................8 Board Picture and Connector Layout................8 Connector List......................9 Connector Signal/Pin Definitions................10 PCI-Express Bus Connector: P1 ..............10 Audio Input Connectors, DB15: J1 ............. 10 Composite Video Input Connector, BNC: J2, J3, J4, and J5...... - Page 3 Windows ....................14 Linux ......................14 SPECIFICATIONS ...................... 15...
-
Page 4: Limited Warranty
The reader should consult Sensoray if errors are suspected. In no event shall Sensoray be liable for any damages arising out of or related to this document or the information contained in it. -
Page 5: Special Handling Instructions
Special handling instructions The circuit board contains CMOS circuitry that is sensitive to Electrostatic Discharge (ESD). Special care should be taken in handling, transporting, and installing circuit board to prevent ESD damage to the board. In particular: • Do not remove the circuit board from its protective anti-static bag until you are ready to install the board into the enclosure. -
Page 6: Introduction
It supports capturing from NTSC/PAL/SECAM video sources. For the need of audio capturing, Model 810 provides four channels of stereo or monochrome audio capturing associated with four channels of video respectively. -
Page 7: Feature Summary
Feature Summary PCI-Express Video/Audio Capturing Video input: 4 individual input video channels (Composite or S-Video per channel) Audio input: 4 pair of stereo or 4 mono Resolution (Max): Full-D1: NTSC: 720 x 480 @ 30 fps x 4 (Total: 120 fps) PAL: 720 x 576 @ 25 fps x 4 (Total: 100 fps) -
Page 8: Reference
Reference Board Picture and Connector Layout... -
Page 9: Connector List
Connector List PCI-Express Connector DB-15: Audio Input Breack-in, for all 4 channels of Stereo/Mone, Line-in level BNC: Composite Video Input for Channel-1 BNC: Composite Video Input for Channel-2 BNC: Composite Video Input for Channel-3 BNC: Composite Video Input for Channel-4 34-pin Connector: break-in/out for Composite Video Input for Channel-1, 2, 3, and 4... -
Page 10: Connector Signal/Pin Definitions
Connector Signal/Pin Definitions PCI-Express Bus Connector: P1 Pin – Side B Signal Pin – Side A Signal +12V PRSNT#1 +12V +12V Reserved * +12V Ground Ground SMCLK * SMDAT * TDI * Ground TDO* +3.3V TMS * TRST# * +3.3V +3.3VAUX * +3.3V WAKE# *... -
Page 11: Full A/V (Video & Audio) And Digital I/O Connector: J6
Full A/V (Video & Audio) and Digital I/O Connector: J6 Signal Signal Analog Ground Composite Video In / S-Video In – Y for Channel-1 S-Video In – C for Channel-1 Audio In – L for Channel-1 Audio In – R for Channel-1 Digital Input for Channel-1 Digital Output for Channel-1 Digital Ground... -
Page 12: Dip Switches
DIP Switches Manufacturing DIP Switch: SW1 The DIP switch, SW1, is used for manufacturing only. Therefore, it is not described in this manual. Digital I/O Configuration DIP Switch: SW2 The DIP switch, SW2, is used for configuring Digital I/O routing. Refer to the table below for the routing details: SW2-1 SW2-2... -
Page 13: Led
Power-OK indicators: D3 and D4 The LED D3 and D4 are used for indicating on-board Power-OK status. Signal 3.3V Power-OK Status 1.0V Power-OK Status GPIO Status Indicators: D5 ~ D8: The LED D5, D6, D7, & D8 are used for indicating the status of the digital input/output signals (pins), labeled as GPIO1 ~ GPIO4 on the board, and directly connected to the TB1 ~ TB4. -
Page 14: Software
“s811_v1xx.zip” file for distribution and/or for customer(s) to download from Sensoray’s website. Refer to the “Model 811/810 Windows SDK User’s Manual” for the SDK, DLL, API, and programming details. Since the driver is built and based on the WDM BDA and DirectShow oriented architecture, the Microsoft GraphEdit utility can be used for building live A/V preview and/or capturing application. -
Page 15: Specifications
Specifications Video Formats NTSC, PAL, SECAM Video Inputs 4 input channels, simultaneously: 4 Composite video via 4 NBC connectors, 75 Ohms; or 4 S-Video via a 34-pin breakout connector, 75 Ohms; or combinations up to 4 channels , 75 Ohms Audio Inputs 4 input channels: associated with 4 separated video channels Stereo or mono for each channel, via four 3.5mm TRS...
