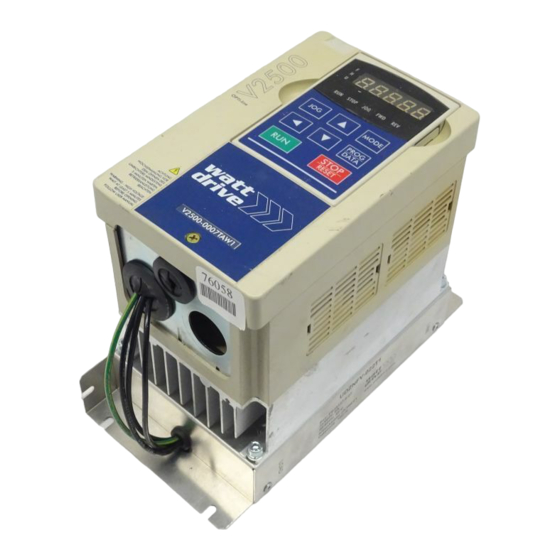

Watt Drive L2500 Series Manual

Frequency inverter
Hide thumbs
Table of Contents

Advertisement

Quick Links

FREQUENCY INVERTER
Series L2500
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L2500 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Watt Drive L2500 Series

Summary of Contents for Watt Drive L2500 Series

  • Page 1 FREQUENCY INVERTER Series L2500 MANUAL...
  • Page 2 BA.FBE.UR.023.001.07.03 L2500 Kurzanleitung dt/engl. Watt Drive operates a policy of continuous development. Therefore, we reserve the right to make changes and improvements to any of our products described in this manual without prior notice. Any changes, improvements and typing errors justify no claims for compensation.
  • Page 3 Please read this manual carefully before you install and operate an L2500 series inverter and observe all of the instructions given in there. This manual may also serve as a reference guide and therefore should always be kept at hand.
  • Page 4 The top surface of the enclosures or barrier that is easily accessible shall meet at least the requirements of the Protective Type IP40). (L2500 series corresponds with this regulation.) CAUTION! The rated voltage of power system that is installed on AC drive must be equal to or less than 240 Volts (460V model is 480 Volts) and the current must be equal to or less than 5000A RMS.
  • Page 5 TABLE OF CONTENTS • Chapter 1 – receiving and inspection • Chapter 2 – storage and installation • Chapter 3 – wiring • Chapter 4 – digital keypad operation • Chapter 5 – parameters • Chapter 6 – maintenance and inspections •...
  • Page 6 CHAPTER 1: RECEIVING AND INSPECTION CHAPTER 1 RECEIVING AND INSPECTION This L2500 AC drive has gone through rigorous quality control tests at the factory before shipment. After receiving the AC motor drive, please check for the following: Receiving Check to make sure that the package includes an AC drive, the User Manual, and rubber bushings.
  • Page 7 CHAPTER 2 STORAGE AND INSTALLATION 2.1 Storage The AC drive should be kept in the shipping carton before installation. In order to retain the warranty coverage, the AC drive should be stored properly when it is not to be used over for an extended period of time.
  • Page 8 Mount the AC drive vertically and do not restrict the air flow to the heat sink fins. Non-Ventilated Enclosures When selecting non-ventilated enclosures for the L2500 series, please consider the following minimum distance (L) from the drive sides (other than the front or back covers) to the enclosure internal surfaces or box internal volume.
  • Page 9 Wait ten minutes for DC bus capacitors discharge. Any Electrical or mechanical modification to this equipment without prior written consent of WATT Drive GmbH. will void all warranties and may result in a safety hazard in addition to voiding the CE or UL listing.
  • Page 11 Failure to observe this precaution could result in bodily injury. When using L2500 series inverters in EU countries, the EMC directive 89/336/EEC must be observed. To satisfy the EMC directive and to comply with the standard, the following provisions should be obeyed:´...
  • Page 12 CHAPTER 3 WIRING Observe the following provisions for an electromagnetically compatible setup of your drive system: 1. As user you must ensure that the HF impedance between frequency inverter, filter and ground is as small as possible. • Take care it that the connections are metallic and have the largest possible areas (zink-plated mounting plates) 2.
  • Page 13 6. Safety measures • Ensure that the protective conductor terminal (PE) of the filter is properly connected with the protective conductor terminal of the frequency inverter. An HF ground connection via metal contact between the housings of the filter and the frequency inverter, or solely via cable shield, is not permitted as protective conductor connection.
  • Page 14 CHAPTER 3 WIRING 3.1 Basic Wiring Diagram Users must connect wiring according to the following circuit diagram shown below. 4.7k 4.7k 4.7k Please refer to 3.4 for detail. 4.7k 4.7k 4.7k...
  • Page 15 PNP (in source mode) Braking resistor (optional) Jumper select 80 120W, 200 120W Main Circuit Power 120W AC Motor R/L1 +1 +2/B1 R/L1 U/T1 S/L2 S/L2 V/T2 T/L3 T/L3 +18V Grounding resistance W/T3 less than 100 Potentiometer(1K ) Factory default Analog output Common Signal (Source) 47K[...
  • Page 16 CHAPTER 3 WIRING 3.2 External Wiring Items Explanations Please follow the specific power Power Supply Power supply requirement shown in supply APPENDIX-A. There may be inrush current during power up. Please check the chart of Fuse/NFB FUSE/NFB APPENDIX B and select the correct (Optional) fuse with rated current.
  • Page 17 3.3 Main Circuit Wiring Main Circuit Terminals Power terminal Power terminal (3x460V Series) (1 230V Series) AC Input Line Motor AC Input Line Motor Terminal Connection Terminal Connection Braking Ground DC Reactor Ground Braking Resitor DC Reactor Resitor Terminal Explanations Terminal Symbol Explanation of Terminal Function R/L1, S/L2, T/L3...
  • Page 18 CHAPTER 3 WIRING 3.4 Control Terminal Wiring (Factory Setting) Wire Gauge: 16-24 AWG Terminal Explanations: Wire Type: Copper Only Torque: 0,2Nm (1.7in-lbf) Terminal Terminal name Remarks symbols Multi-Function Indication Refer to Pr.3-06 Relay output contact RA-RC Output Contact Resistor Load Multi-Function Indication 5A(N.O.)/3A(N.C.) 240VAC Output Contact...
  • Page 19 3.5 Wiring Notes CAUTION: Do not connect the AC input to any of the U/T1, V/T2, W/T3 terminals, as it will damage the AC drive. WARNING: Ensure all screws are tightened to the proper torque rating. 3. During installation, follow all local electrical, construction, and safety codes for the country the drive is to be installed in.
  • Page 20 CHAPTER 3 WIRING 12. For the single-phase applications, the AC input line can be connected to any two of the three input terminals R/L1, S/L2, T/L3. Note: This drive is not intended for the use with single-phase motors. 13. Route the power and control wires separately, or at 90°angle to each other. 14.
  • Page 21 CHAPTER 4 DIGITAL KEYPAD OPERATION 4.1 Description of Digital Keypad This digital keypad includes two parts: Display panel and keypad. Display panel provides the parameter display and shows operation status of the AC drive. Keypad provides programming interface between users and AC drives. LED Display LED indication Indicate frequency, motor...
  • Page 22 CHAPTER 4: DIGITAL KEYPAD OPERATION 4.2 Explanations of Display Messages Display Message Descriptions The AC drive Master Frequency The Actual Operation Frequency present at terminals U/T1, V/T2, and W/T3. The output current present at terminals U/T1, V/T2, and W/T3 The custom unit (u), where u = H x Pr 0-05. The counter value (C) The internal PLC process step currently being performed.
  • Page 23 4.3 Explanation of LED Indicators Stop AC drive when STOP button has been pressed. STOP REV LED lights during reverse operation. FWD LED lights during forward operation. RUN LED lights during RUN operation. 1. Description of LED functions of RUN and STOP Output frequency of the AC motor drive...

  • Page 24: Keypad Operation

    CHAPTER 4: DIGITAL KEYPAD OPERATION 4.4 Keypad Operation Change display mode MO DE Change display item Set frequency Set frequency Set frequency Freq. MO DE Change operation MO DE MO DE MO DE direction Change display Change display Change display mode mode mode...
  • Page 25 CHAPTER 5’ – Quick Start Guide The parameters of the inverter drives V2500 are pre-set by factory to application based values that usually occur in standard environment. When following the Warnings in the Introduction of this manual and the storage and installation guidelines in chapter 2 as well as the wiring notes in chapter 3, the start-up will usually be executed in very short time because of the parameters factory settings.
  • Page 26 CHAPTER 5’: QUICK START GUIDE Groupe 2: Operation Method Parameters Para- Factory Actual Explanation Settings meter Setting Setting d0: Master Frequency input determined by digital keypad. (record the frequency of power loss and it can do analog overlap plus) d1: Master Frequency determined by analog signal DC 0V-10V (external terminal AVI).
  • Page 27 Para- Factory Actual Explanation Settings meter Setting Setting Potentiometer Reverse d0: Forward Motion Only 4-03 Motion Enable d1: Reverse Motion enabled d0: Parameter Disable Multi-Function Digital Input d1: DI1=FWD/STOP, DI2=REV/STOP 4-04 Terminal 1 (DI1, DI2) d2: DI1=FWD/REV, DI2=RUN/STOP d3: 3-wire Operation Control Mode d4: E.F.

  • Page 28: Periodic Inspection

    MAINTENANCE AND INSPECTIONS CHAPTER 6 MAINTENANCE AND INSPECTIONS Modern AC drives are based on solid state electronics technology, preventive maintenance is required to operate this AC drive in its optimal condition, and to ensure a long life. It is recommended to perform a monthly check up of the AC drive by a qualified technician.
  • Page 29 CHAPTER 7 TROUBLESHOOTING AND FAULT INFORMATION The L2500 AC drive has a comprehensive fault diagnostic system that includes several different alarms and fault messages. Once a fault is detected, the corresponding protective functions will be activated. The following faults are displayed as shown on the AC drive digital keypad panel.
  • Page 30 CHAPTER 7: TROUBLESHOOTING AND FAULT INFORMATION Fault Name Fault Descriptions Corrective Actions The AC drive detects excessive drive output 1. Check whether the motor is overloaded. current. 2. Reduce torque compensation setting as set Note: The AC drive can in Pr.7-02. 3.
  • Page 31 Fault Name Fault Descriptions Corrective Actions 1. Switch off power supply. Internal memory IC can 2. Check whether the input voltage falls within not be programmed. the rated AC drive input voltage. 3. Switch the AC drive back on. 1. Check the connections between the main Internal memory IC can control board and the power board.
  • Page 33 CHAPTER 8 SUMMARY OF PARAMETER SETTINGS !: The parameter can be set during operation, *: Twice and/or adapted value for 400/460V class. Group 0: User Parameters Para- Factory Actual Explanation Settings meter Setting Setting 0-00 Identity Code of AC Drive Read-only 0-01 Rated Current Display Read-only...
  • Page 34 CHAPTER 8: SUMMARY OF PARAMETER SETTINGS Group 1 Basic Parameters Para Factory Actual Explanation Settings Setting Setting 1-00 Maximum Output Freq. d50.0 to d400 Hz d50.0 Maximum Voltage Frequency 1-01 d10.0 to d400 Hz d50.0 (Base Freq) d230 / 1-02 Maximum Output Voltage d2.0V to d255V* d400 1-03 Mid-Point Frequency...
  • Page 35 Group 2 Operation Method Parameters Para- Factory Actual Explanation Settings meter Setting Setting d0: Master Frequency input determined by digital keypad. (record the frequency of power loss and it can do analog overlap plus) d1: Master Frequency determined by analog signal DC 0V-10V (external terminal AVI).
  • Page 36 CHAPTER 8: SUMMARY OF PARAMETER SETTINGS Group 3 Output Function Parameters Para- Factory Actual Explanation Settings meter Setting Setting d0: analog frequency (0 to Max. Output Frequ.: Pr-1-00) 3-00 Analog Output Signal d1: analog current (0 to 250% of Rated Drive Output Current 3-01 Analog Output Gain ! d1 to d200%...
  • Page 37 Group 4: Input Function Parameters Para- Factory Actual Explanation Settings meter Setting Setting 4-00 Potentiometer Bias Frequ. ! d 0.0 to d 100.0% d0.0 d0: Positive Bias 4-01 Potentiometer Bias Polarity d1: Negative Bias Potentiometer Frequency 4-02 d1 to d200 % d100 Gain Potentiometer Reverse...
  • Page 38 CHAPTER 8: SUMMARY OF PARAMETER SETTINGS Para- Factory Actual Explanation Settings meter Setting Setting Acceleration /Deceleration 4-11 speed of constant up/down d0 to d1000 Hz/sec frequency Group 5: Multi-Step Speed and PLC Parameters Para- Factory Actual Explanation Settings meter Setting Setting 5-00 1 Step Speed Freq.
  • Page 39 Group 6: Protection Parameters Para- Factory Actual Explanation Settings meter Setting Setting d0: Disable 6-00 Over-Voltage Stall Prevention d1: Enable 230V series: d350 to d410V d390 6-01 Over-Voltage Prevention Level 460V series: d700 to d820V d780 Over-Current Stall Prevention 6-02 d20 to d150% d130 Level...
  • Page 40 CHAPTER 8: SUMMARY OF PARAMETER SETTINGS Group 7 Motor Parameters Para- Factory Actual Explanation Settings meter Setting Setting d30 to d120% (% of Drive’s Rated 7-00 Motor Rated Current Current) 7-01 Motor No-Load Current ! d0 to d90% (% of Drive’s Rated Current) 7-02 Torque Compensation ! d0 to d10 d0.0 to d10.0 (% of Max.
  • Page 41 Group 9: Communication Parameters Para- Factory Actual Explanation Settings meter Setting Setting 9-00 Communication Address !d1 to d254 d0: Baud Rate 4800 bps d1: Baud Rate 9600 bps 9-01 Transmission Speed d2: Baud Rate 19200 bps d3: Baud Rate 38400 bps d0: Warn and Keep Operating Transmission Fault d1: Warn and Ramp to Stop...
  • Page 42 APPENDIX A: TECHNICAL SPECIFICATIONS APPENDIX A: TECHNICAL SPECIFICATIONS Voltage Class 230V Class 400/460V Class ECO-line L2500-00_ _ _xW1 Max. Applicable Motor Output (kW) 0.75 01.Mai 02.Feb 0.75 01.Mai 02.Feb Max. Applicable Motor Output (HP) Rated Output Capacity (kVA) Rated Output Current (A) 11.0 Recommended 50 Hz...
  • Page 43 APPENDIX B - ACCESSORIES B.1 Non-fuse Circuit Breaker Chart Recommended by WATT DRIVE Antriebstechnik GmbH (UL 508C, paragraph 45.8.4, part 1. For 1-phase drives, the current rating of the breaker shall be four times maximum of input current rating. 2. For 3-phase drives, the current rating of the breaker shall be four times maximum of output current rating.
  • Page 44 APPENDIX B - ACCESSORIES B.2 Braking Resistors WATT Drive recommends the following braking resistors for use with the according inverters of the L2500 series: Dimensions Inverter Resistor W/H/D (mm³) UDGL2500-0002SAW1 UDZBW-200/00080 140/20/60 UDGL2500-0004SBW1 UDZBW-200/00080 140/20/60 UDGL2500-0007SBW1 UDZBW-200/00080 140/20/60 UDGL2500-0015SEW1 UDZBW-100/00300...
  • Page 45 Dimensions mm (inch) (1.97) (3.35) (1.06) (2.36) (8.39) (7.87) (7.87) (0.52) (0.94) (0.18) UDZNFL-007T...
  • Page 46 APPENDIX B - ACCESSORIES (1.97) (3.94) (1.06) (2.91) (9.49) (8.98) (8.98) (0.59) (0.94) (0.22) UDZNFL-022T...
  • Page 47 APPENDIX C - DIMENSIONS ACHTUNG HOCHSPANNUNG: VOR DEM ÖFFNEN DES UMRICHTERS MINDESTENS 5 MINUTEN WARTEN. BETRIEBSANLEITUNG BEACHTEN WARNING - HIGH VOLTAGE: WAIT AT LEAST 5 MINUTES BEFORE OPENING. ECO-line FOLLOW USER MANUAL ECO-line...
  • Page 48 APPENDIX C - DIMENSIONS (inch) (inch) (inch) (inch) (inch) (inch) (inch) (inch) (inch) (inch) (inch) 133.7 UDGL2500-0002SAW1 (3.35) (2.92) (5.83) (5.27) (5.0) (0.23) (0.32) (0.33) 133.7 UDGL2500-0004SBW1 (3.35) (2.92) (5.83) (5.27) (5.0) (0.23) (0.32) (0.33) 133.7 UDGL2500-0007SBW1 (3.35) (2.92) (5.83) (5.27) (5.0) (0.23)
